Plan 62848DJ New American House Plan with 2-Story Great Room and Upstairs Safe Room

3,357 4 3.5 - 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American House Plan with 2-Story Great Room and Upstairs Safe Room

Plan 62848DJ

  • 3,357

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The exterior of this New American house plan features board and batten siding mixed with wood accents. An amazing balcony above the garage gives this home a modern and unique facade.
  • The great room lies under a 2-story ceiling and is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes a large island with a snack bar and a large walk-in closet. A dining room lies just off the kitchen and accesses the rear covered patio. Also on the main floor, you'll find the luxurious master suite where the master bedroom  features a decorative tray ceiling. The master bathroom has a wet room, his/her vanities, and a massive walk-in closet with access to the laundry room.
  • On the second level, you'll find 3 bedrooms. Each bedroom has its own walk-in closet. Bedrooms 3 and 4 share a bathroom while bedroom 2 shares a bathroom with the upstairs living space. Bedroom 2 has a safe room that is accessed through the back of its walk-in closet. A media room on the second floor is warmed by a fireplace with built-in bookshelves, and has access to the front balcony.
  • An optional finished basement adds 1,314 sq ft. and adds amazing features to the home including a bar with a wine room, a table room, an exercise room, an addiitonal family room with a fireplace and an additional bedroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

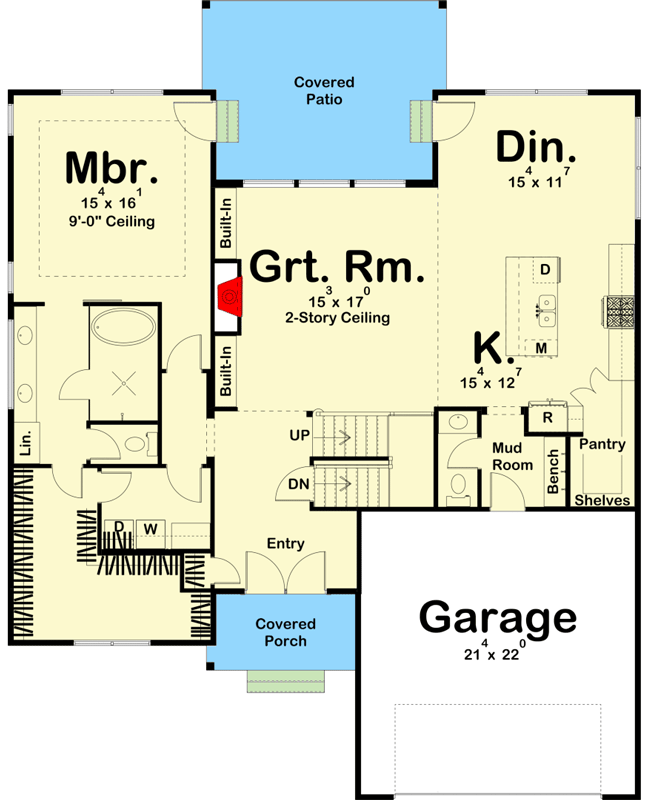

New American House Plan with 2-Story Great Room and Upstairs Safe Room - 62848DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

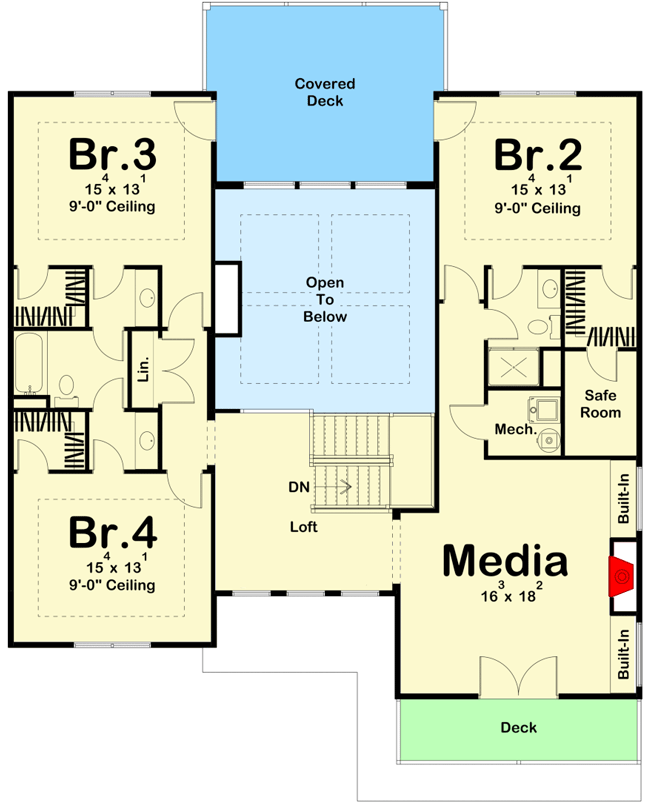

New American House Plan with 2-Story Great Room and Upstairs Safe Room - 62848DJ floor plan - 2nd Floor

Lower Level Layout Option (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

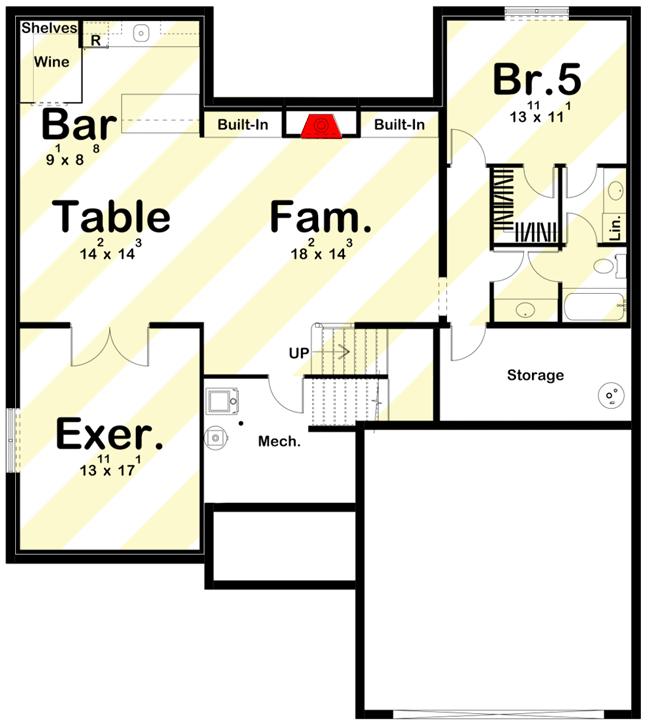

New American House Plan with 2-Story Great Room and Upstairs Safe Room - 62848DJ floor plan - Lower Level Layout Option (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,357 sq. ft.
  • 1st Floor: 1,719 sq. ft.
  • 2nd Floor: 1,638 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 61' 0"

Garage

  • Type: Attached
  • Area: 489 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

New American House Plan with 2-Story Great Room and Upstairs Safe Room

  • 3,357

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • The exterior of this New American house plan features board and batten siding mixed with wood accents. An amazing balcony above the garage gives this home a modern and unique facade.
  • The great room lies under a 2-story ceiling and is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes a large island with a snack bar and a large walk-in closet. A dining room lies just off the kitchen and accesses the rear covered patio. Also on the main floor, you'll find the luxurious master suite where the master bedroom  features a decorative tray ceiling. The master bathroom has a wet room, his/her vanities, and a massive walk-in closet with access to the laundry room.
  • On the second level, you'll find 3 bedrooms. Each bedroom has its own walk-in closet. Bedrooms 3 and 4 share a bathroom while bedroom 2 shares a bathroom with the upstairs living space. Bedroom 2 has a safe room that is accessed through the back of its walk-in closet. A media room on the second floor is warmed by a fireplace with built-in bookshelves, and has access to the front balcony.
  • An optional finished basement adds 1,314 sq ft. and adds amazing features to the home including a bar with a wine room, a table room, an exercise room, an addiitonal family room with a fireplace and an additional bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level Layout Option (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,357 sq. ft.
  • 1st Floor: 1,719 sq. ft.
  • 2nd Floor: 1,638 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 61' 0"

Garage

  • Type: Attached
  • Area: 489 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
Plan 62848DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62848DJ
|
