New American House Plan with 3-Car Garage and a Vaulted Bonus Room
Heated S.F.
2,407
Beds
3-4
Baths
2.5 - 3.5
Stories
1-2
Cars
3
Flyer
What's Included
Plan Details
  • Two gables above the front porch that partially wraps the front-right corner and board and batten siding give this modern farmhouse plan great curb appeal.
  • The open kitchen features a sizable, prep island and large, walk-in pantry for maximum storage space. The attached living room displays a fireplace with surrounding built-ins, and overlooks the covered porch and sun deck.
  • The master bedroom is situated away from the secondary bedrooms, and boasts a tray ceiling and access to the deck. The master bath includes 5 fixtures and the pass-through closet leads to the mudroom, with quick access to the laundry room.
  • Bedrooms 2 and 3 are located on either side of the foyer, and share a 4-fixture bath.

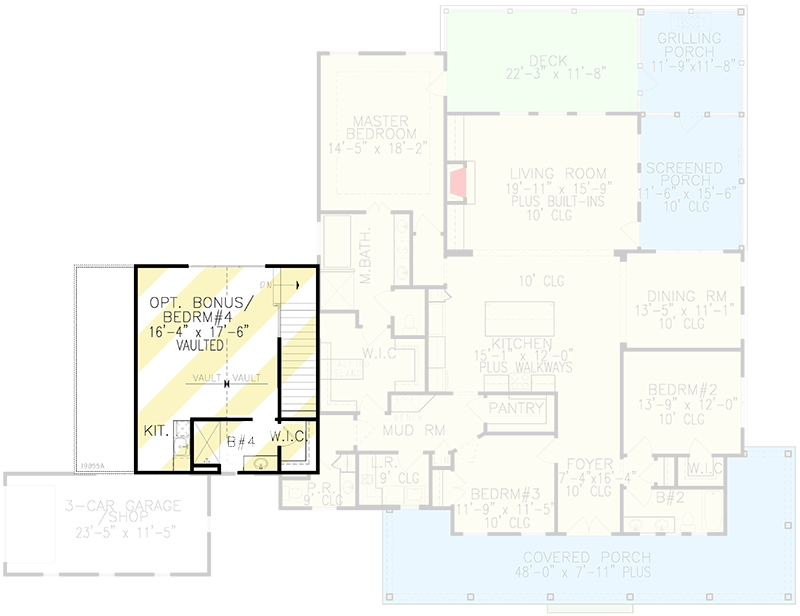

  • An optional bonus room above the 3-car garage boosts living space by 436 sq. ft. and includes a full bath.
  • Related Plan: Get an alternate exterior with house plan 25680GE.
What's Included

The plan set includes the following:

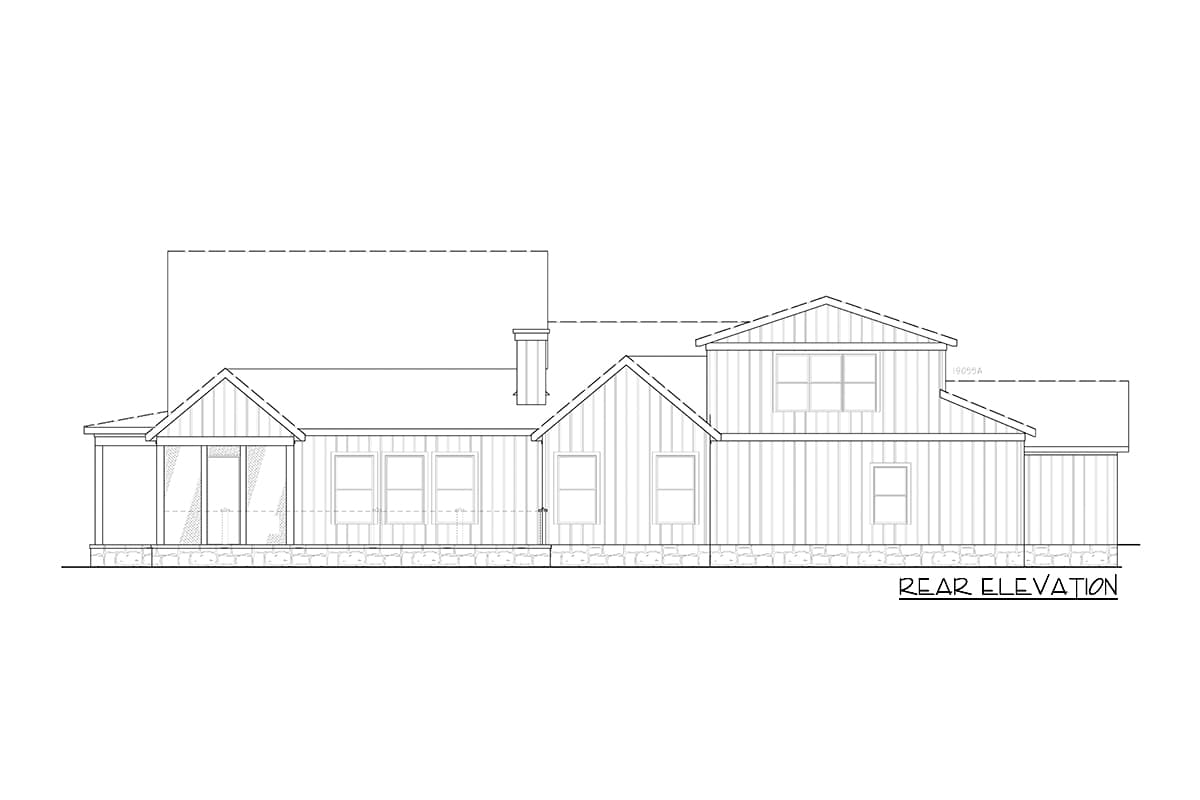

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

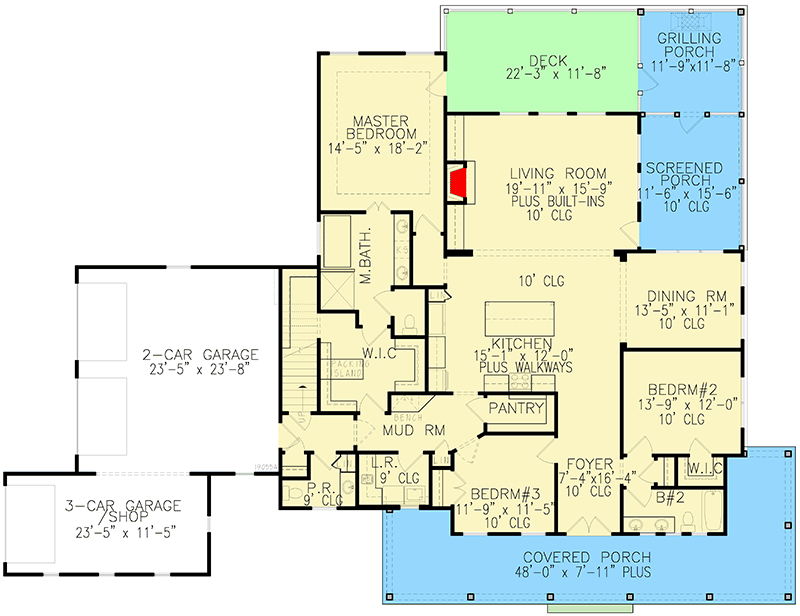

  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
