New American House Plan with Courtyard Garage with Game Room Above
Heated S.F.
3,249
Beds
3-4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A courtyard garage with two dormers and a covered entry with French doors opening to the home give this New American house plan great curb appeal.
  • Step inside and you are greeted with an open floor plan. The great room has a fireplace flanked by doors giving you access to the outdoor living room in back and is open to the kitchen where a large island gives you work space and casual seating for up to four.
  • Off the foyer, French doors open to a home office with built-in desk.
  • Three bedrooms are clustered on the left side of the home and the laundry is conveniently located for all.

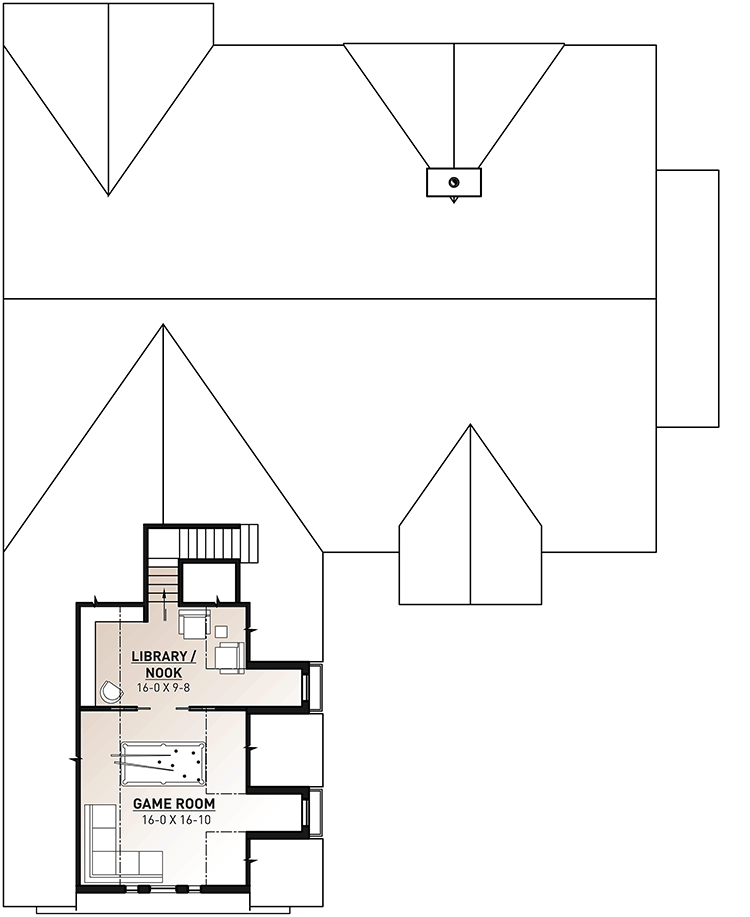

  • Upstairs, a library and game room complete the home.
  • Related Plan: Get an alternate version with house plan 21648DR.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Courtyard Garage with Game Room Above

  • 3,249

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

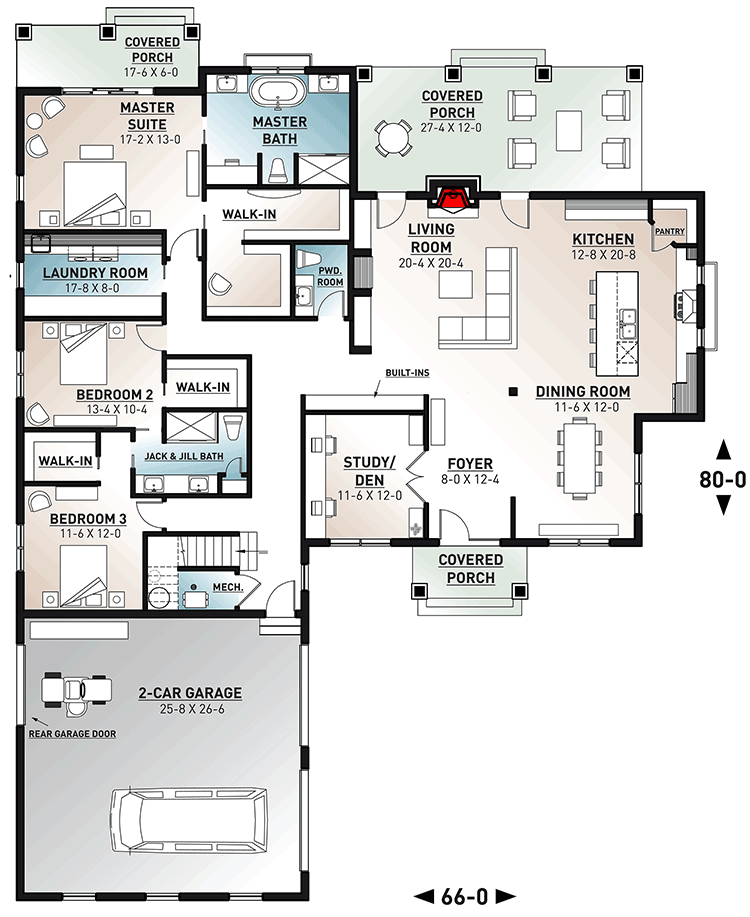

Floor Plan
