New American House Plan with Flex Room and 3-Car Garage - 1877 Sq Ft

Heated S.F.
1,877
Beds
3 - 4
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 421552CHD

Main Level
Main Level

Plan 421552CHD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

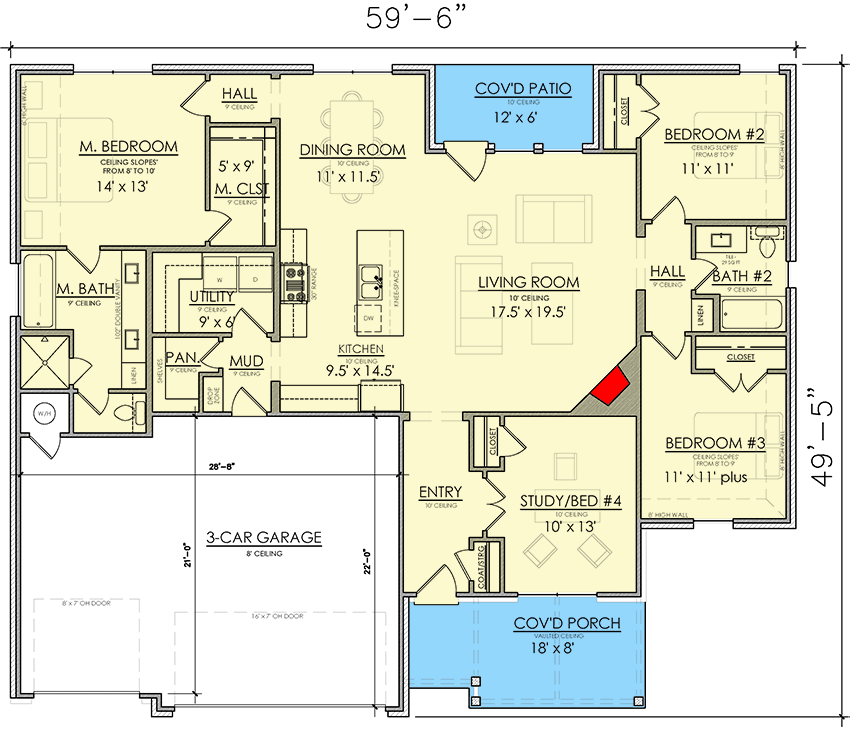

Plan 421552CHD: New American House Plan with Flex Room and 3-Car Garage - 1877 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Ranch

Plan Details

  • This New American house plan gives you 1,887 square feet of heated living space and with a flex room, either 3 or 4 bedrooms.
  • The 3-car garage has a 2-car bay with a 16' by 7' overhead door and a 1-car bay with a 8' by 7' overhead door and a combined 663 square feet of vehicle space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes

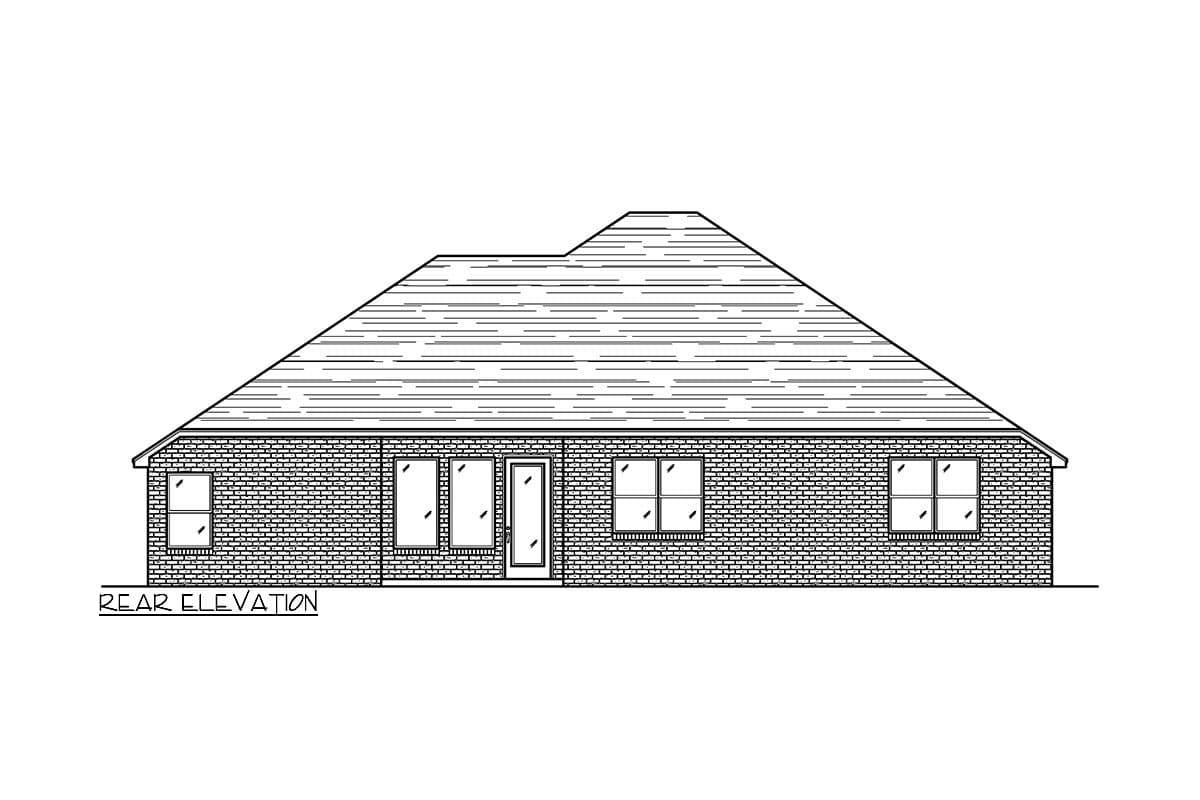

  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,877 sq. ft.

1st Floor

1,877 sq. ft.

Porch, Front

136 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 6"

Depth

49' 5"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

663 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

BED 2

9' 0''

BED 3

9' 0''

M BATH

9' 0''

UTILITY

9' 0''

GARAGE

8' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,877 sq. ft.

1st Floor

1,877 sq. ft.

Porch, Front

136 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 6"

Depth

49' 5"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

663 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

BED 2

9' 0''

BED 3

9' 0''

M BATH

9' 0''

UTILITY

9' 0''

GARAGE

8' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
