We work with hundreds of designers and architects who work in a variety of styles. It is important to note. Their plan packages may contain different details.
We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.
Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:
shows the foundation details.

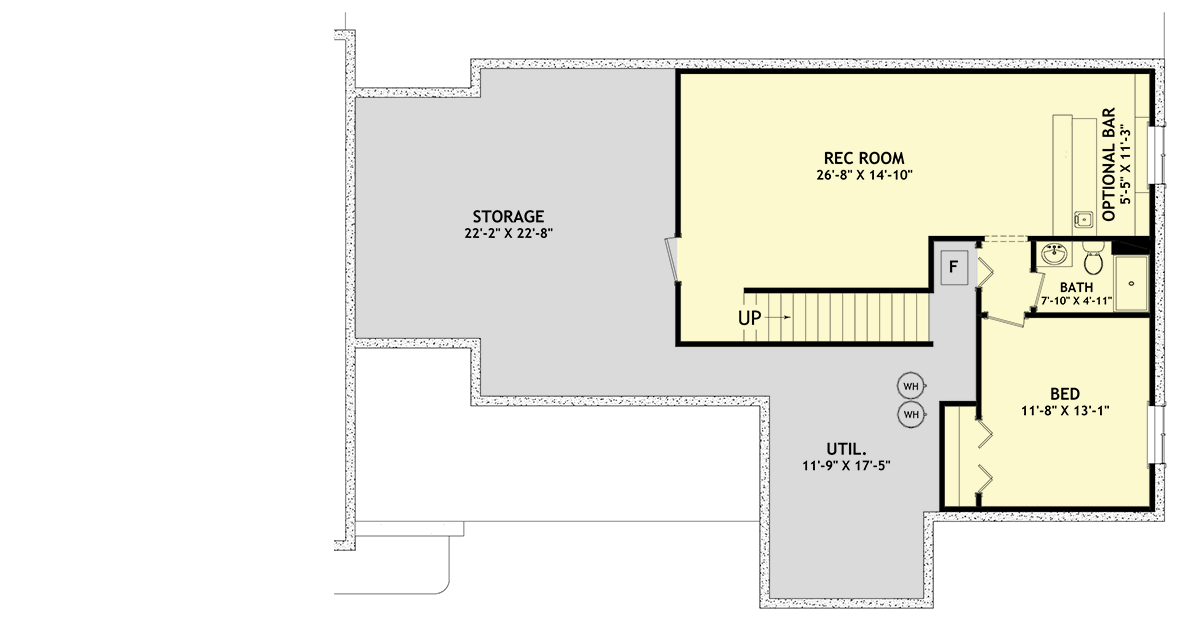

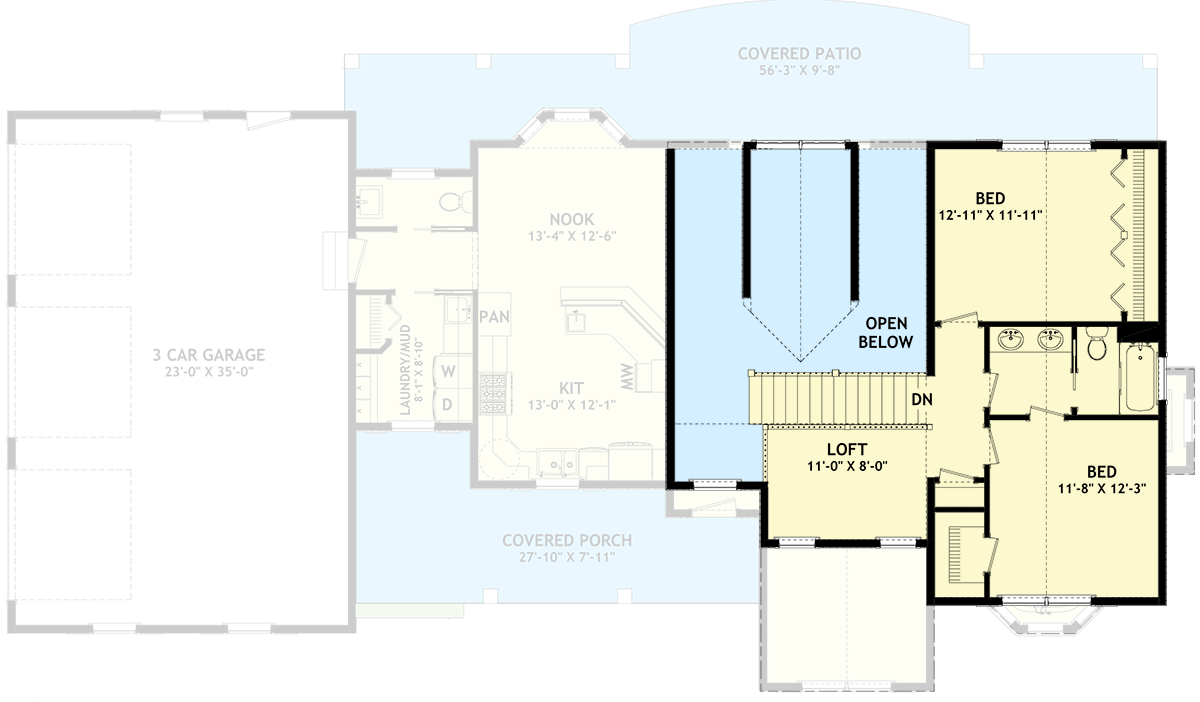

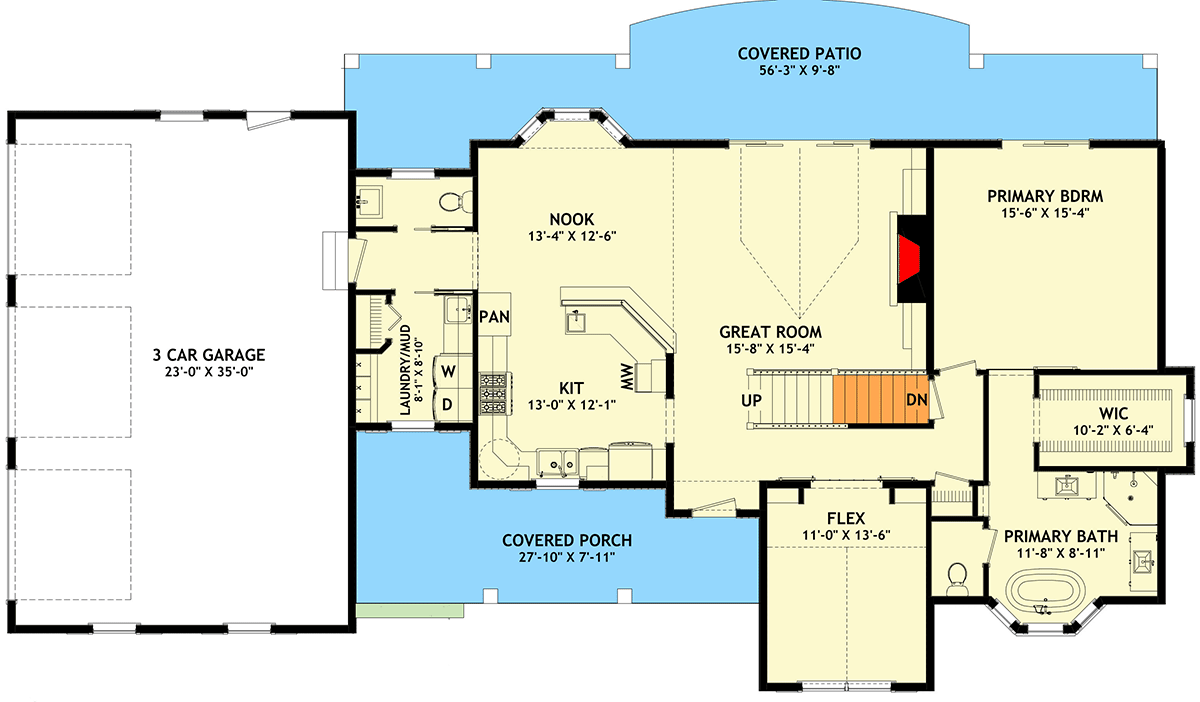

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.
show the front, rear and sides of the house, including exterior materials, details and roof pitches.
shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.
provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
What is not included in the plans:
Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.
Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.
The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.
Mirror Reverse PlansThe lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.
Itemized List of Materials (when available)Includes the quantity, type and size of materials needed to build your home.

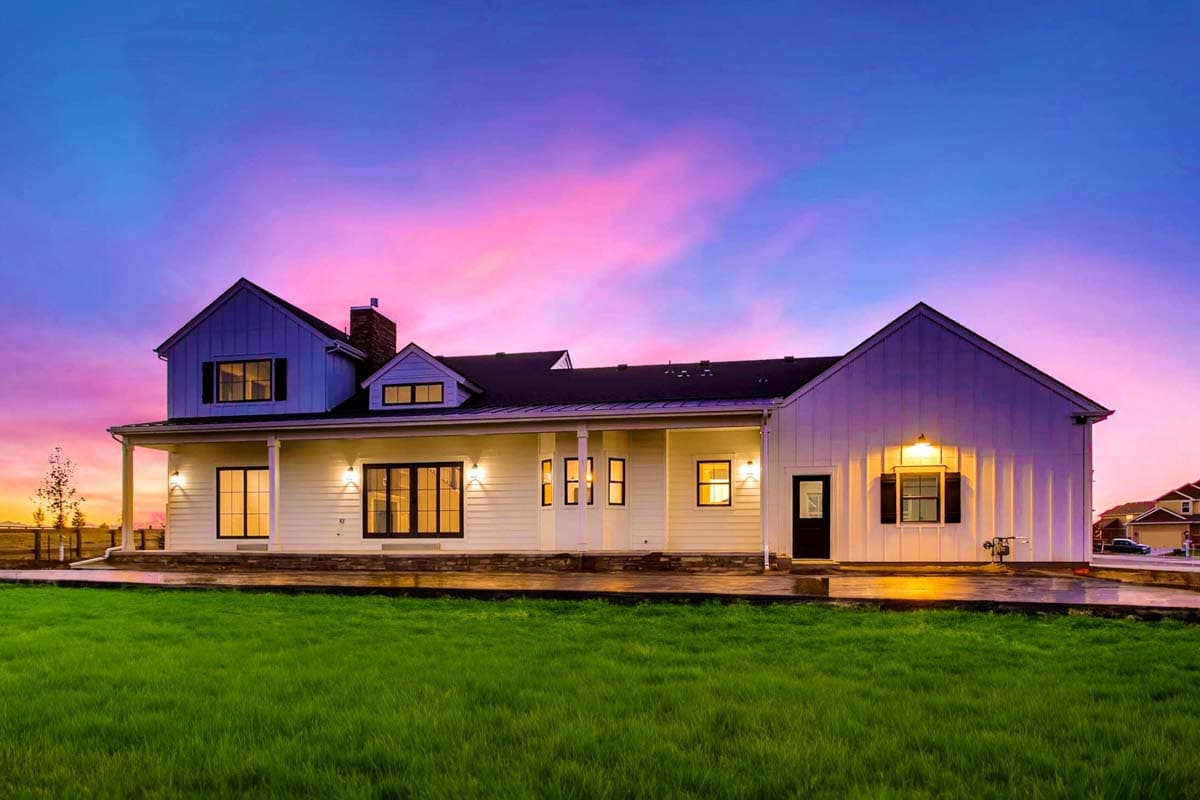

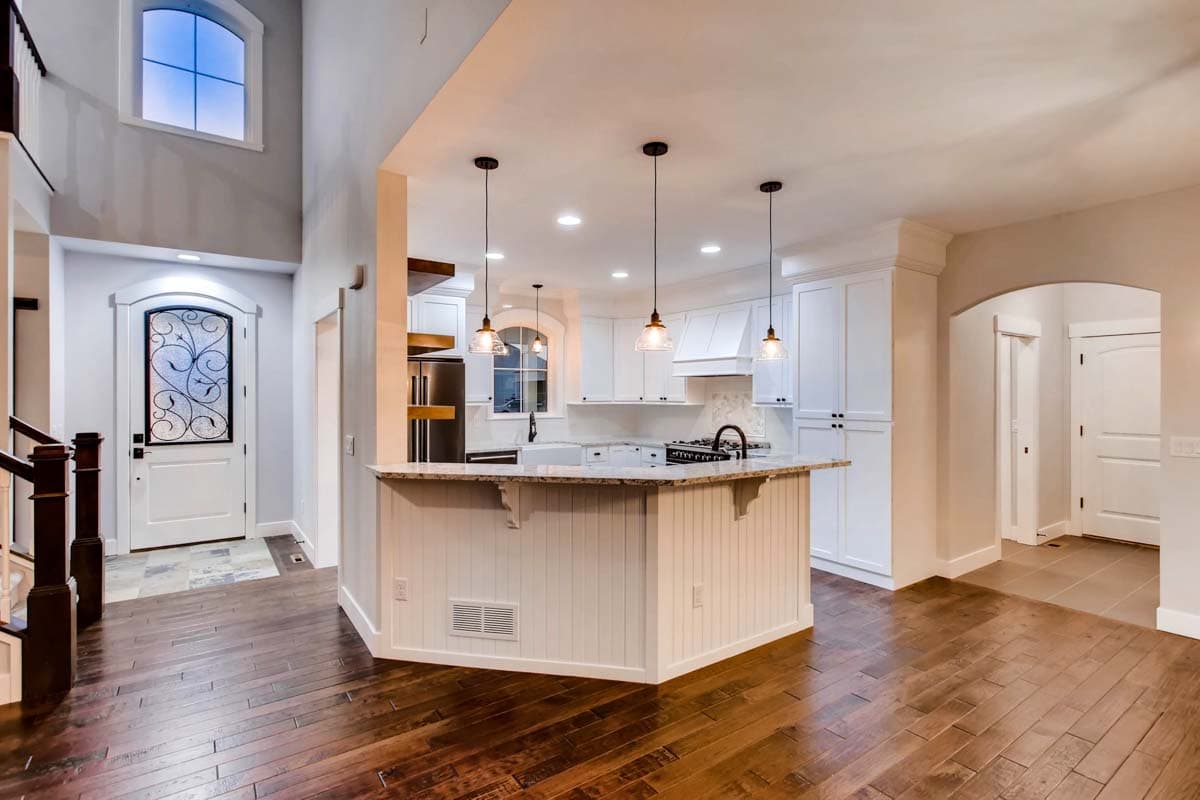

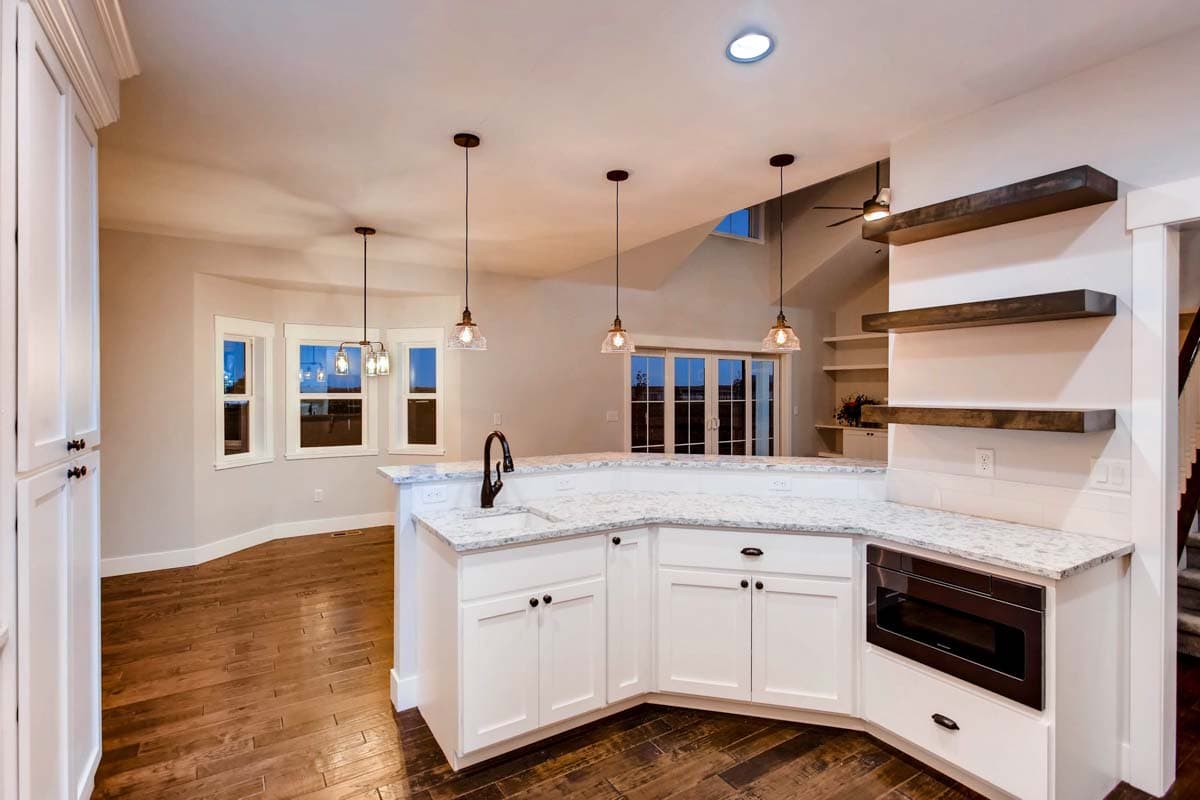

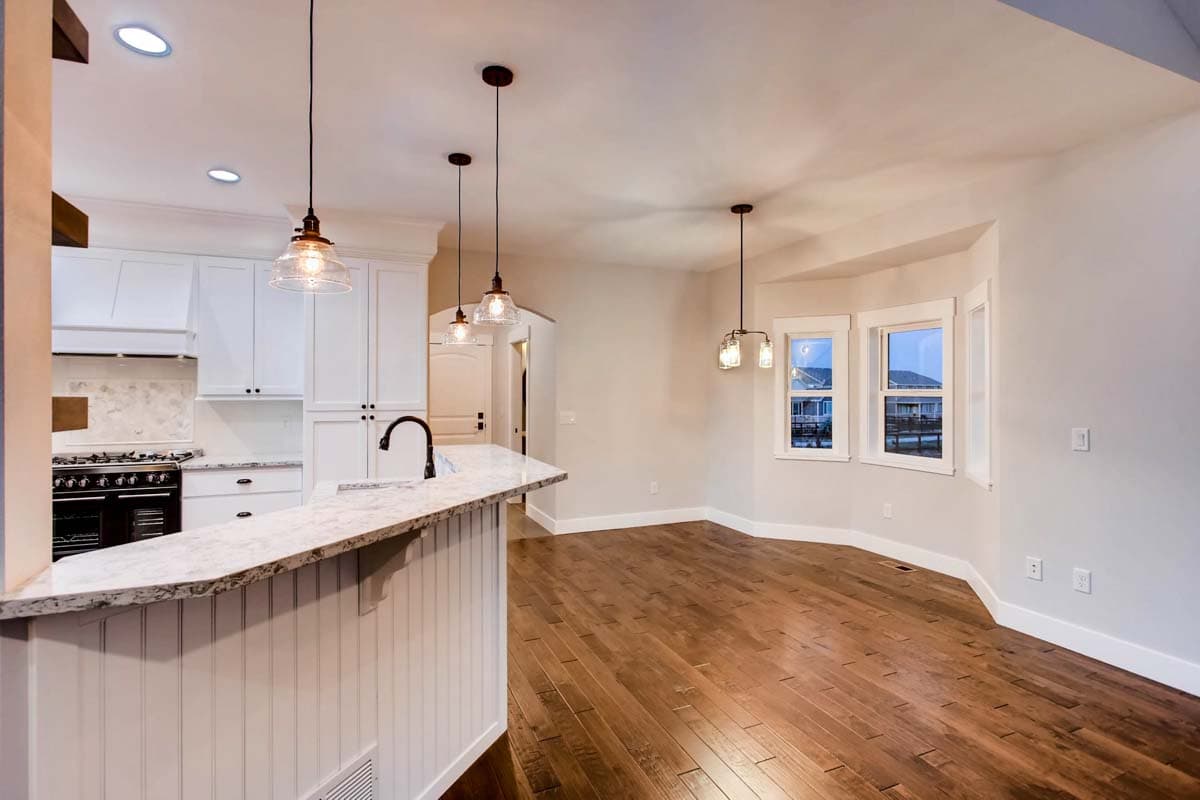

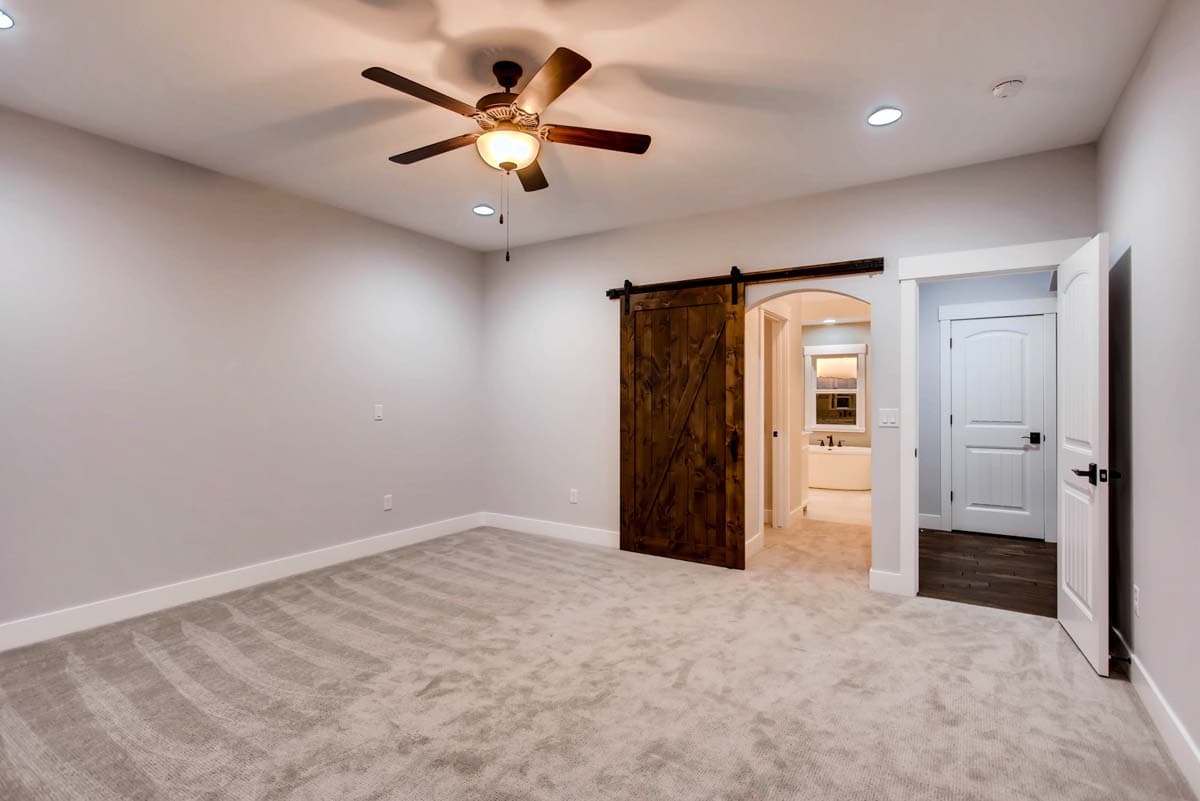

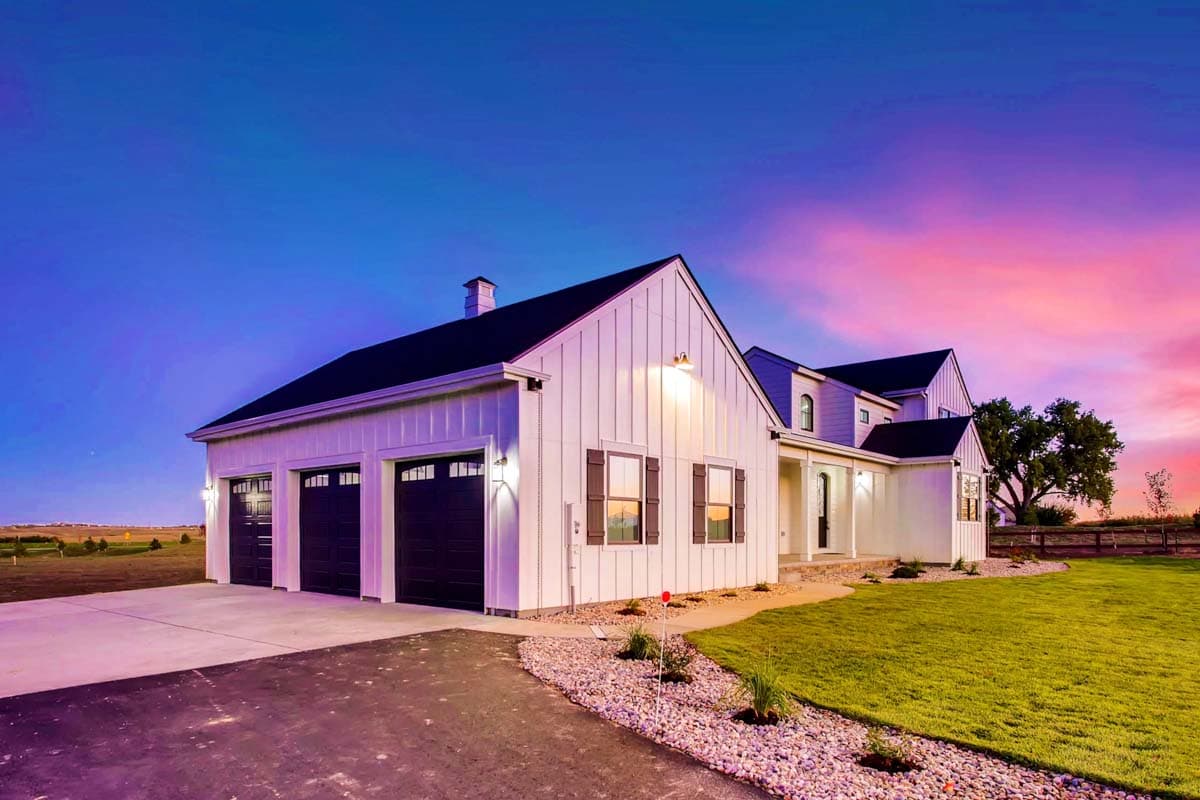

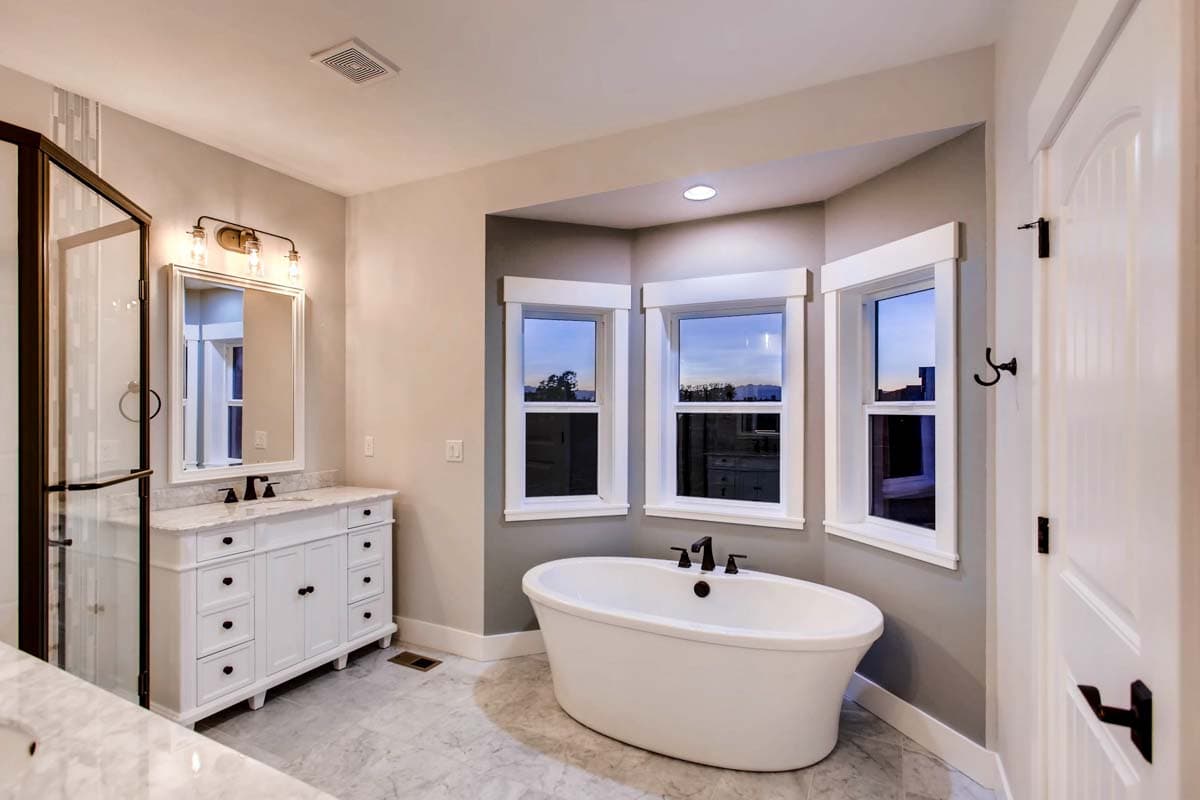

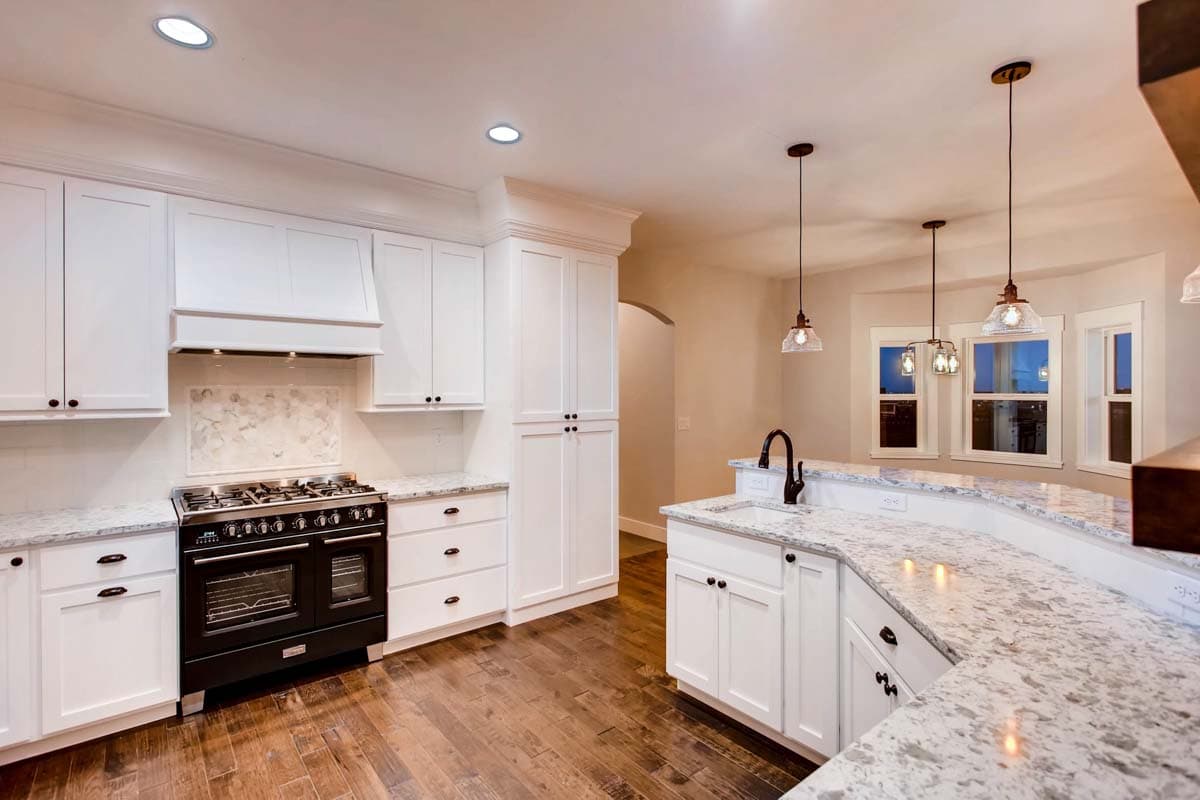

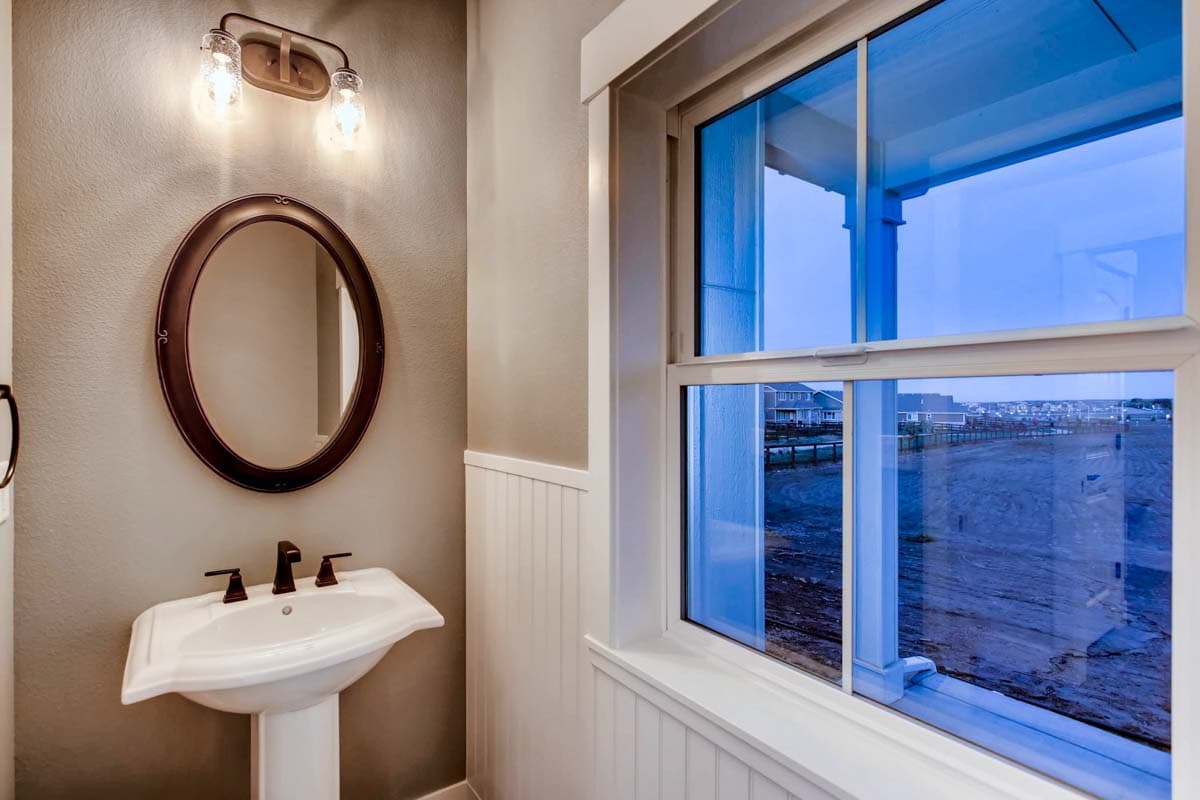

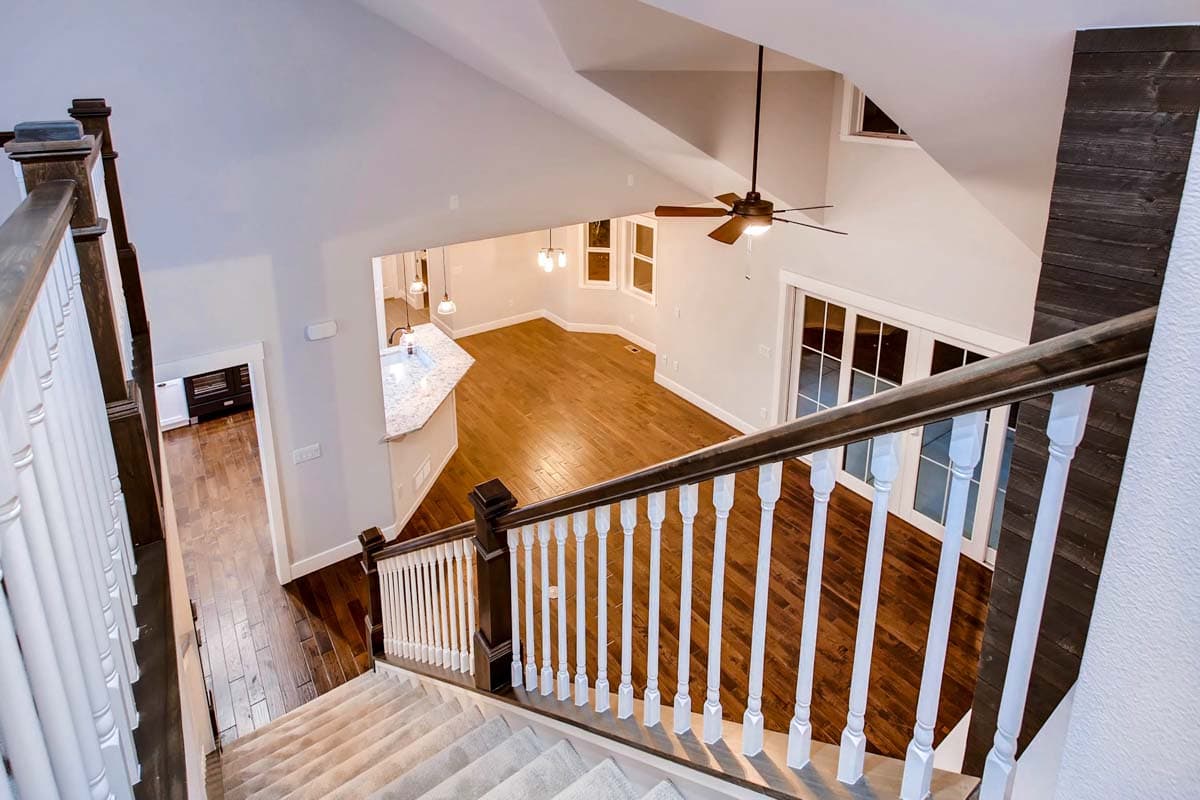

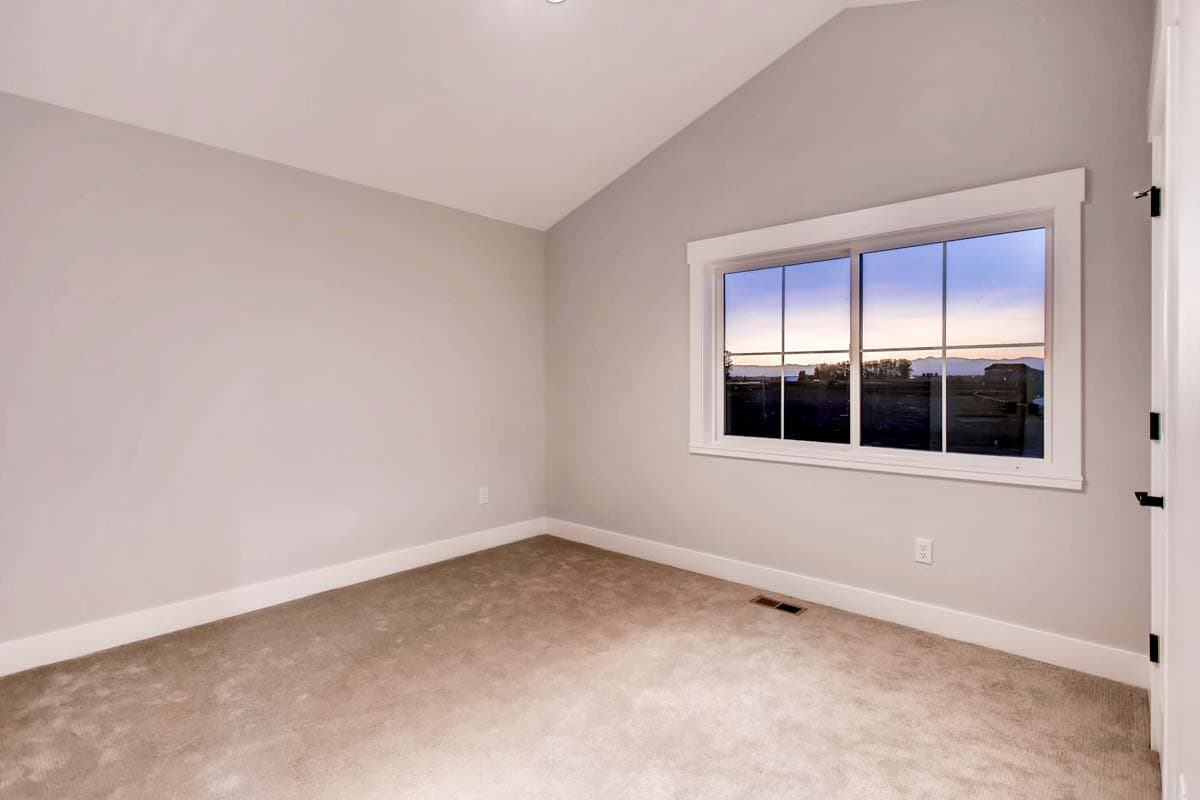

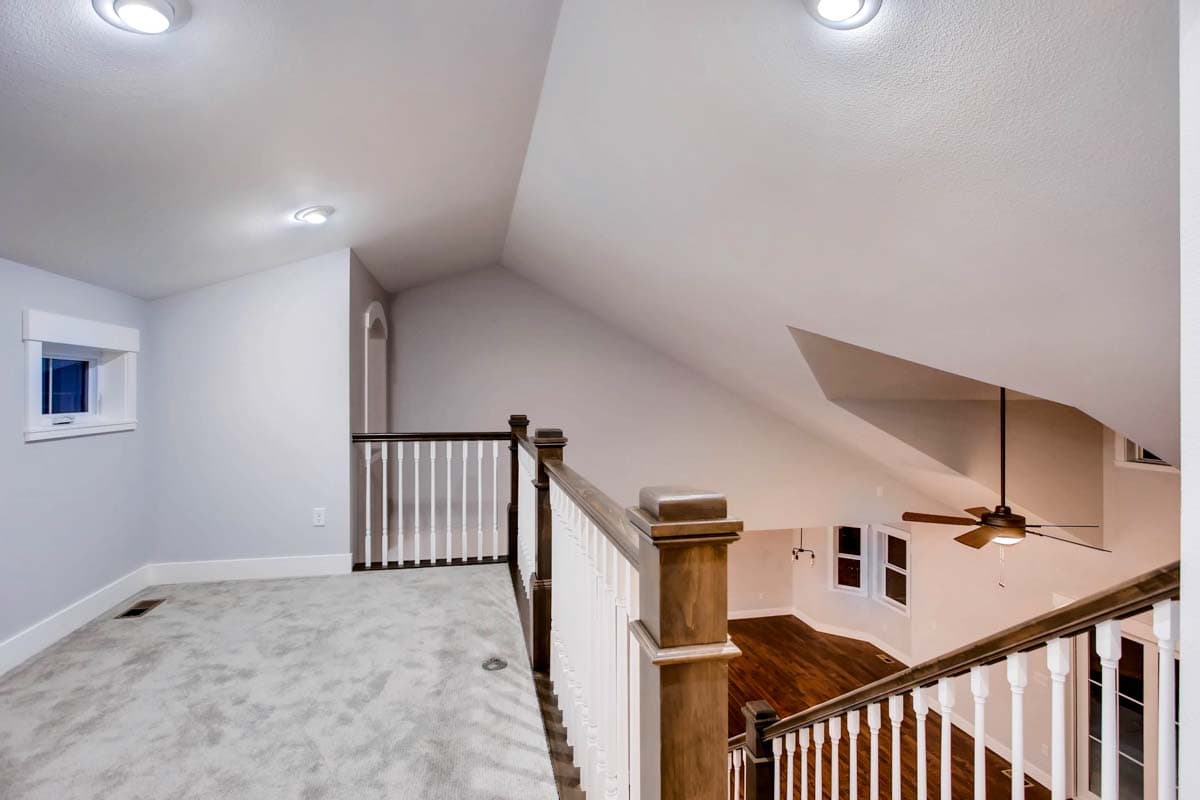

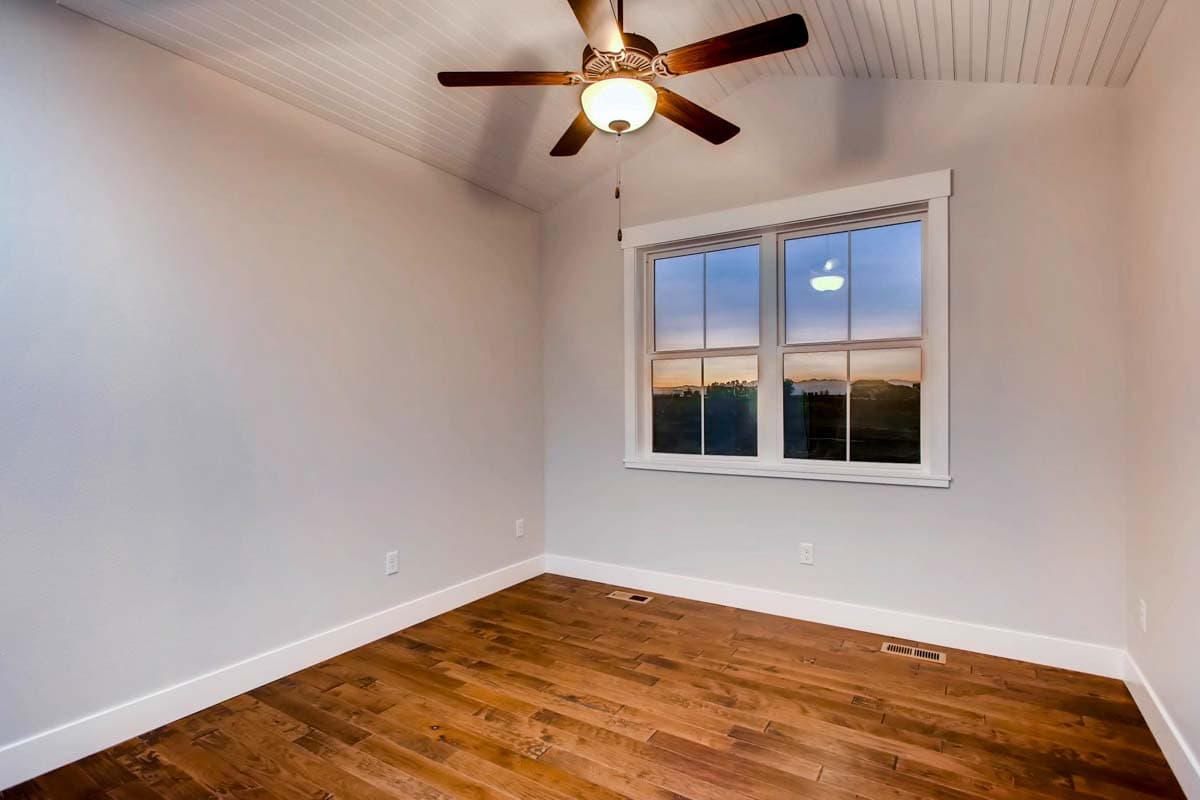

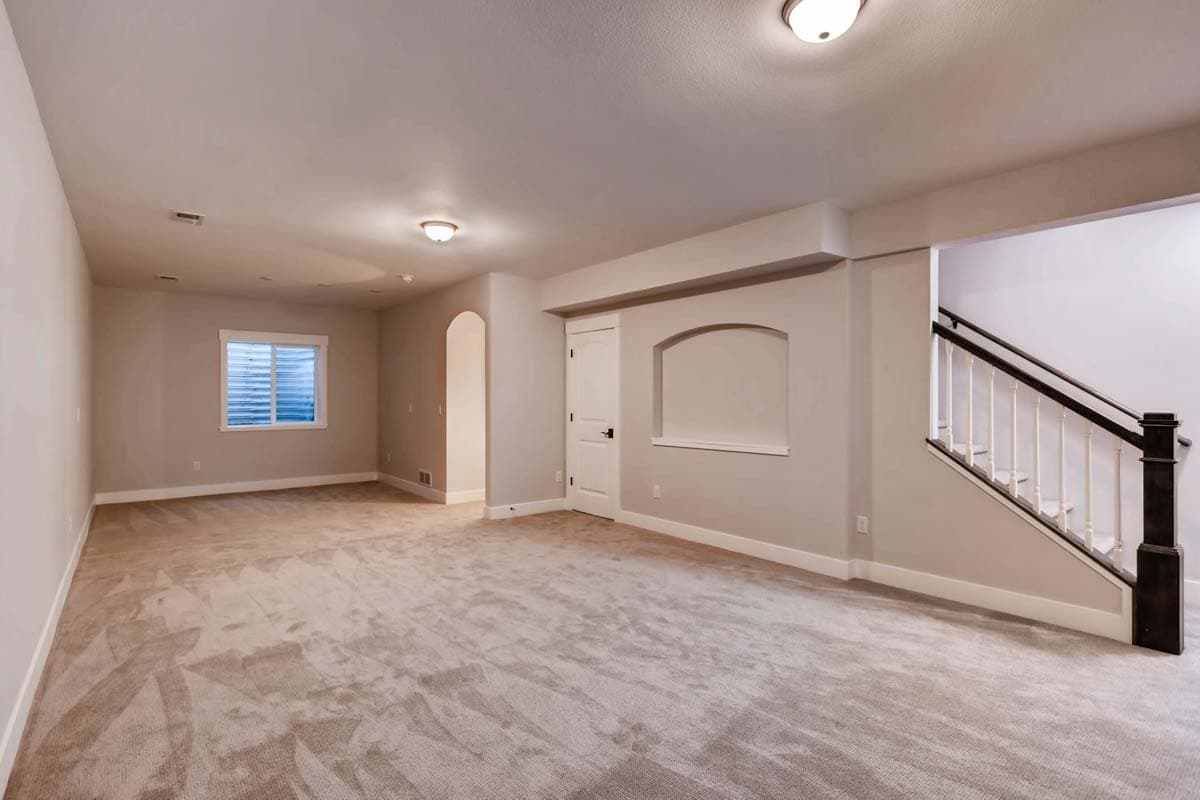

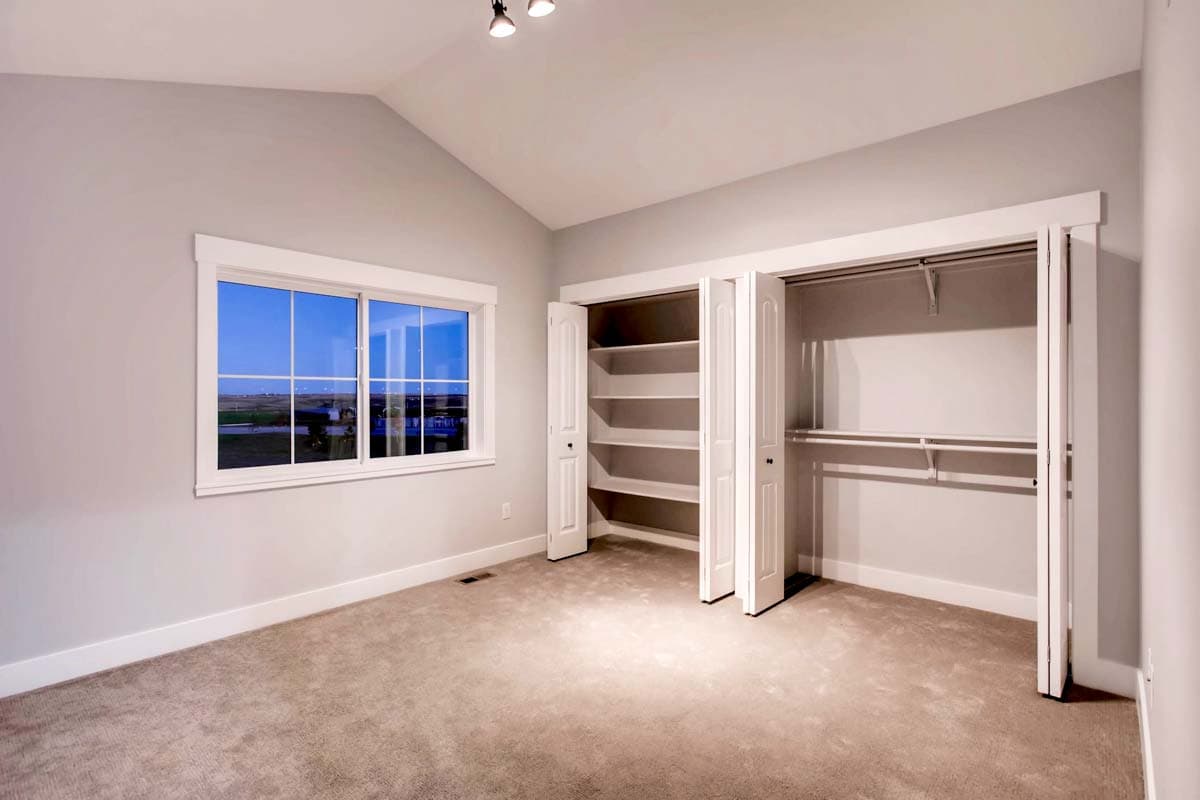

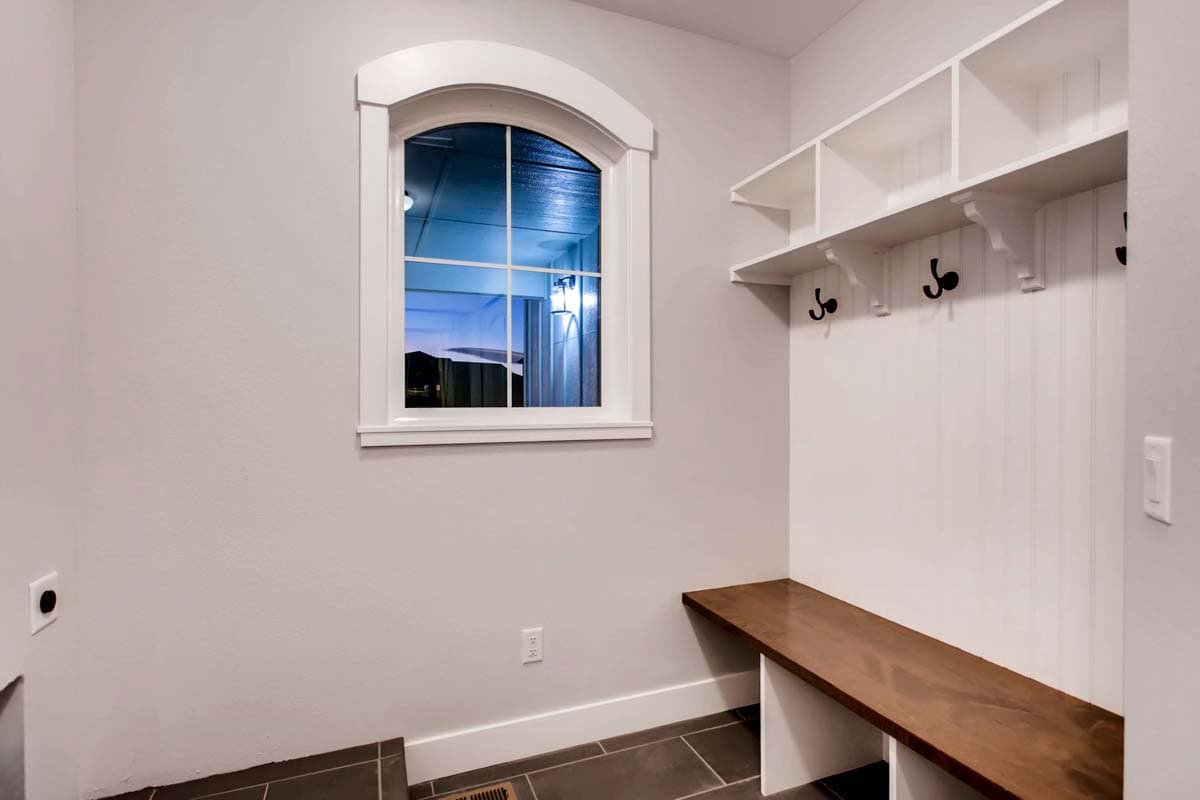

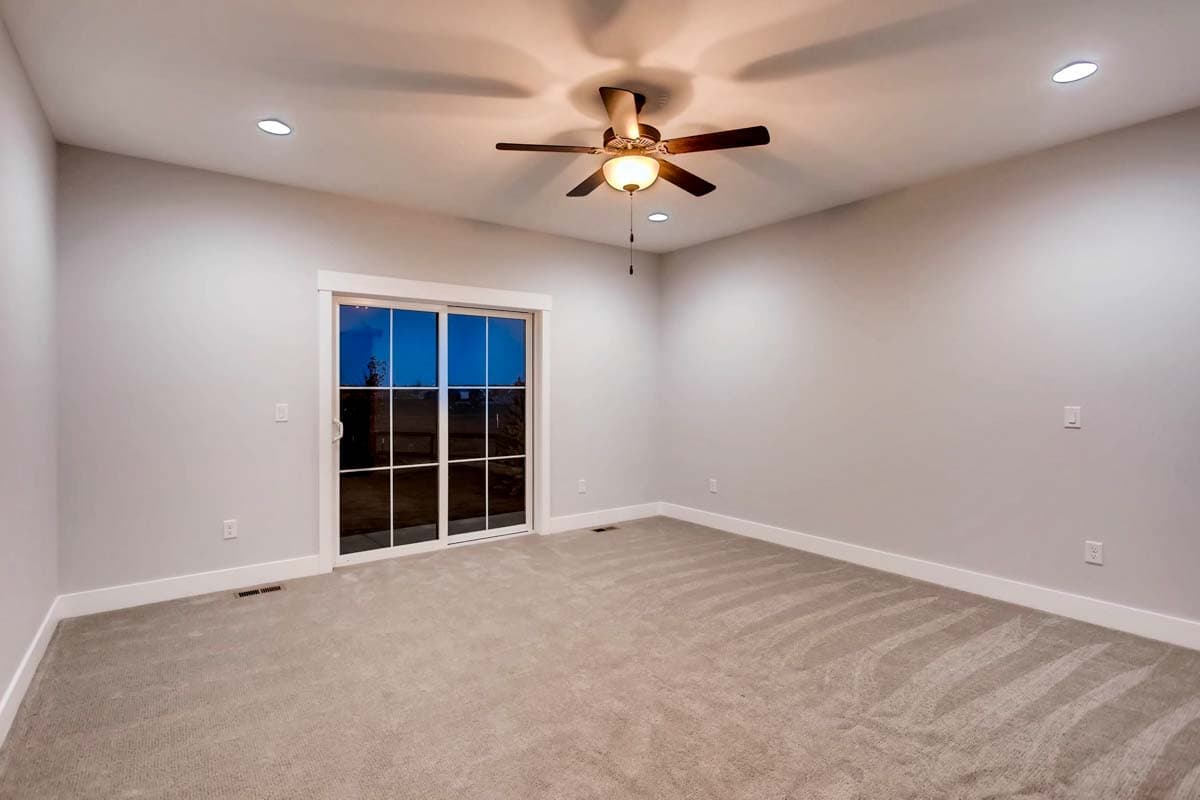

New American House Plan with Flex Room and Lower Level - 3073 Sq Ft
|
