Plan 70606MK

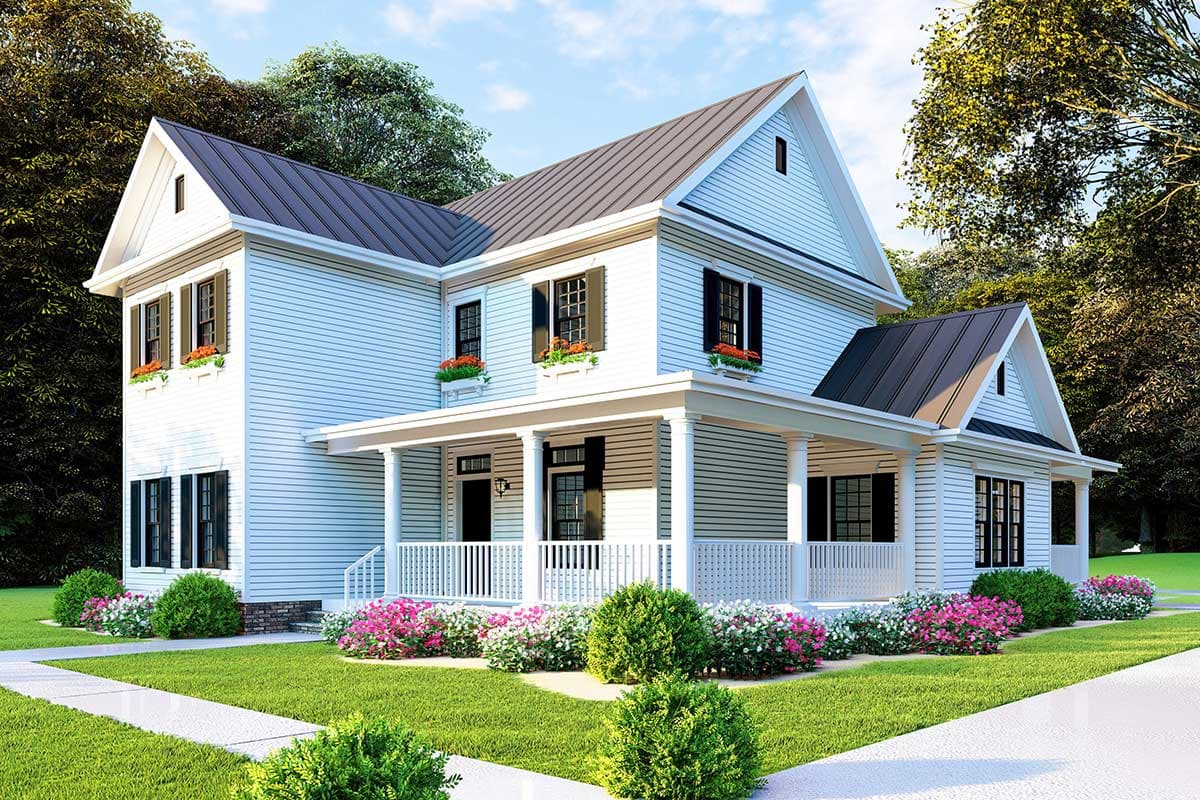

New American House Plan with L-Shaped Porch and Upstairs Expansion

Heated S.F.
2,268
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 70606MK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70606MK

M-F 9am-5pm EST |

1-203-761-8500

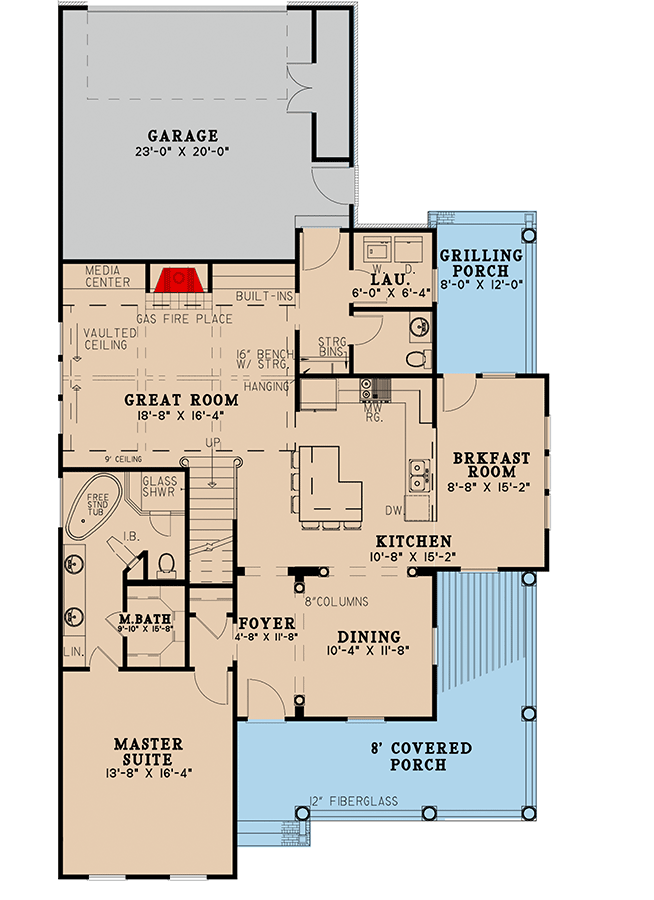

Main Level

Plan 70606MK: New American House Plan with L-Shaped Porch and Upstairs Expansion - Floor Plan - Main Level - Country, Farmhouse, New American

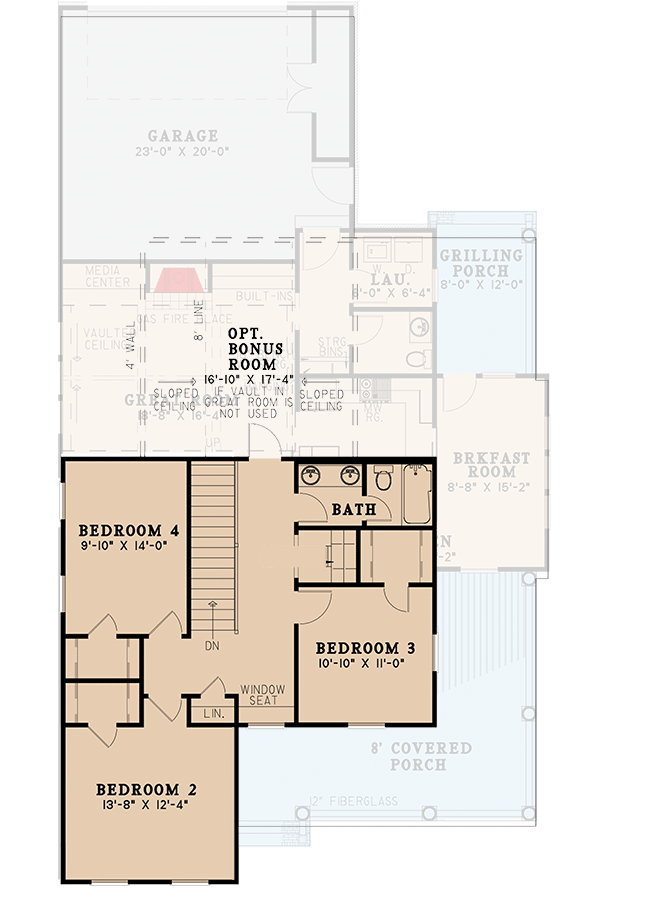

2nd Floor

Plan 70606MK: New American House Plan with L-Shaped Porch and Upstairs Expansion - Floor Plan - 2nd Floor - Country, Farmhouse, New American

Plan Details

  • This 4 bed, 2.5 bath house plan gives you 2,268 square feet of heated living space and has an 8'-deep front porch with twelve-inch supporting columns.
  • Upon entering the quaint foyer, you'll find a formal dining room, conveniently accessible to the kitchen through a clever swinging door and a well-designed kitchen with large eat-at bar.
  • A great room with media center and cozy fireplace allows for easy entertaining while family members find quiet study time in their upstairs bedroom or convenient computer center.
  • An elegant main level master suite comes complete with a large master closet, double vanity, corner shower and whirlpool tub making a perfect retreat at the end of a long day.
  • An optional upstairs bonus room will make a perfect home office or hobby room.
  • Related Plan: Get an alternate kitchen layout with house plan 59115ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,268 sq. ft.

1st Floor

1,474 sq. ft.

2nd Floor

794 sq. ft.

Porch, Combined

381 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 4"

Depth

70' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Special Features

Breakfast Nook

Finished Bonus Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,268 sq. ft.

1st Floor

1,474 sq. ft.

2nd Floor

794 sq. ft.

Porch, Combined

381 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 4"

Depth

70' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Special Features

Breakfast Nook

Finished Bonus Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Home Office
