Plan 90331PD

New American House Plan with Rustic Elegance

Heated S.F.
1,282
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 90331PD

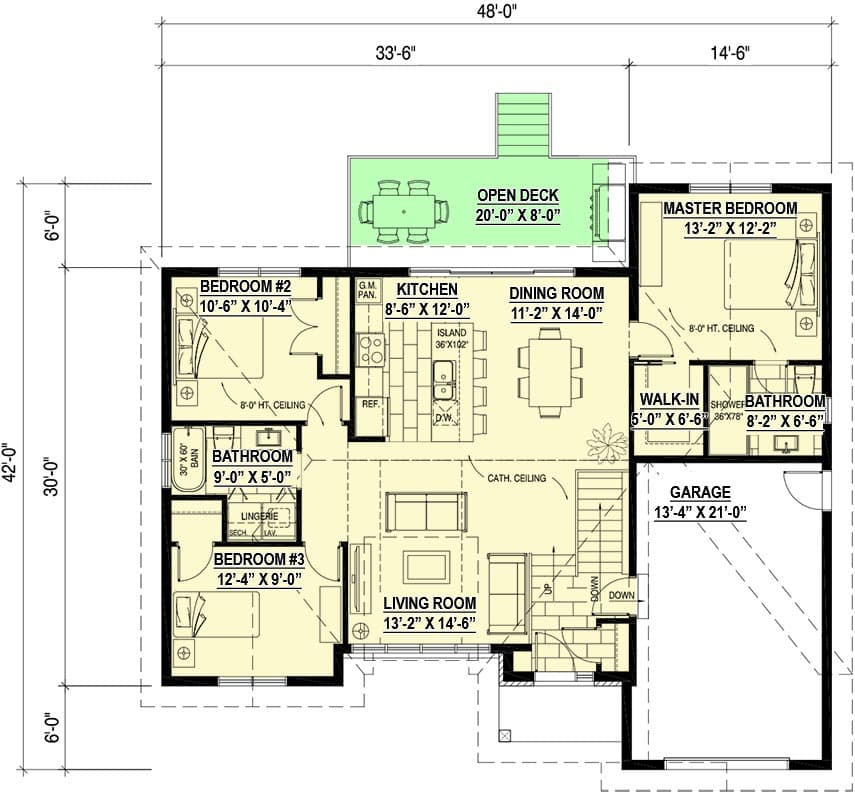

Main Level
Main Level

Plan 90331PD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 90331PD: New American House Plan with Rustic Elegance - Floor Plan - Main Level - Craftsman, Mountain, New American

Plan Details

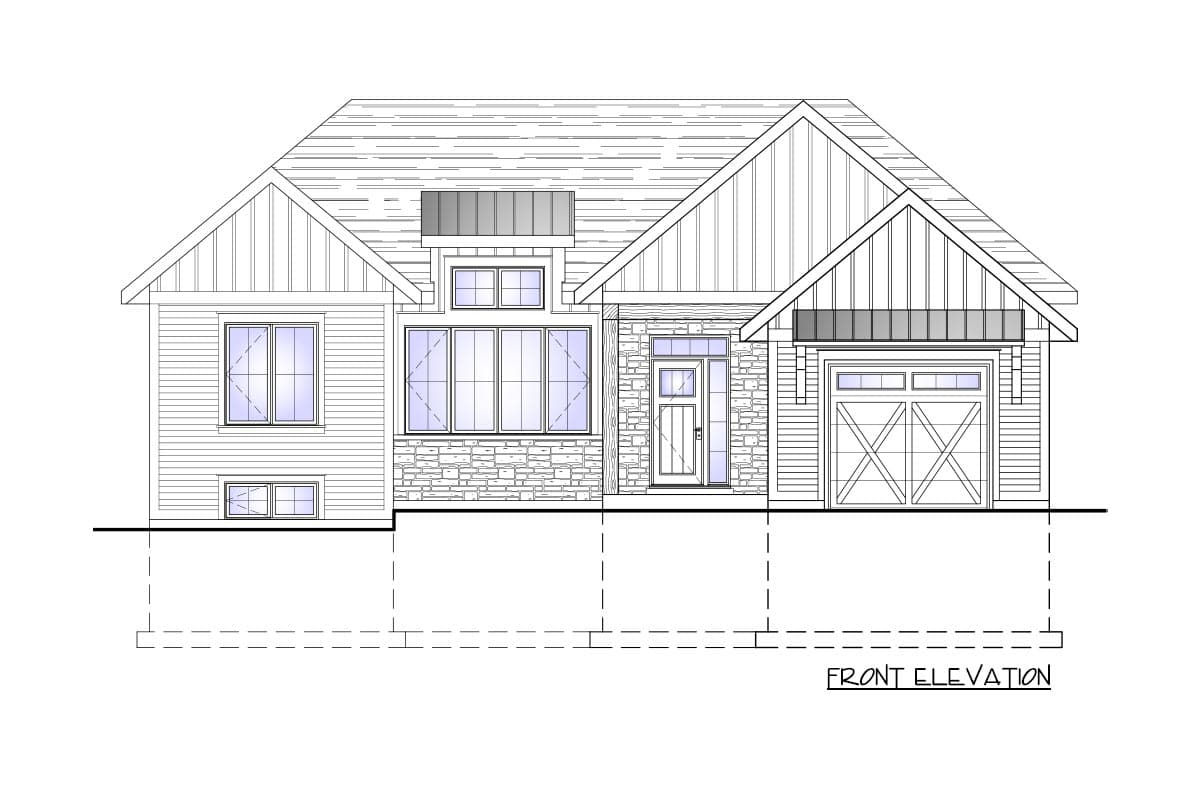

  • This 3-bed New American house plan has an exterior with clapboard, board and batten, stone and wood, giving it a rustic elegance.
  • Inside, a split bedroom layout leaves the center of the home - under a vaulted ceiling - open for entertaining.
  • The living room has a large picture window and gets light from the shed dormer above.
  • The kitchen ha a working island with two sinks and dishwasher and casual seating on the other side and is open to the dining room. Sliding doors on the back wall take you to the deck which gives you a great spot for entertaining al fresco.
  • A 9' by 8' garage gets your vehicle into the 1-car garage.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,282 sq. ft.

1st Floor

1,282 sq. ft.

Porch, Front

34 sq. ft.

Porch, Rear

161 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

42' 0"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

284 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,282 sq. ft.

1st Floor

1,282 sq. ft.

Porch, Front

34 sq. ft.

Porch, Rear

161 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

42' 0"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

284 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
