Plan 890134AH
New American House Plan with Second Floor Master Suite
Heated S.F.
4,290
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • Craftsman details, window placement, stone and a front porch all make the façade of this home an eye-catcher for any neighborhood.

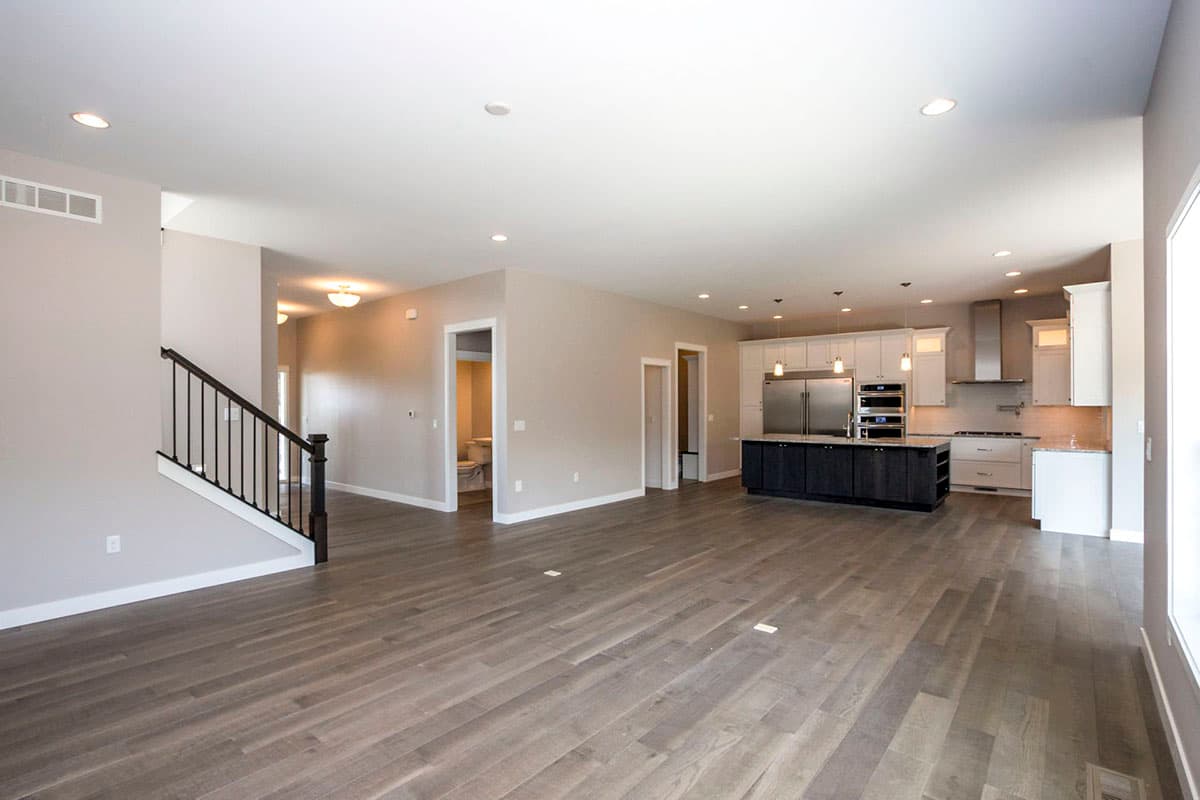

  • An open-concept floor plan combines a spacious kitchen, great room and dining area together to create a living space that suites just about any family.
  • The master is located on the second floor along with three additional bedrooms and an easy access laundry room.

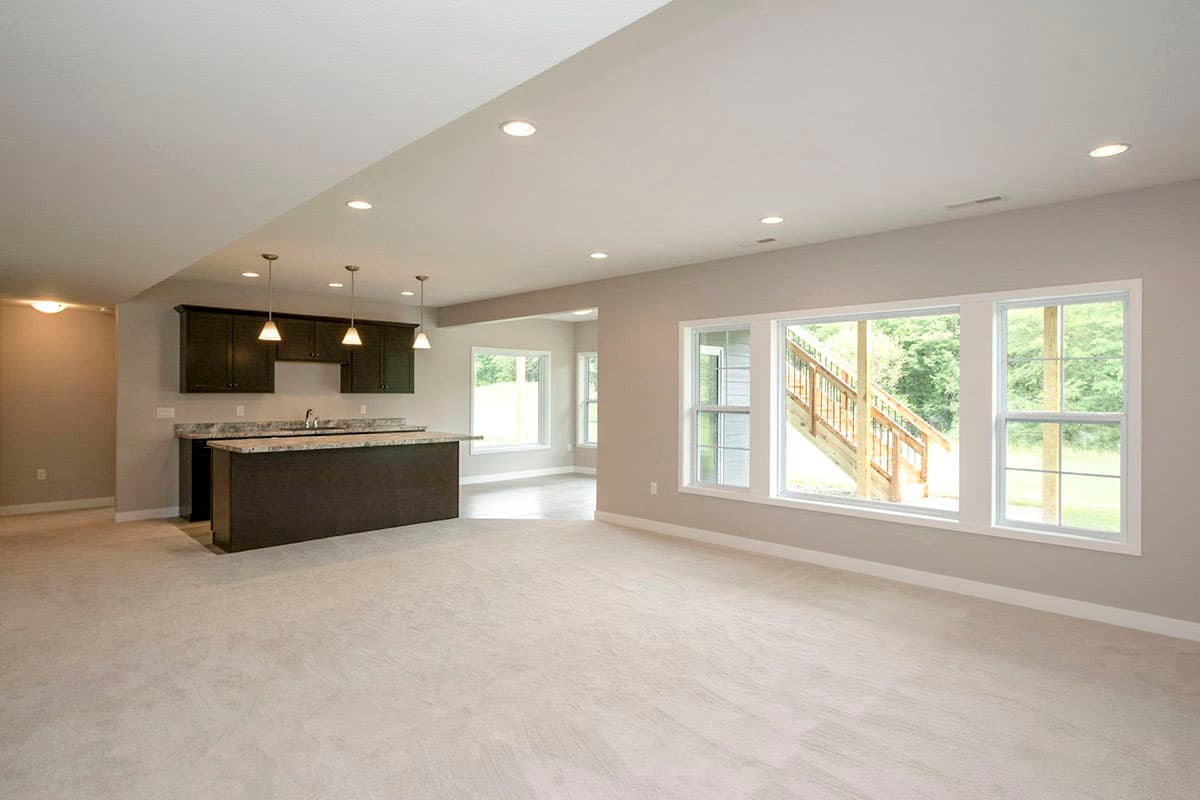

  • The finished lower level includes an additional fifth bedroom, a large family room with wet bar and a game room for the kids.
  • The three-stall garage with extra storage makes this the perfect home for a growing or large family.

What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Second Floor Master Suite

  • 4,290

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

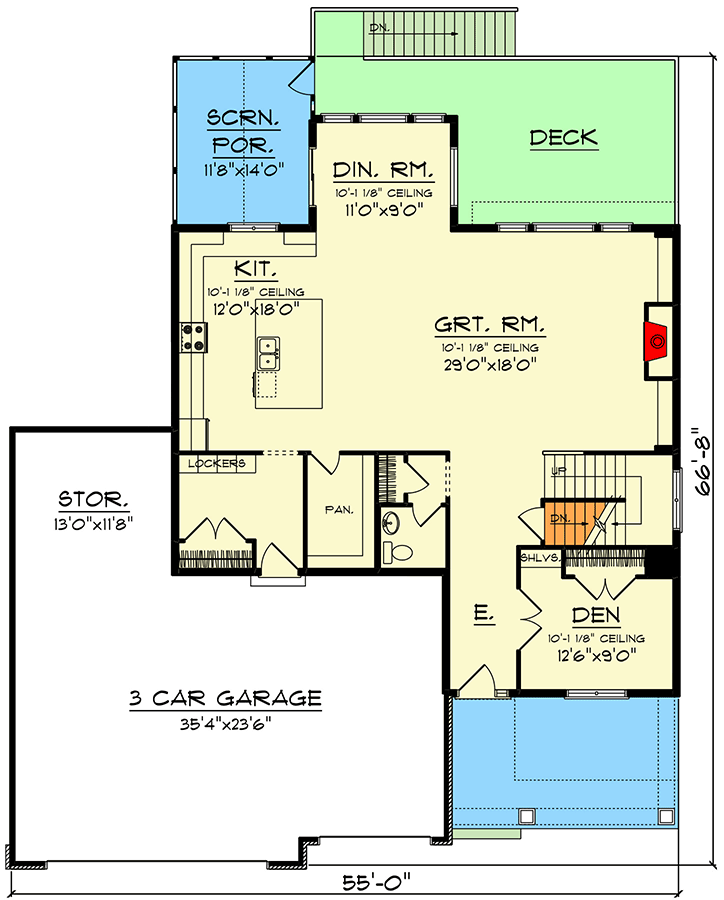

Floor Plan

  • Main Level

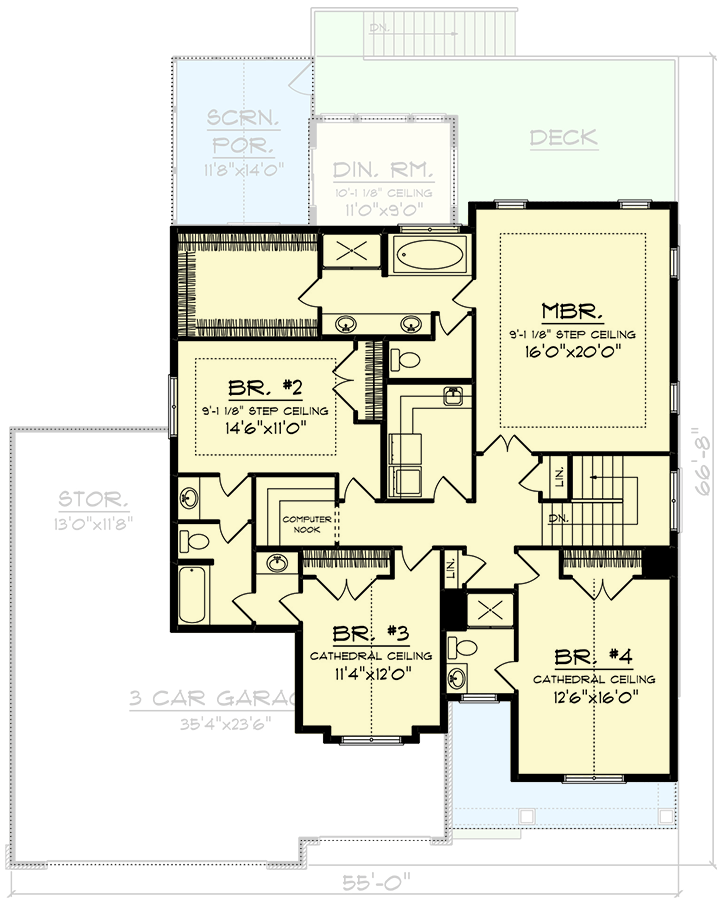

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,290 sq. ft.
  • Lower Level: 1,139 sq. ft.
  • 1st Floor: 1,495 sq. ft.
  • 2nd Floor: 1,656 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 66' 8"
  • Max ridge height: 36' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 996 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
