Plan 24393TW

New American House Plan with Split Beds

Heated S.F.
3,644
Beds
4 - 5
Baths
5
Stories
1
Cars
3

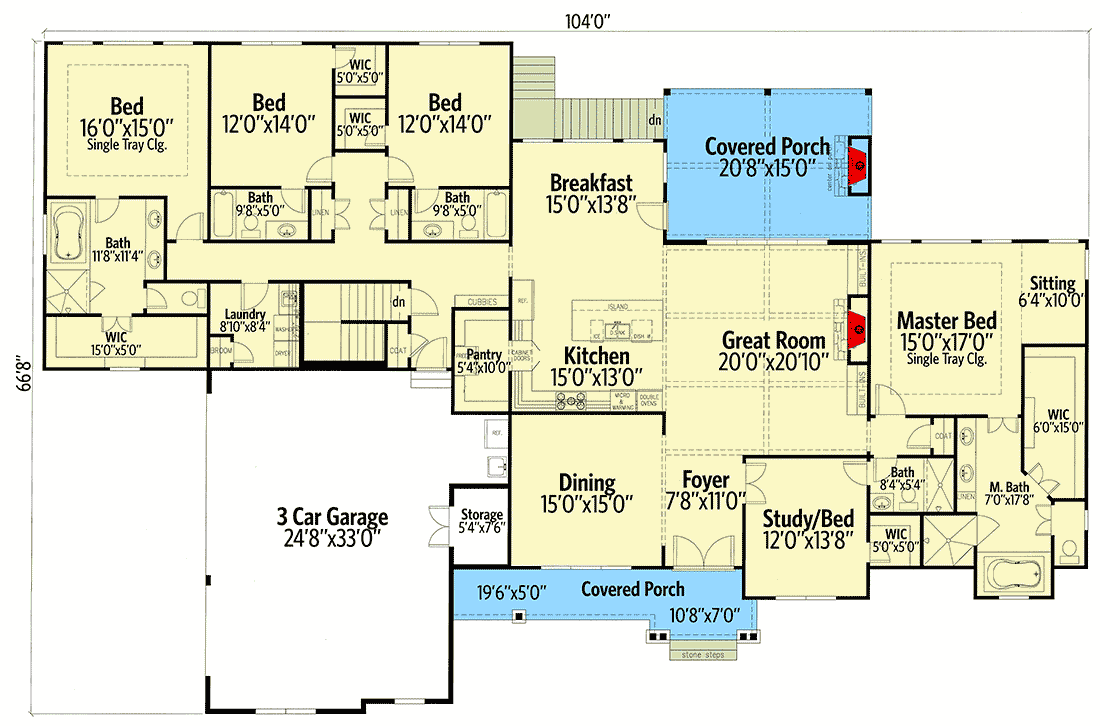

Floor Plan

Plan 24393TW

Main Level
Main Level

Plan 24393TW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 24393TW: New American House Plan with Split Beds - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch, Vacation

Plan Details

  • Craftsman detailing throughout this New American house plan provide a cohesive design. Split bedrooms give the homeowner privacy from the secondary rooms, and a walk-in closet in each bedroom offers plenty of storage space.
  • The center of the home lends an open-concept layout, providing an ideal space for gatherings. The oversized island gives ample workspace and a hidden walk-in pantry is located behind cabinet doors.

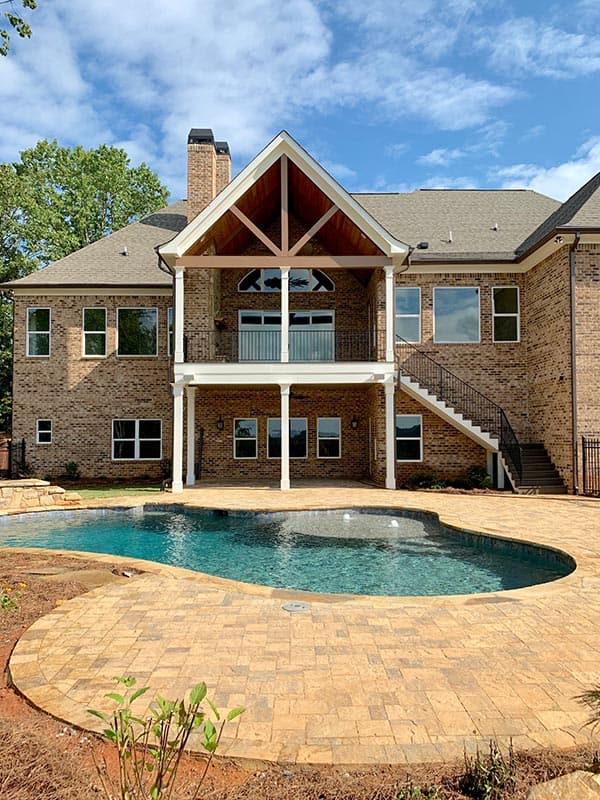

  • An open gable roof rests above the grand covered porch, complete with a fireplace.
  • The master bedroom occupies the right side of the home, and features a sitting nook and a spacious en suite.
  • Two bedrooms on the opposite side of the home both include a full bath, while the fourth bedroom presents a 5-fixture bath and a sizable closet.
  • The 3-car garage includes a storage room and a utility sink.

What's Included

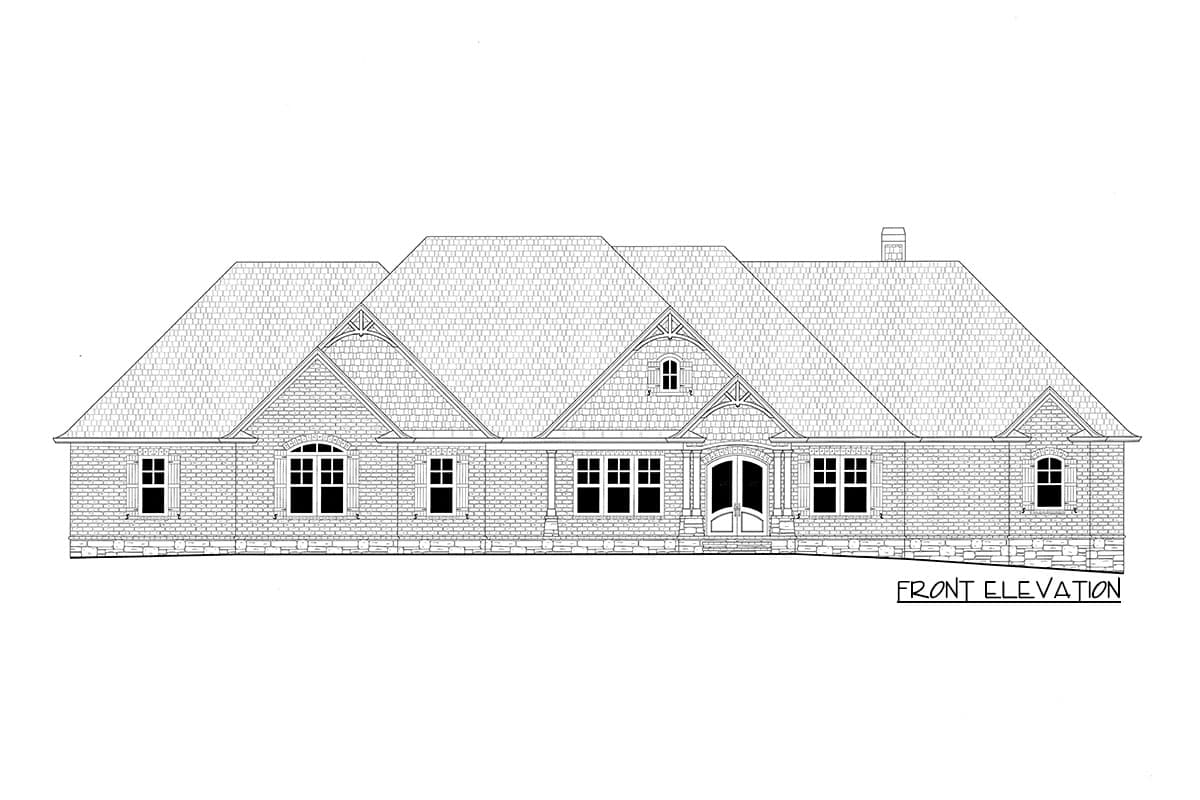

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,644 sq. ft.

1st Floor

3,644 sq. ft.

Basement Unfinished

3,644 sq. ft.

Porch, Combined

475 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

104' 0"

Depth

66' 8"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

910 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

11'

First Floor

10'

Garage

10' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

New American

Ranch

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,644 sq. ft.

1st Floor

3,644 sq. ft.

Basement Unfinished

3,644 sq. ft.

Porch, Combined

475 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

104' 0"

Depth

66' 8"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

910 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

11'

First Floor

10'

Garage

10' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

New American

Ranch

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Photo Gallery

Sloping Lot
