Plan 818124JSS
New American house Plan with Vaulted Family Room - 2459 Sq Ft
Heated S.F.
2,459
Beds
4
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • This 4 bed, 3.5 bath house plan gives you 2,459 square feet of heated living and a 2-car 534 square foot side-load garage with a single 18' by 8' overhead door.
  • Quad sliding doors in back of the beamed and vaulted family room with fireplace opens to a 19'2" by 11'9" covered back porch.
  • The sink is set in the large kitchen island with seating on one side and views of the fireplace on the other. A spacious walk-in pantry is located around the corner from the kitchen and across from the family foyer by the garage entry making unloading groceries a breeze.
  • The master suite has direct laundry access from the walk-in closet. Across the home, all three beds have walk-in closets.
  • Architectural Designs offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Ge an alternate exterior with house plan 818123JSS.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American house Plan with Vaulted Family Room - 2459 Sq Ft

  • 2,459

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

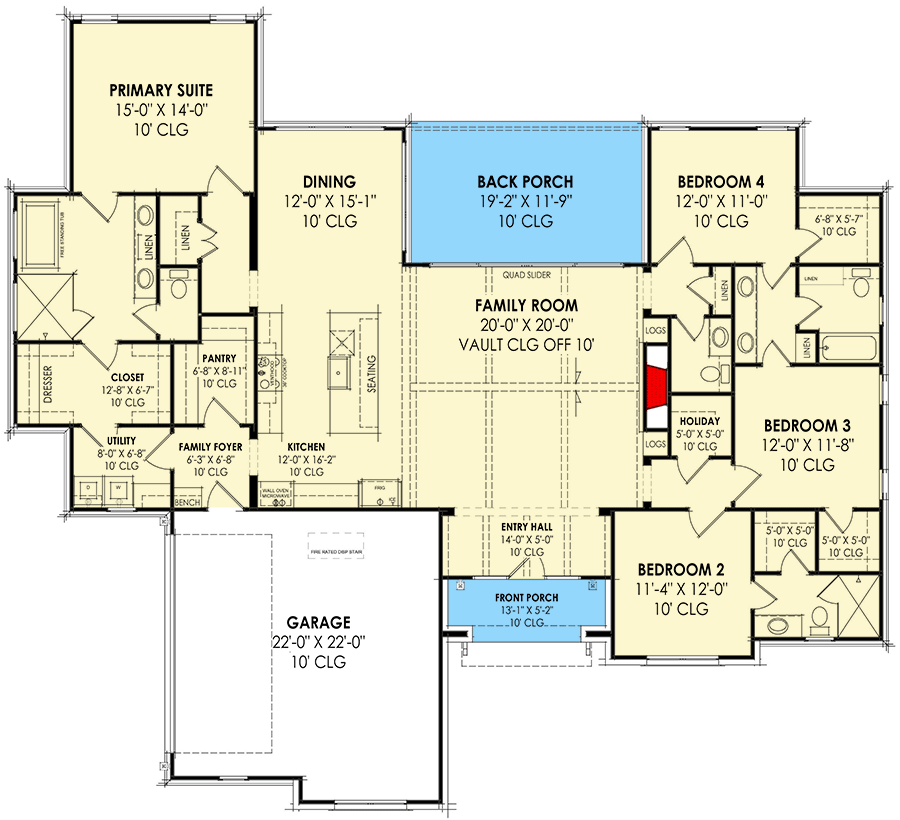

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,459 sq. ft.
  • 1st Floor: 2,459 sq. ft.

Dimensions

  • Width: 73' 1"
  • Depth: 66' 0"
  • Max ridge height: 21' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 534 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
