Plan 95115RW

New American Mountain House Plan with Vaulted Ceiling and Walk-out Basement

Heated S.F.
3,674
Beds
3 - 4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 95115RW

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 95115RW

M-F 9am-5pm EST |

1-203-761-8500

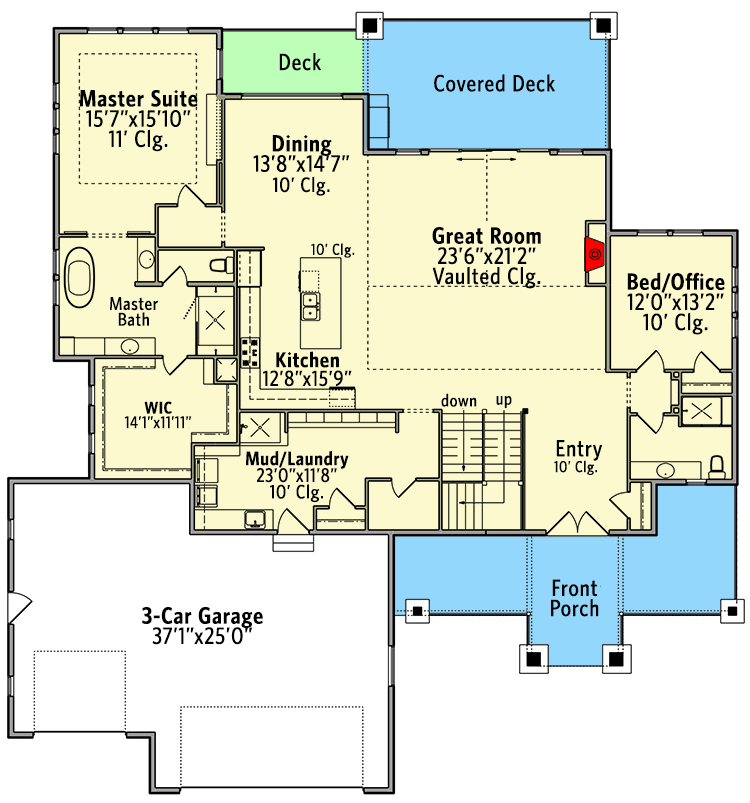

Main Level

Plan 95115RW: New American Mountain House Plan with Vaulted Ceiling and Walk-out Basement - Floor Plan - Main Level - Country, Craftsman, Mountain, New American

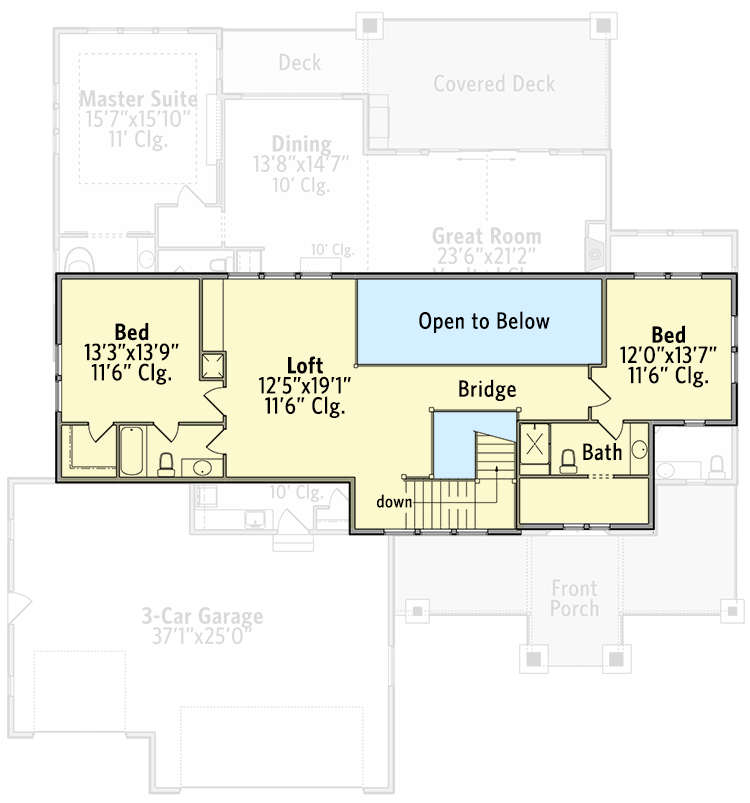

2nd Floor

Plan 95115RW: New American Mountain House Plan with Vaulted Ceiling and Walk-out Basement - Floor Plan - 2nd Floor - Country, Craftsman, Mountain, New American

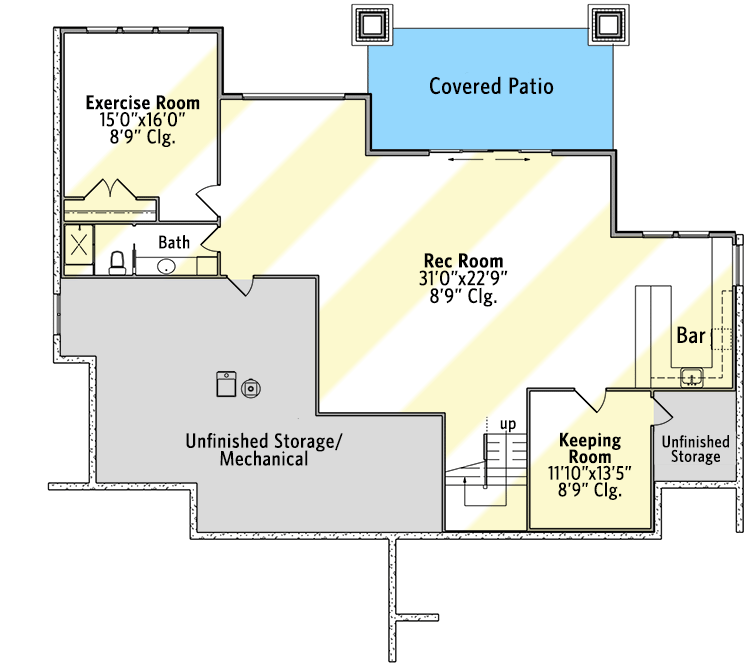

Lower Level

Plan 95115RW: New American Mountain House Plan with Vaulted Ceiling and Walk-out Basement - Floor Plan - Lower Level - Country, Craftsman, Mountain, New American

Plan Details

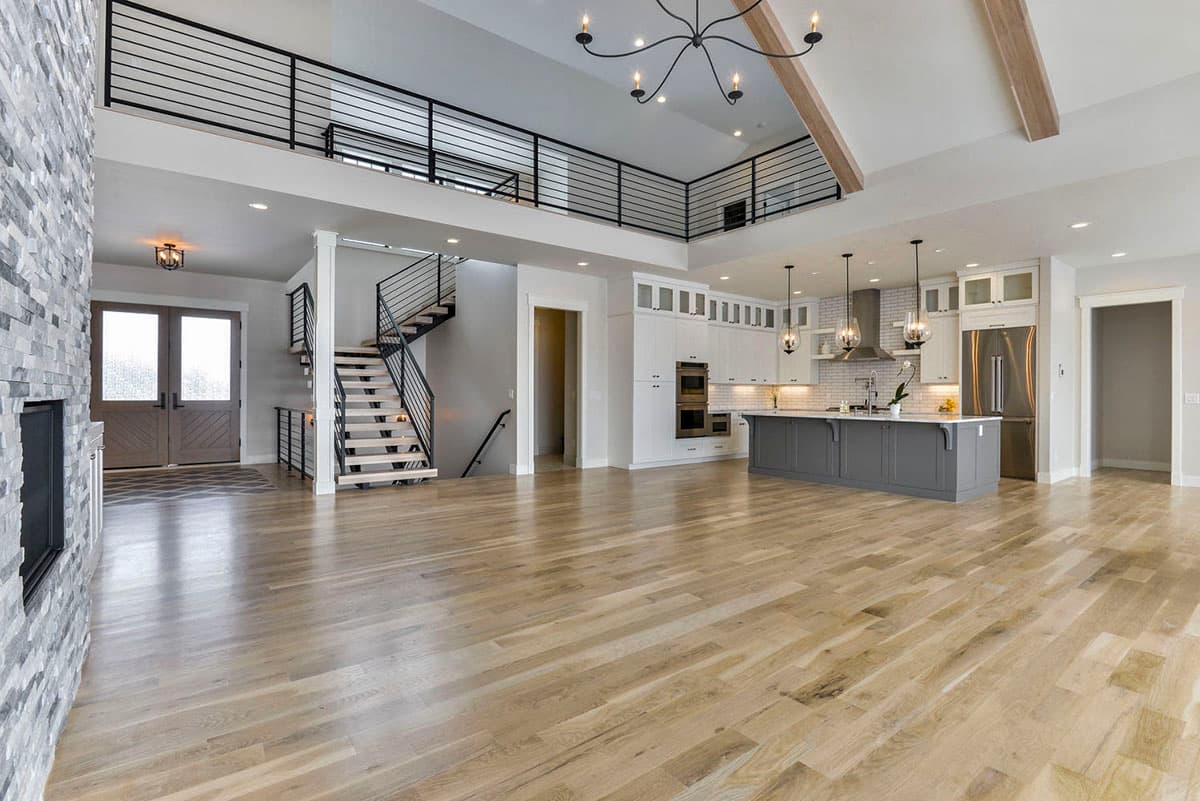

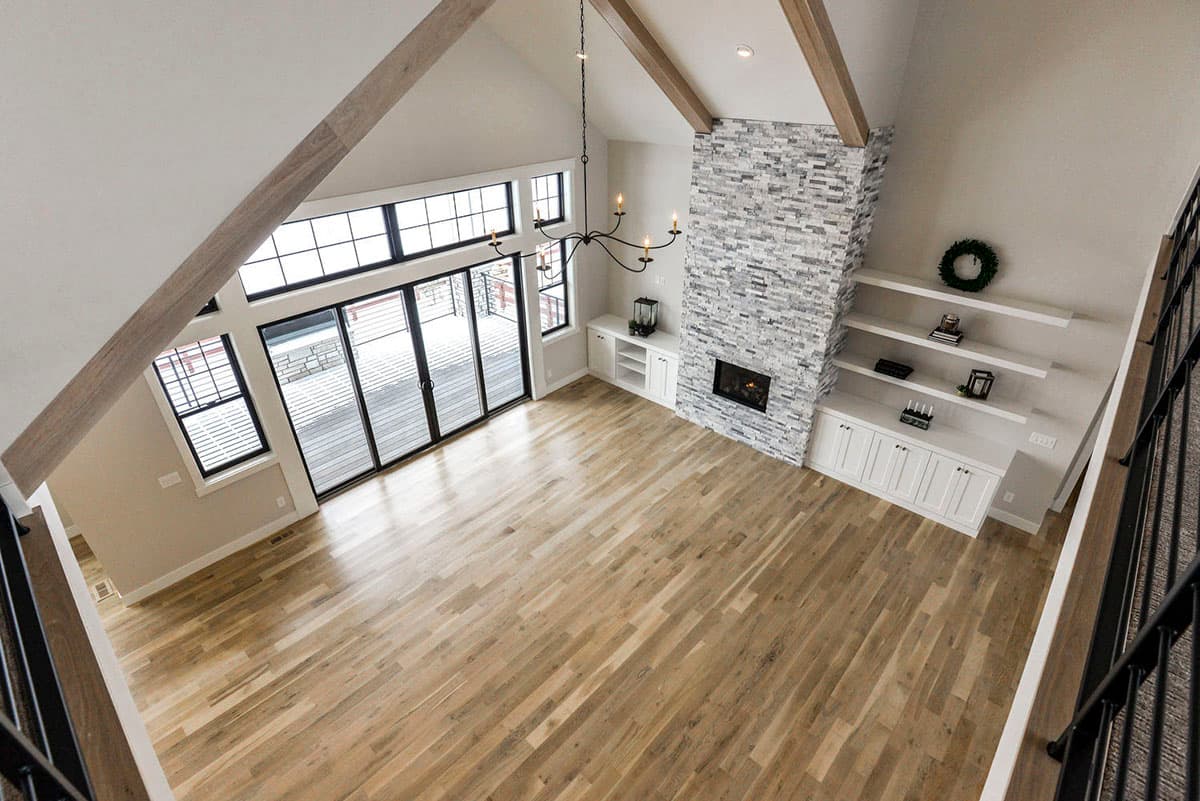

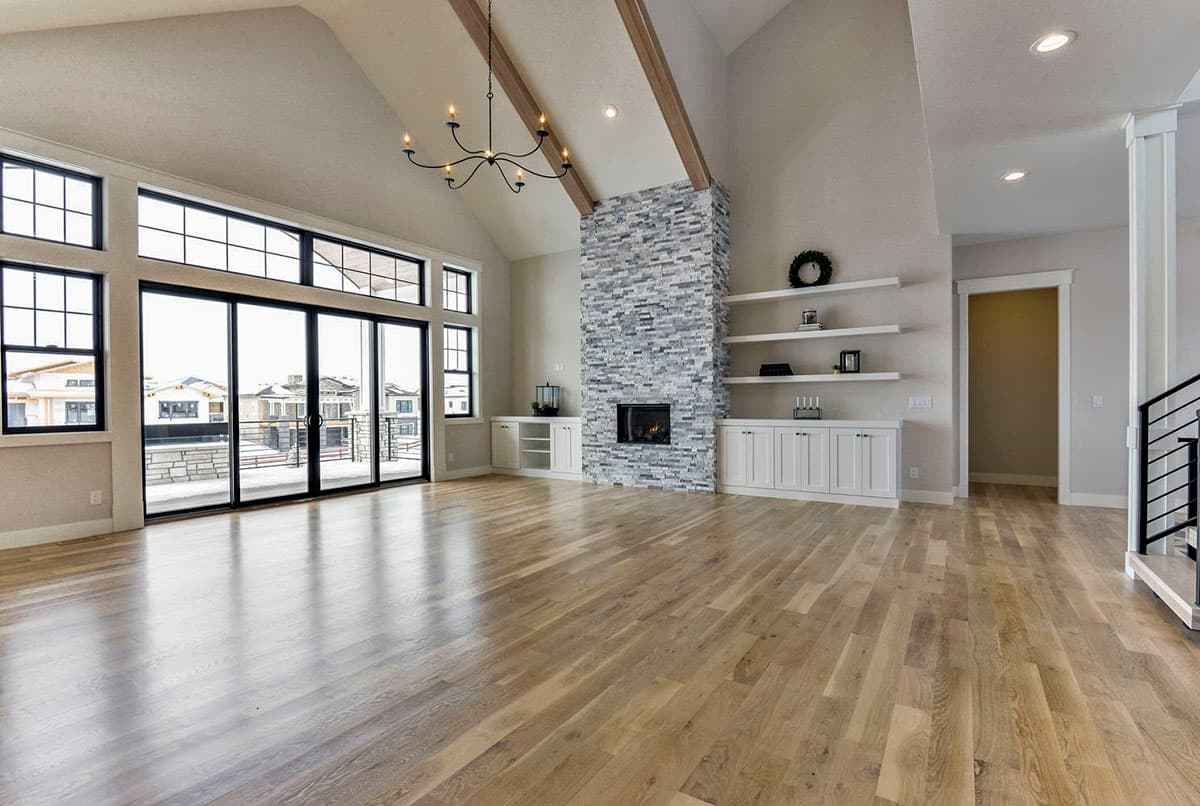

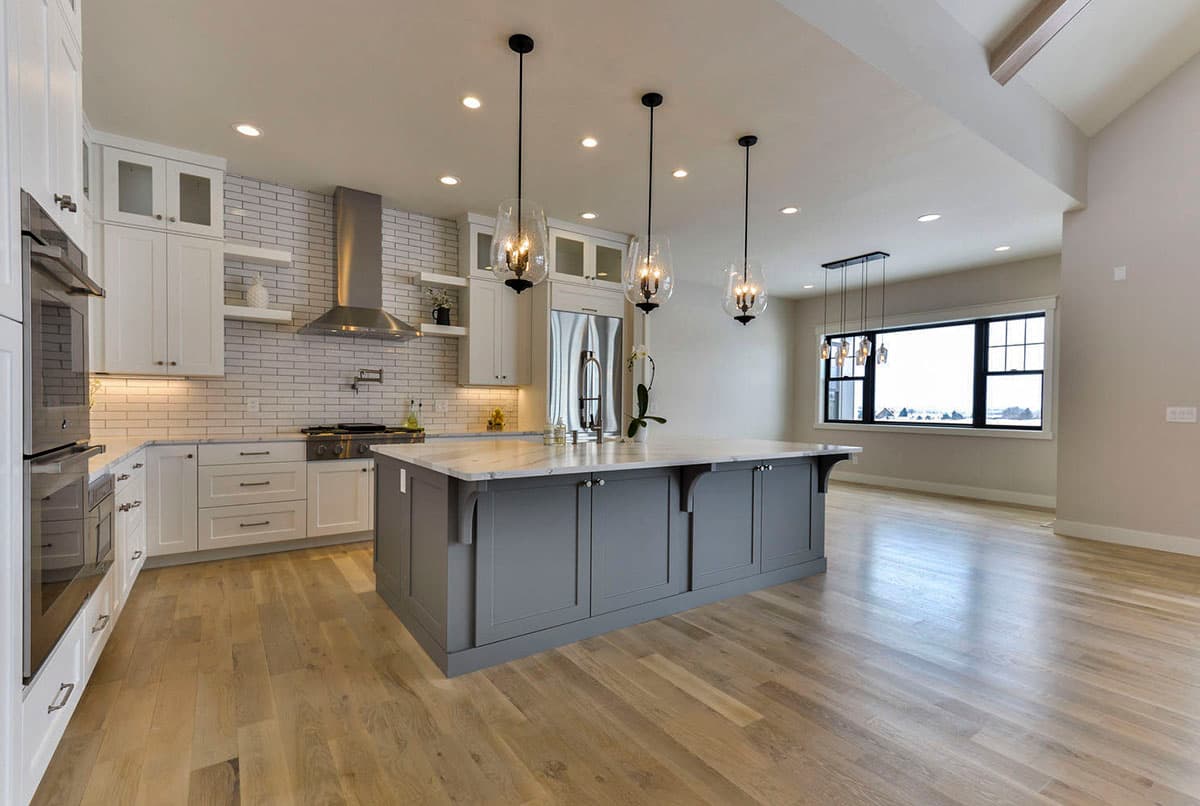

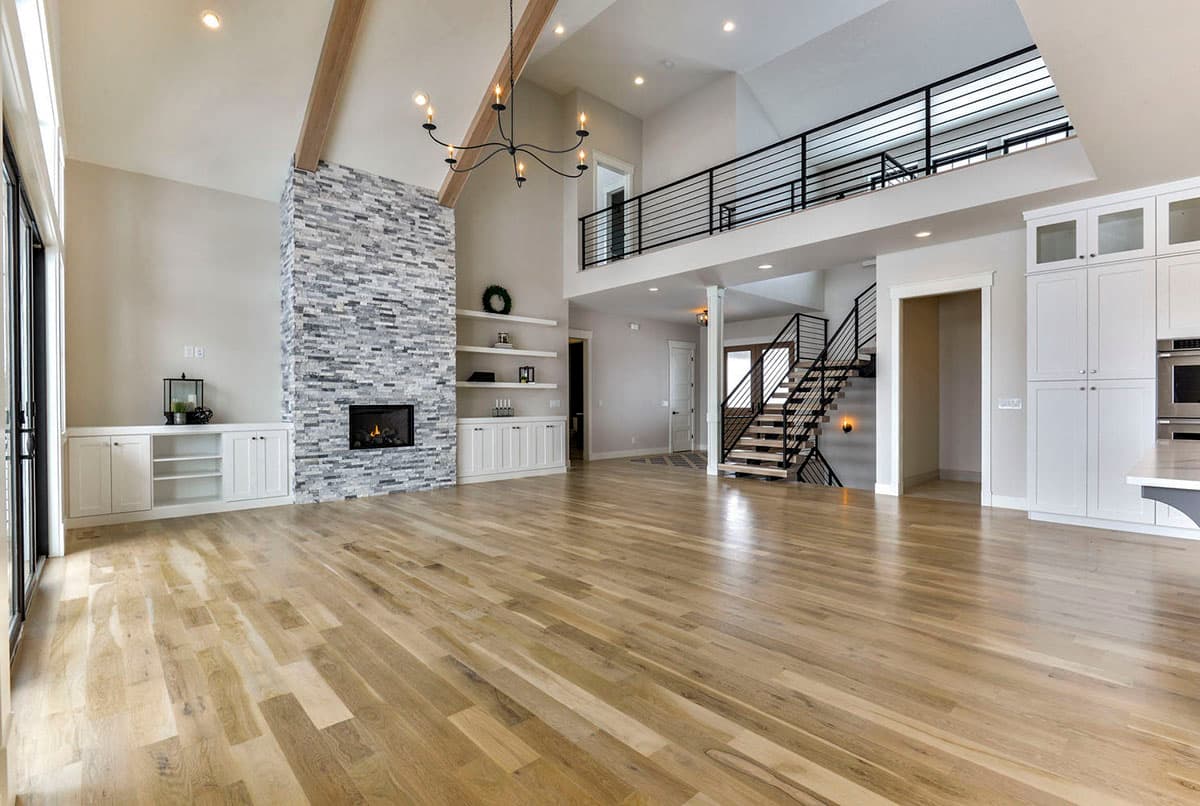

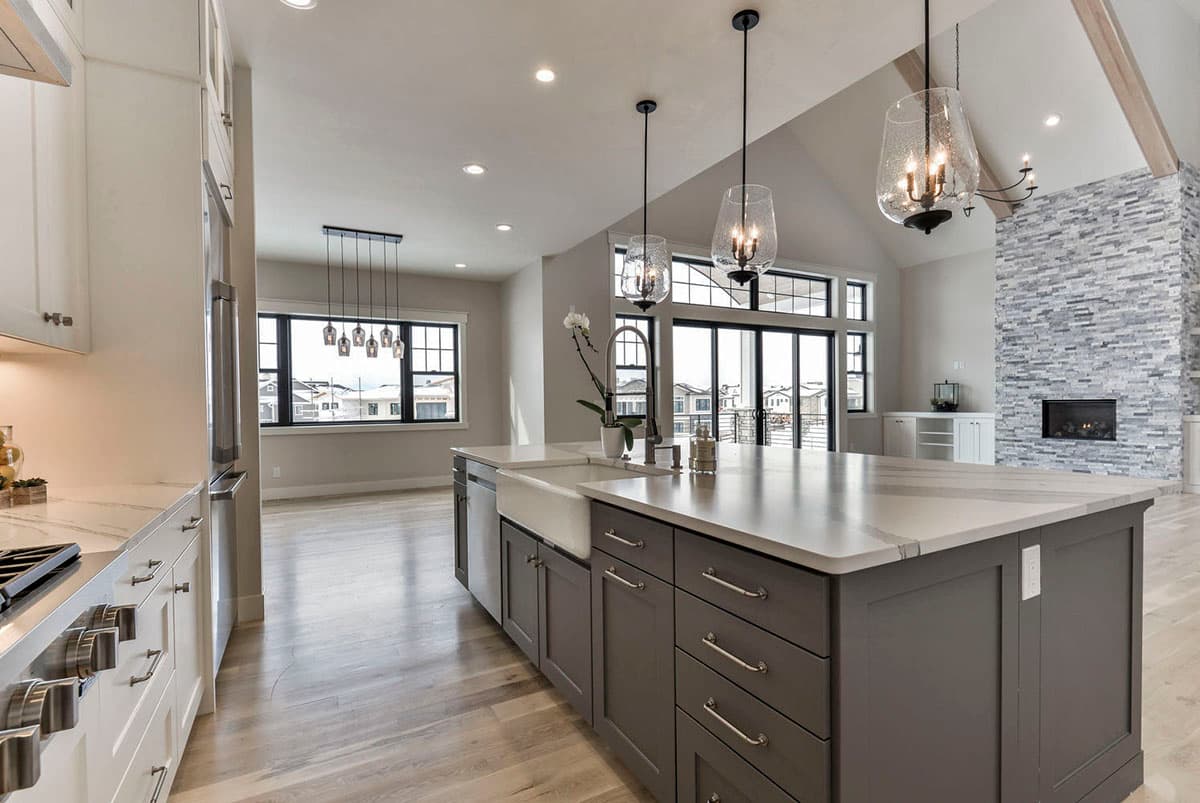

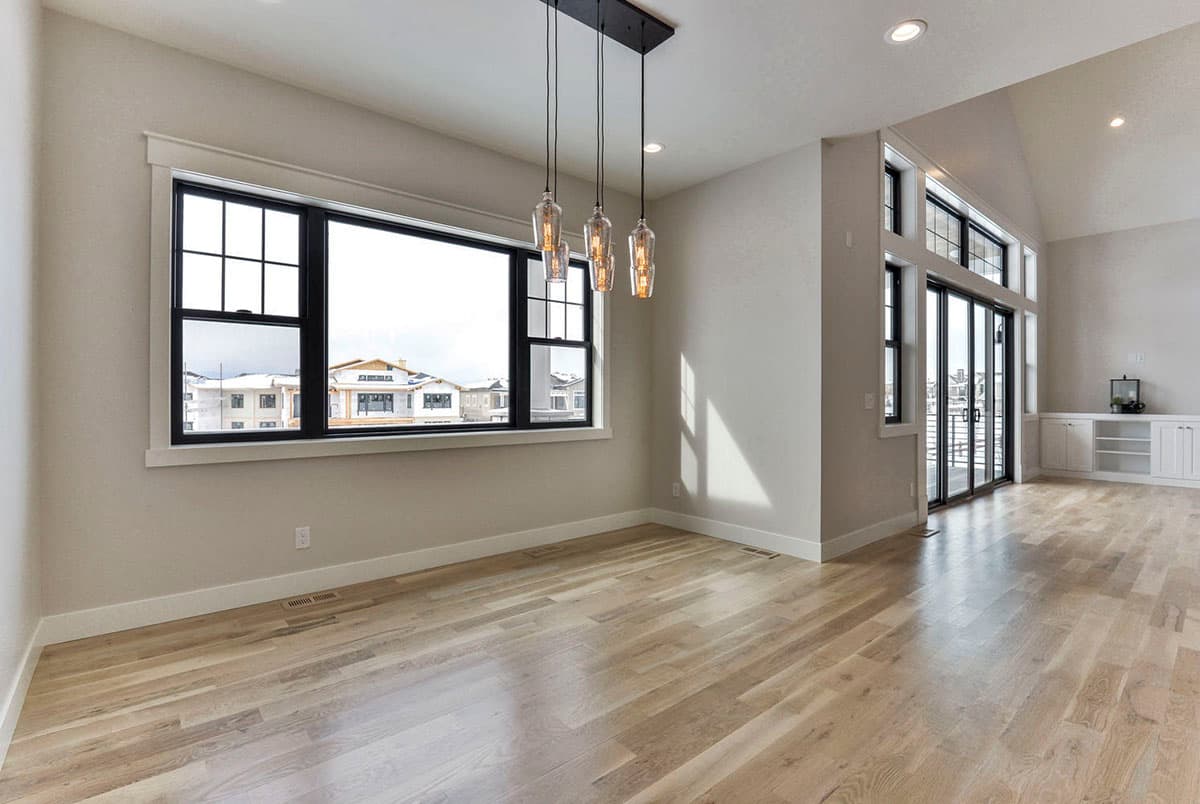

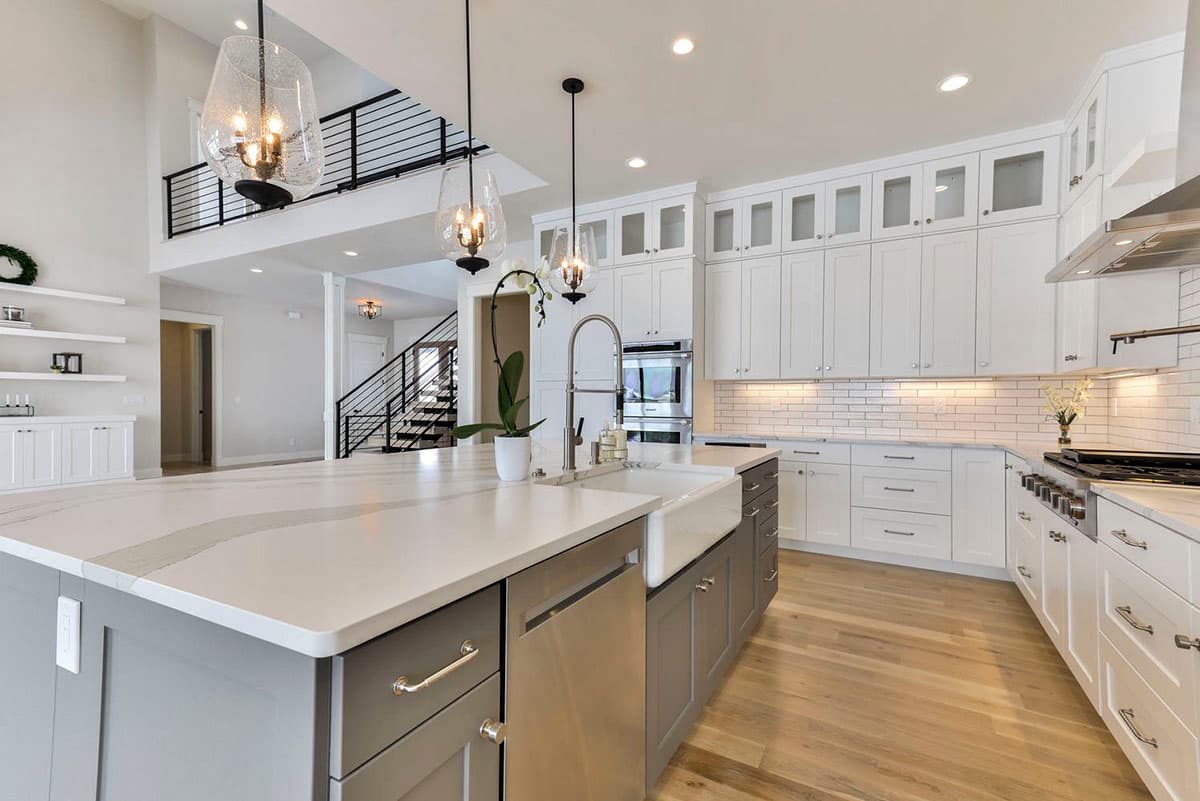

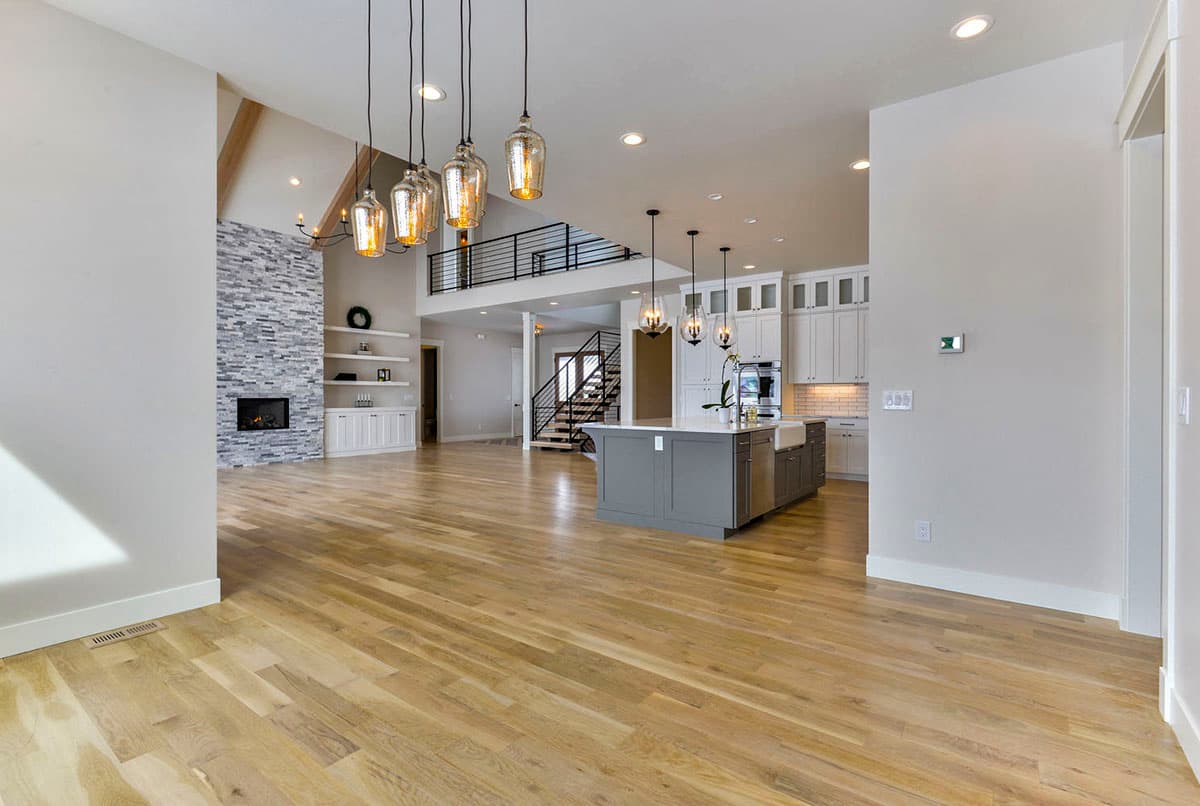

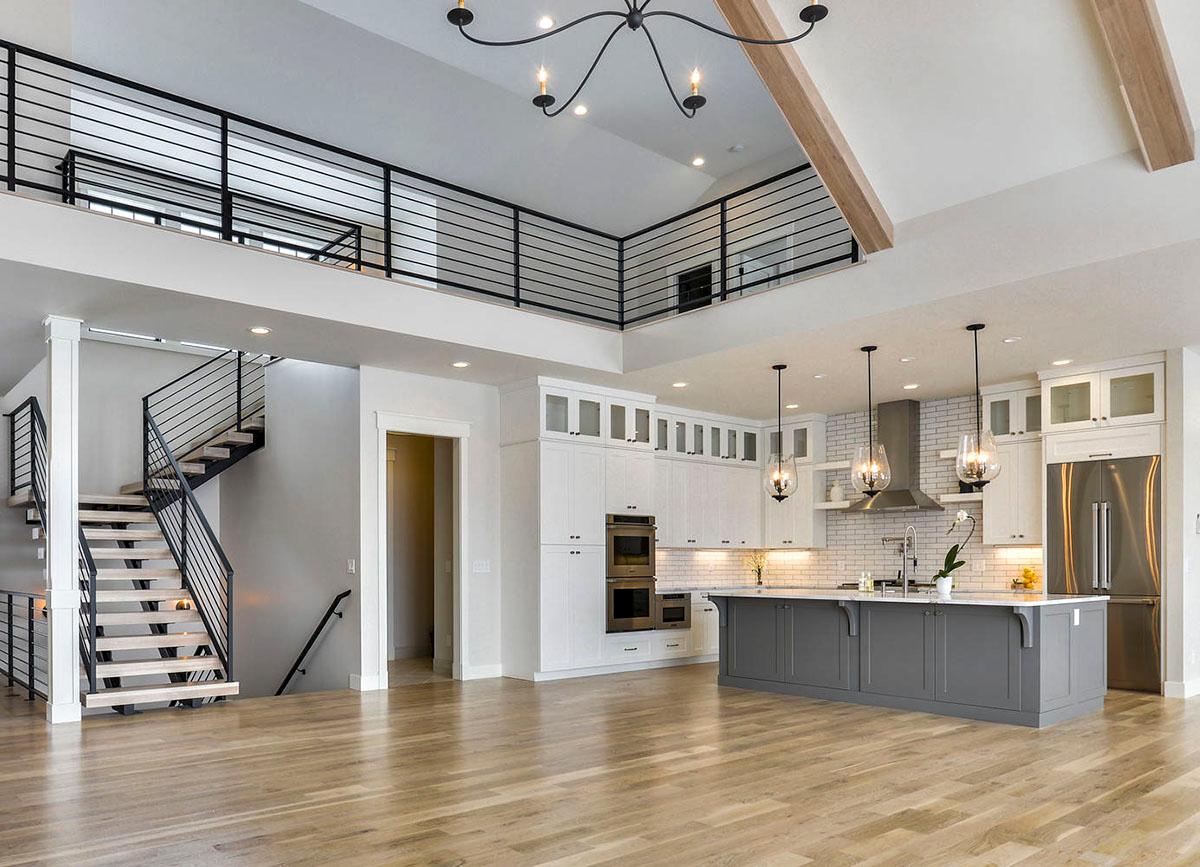

  • Gather with friends and family in this New American Mountain house plan that boasts a generously-sized living space with no partitions between the kitchen and dining area.

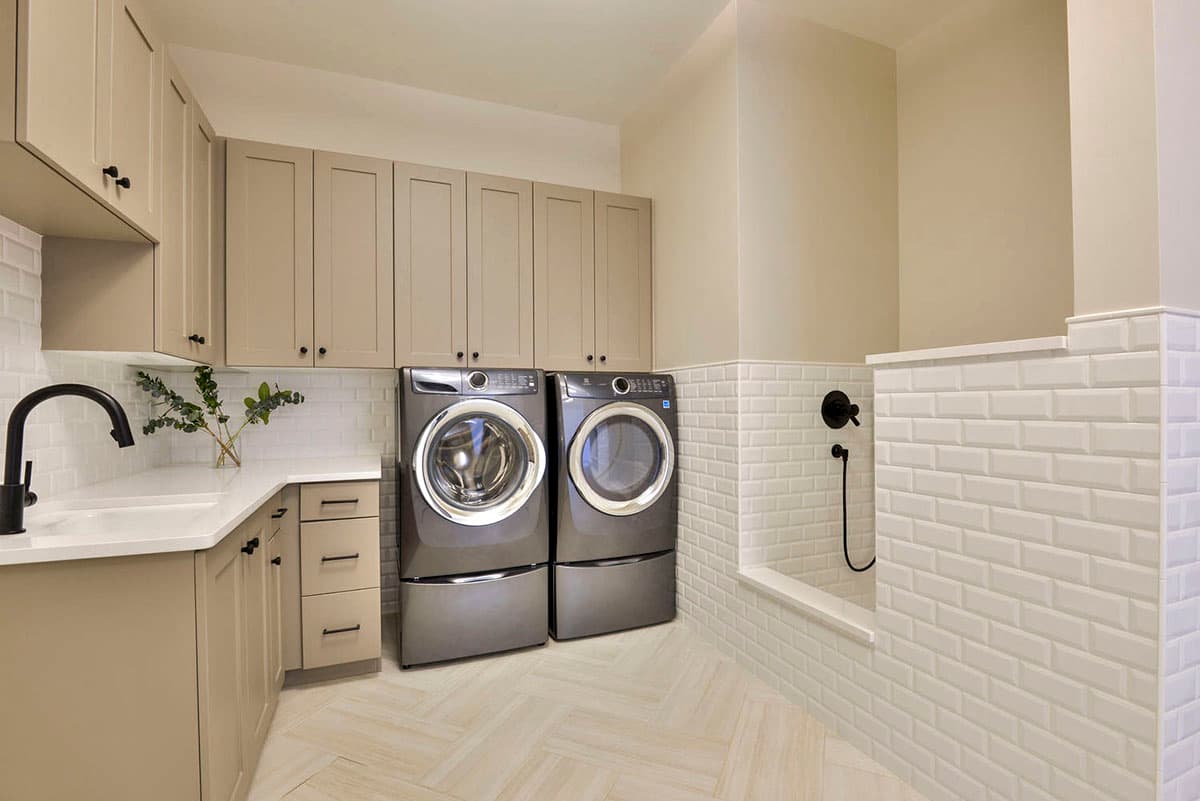

  • The 3-car garage opens into a combined mud / laundry room with loads of space for storage, built-in cubbies, and a pet station.

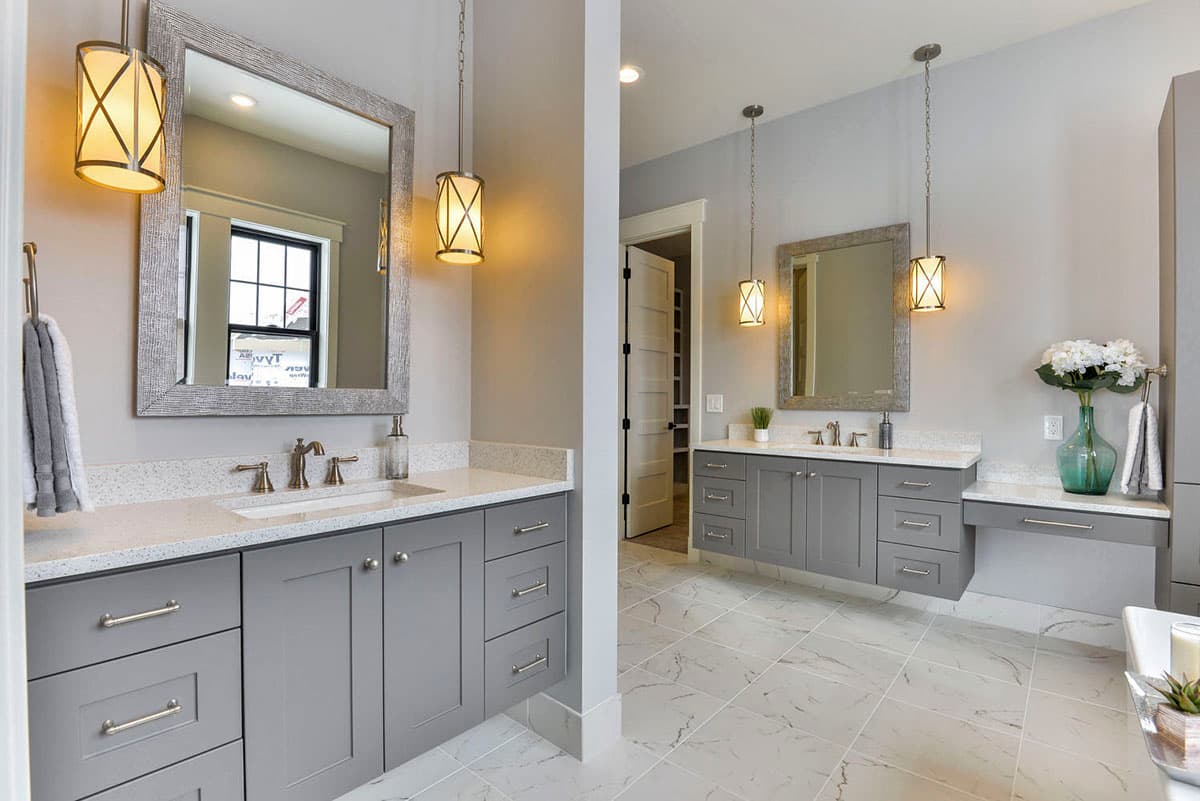

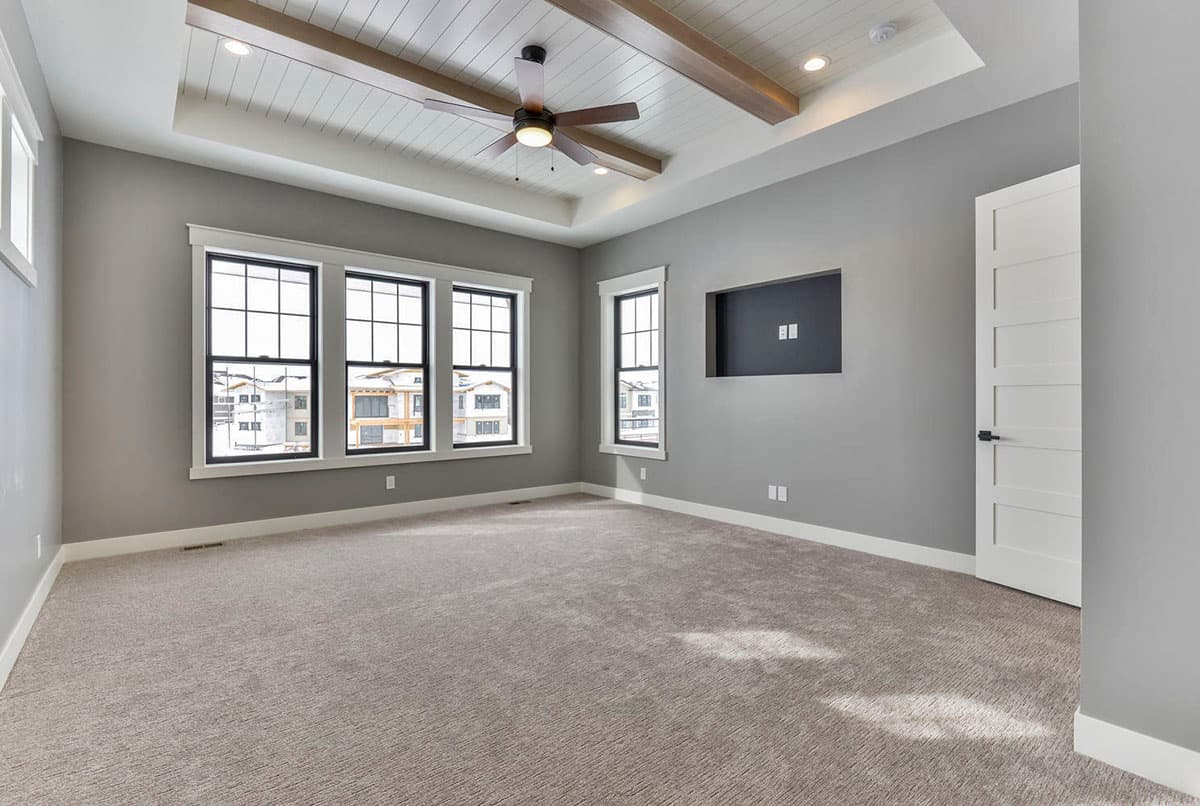

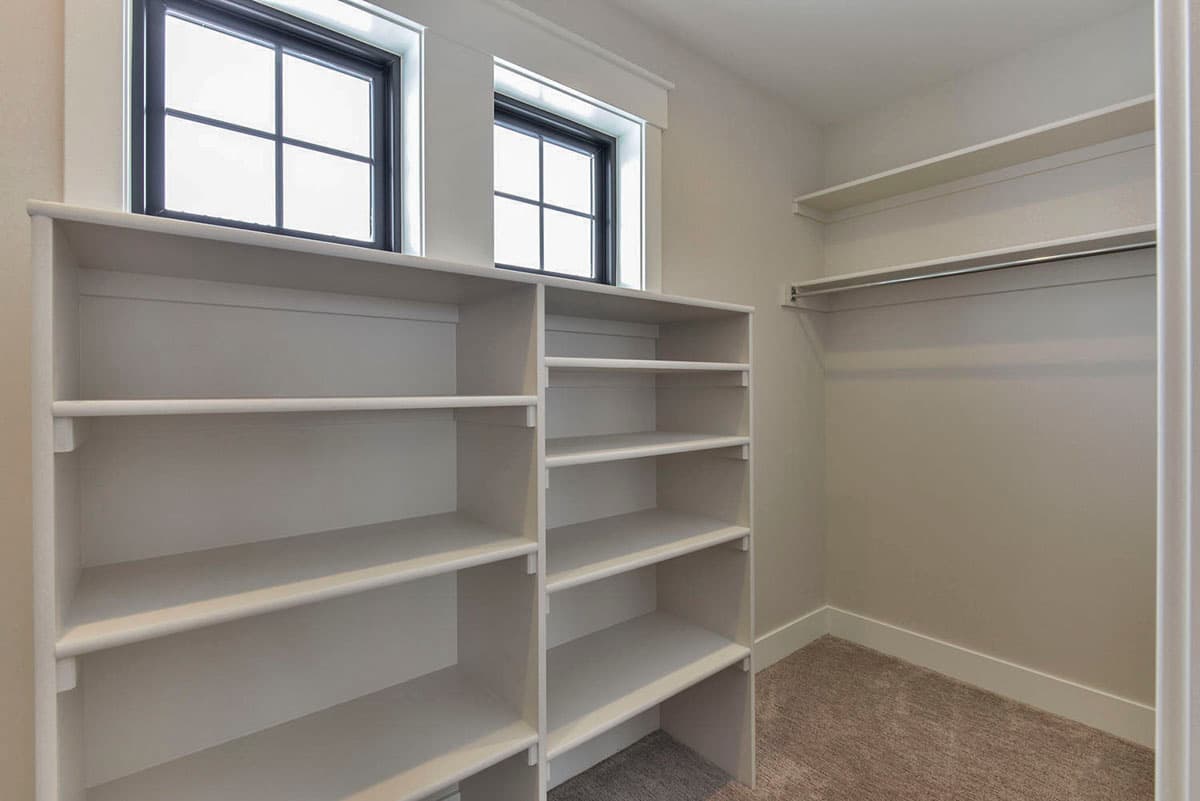

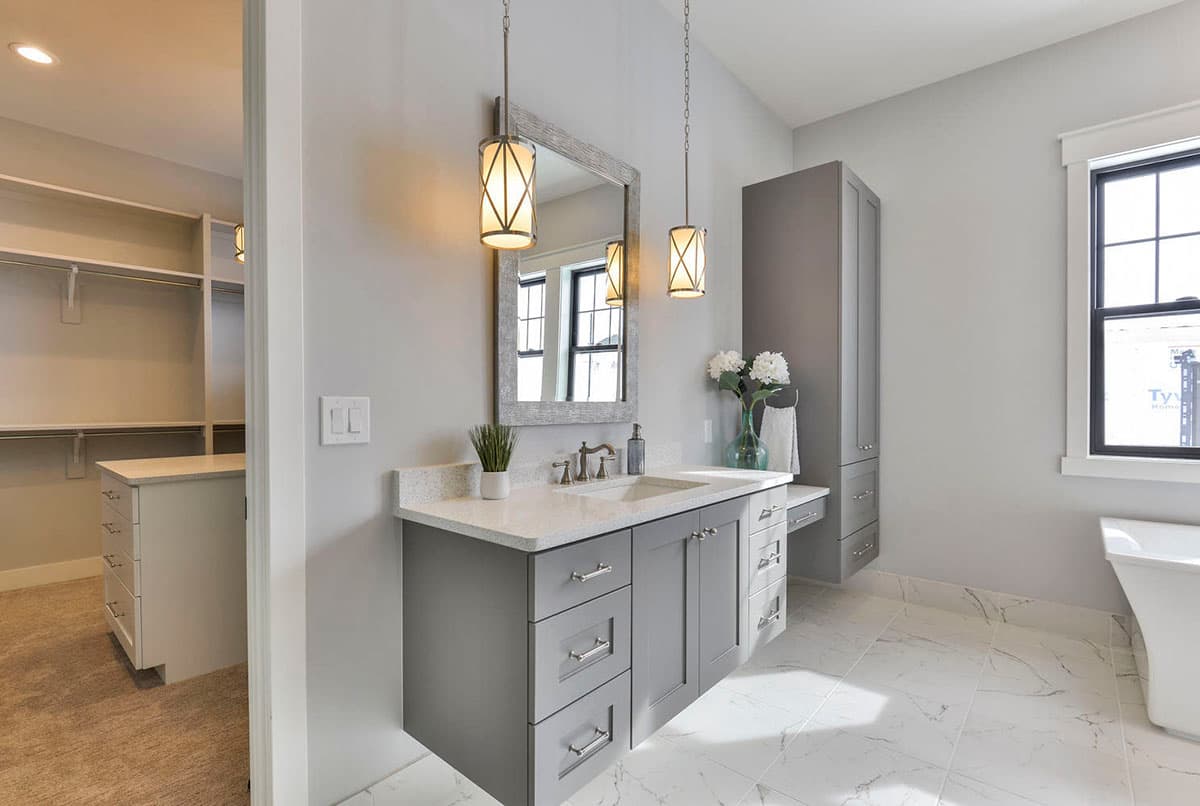

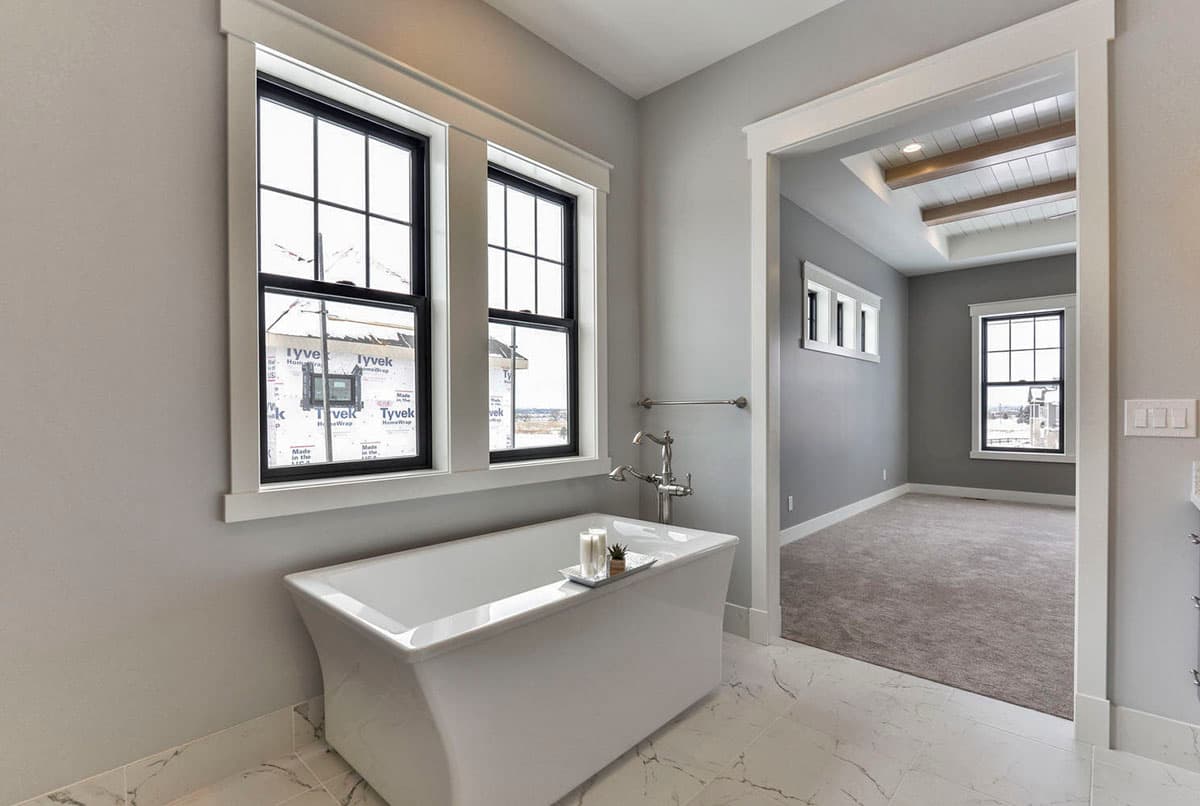

  • The master suite lines the left side of the home, and includes a 5-fixture bathroom with a roomy walk-in closet. A home office just off the entry can be utilized as a second bedroom on this level, if preferred.

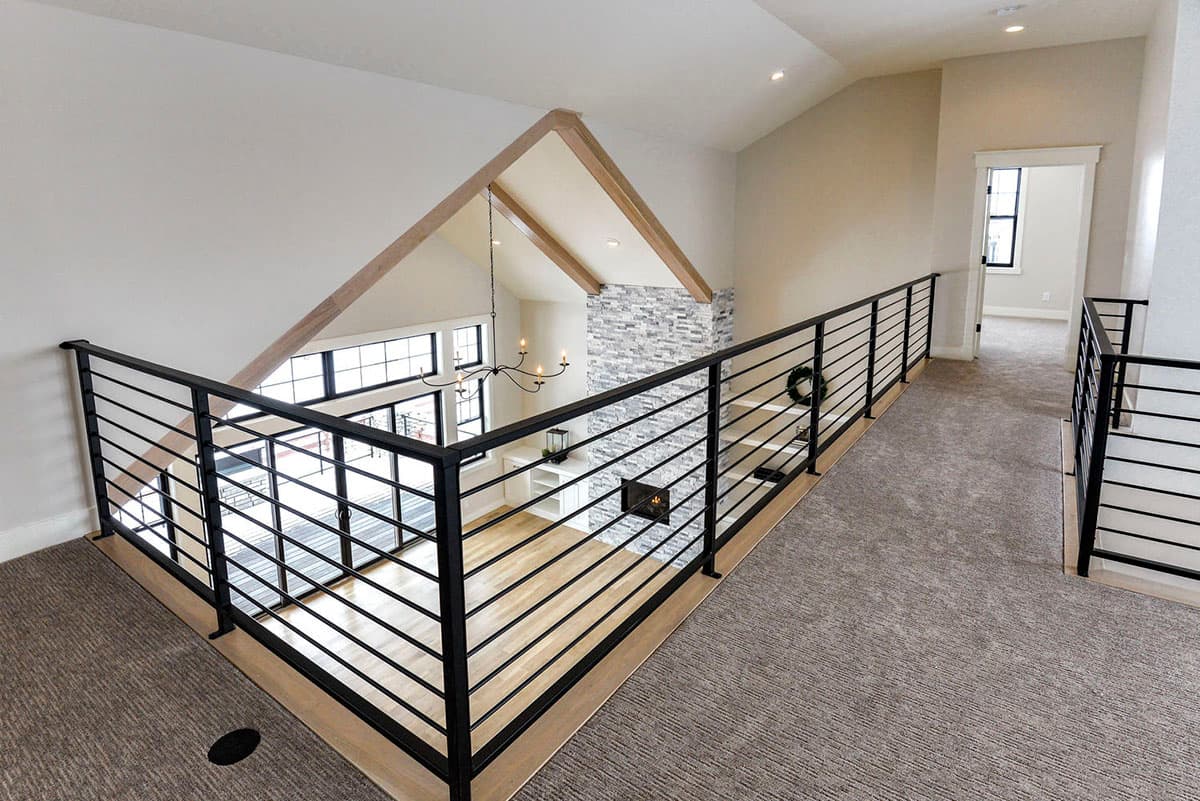

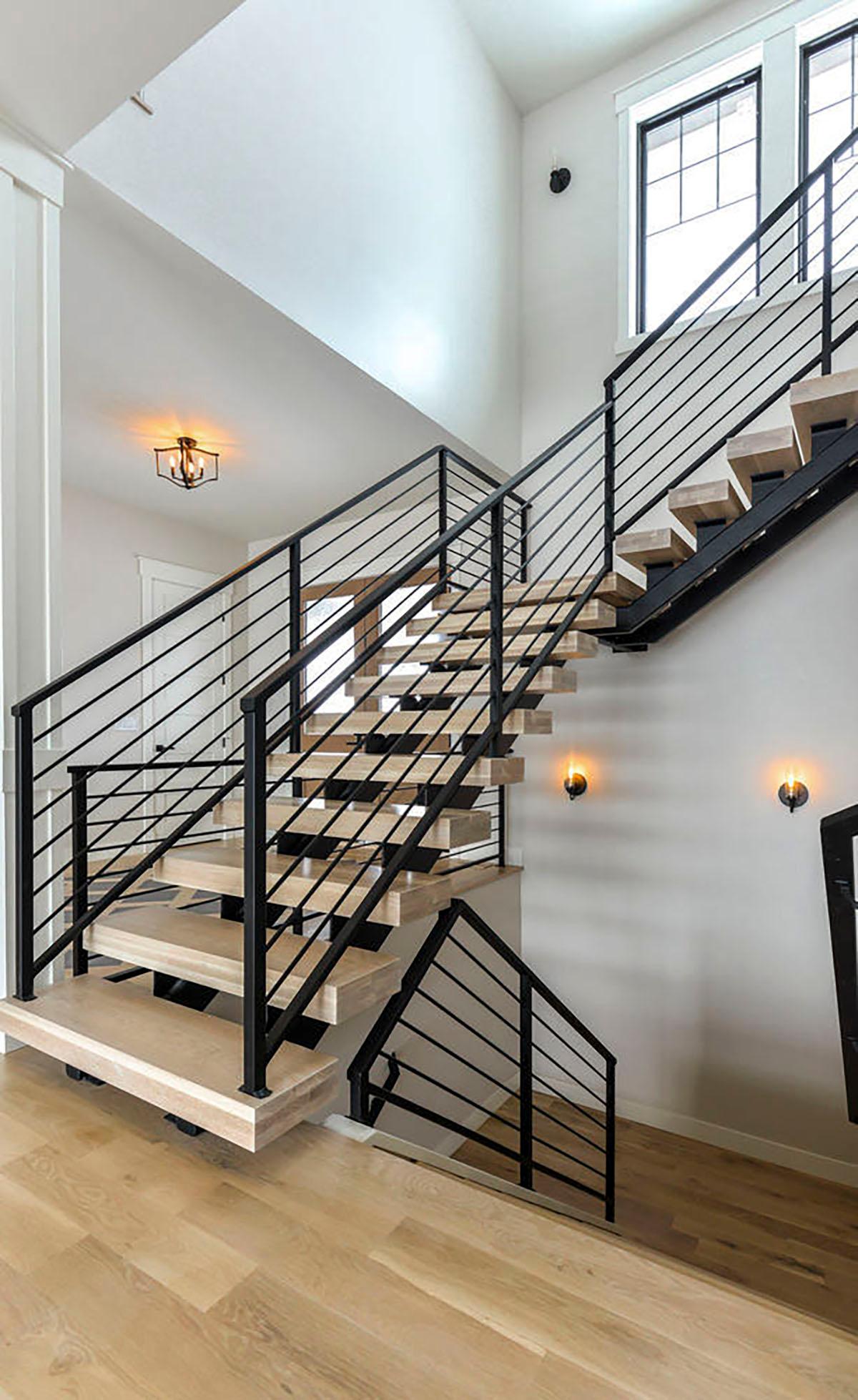

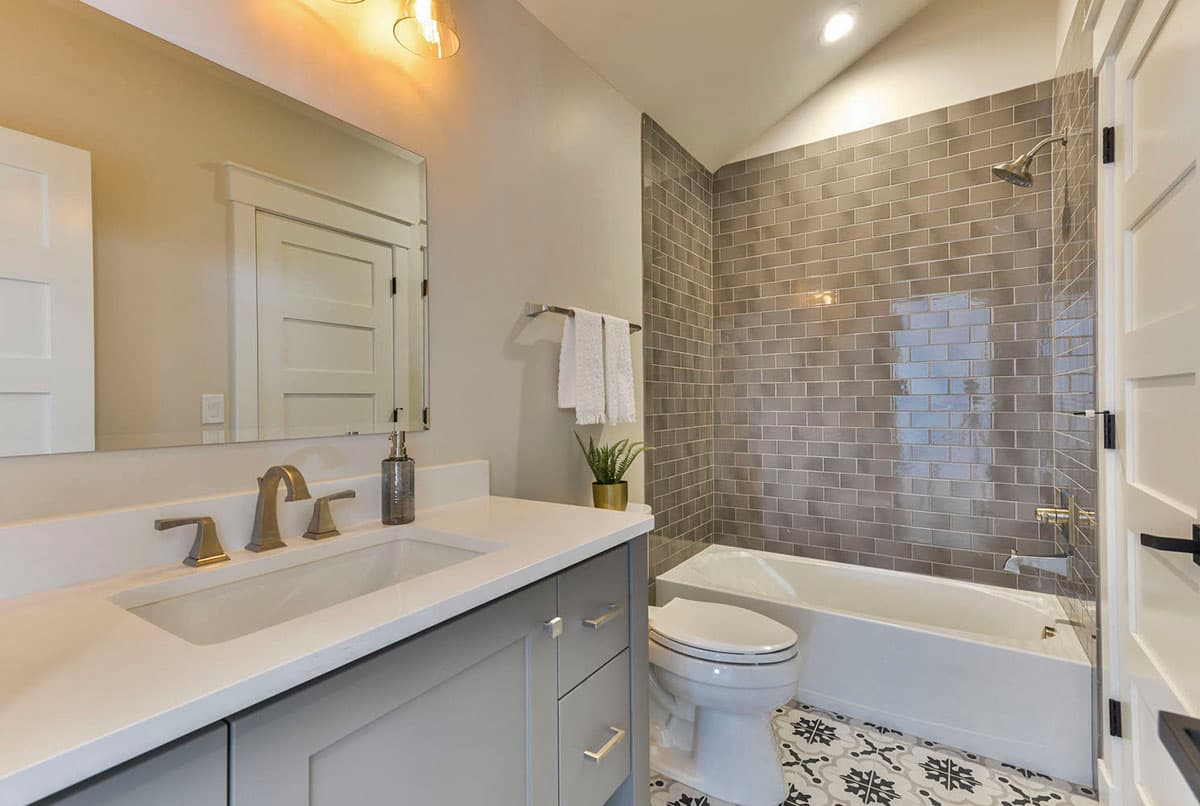

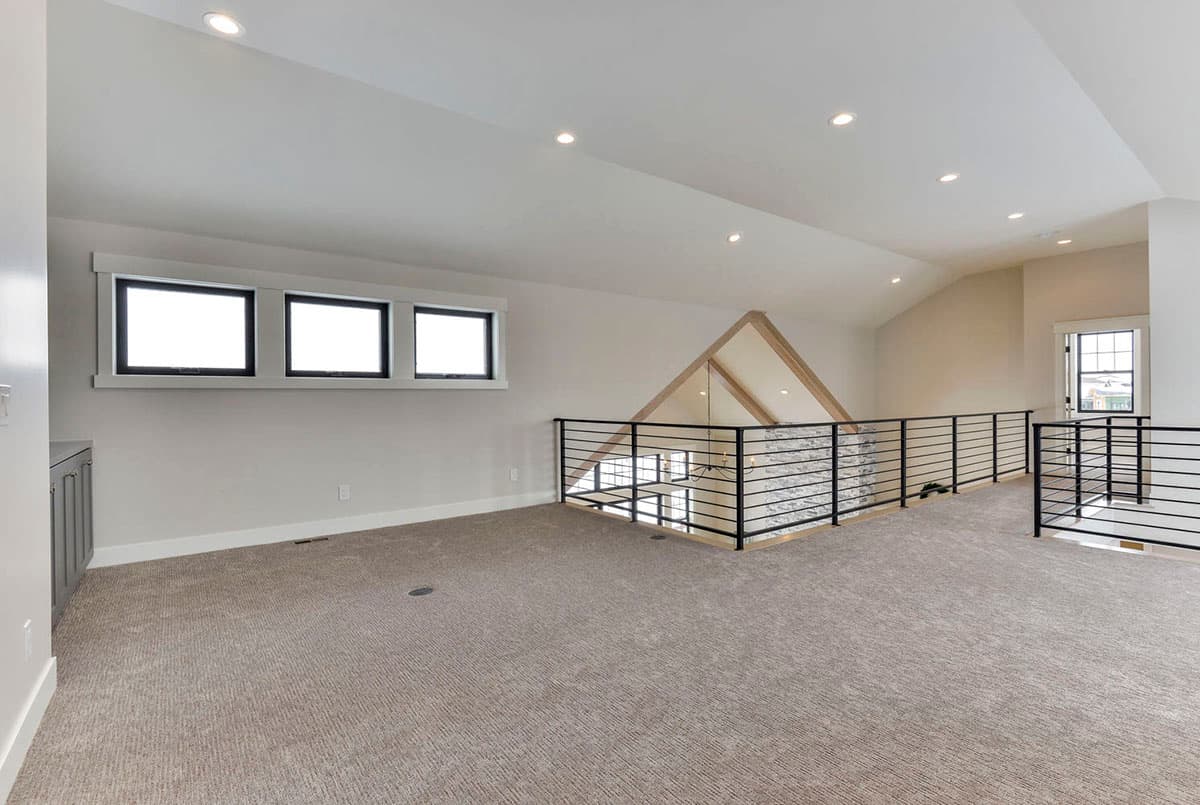

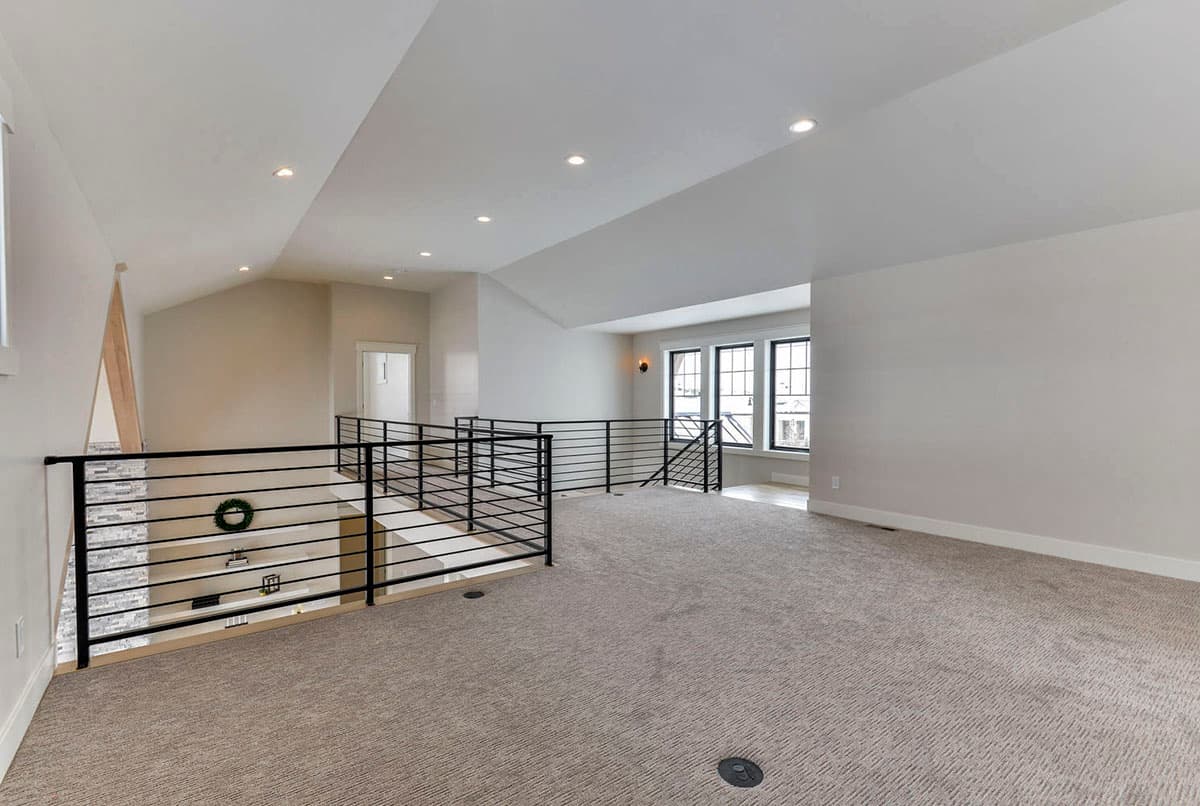

  • Climb the stairs to find a loft and a bridge-style hallway that leads to bedrooms 3 and 4; each bedroom with their own full bath and walk-in closet.

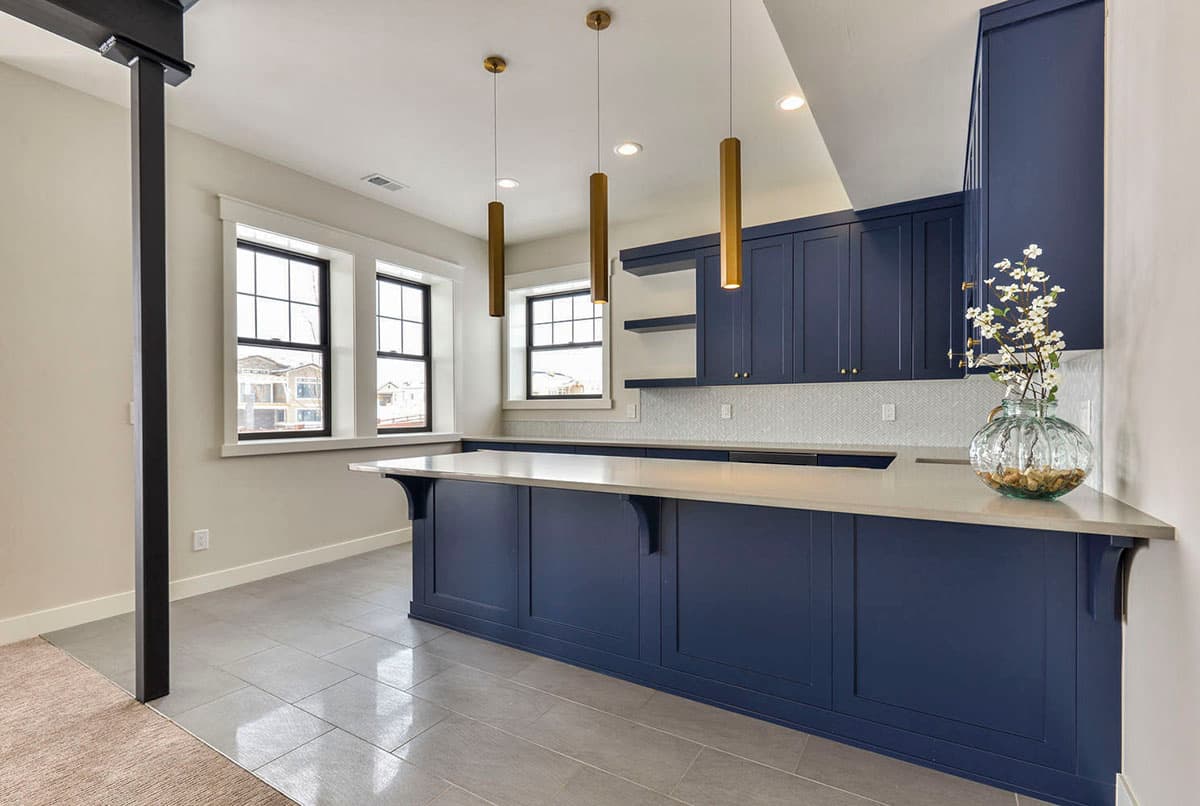

  • Downstairs, discover a wet bar in the recreation room that opens to a lower patio. An exercise room and plenty of storage can also be found on this level.

What's Included

  • Cover Page

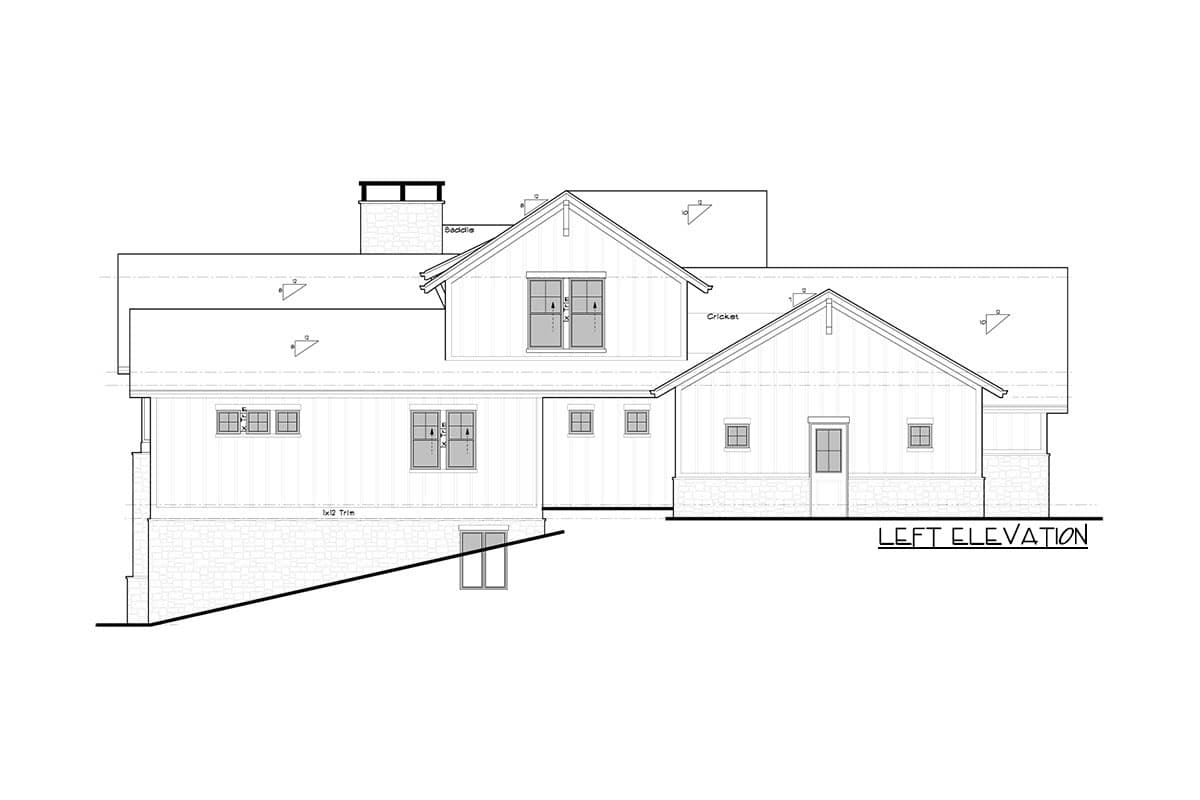

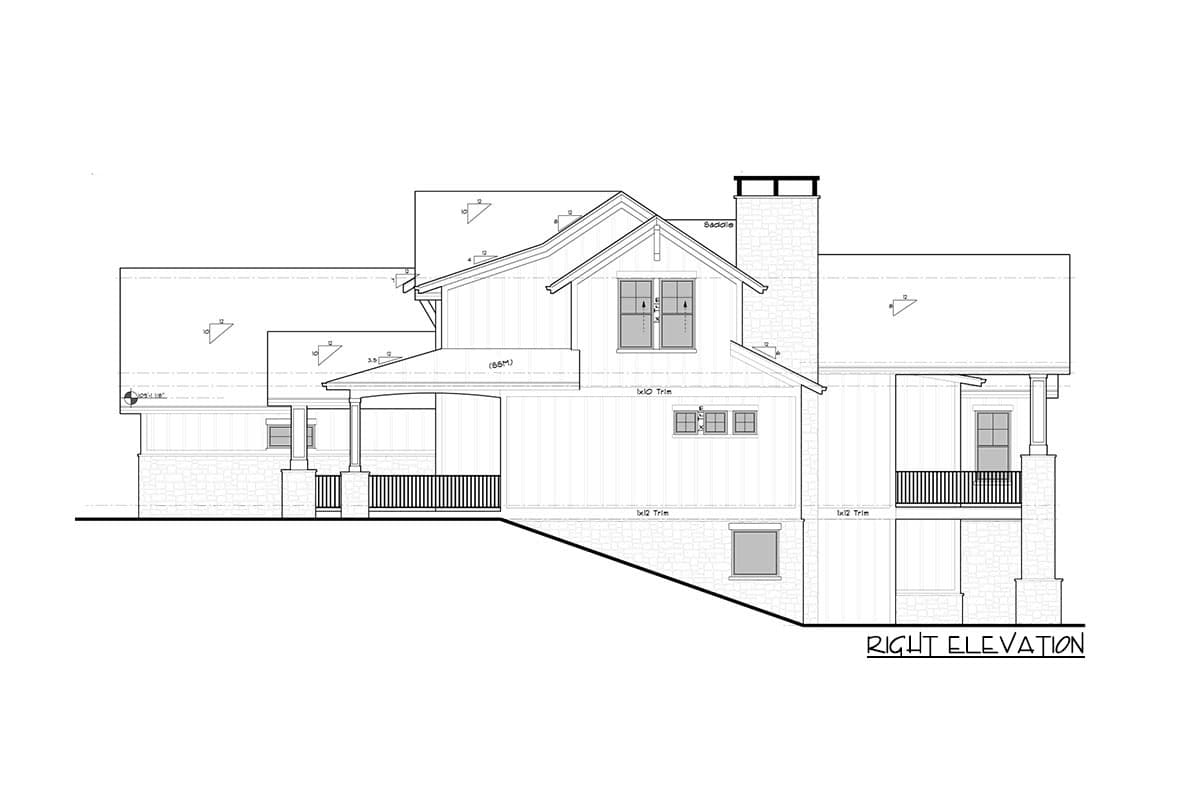

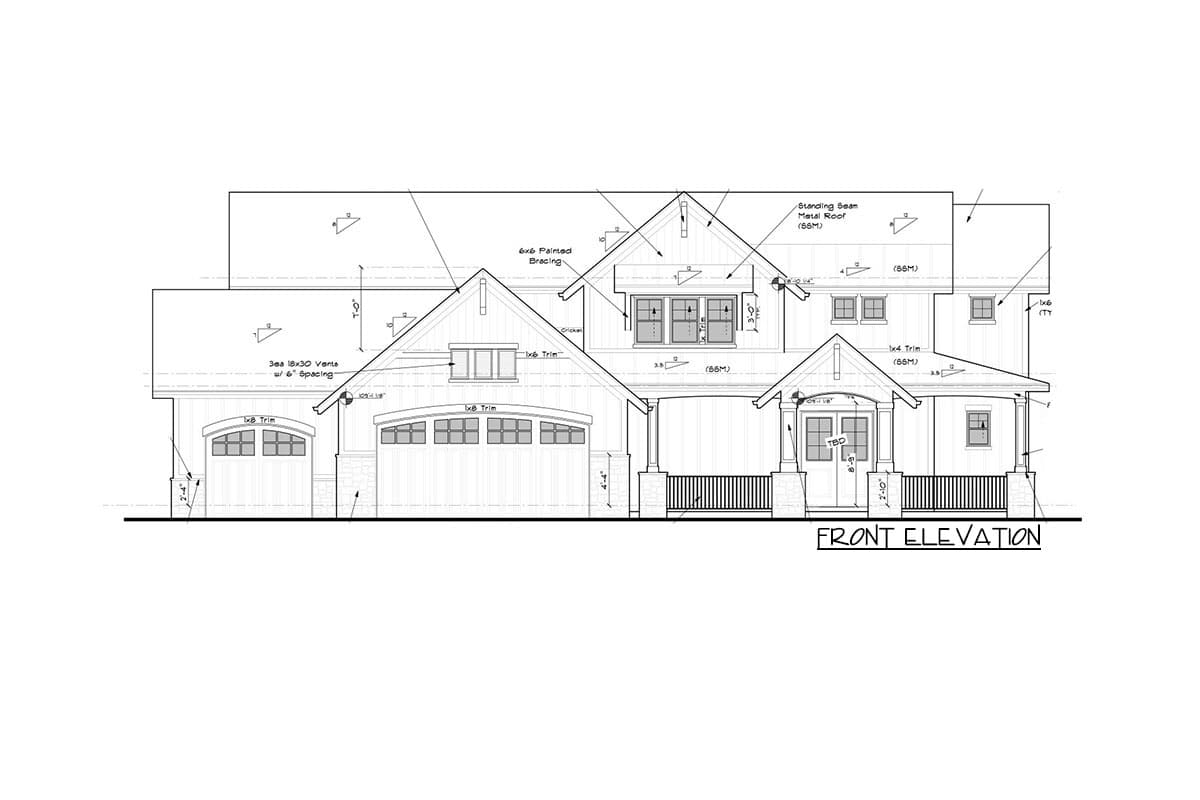

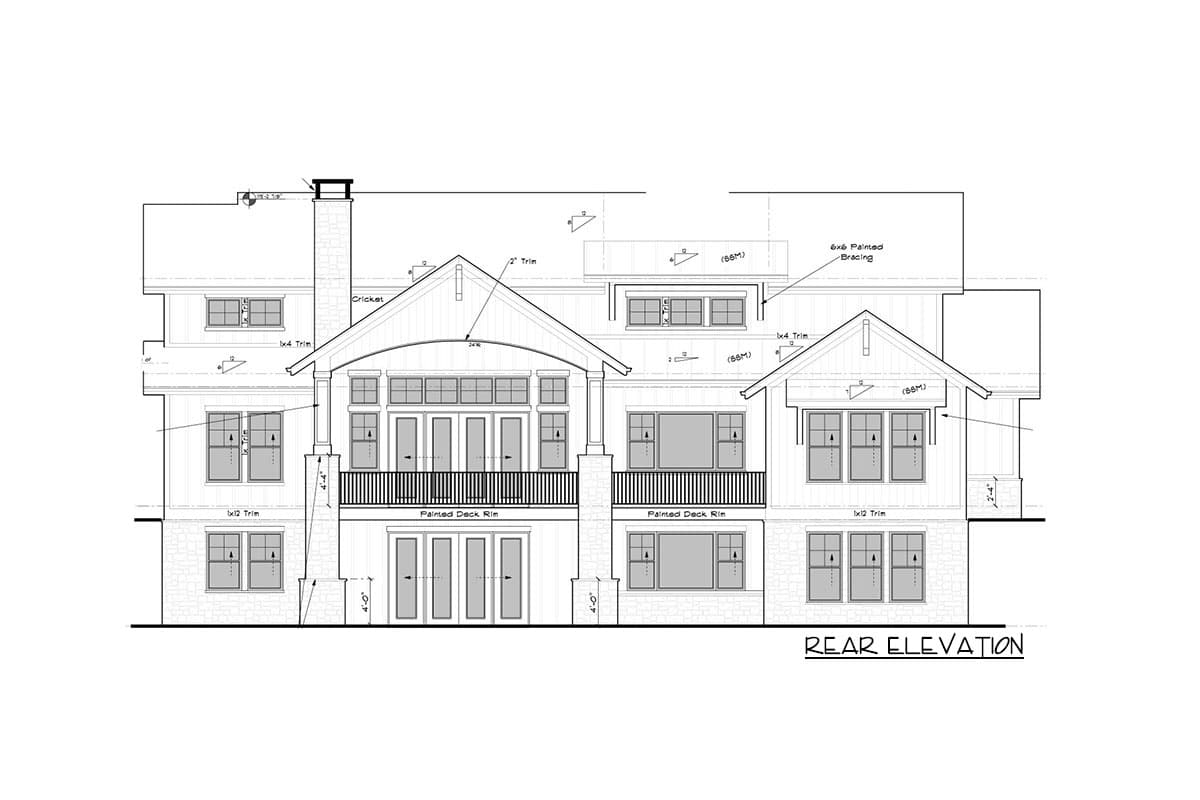

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,674 sq. ft.

1st Floor

2,539 sq. ft.

2nd Floor

1,081 sq. ft.

Basement Unfinished

884 sq. ft.

Optional Lower Level

1,711 sq. ft.

Porch, Combined

1,053 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

76' 6"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

986 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Country

Craftsman

Mountain

New American

Special Features

Den

Flex Room

Game/Rec Room

Home Office

Keeping Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Photo Gallery

Sloping Lot
