Plan 95116RW New American Mountain Ranch with Angled Den and a 4-Car Garage

New American Mountain Ranch with Angled Den and a 4-Car Garage

Plan 95116RW

  • 2,767

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

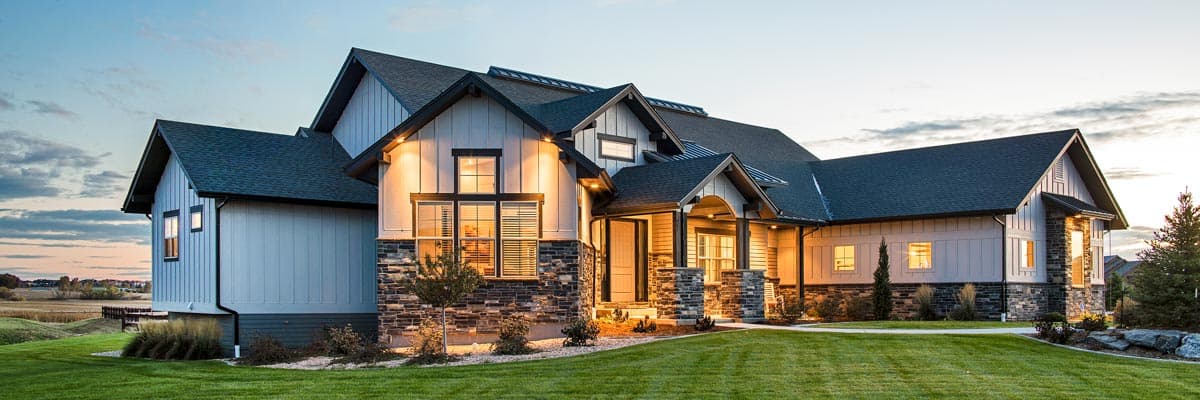

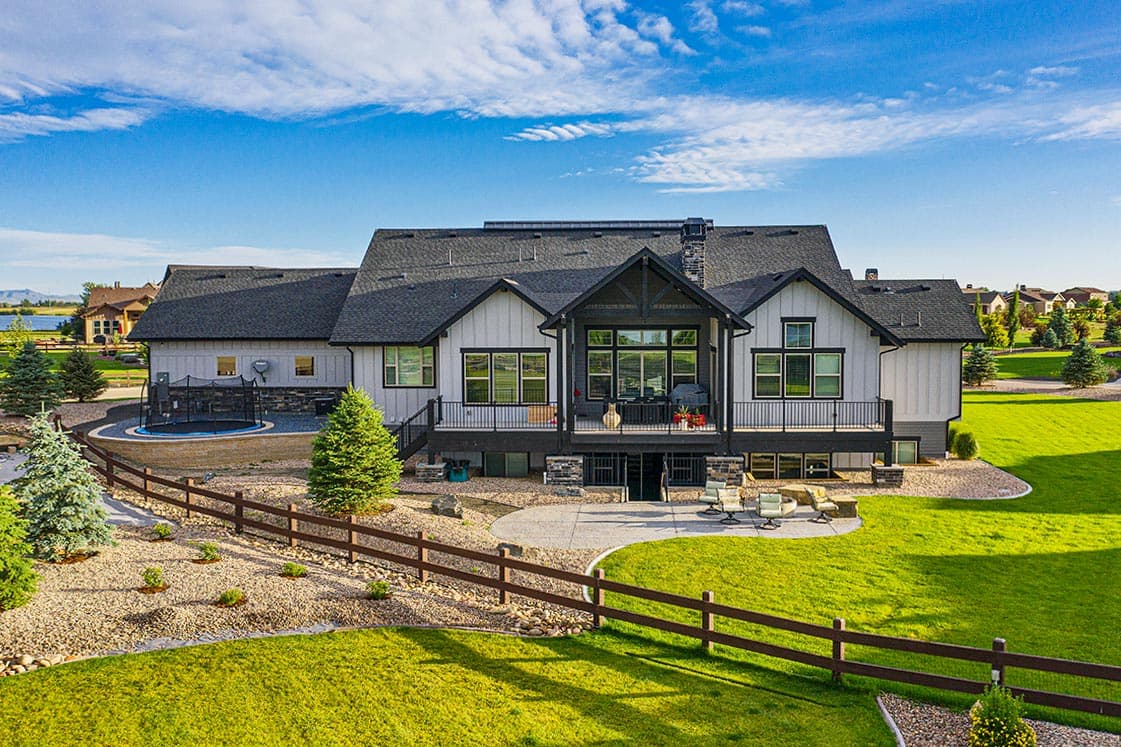

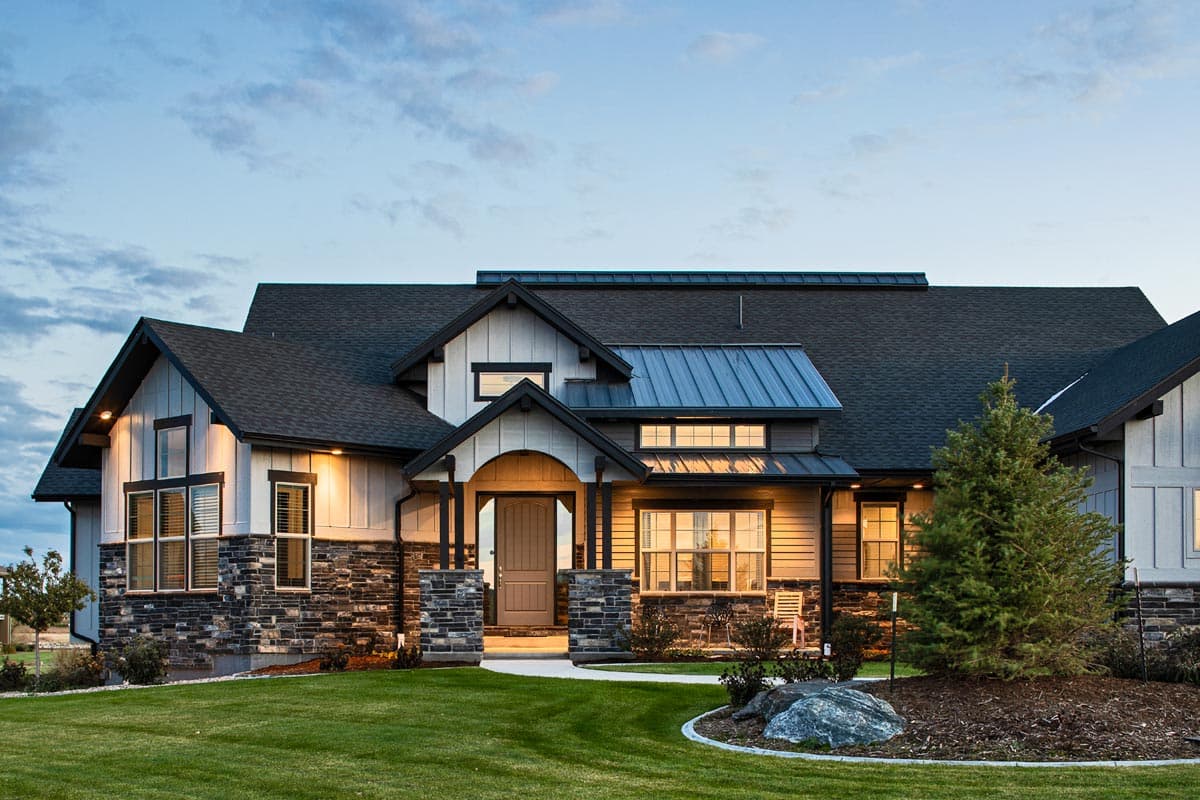

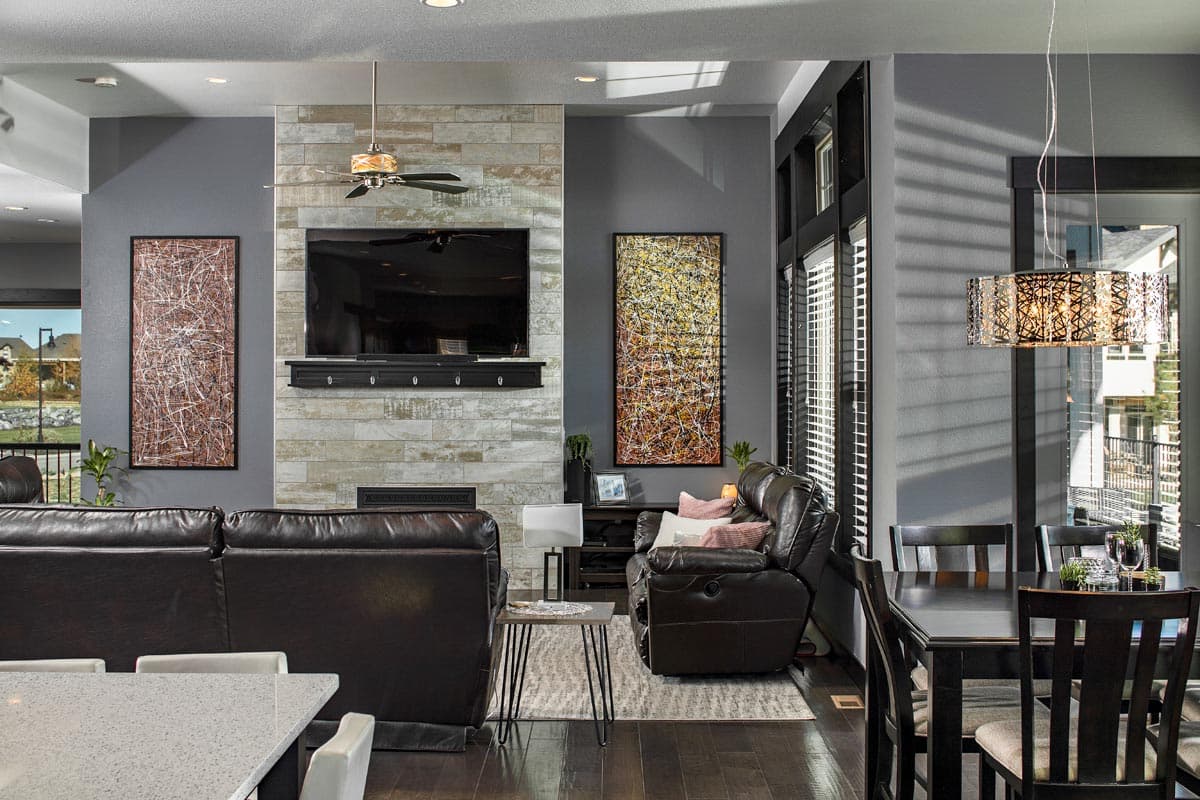

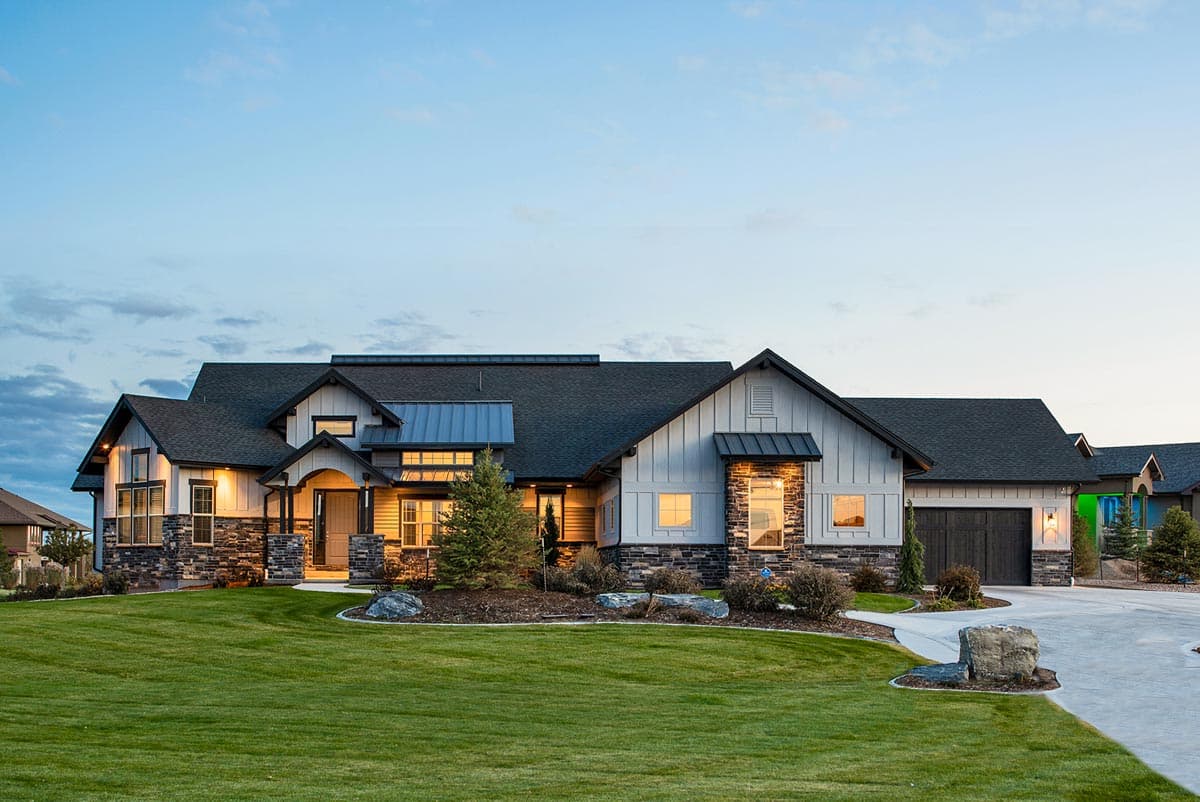

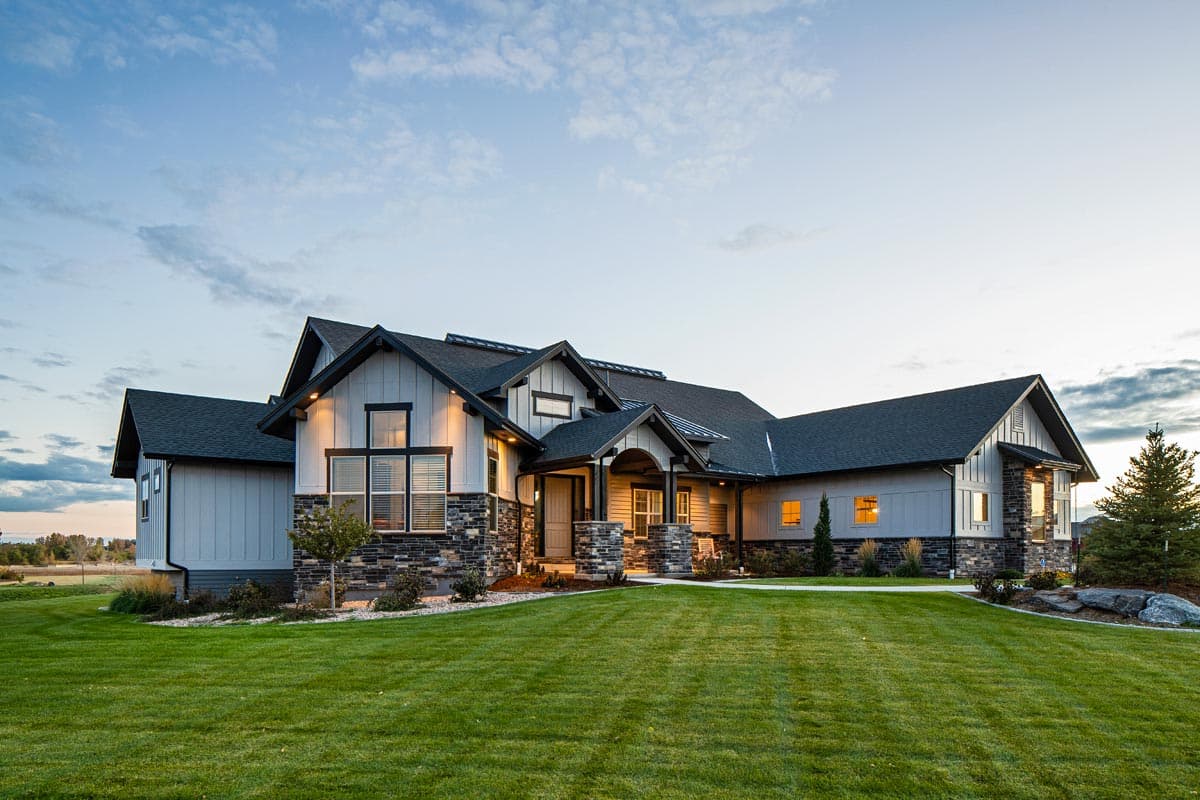

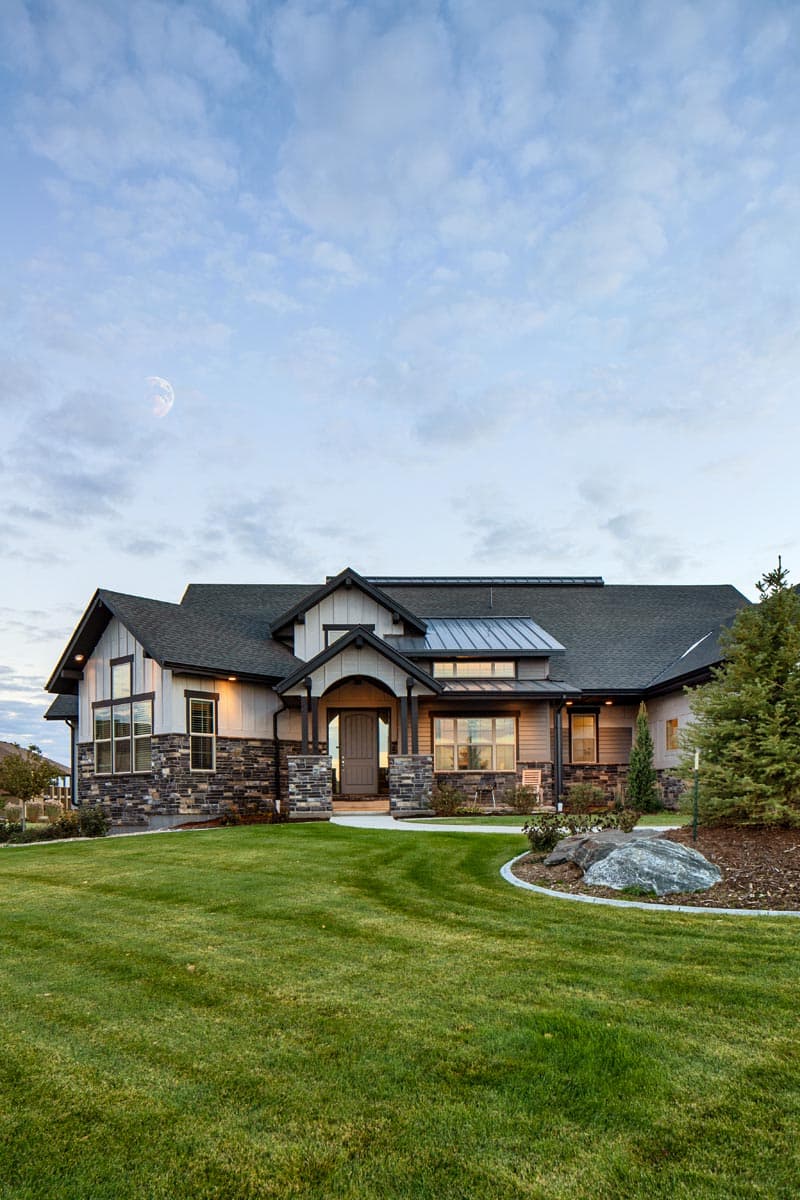

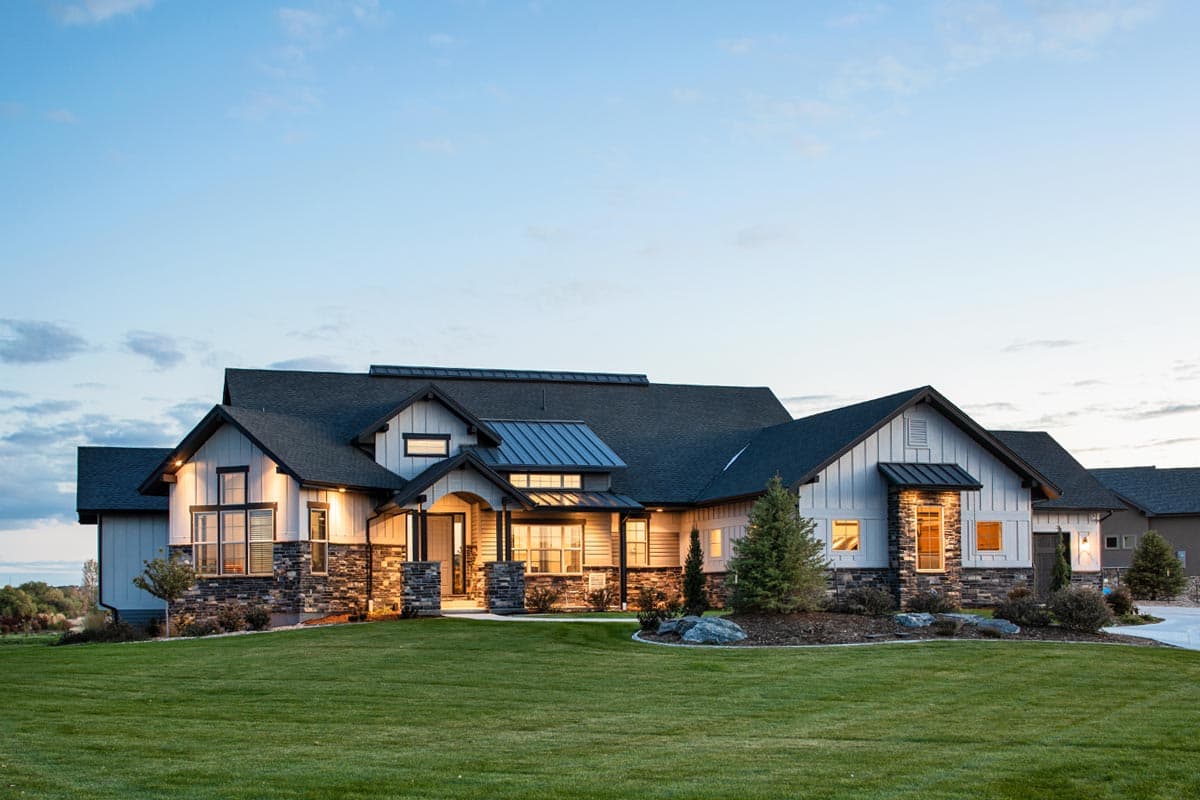

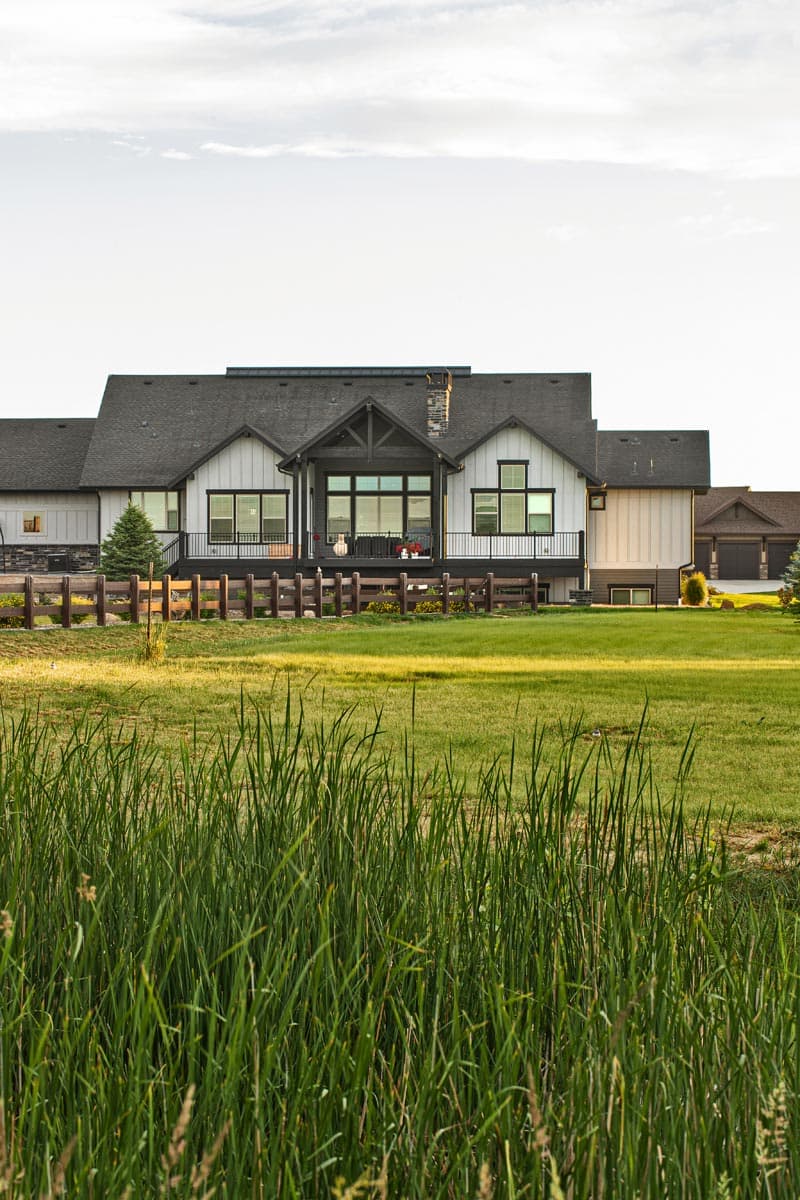

  • This New American, Mountain Ranch features stone accents beneath board and batten siding. Inside, the sizable great room opens to the dining area and kitchen, offering an ideal space to entertain.

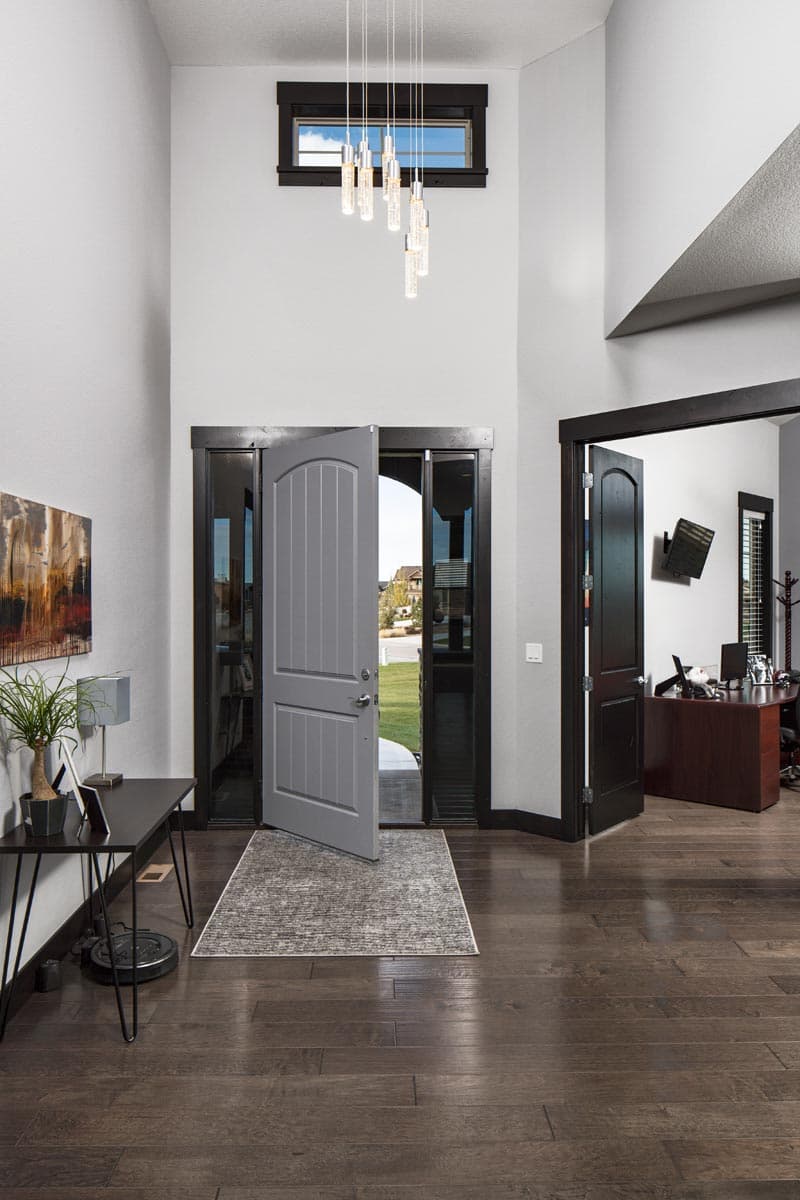

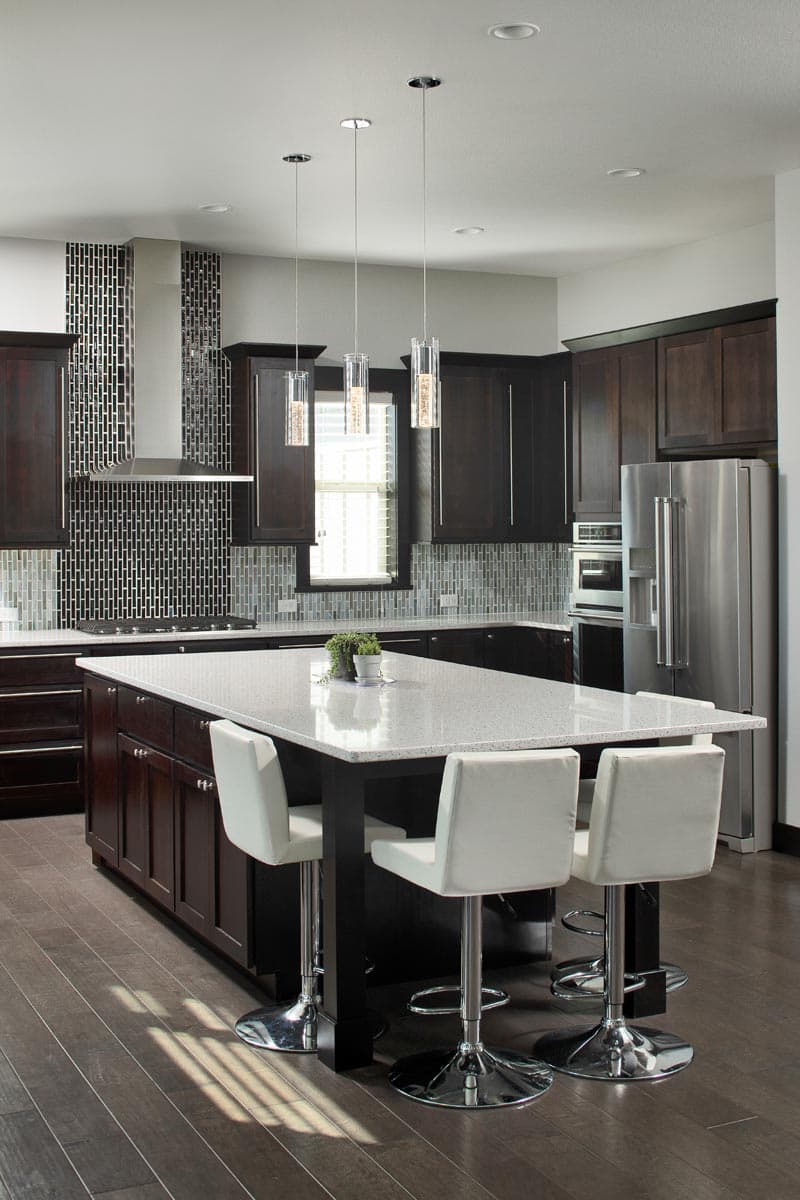

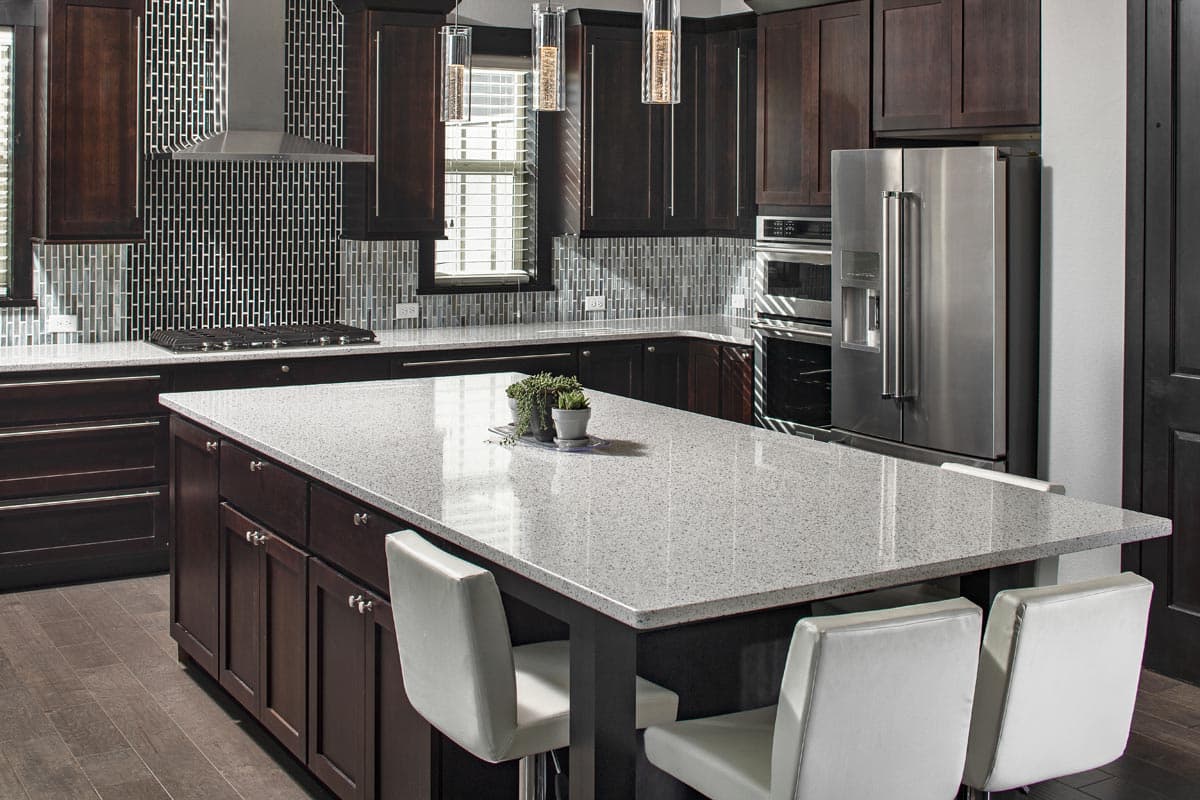

  • A large prep island anchors the kitchen and is located next to a walk-in pantry, while a quiet den resides behind french doors off the foyer.

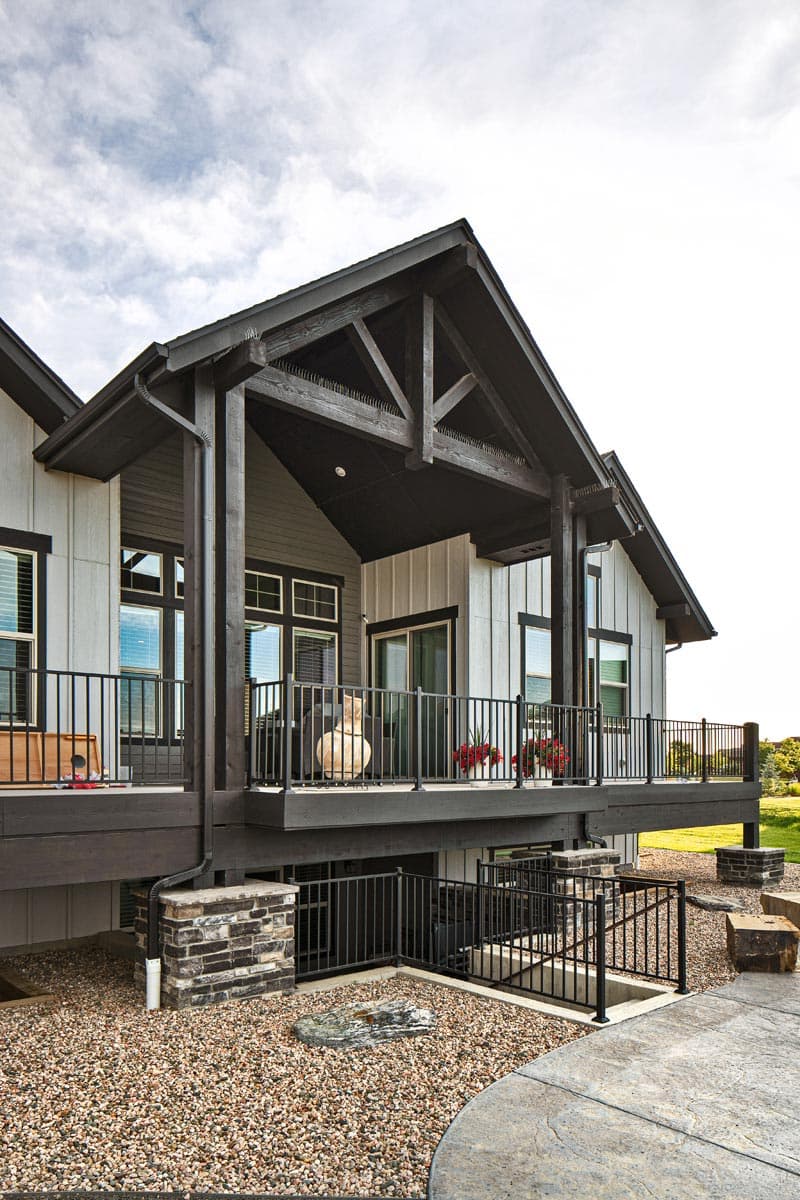

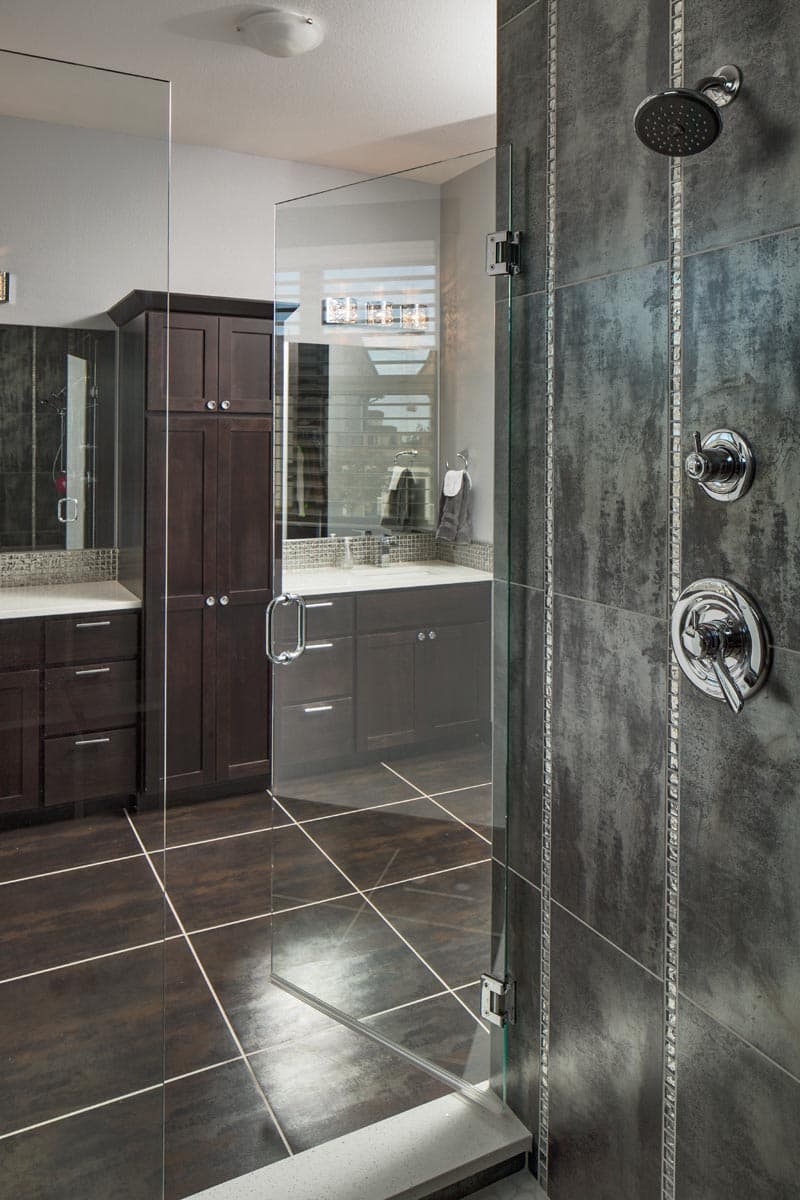

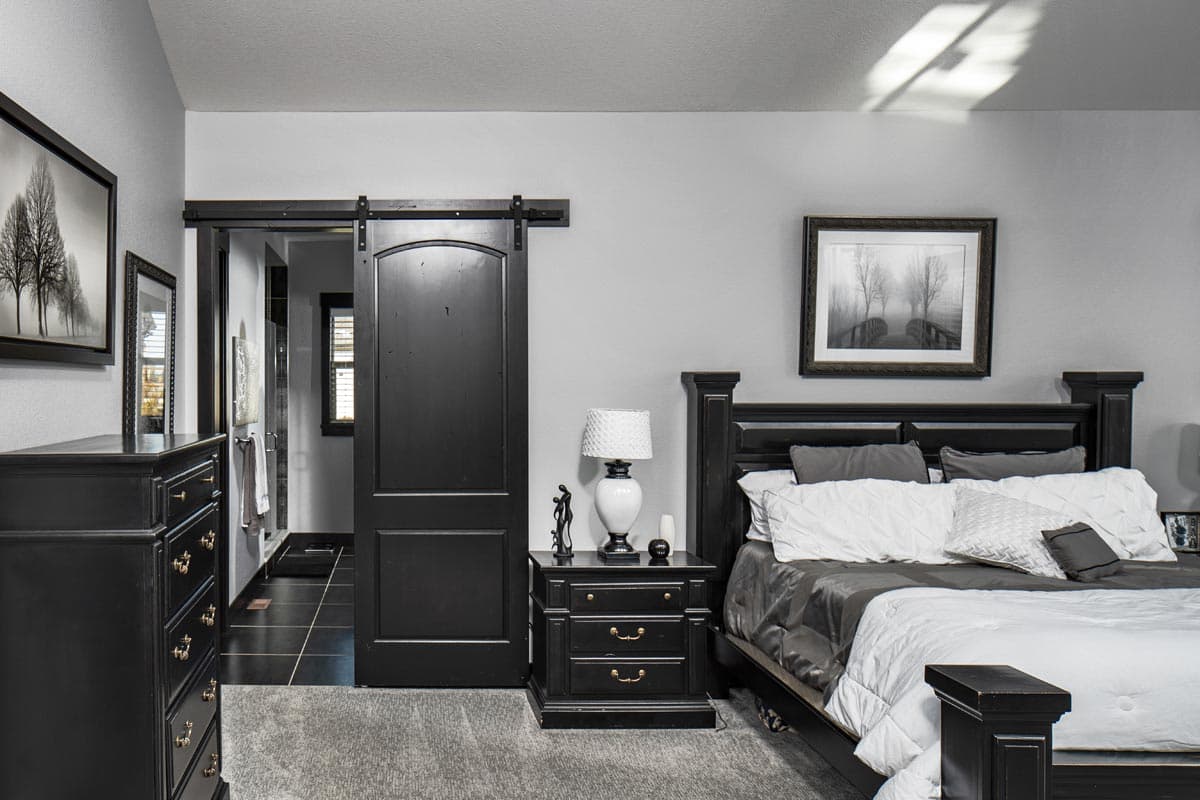

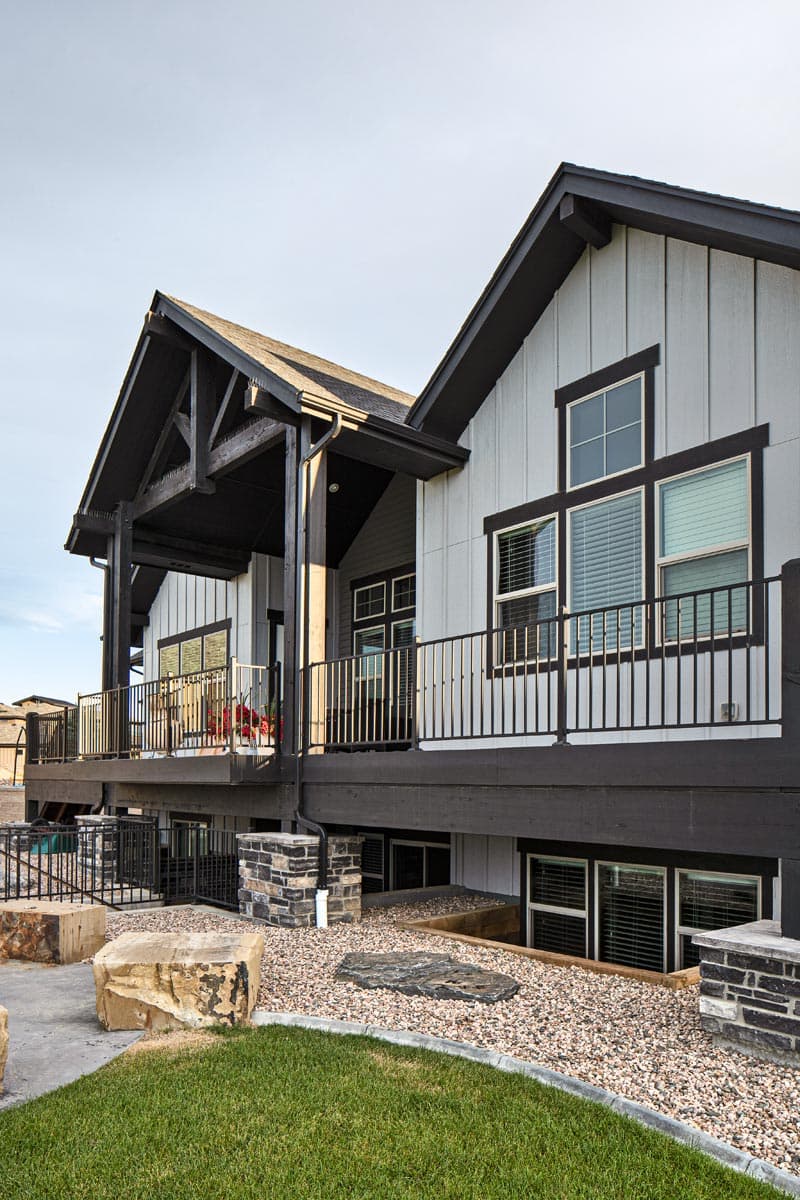

  • In the master suite, discover a private deck, walk-in closet, and an oversized shower in the ensuite. A second bedroom on the main level neighbors a full bath.
  • The L-shaped garage features 4 bays and opens into a sizable mudroom with built-in lockers.

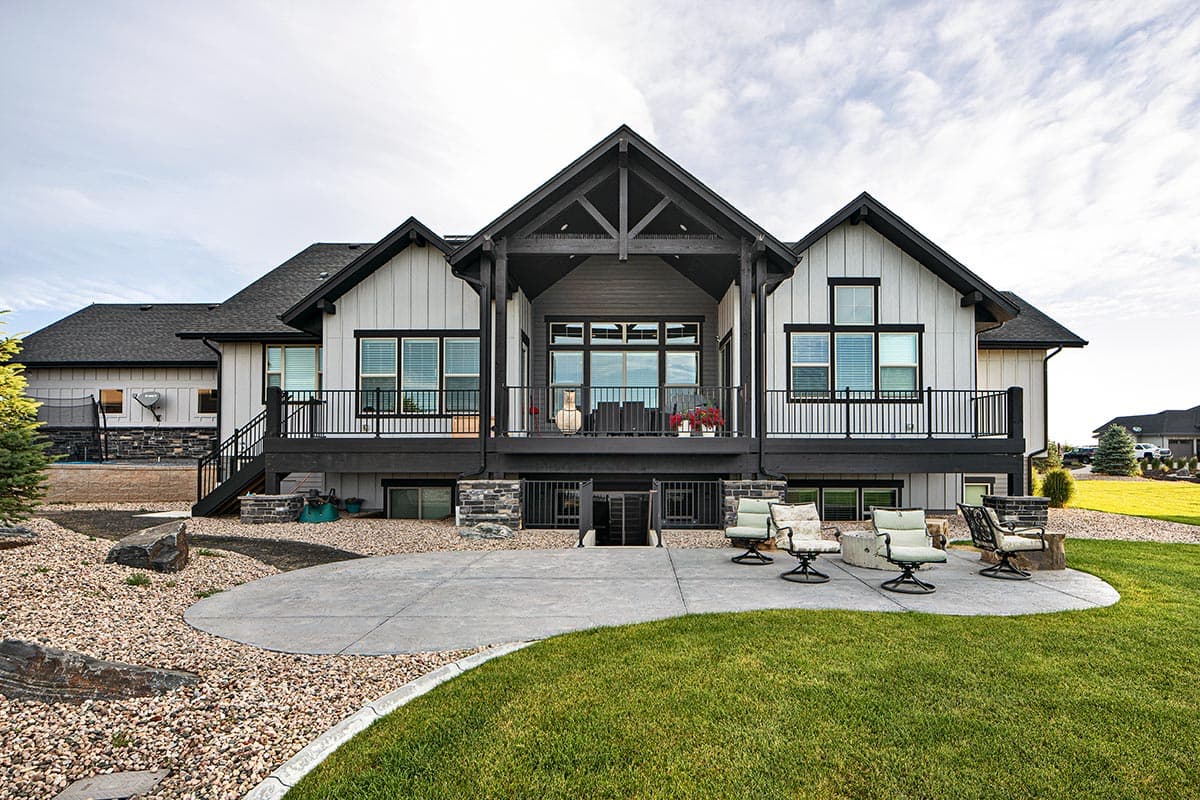

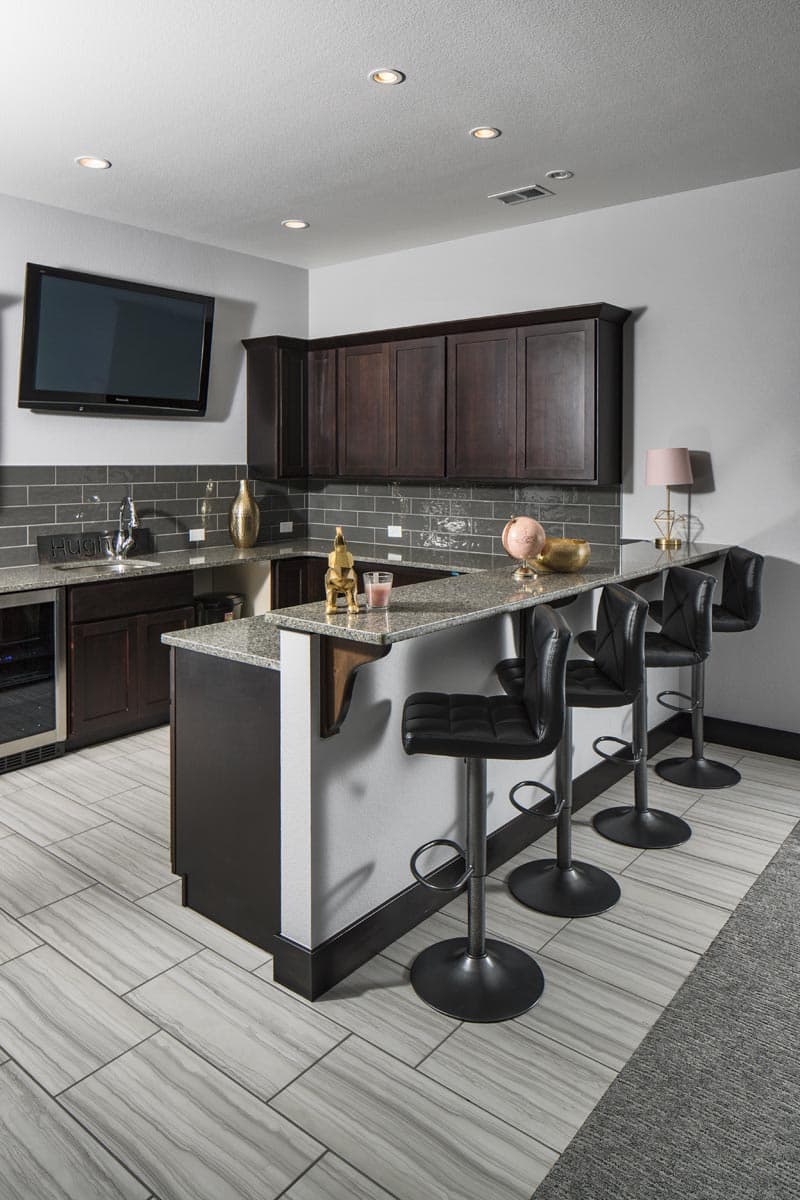

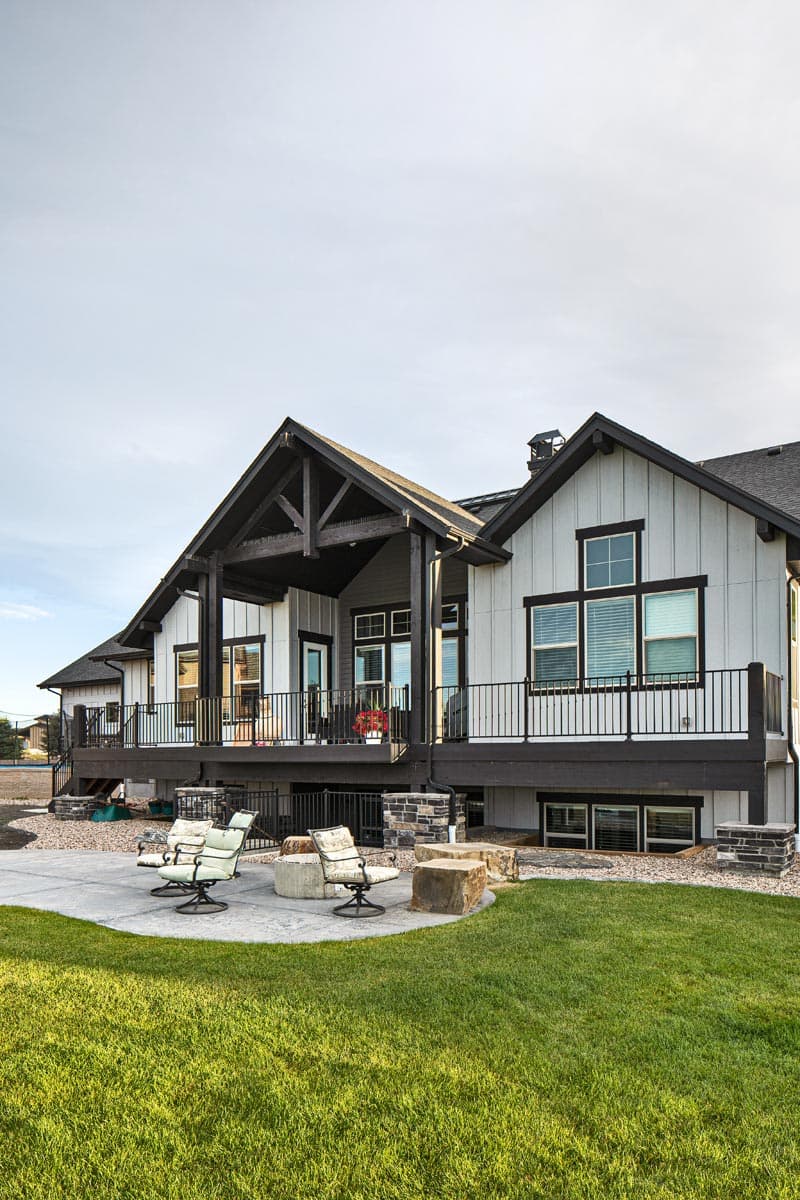

  • The optional lower level nearly doubles the square footage and includes three bedrooms, a large recreation room with a game nook and wet bar, and a walk-out patio.

  • Cover Page

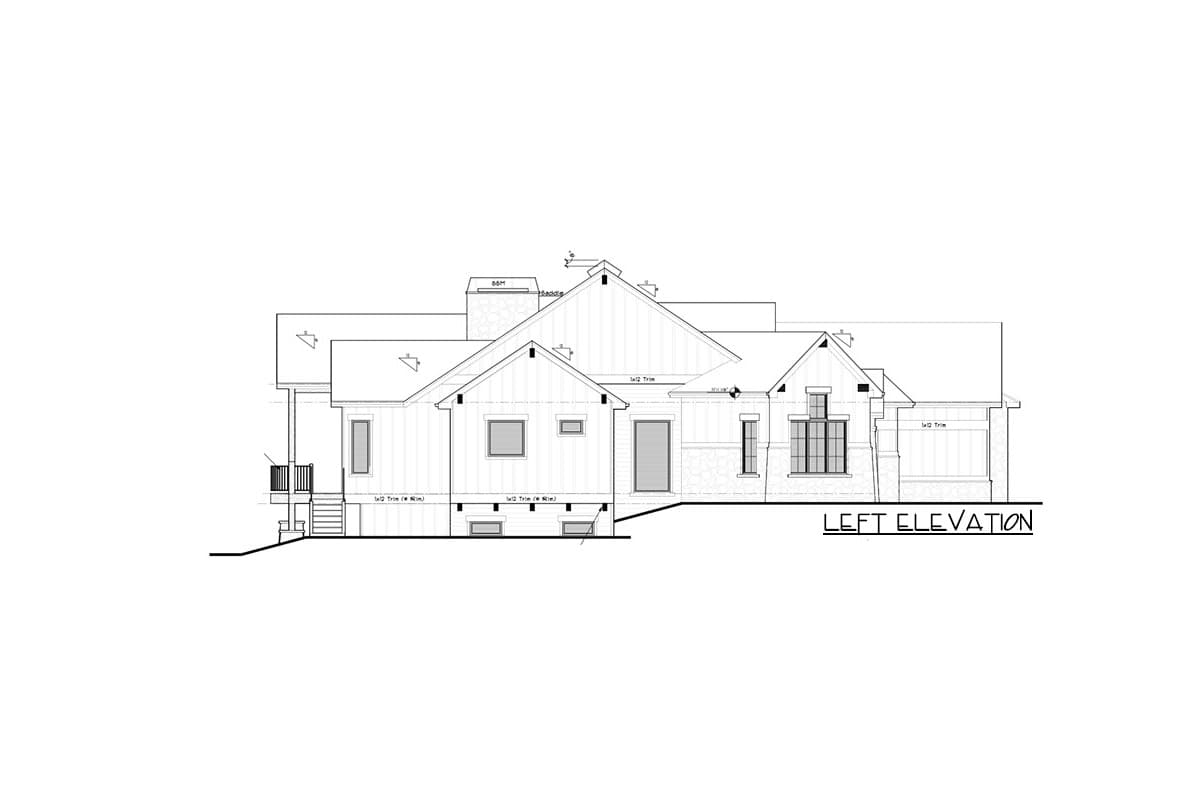

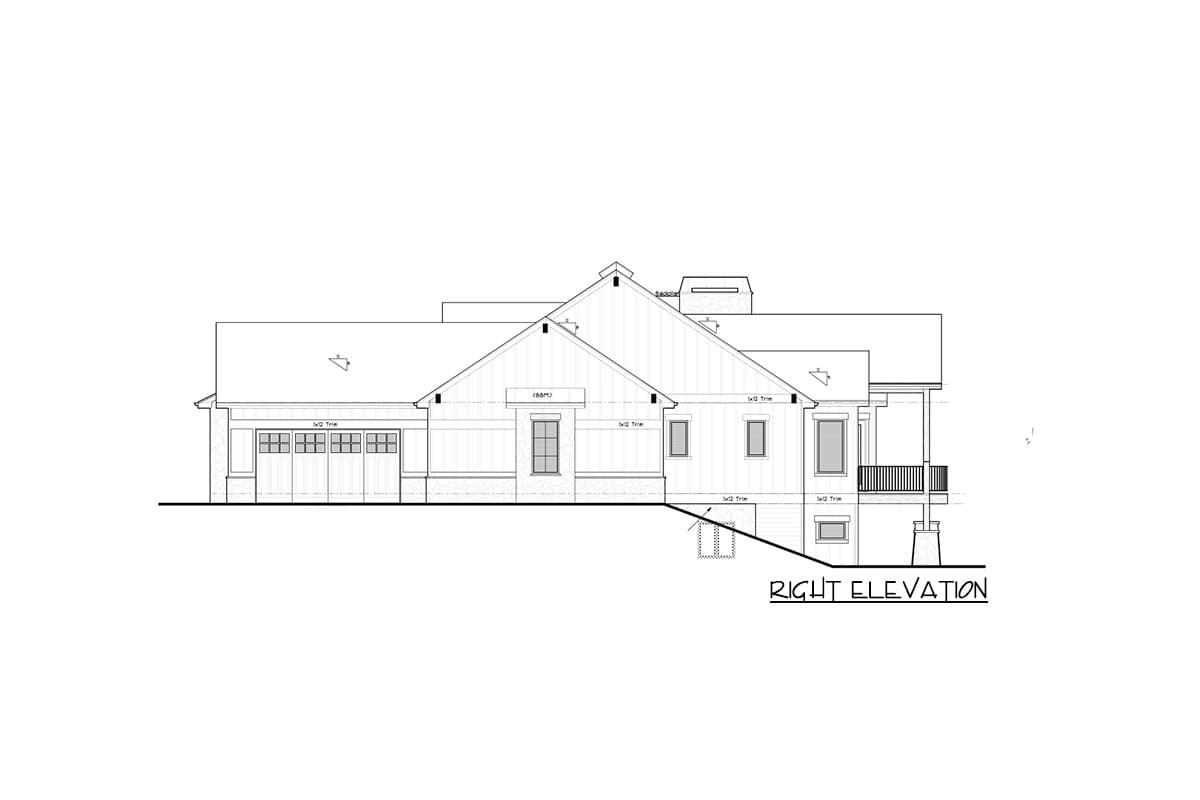

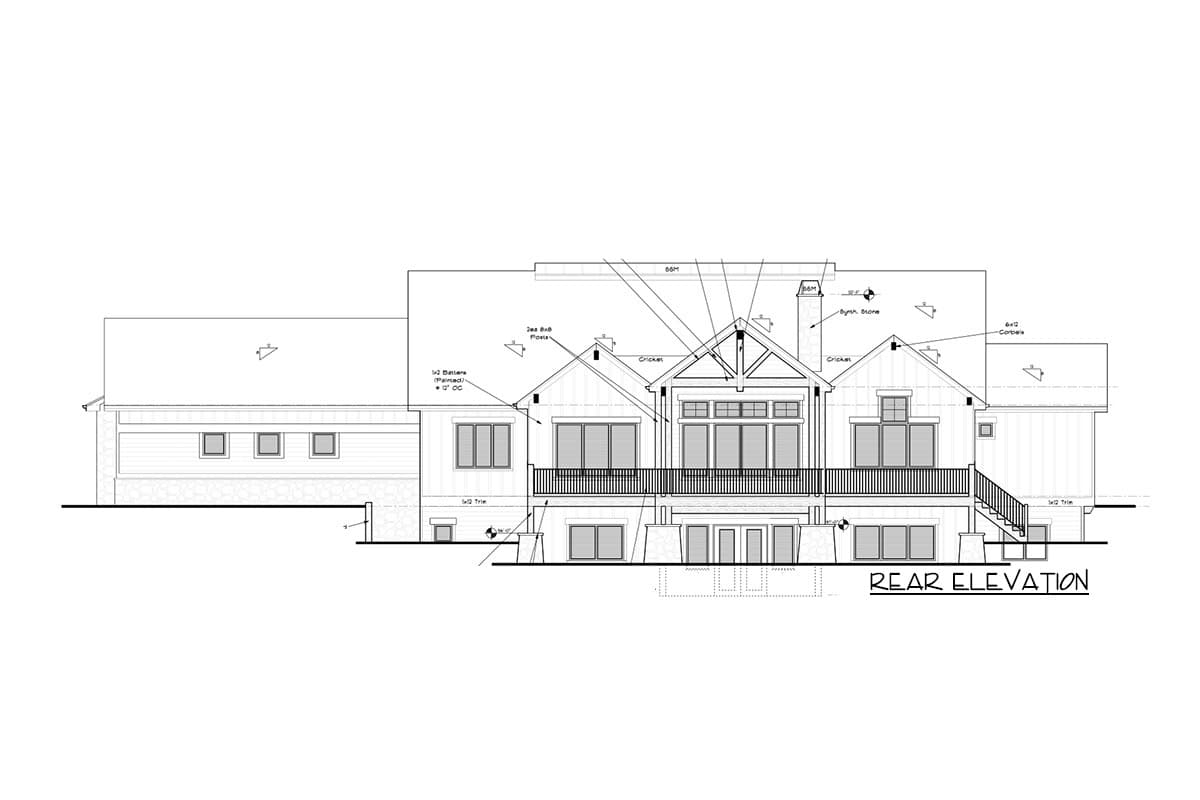

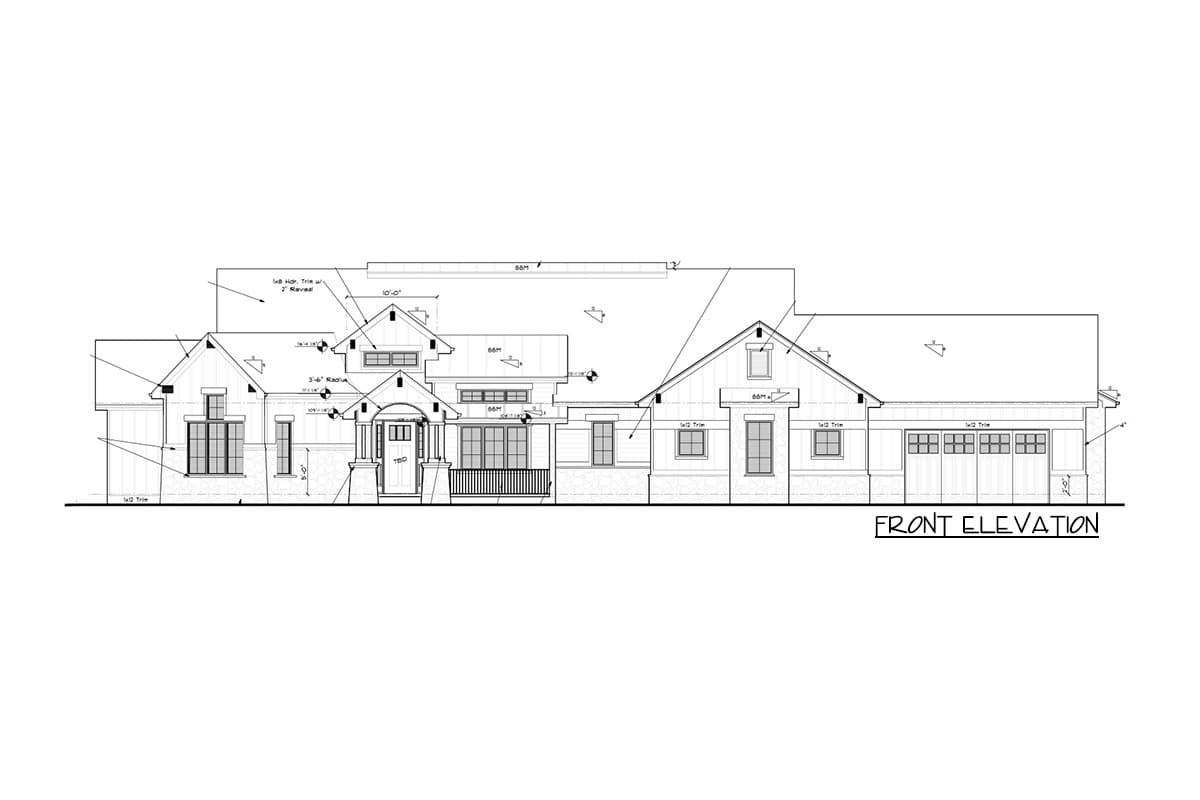

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

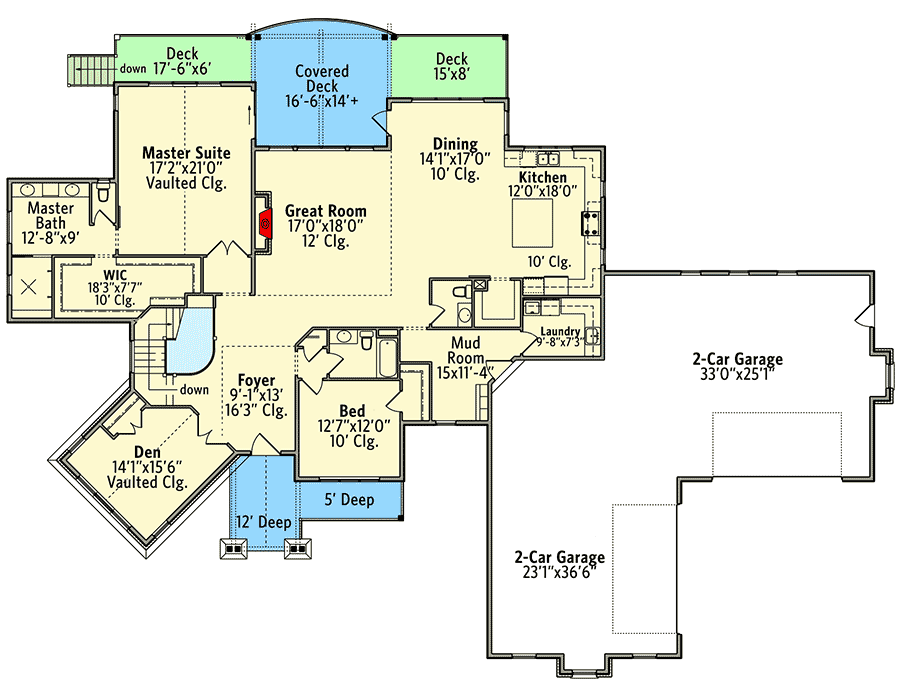

New American Mountain Ranch with Angled Den and a 4-Car Garage - 95116RW floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

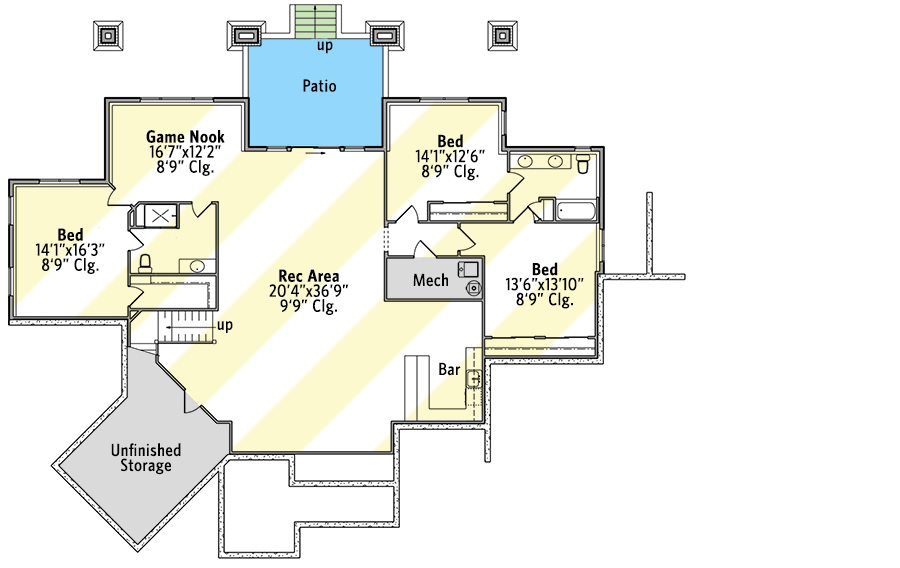

New American Mountain Ranch with Angled Den and a 4-Car Garage - 95116RW floor plan - Optional Lower Level

Plan details

New American Mountain Ranch with Angled Den and a 4-Car Garage

  • 2,767

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • CAD - Single-Build $3,350
  • View all purchase option online

About This Plan

  • This New American, Mountain Ranch features stone accents beneath board and batten siding. Inside, the sizable great room opens to the dining area and kitchen, offering an ideal space to entertain.
  • A large prep island anchors the kitchen and is located next to a walk-in pantry, while a quiet den resides behind french doors off the foyer.
  • In the master suite, discover a private deck, walk-in closet, and an oversized shower in the ensuite. A second bedroom on the main level neighbors a full bath.
  • The L-shaped garage features 4 bays and opens into a sizable mudroom with built-in lockers.
  • The optional lower level nearly doubles the square footage and includes three bedrooms, a large recreation room with a game nook and wet bar, and a walk-out patio.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,767 sq. ft.
  • 1st Floor: 2,767 sq. ft.
  • Porch, Combined: 880 sq. ft.
  • Optional Lower Level: 2,259 sq. ft.
  • Basement Unfinished: 443 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 109' 9"
  • Depth: 81' 6"
  • Max ridge height: 25' 7"

Garage

  • Type: Attached
  • Area: 1626 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick And Truss
