New American Ranch Home Plan with 3-Car Garage
Heated S.F.
1,921
Beds
3
Baths
2
Stories
1
Cars
3
What's Included
Plan Details
  • This 3-bed, New American home plan has a large, front porch with tapered columns, greeting guests upon arrival. Vertical siding and a single dormer complete the design.
  • The heart of the home is just past the threshold, with a cathedral ceiling providing a feeling of grandeur. Two sets of french doors lead to the back, covered porch for extended living space during the warmer seasons.
  • The split bedrooms allow for plenty of privacy for the homeowner, keeping kids or guests on the opposite side.
  • The spacious, master bedroom boasts an ensuite with double sinks and a pass-through walk-in closet that leads to the laundry room.
  • The two secondary bedrooms are separated by a full bathroom.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Ranch Home Plan with 3-Car Garage

  • 1,921

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

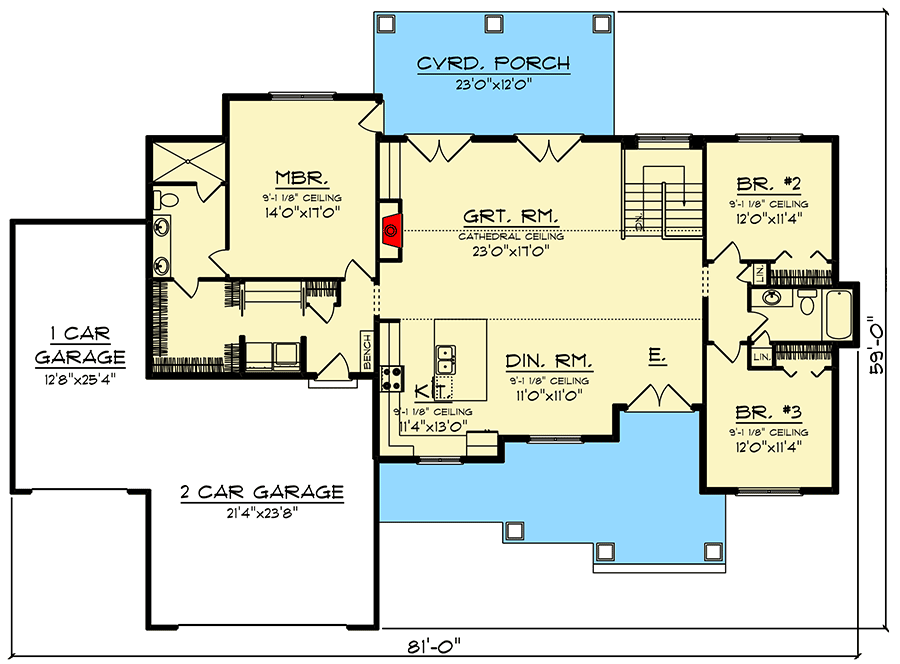

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,921 sq. ft.
  • 1st Floor: 1,921 sq. ft.

Dimensions

  • Width: 81' 0"
  • Depth: 59' 0"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 866 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
