New American Ranch Home Plan with Home Office and Media Room - 2812 Sq Ft

Heated S.F.
2,812
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 25423TF

Main Level
Main Level

Plan 25423TF

M-F 9am-5pm EST |

1-203-761-8500

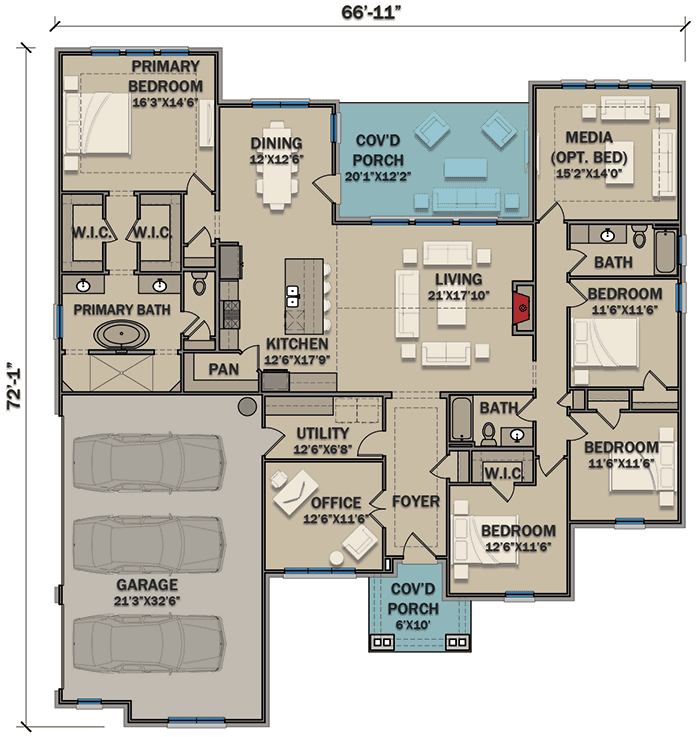

Main Level

Plan 25423TF: New American Ranch Home Plan with Home Office and Media Room - 2812 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Ranch

Plan Details

  • This New American Ranch home plan checks the items on everyone's wish list: split-bedroom layout, home office, media room, and a spacious living space.
  • Enter the 3-car garage from the side of the home, and find a combined mud / laundry room upon entering.
  • The kitchen is bordered by the dining and living rooms with an eating bar serving as the natural hub for everyday living.
  • Relax in the primary bedroom, tucked behind the garage, and discover two walk-in closets and a freestanding tub in the deluxe ensuite.
  • Three bedrooms line the right side of the design with a media room (or 5th bedroom) towards the rear.

What's Included

  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,812 sq. ft.

1st Floor

2,812 sq. ft.

Porch, Rear

244 sq. ft.

Entry

85 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 11"

Depth

72' 1"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

773 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Boxed

11' 0''

Media Room

Boxed

11' 0''

Family Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick Or Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,812 sq. ft.

1st Floor

2,812 sq. ft.

Porch, Rear

244 sq. ft.

Entry

85 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 11"

Depth

72' 1"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

773 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Boxed

11' 0''

Media Room

Boxed

11' 0''

Family Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick Or Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Walk-in Pantry

Plan Collections

Home Office
