New American Ranch Home Plan with Lots of Options

Plan 22540DR

  • 1,525

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A covered entry greets you to this 3-bed New American ranch home plan.
  • An enclosed foyer with closet helps keep out the cold and control clutter.
  • An open concept living area is great for entertaining. A large island in the kitchen has seating on two sides and there is also room for a dining table.
  • Laundry is located by the garage entrance and near all three bedrooms.
  • Related Plans: Get a larger version on a basement with house plan 22541DR (1,738 sq. ft.). Get a front-facing garage with house plans 22494DR (1,513 sq. ft.) and 22542DR (1,858 sq. ft.). Eliminate the garage with house plan 22475DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

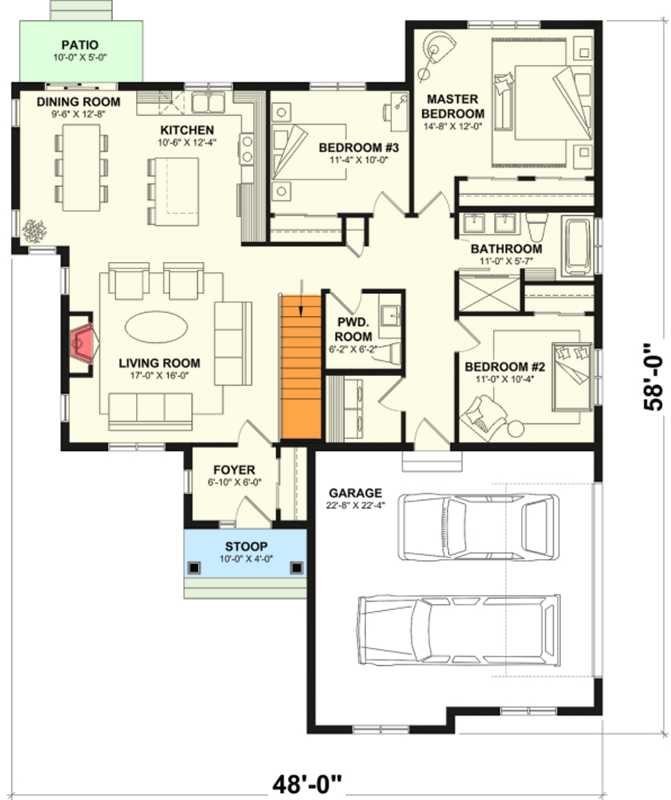

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

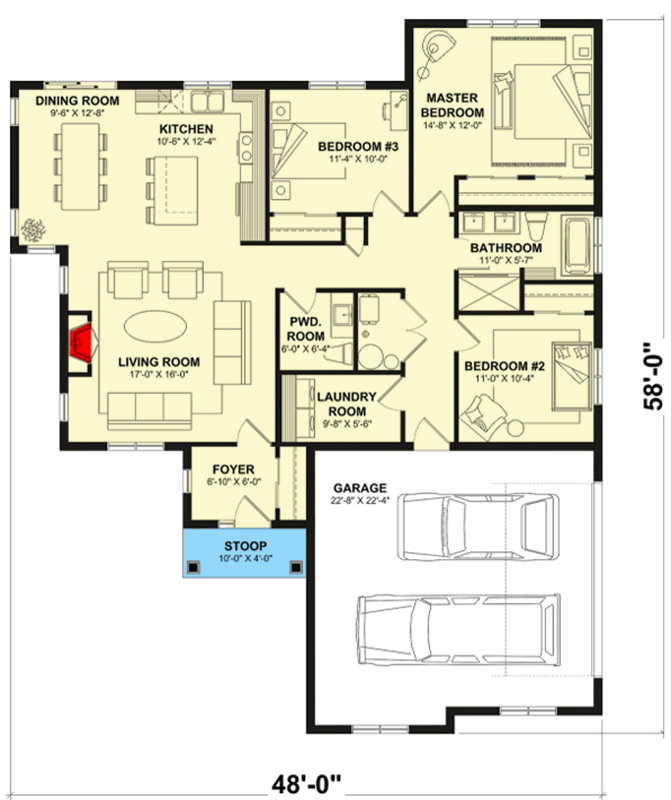

New American Ranch Home Plan with Lots of Options - 22540DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,525 sq. ft.
  • 1st Floor: 1,525 sq. ft.
  • Porch, Combined: 40 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 58' 0"
  • Max ridge height: 21' 11"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12

Architectural Style

Special features

New American Ranch Home Plan with Lots of Options

  • 1,525

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • A covered entry greets you to this 3-bed New American ranch home plan.
  • An enclosed foyer with closet helps keep out the cold and control clutter.
  • An open concept living area is great for entertaining. A large island in the kitchen has seating on two sides and there is also room for a dining table.
  • Laundry is located by the garage entrance and near all three bedrooms.
  • Related Plans: Get a larger version on a basement with house plan 22541DR (1,738 sq. ft.). Get a front-facing garage with house plans 22494DR (1,513 sq. ft.) and 22542DR (1,858 sq. ft.). Eliminate the garage with house plan 22475DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,525 sq. ft.
  • 1st Floor: 1,525 sq. ft.
  • Porch, Combined: 40 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 58' 0"
  • Max ridge height: 21' 11"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
Plan 22540DR
