Plan 95372RW

New American Ranch House Plan with Split Bedrooms and 3-Car Garage

Heated S.F.
2,223
Beds
2
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 95372RW

Floor Plan 1
Optional Lower Level
Optional Lower Level

Plan 95372RW

M-F 9am-5pm EST |

1-203-761-8500

Plan 95372RW: New American Ranch House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - - New American, Ranch

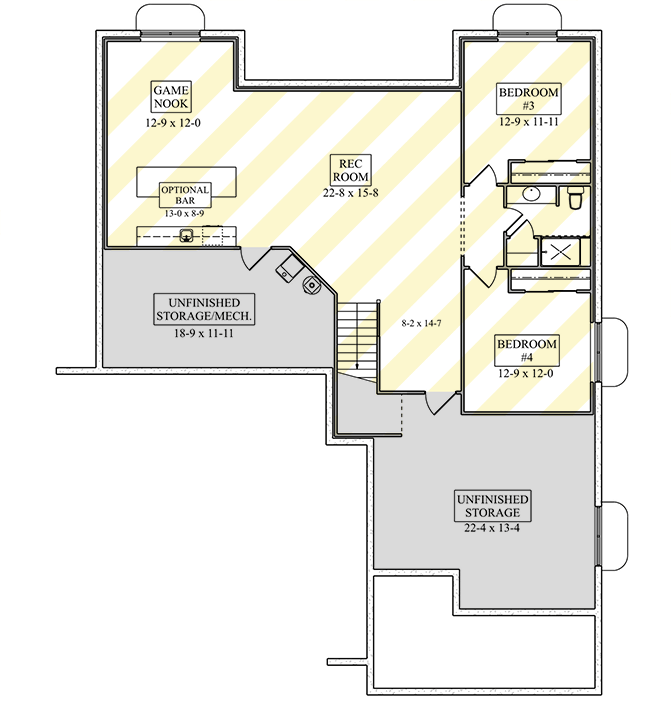

Optional Lower Level

Plan 95372RW: New American Ranch House Plan with Split Bedrooms and 3-Car Garage - Floor Plan - Optional Lower Level - New American, Ranch

Plan Details

  • This 2,223 sq ft New American Ranch House Plan offers 2 bedrooms, 2.5 baths, and an attached 3-car garage spanning 1031 sq ft.
  • A welcoming covered porch, featuring rustic wood posts and stone accents, leads into a thoughtfully designed layout with 10-foot ceilings on the main floor.
  • The main living area flows seamlessly, incorporating a convenient mudroom, a walk-in pantry, a wet bar, and a main-level laundry room for modern living.
  • The primary master suite is privately situated on the first floor, benefiting from a split bedroom design for enhanced tranquility.
  • Discover additional functional spaces including a dedicated library or study and a versatile game or rec room, perfect for leisure and productivity.
  • Enjoy the outdoors with a combined 520 sq ft of porch space and an additional 520 sq ft deck, ideal for relaxation and entertaining.

  • An 814 sq ft unfinished basement and a substantial 1,420 sq ft optional lower level provide ample opportunities for future customization and expansion.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,223 sq. ft.

1st Floor

2,223 sq. ft.

Basement Unfinished

814 sq. ft.

Porch, Combined

520 sq. ft.

Deck

520 sq. ft.

Optional Lower Level

1,420 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

76' 0"

Max Ridge Height

21' 2"

Garage

Type

Standard, Attached

Area

1031 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
