Plan 51324MM

New American Ranch House Plan with Split Bedrooms and Flex Space

Heated S.F.
2,419
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 51324MM

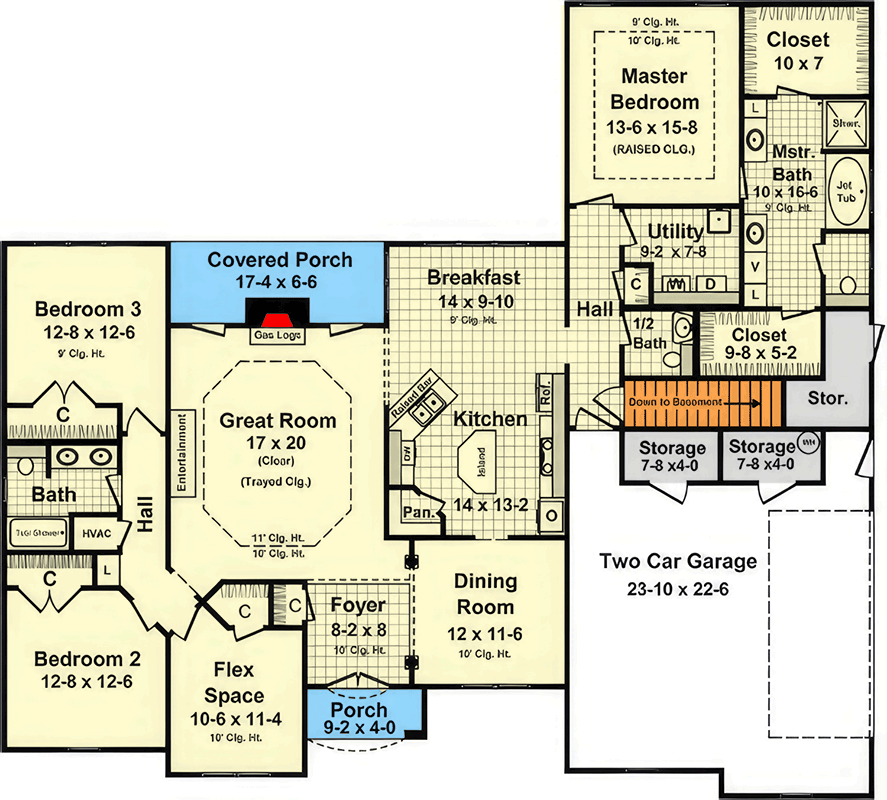

Main Level
Main Level

Plan 51324MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

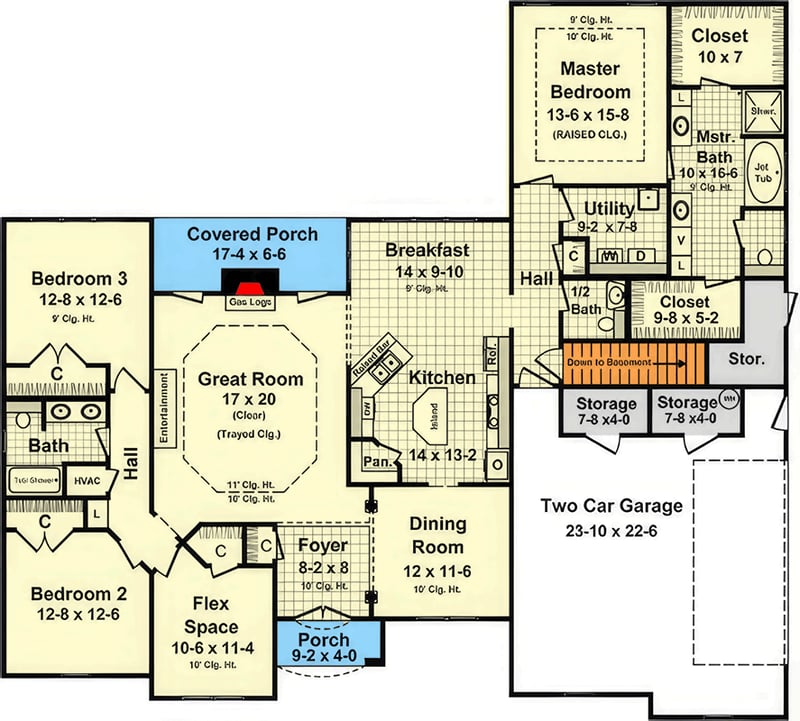

Plan 51324MM: New American Ranch House Plan with Split Bedrooms and Flex Space - Floor Plan - Main Level - Country, New American, Ranch, Traditional

Plan Details

  • This inviting 2,419 sq. ft. New American Ranch house plan features 3 bedrooms, 2 full baths, 1 half bath, and an attached 734 sq. ft. two-car garage, all wrapped in a sophisticated stone and stucco exterior with charming gables.
  • Step through the elegant arched entry, greeted by a thoughtfully designed floor plan that balances privacy and connection, offering clear sightlines while defining distinct living zones.
  • The heart of the home unfolds with a spacious great room, seamlessly connecting to a formal dining area ideal for hosting, and a bright breakfast nook for casual meals. A dedicated home office or library provides a quiet retreat for productivity or reading.
  • Experience ultimate comfort in the secluded main-level master suite, thoughtfully separated from the secondary bedrooms for enhanced privacy. This split-bedroom layout ensures a peaceful sanctuary for homeowners while providing comfortable accommodations for family or guests.
  • A versatile flex room offers endless possibilities, easily transforming into a media room, play area, or an additional guest space to suit evolving lifestyle needs.
  • Enjoy tranquil mornings on the charming front porch or unwind on the spacious rear porch, perfect for alfresco dining or simply enjoying the surrounding landscape.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

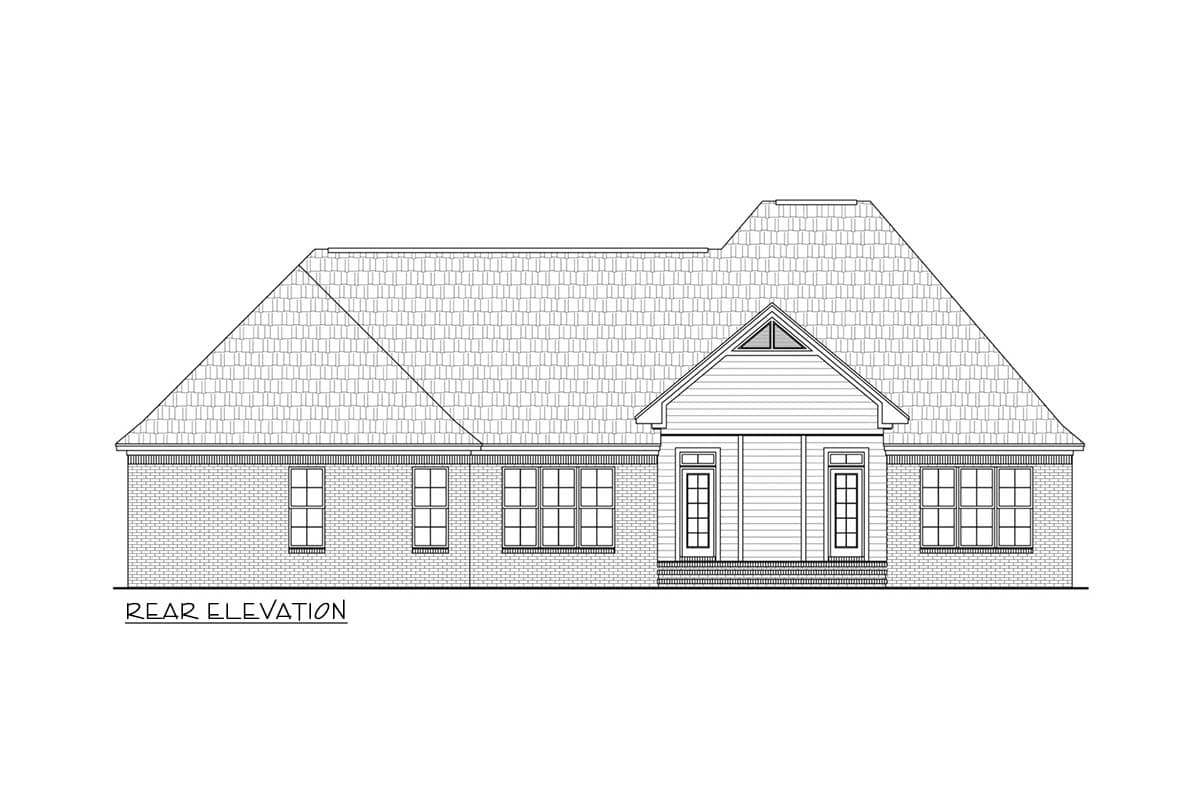

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,419 sq. ft.

1st Floor

2,419 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

101 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 2"

Depth

63' 2"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

734 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans
