New American Ranch House Plan with Wrap-around Covered Patio

Heated S.F.
3,049
Beds
3
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 280116JWD

Main Level
Main Level
Bonus Level
Bonus Level

Plan 280116JWD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

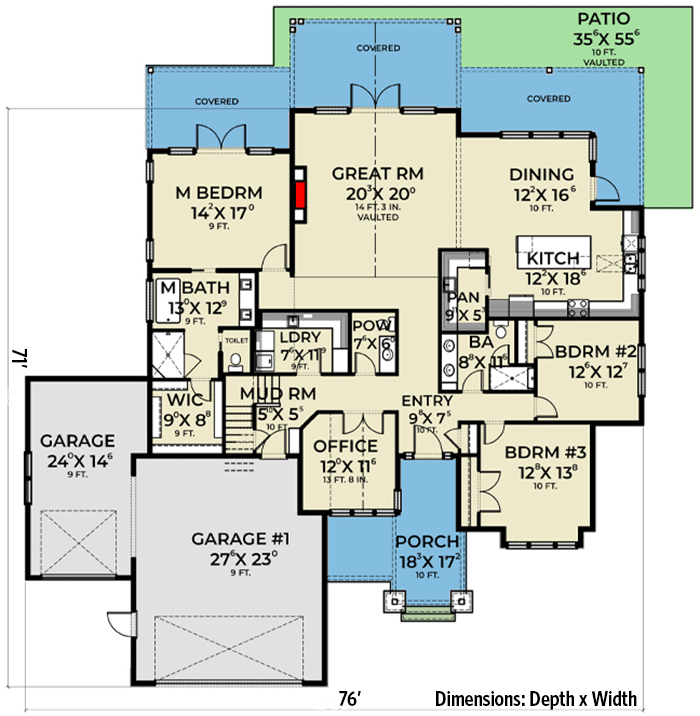

Plan 280116JWD: New American Ranch House Plan with Wrap-around Covered Patio - Floor Plan - Main Level - Craftsman, New American, Ranch

Bonus Level

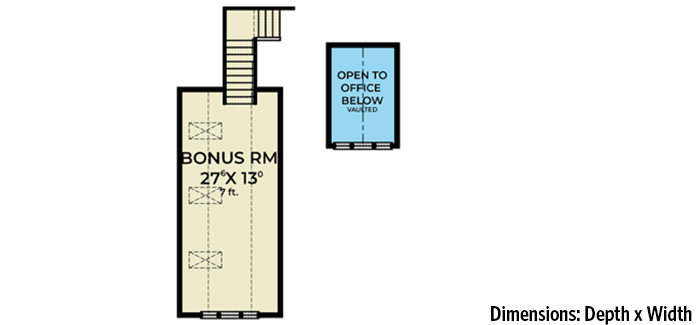

Plan 280116JWD: New American Ranch House Plan with Wrap-around Covered Patio - Floor Plan - Bonus Level - Craftsman, New American, Ranch

Plan Details

  • A pop of brick adds texture to the exterior of this New American ranch house plan, complete with a wrap-around covered patio that extends to the backyard.
  • Take the hallway to the right of the foyer to find two family bedrooms and a full bath. A quiet home office is located to the left of the entryway.
  • The spacious great room features a vaulted ceiling and opens to the covered patio through french doors. An oversized opening leads to the eat-in kitchen, where a sizable island and walk-in pantry helps with meal prep and storage.
  • Retreat to the master bedroom for peace and quiet, and discover french doors that link to a private patio, along with a 5-fixture bathroom.
  • The 3-car garage features a mudroom with a coat closet just inside, and the nearby stairway takes you to a flexible bonus room.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,049 sq. ft.

1st Floor

2,650 sq. ft.

2nd Floor

399 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

71' 0"

Garage

Type

Attached

Area

993 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

7'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,049 sq. ft.

1st Floor

2,650 sq. ft.

2nd Floor

399 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

71' 0"

Garage

Type

Attached

Area

993 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

7'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office
