Plan 61276UT New American Ranch Plan with Optional Lower Level

New American Ranch Plan with Optional Lower Level

Plan 61276UT

  • 2,387

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

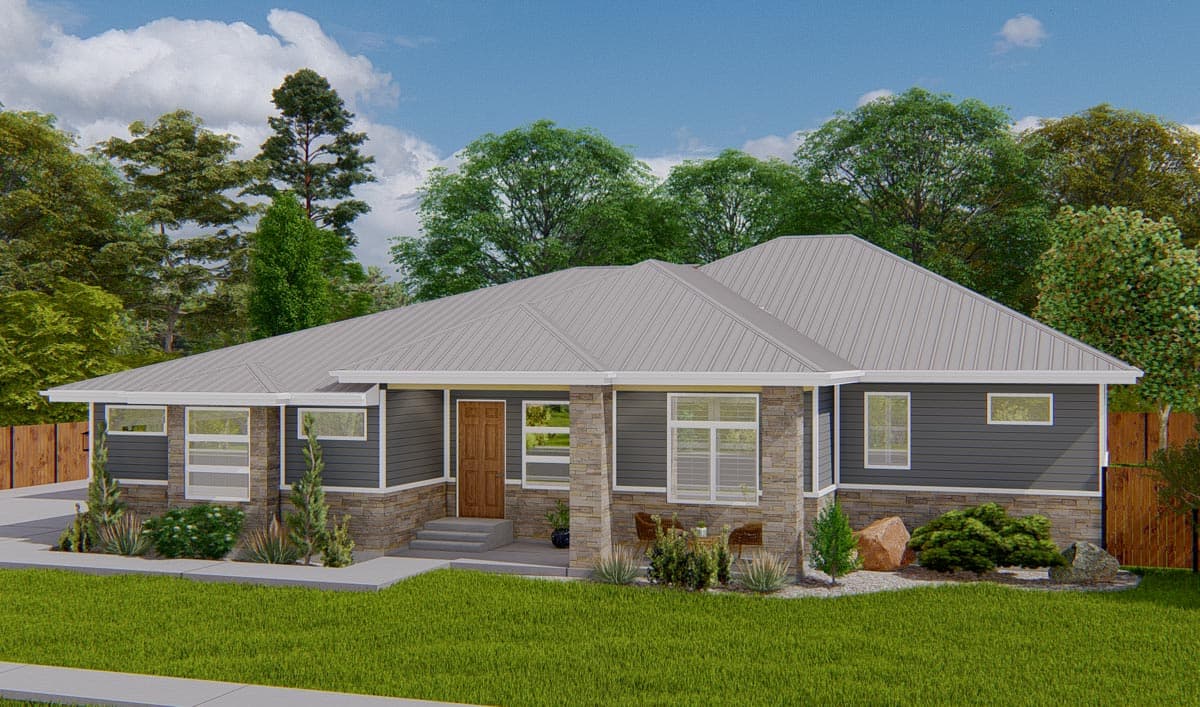

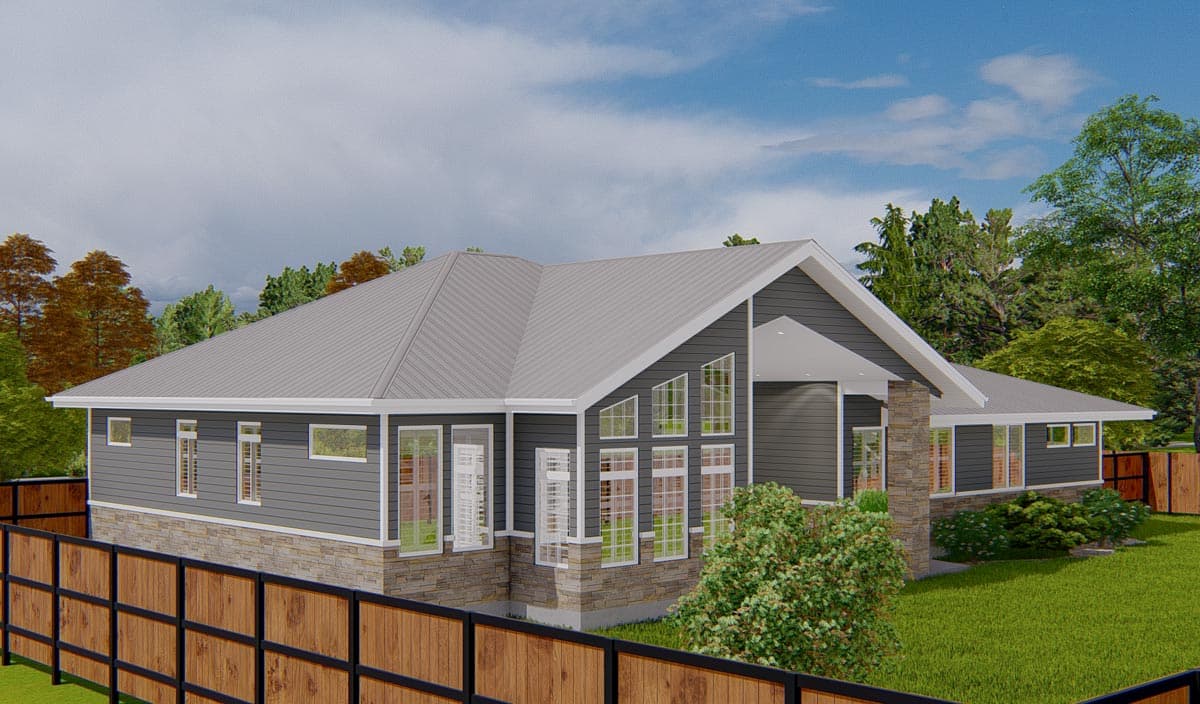

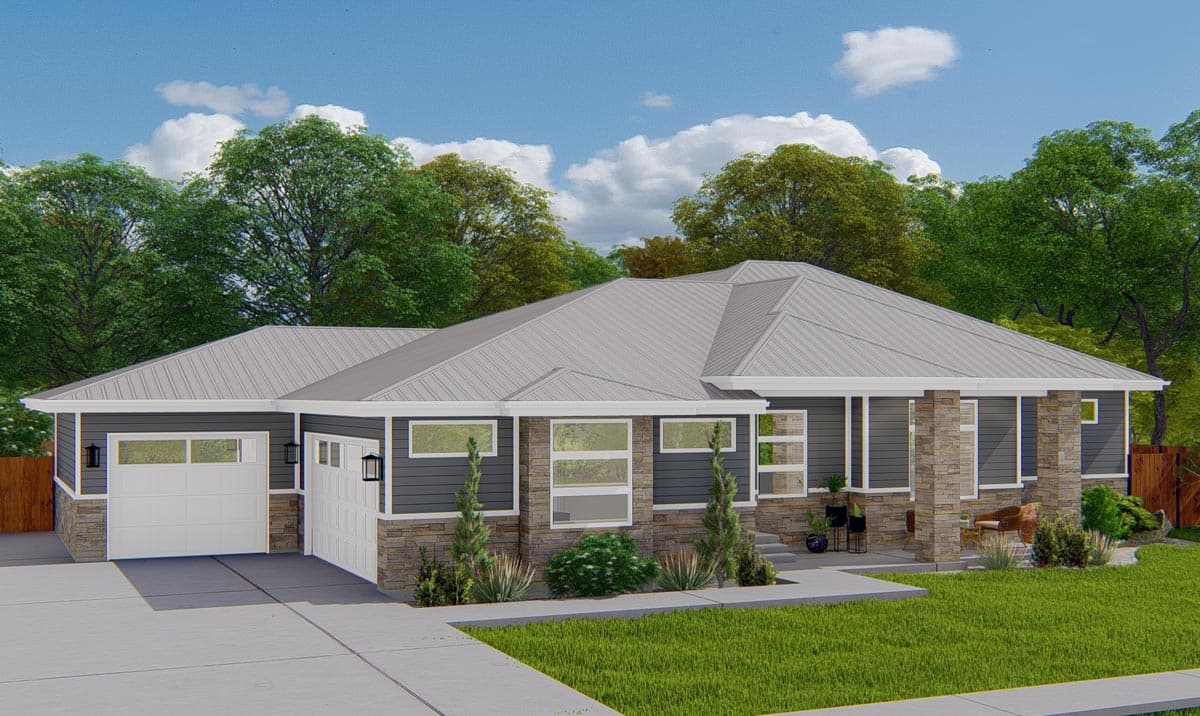

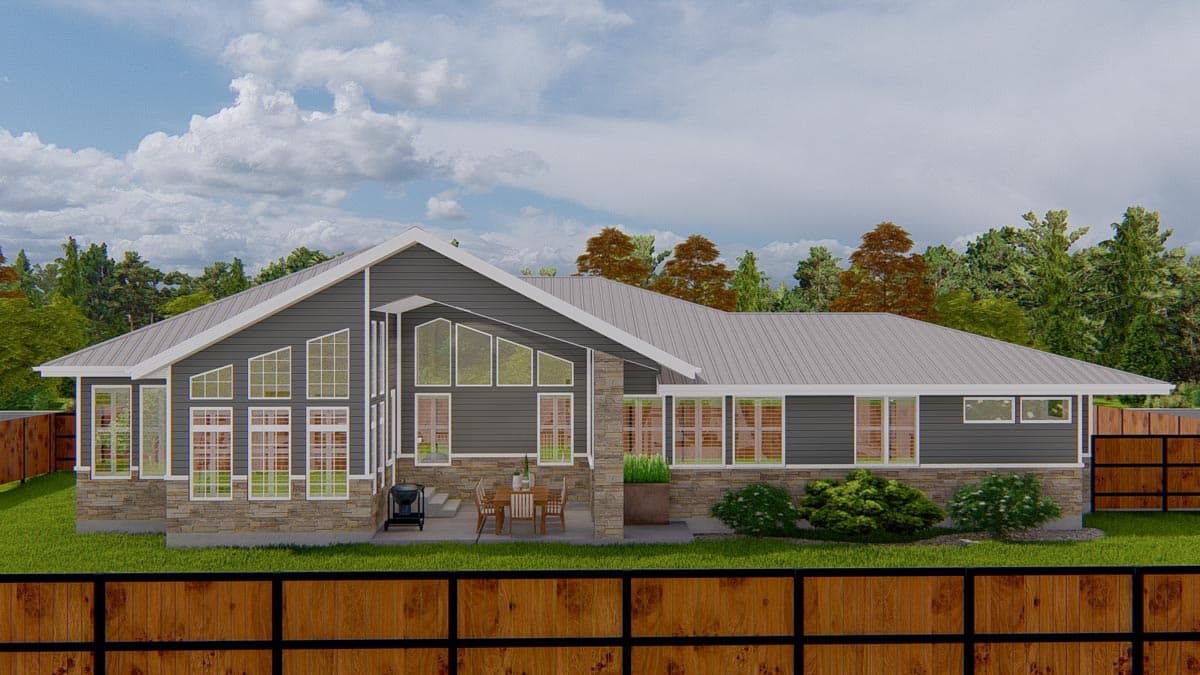

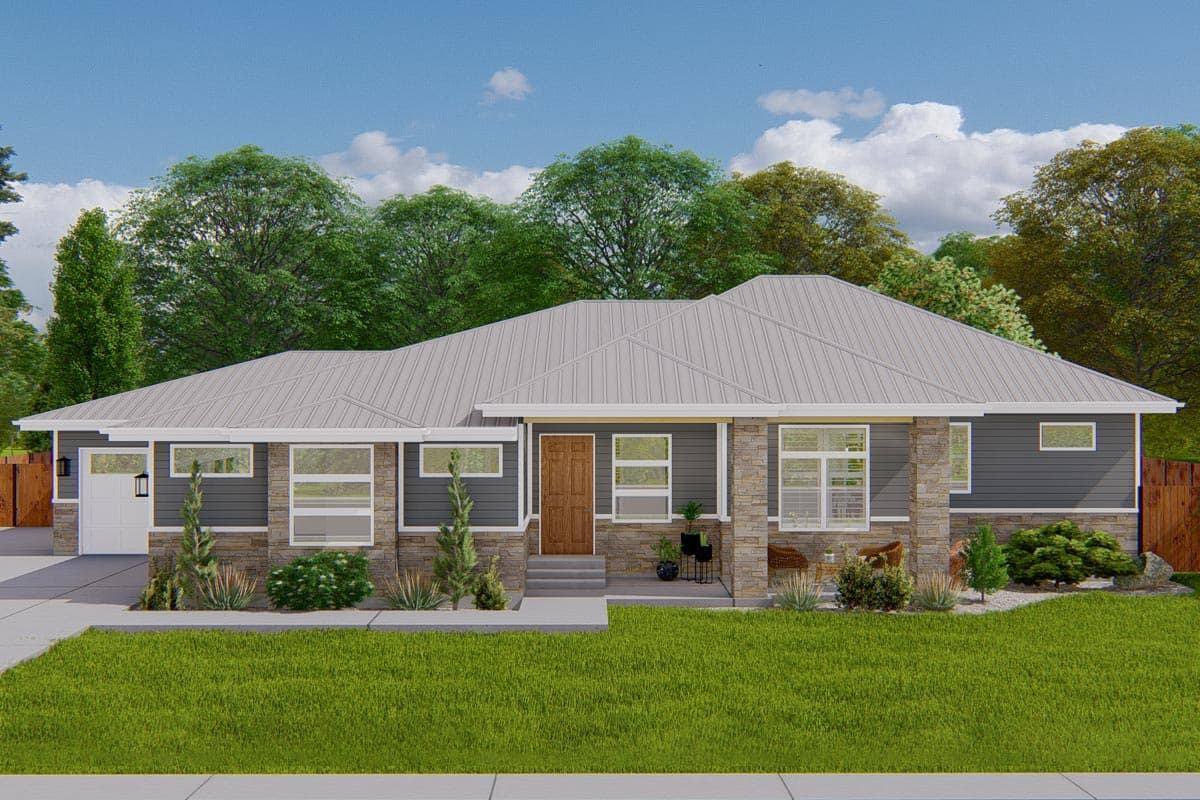

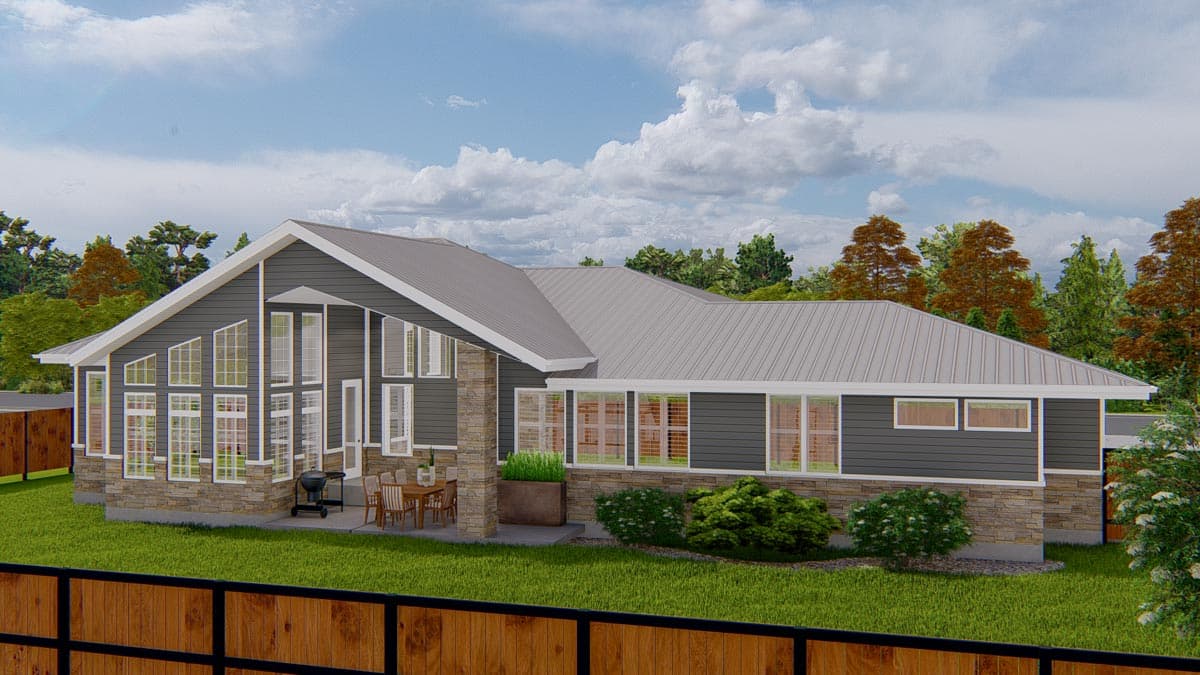

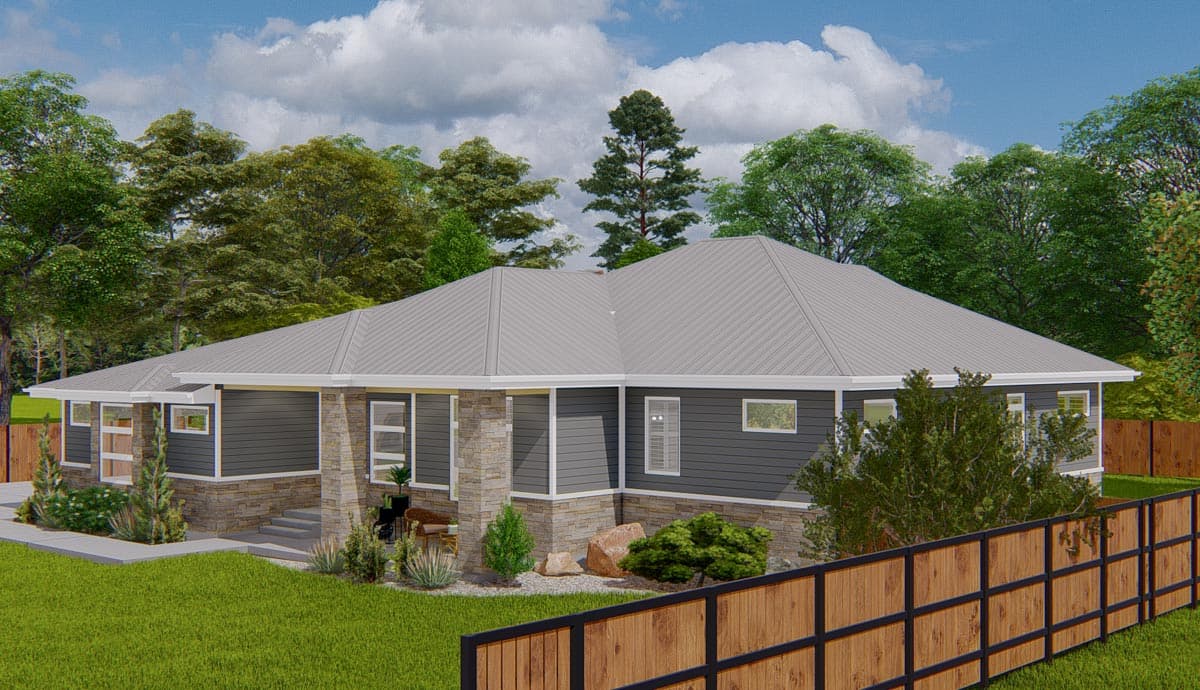

  • A low-pitched metal roof tops this New American Ranch plan with stone accents adding to the curb appeal. This design is exclusive to Architectural Designs.

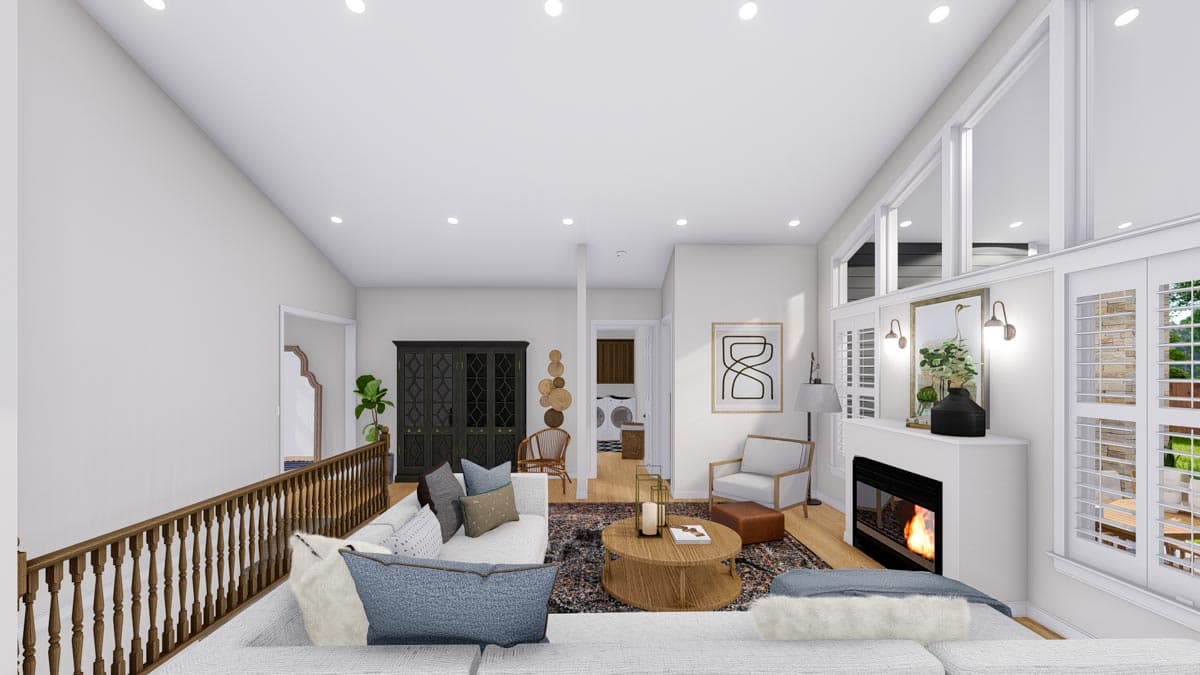

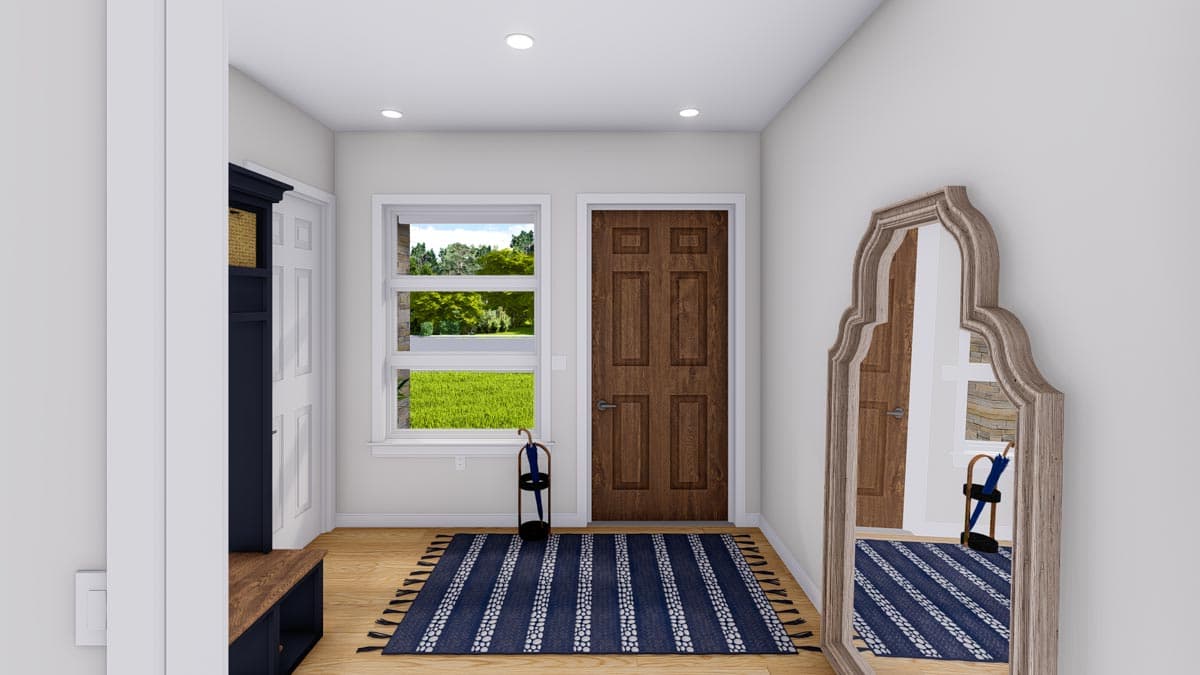

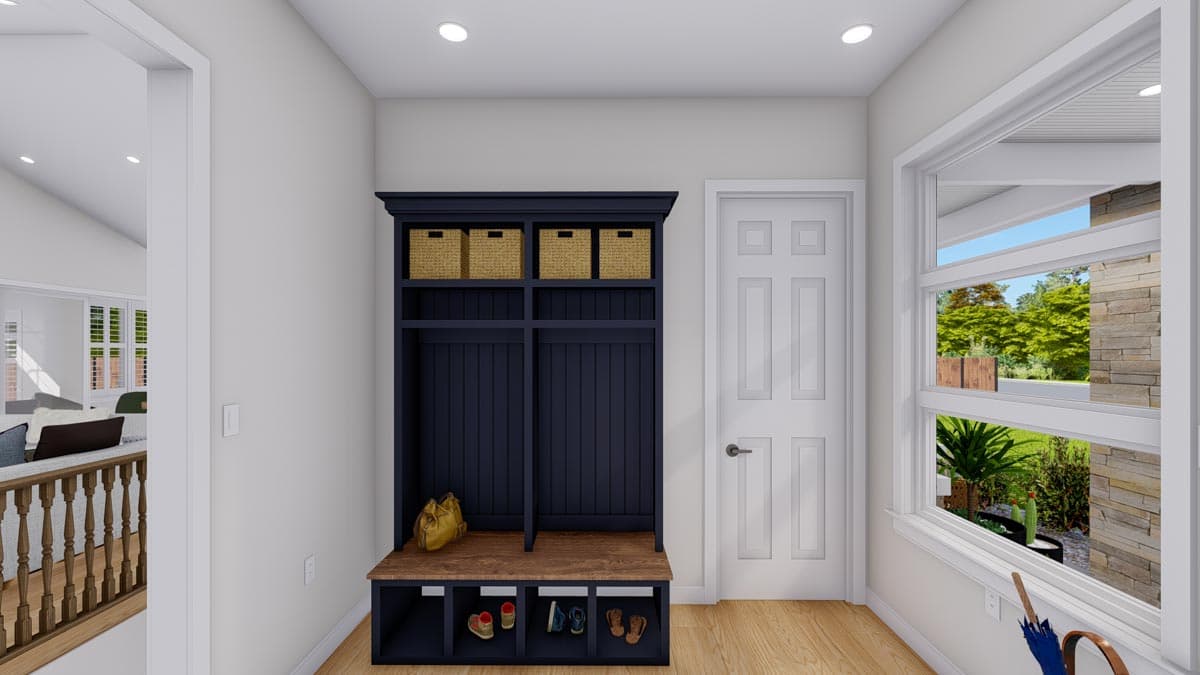

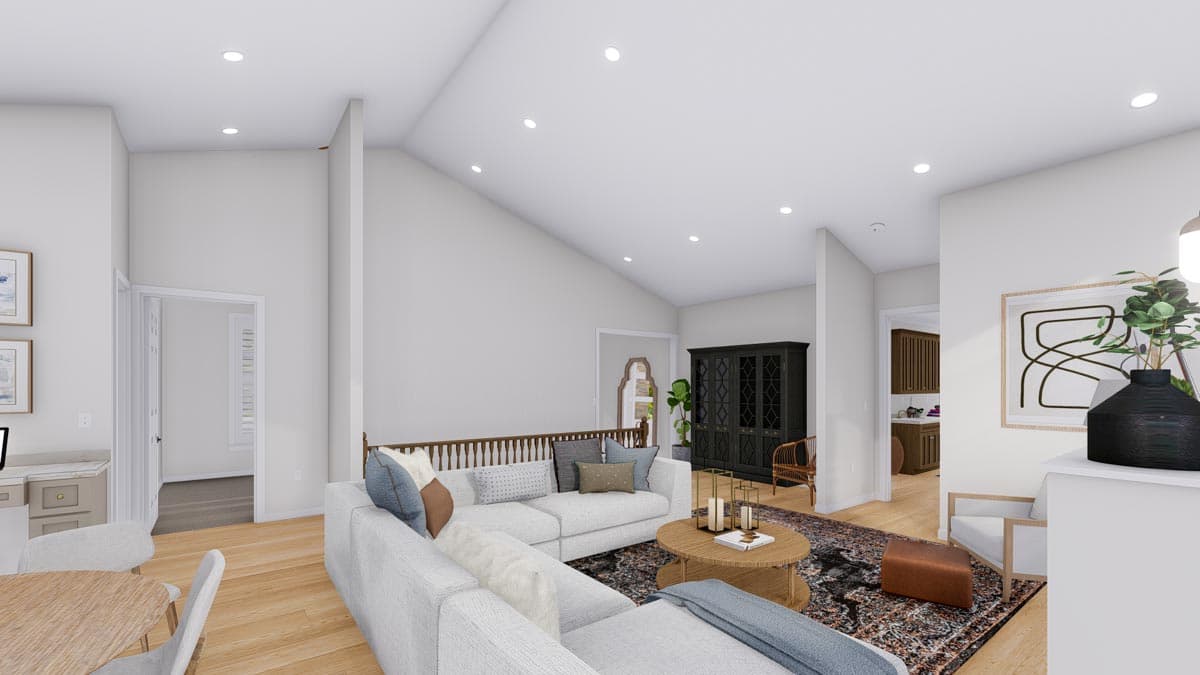

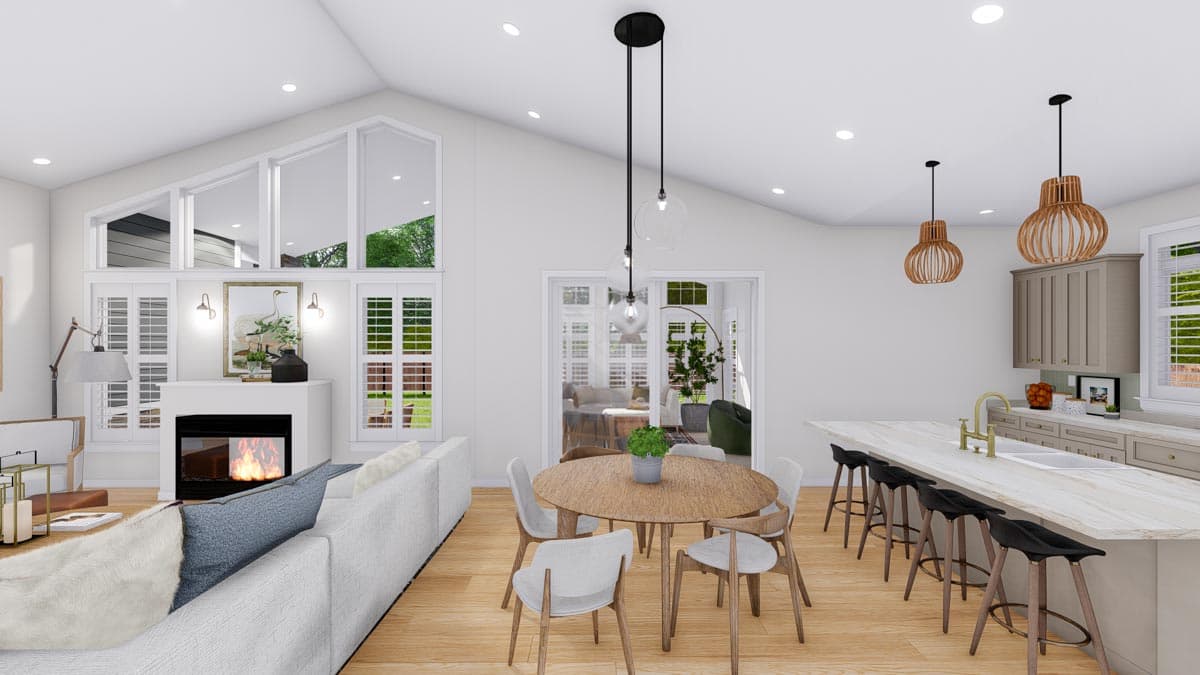

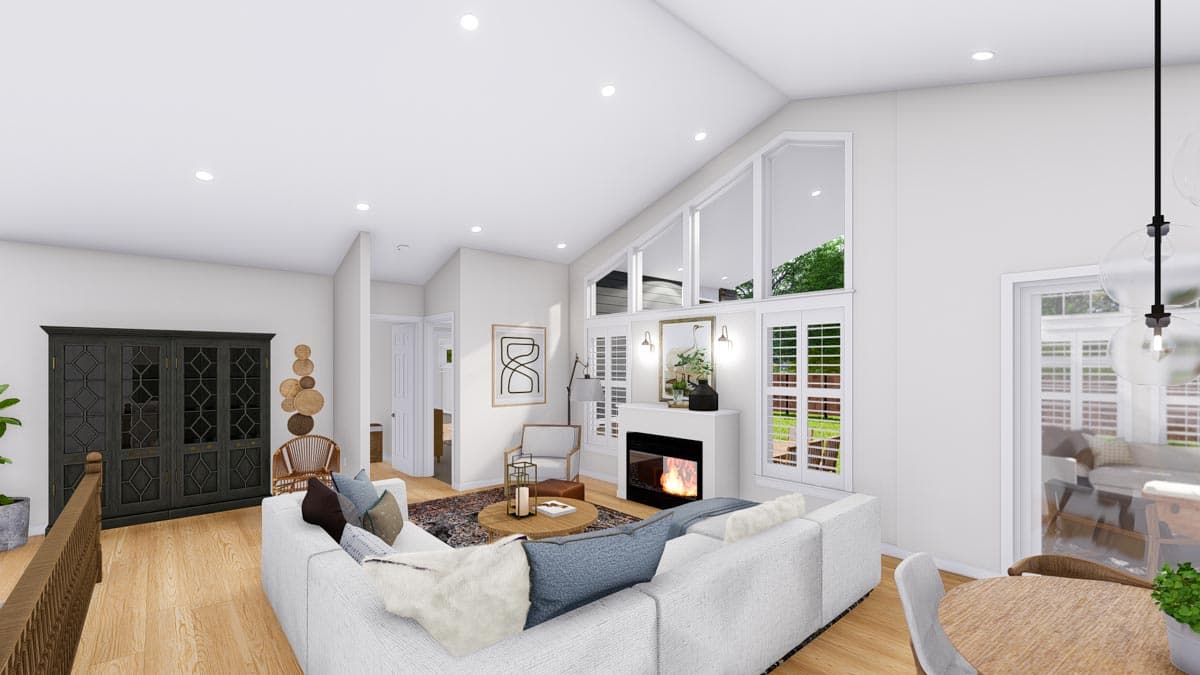

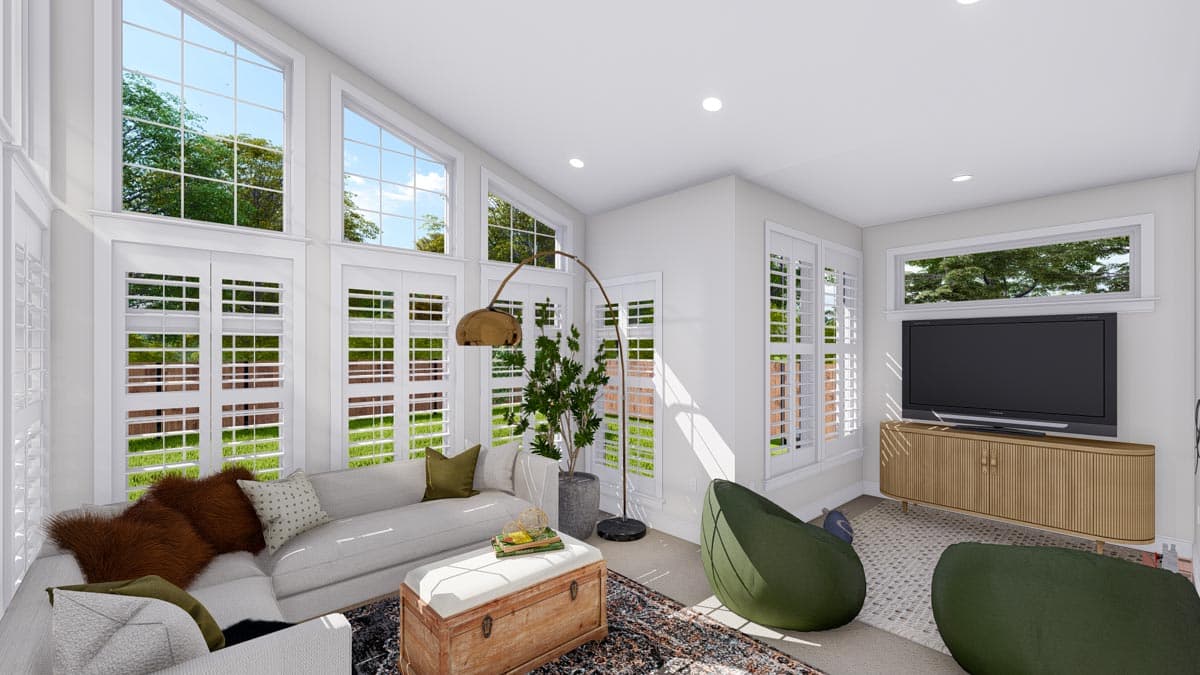

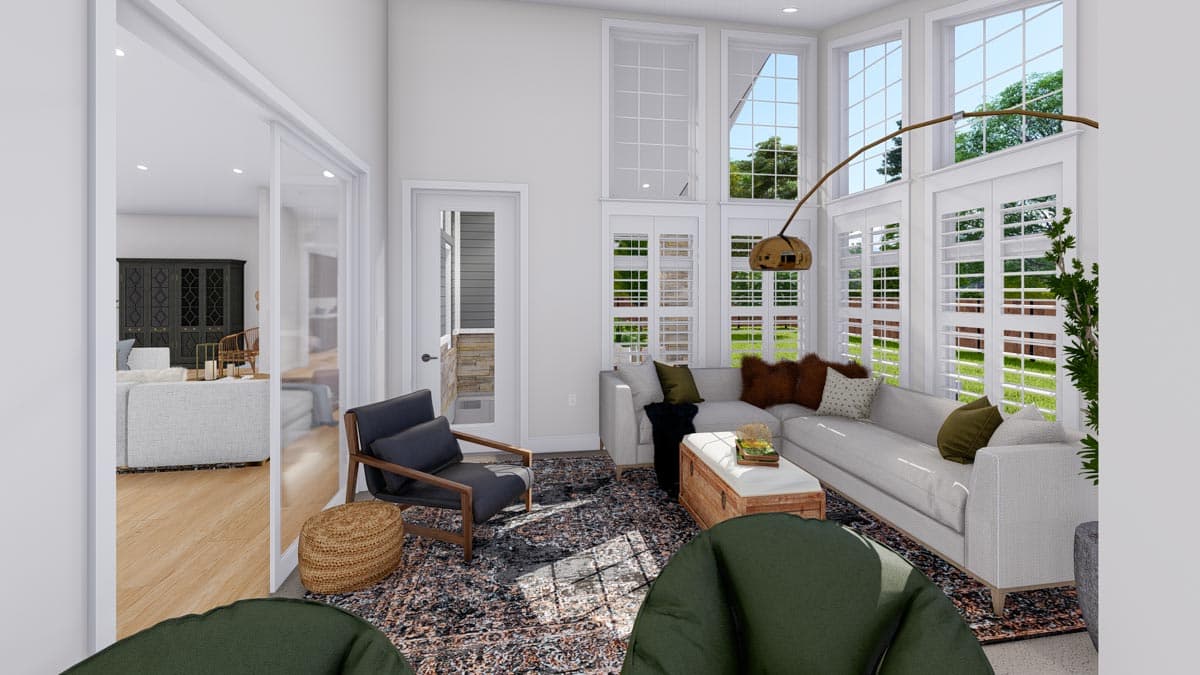

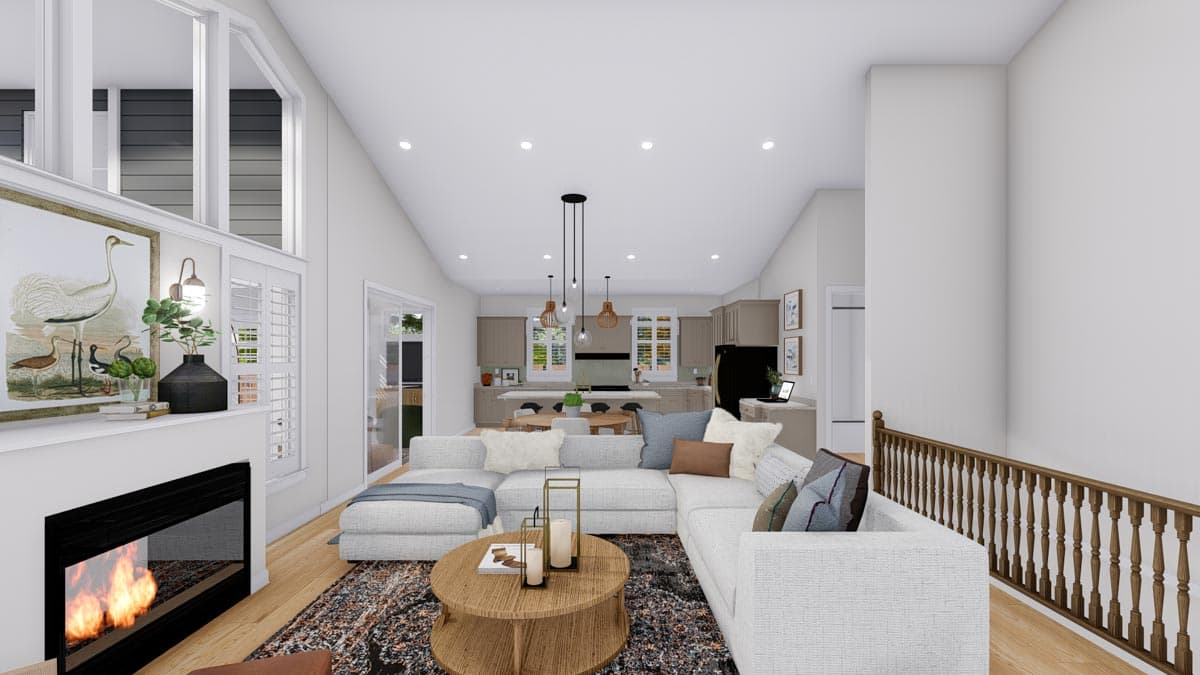

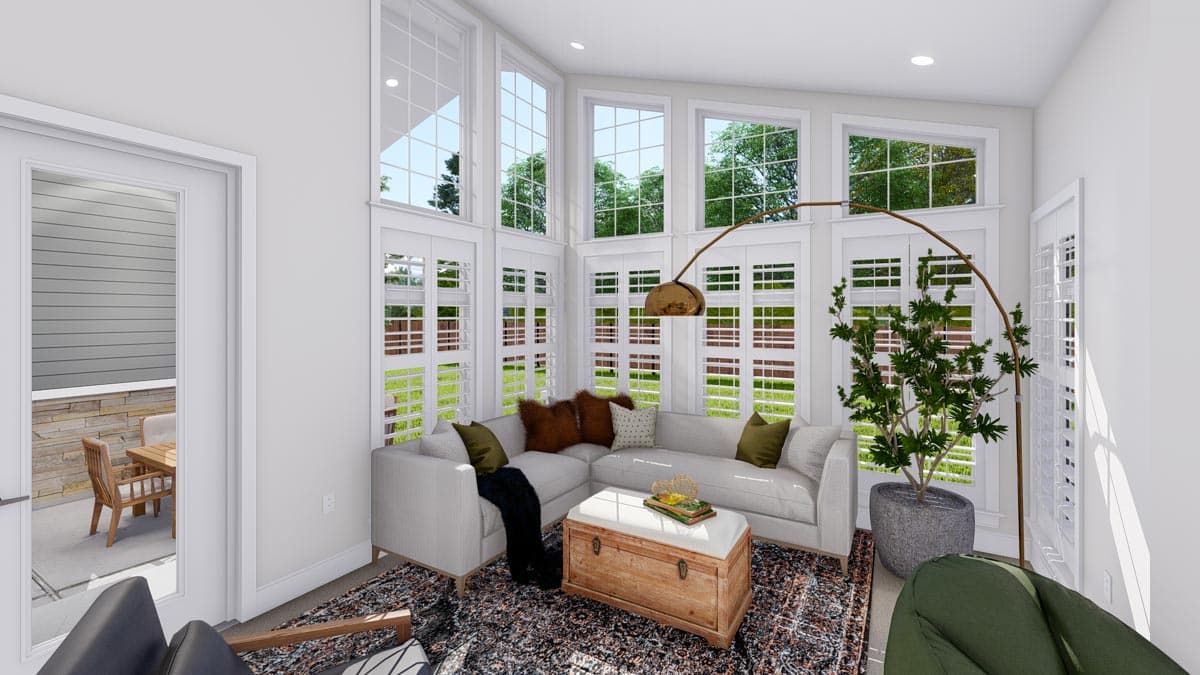

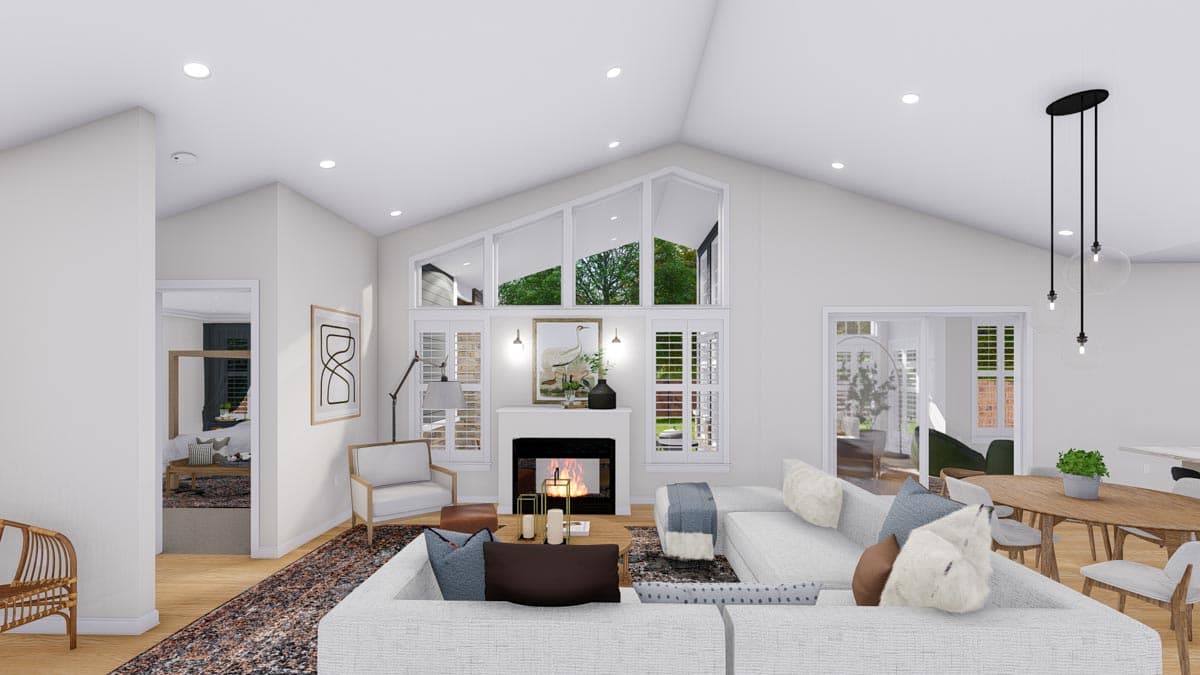

  • A large entryway welcomes you inside, which leads to an open-concept layout that combines the living, dining, and kitchen areas. Sliding doors connect the interior space with a 21'2" by 14' sun room.

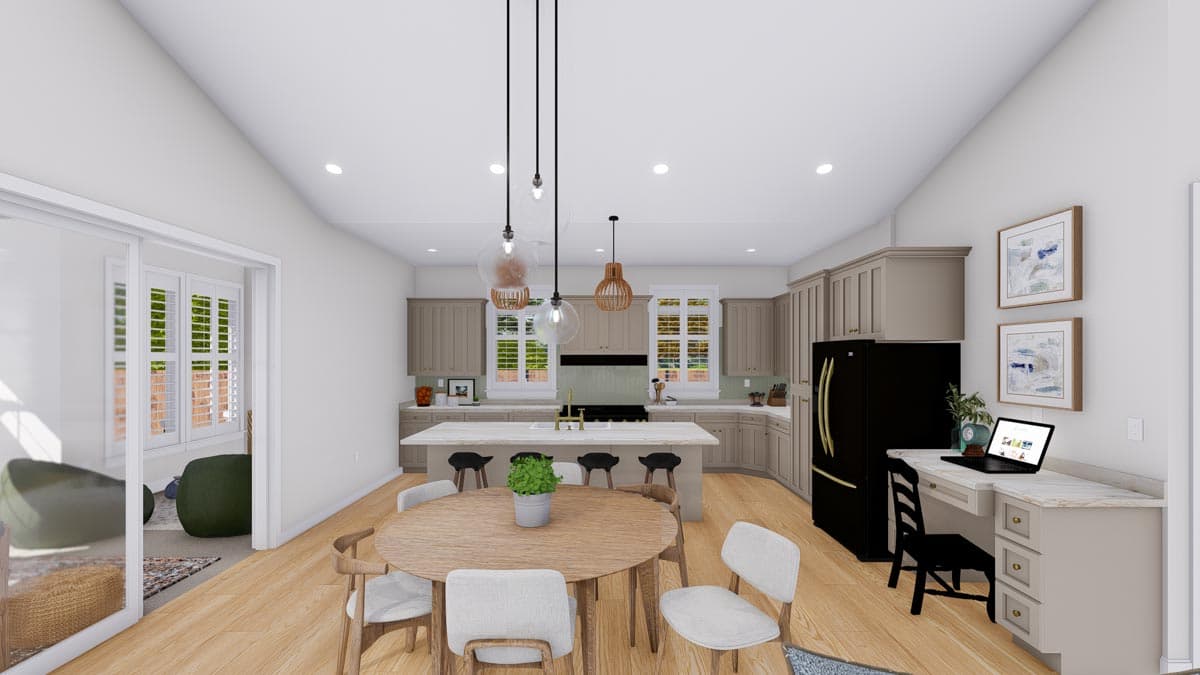

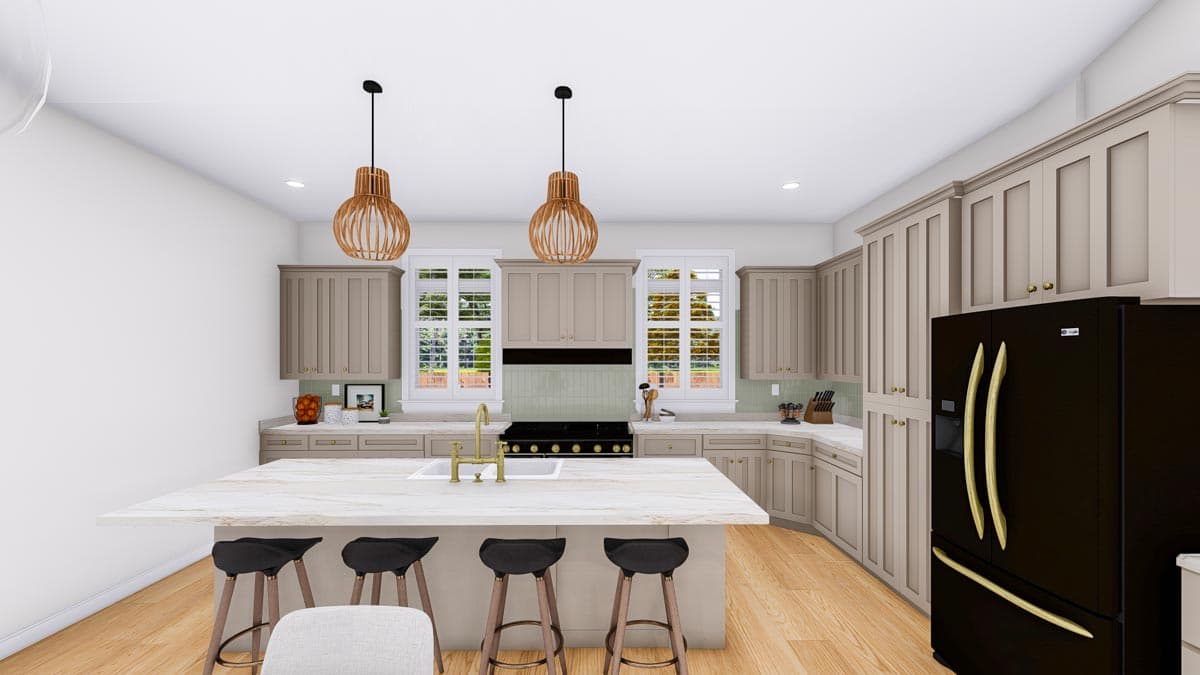

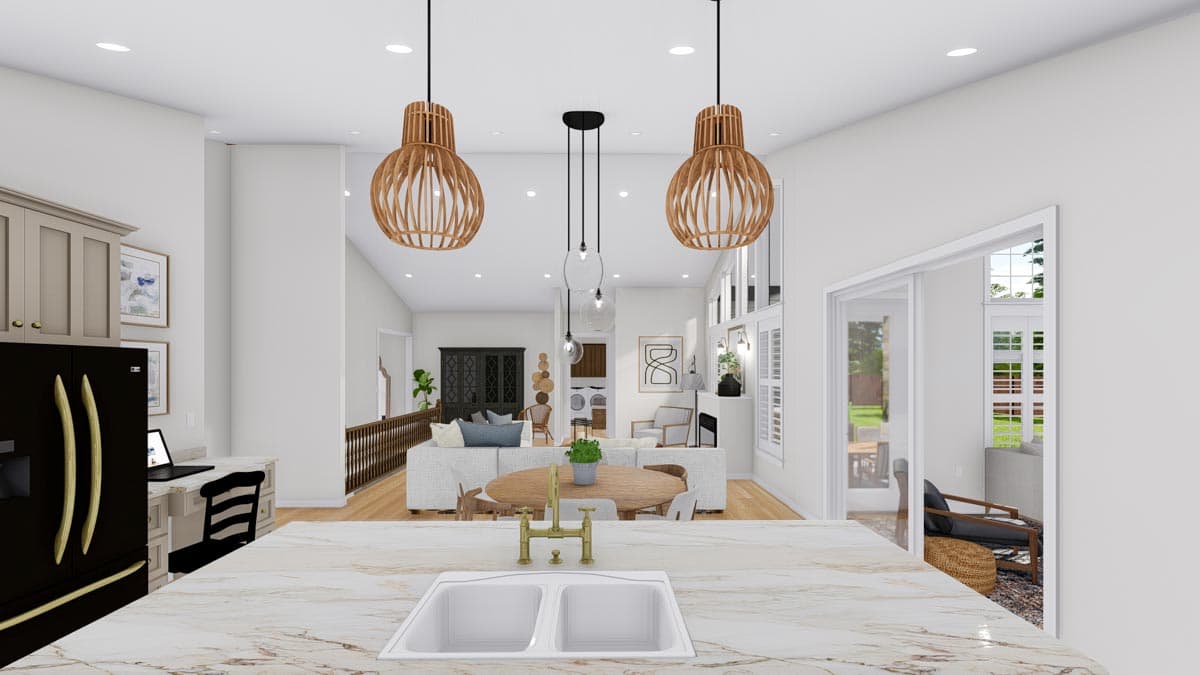

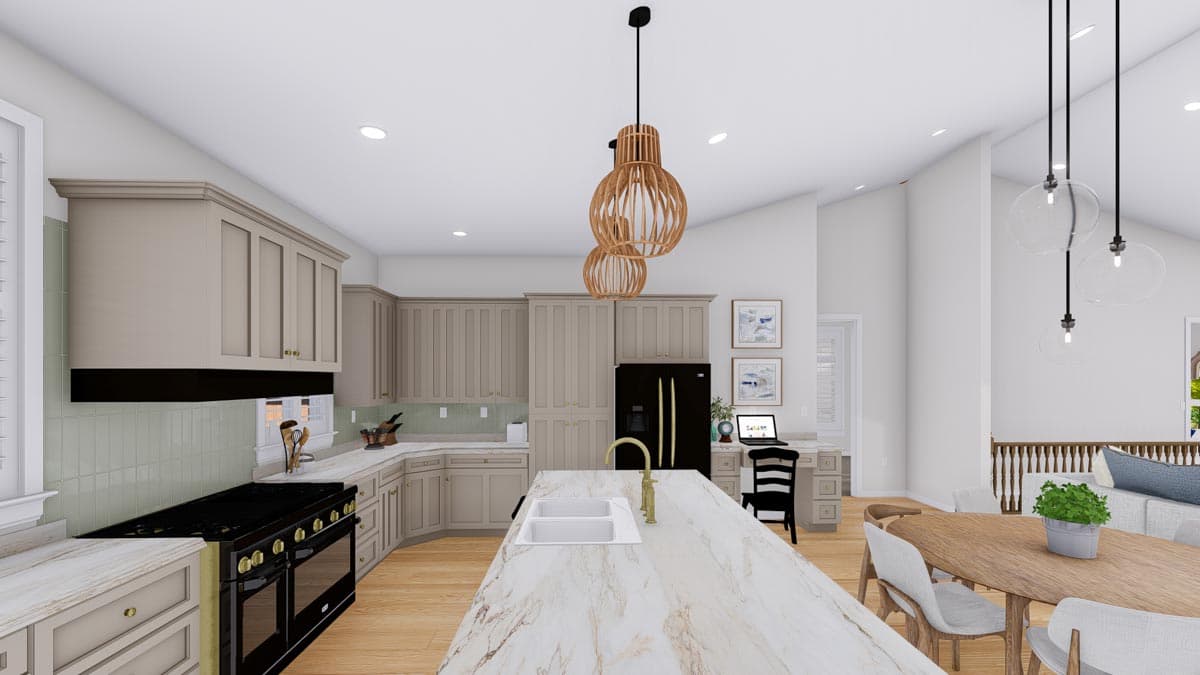

  • The gourmet kitchen features a large range, island, and hidden pantry that maximizes storage space.

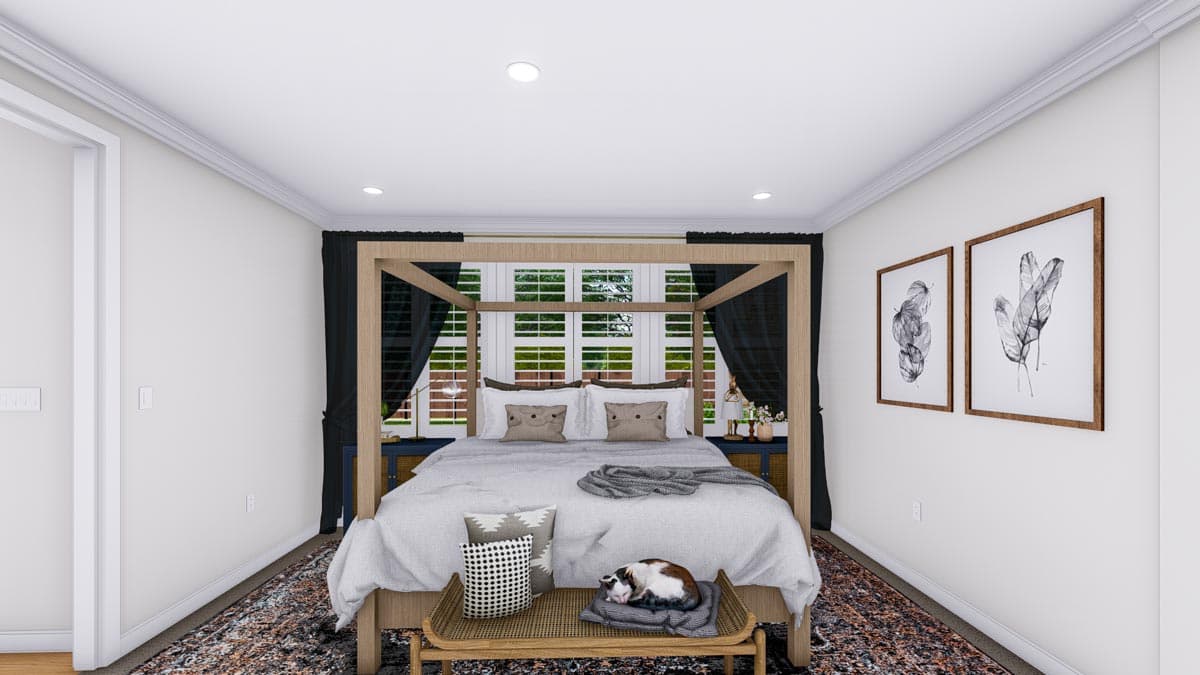

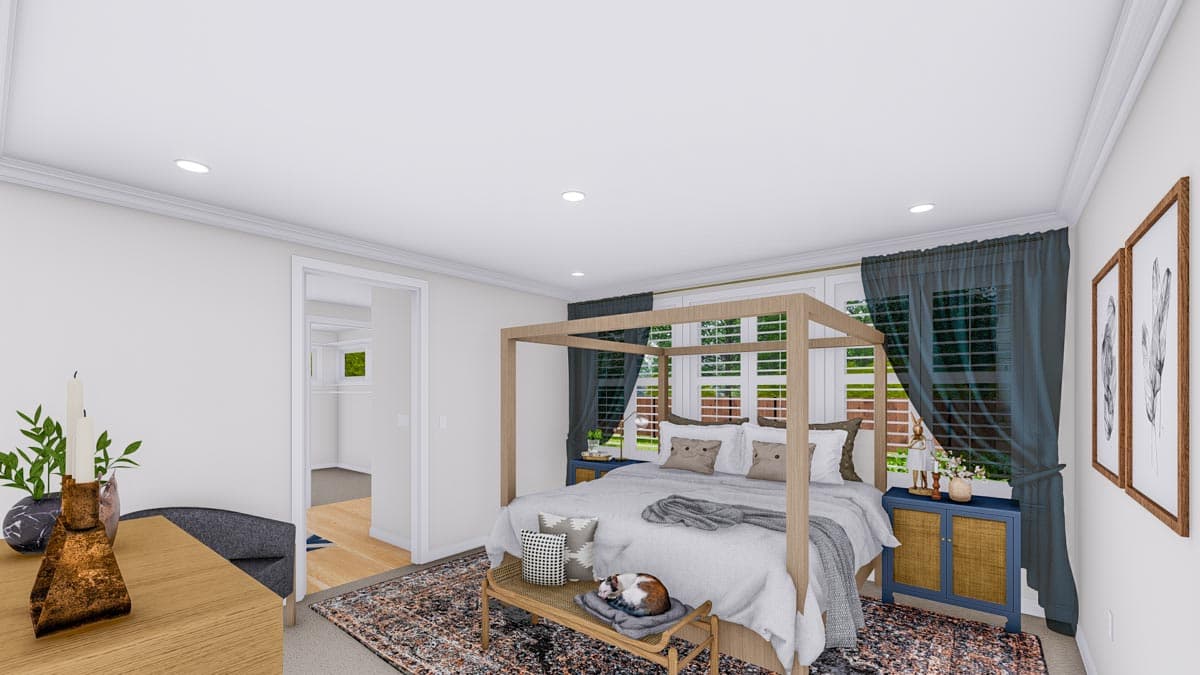

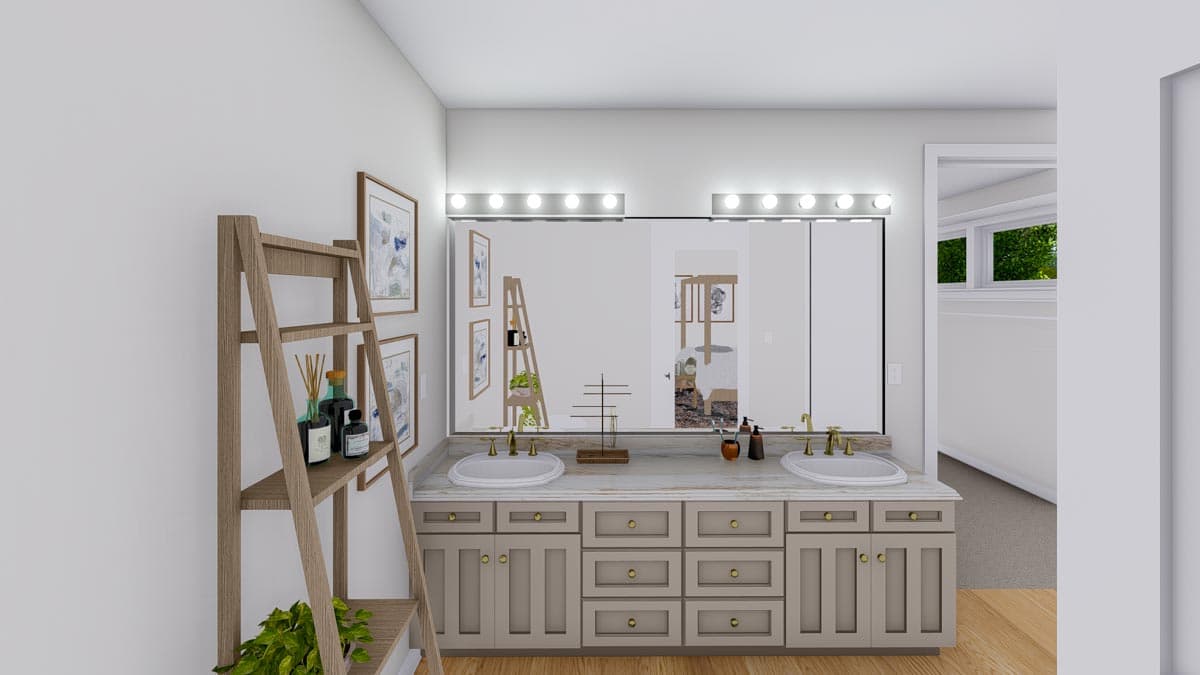

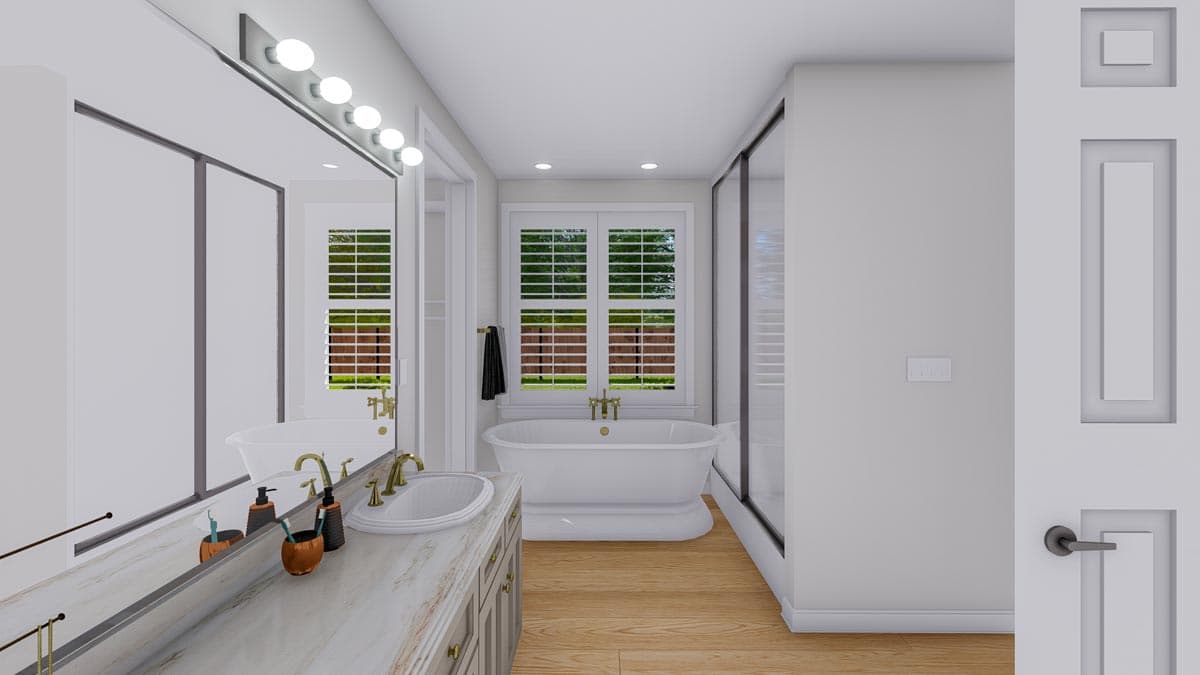

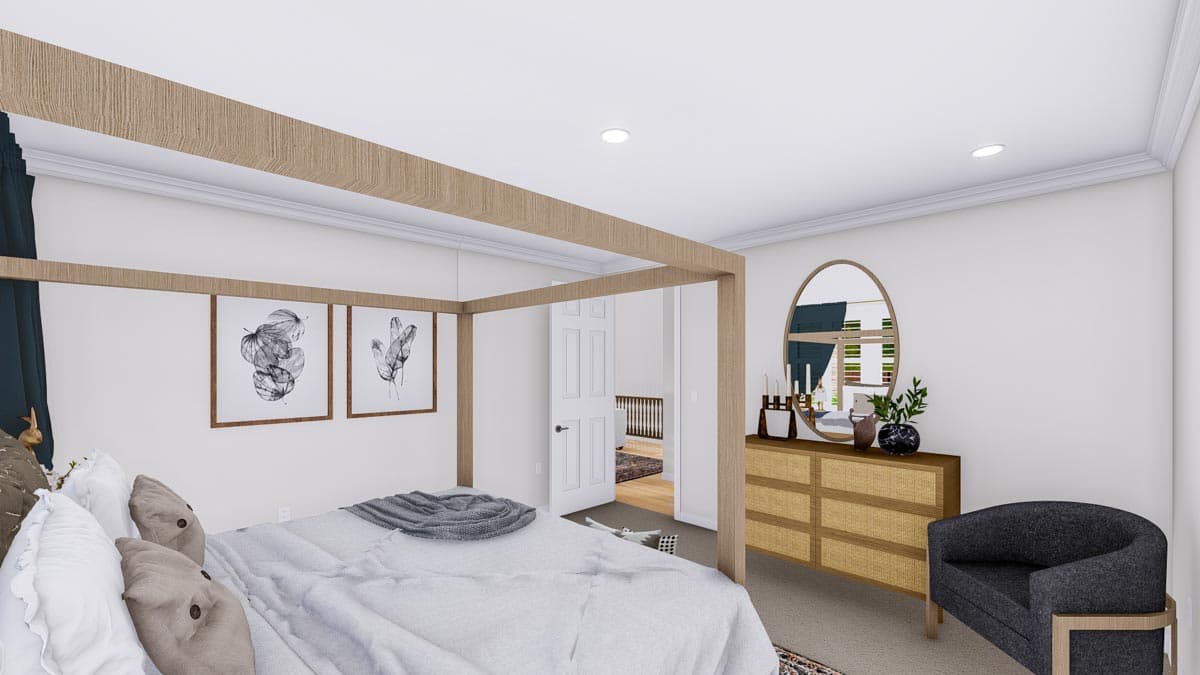

  • Retreat to the well-appointed master suite and discover a large ensuite and walk-in closet with natural light. A second bedroom on the main level is perfect for guests.

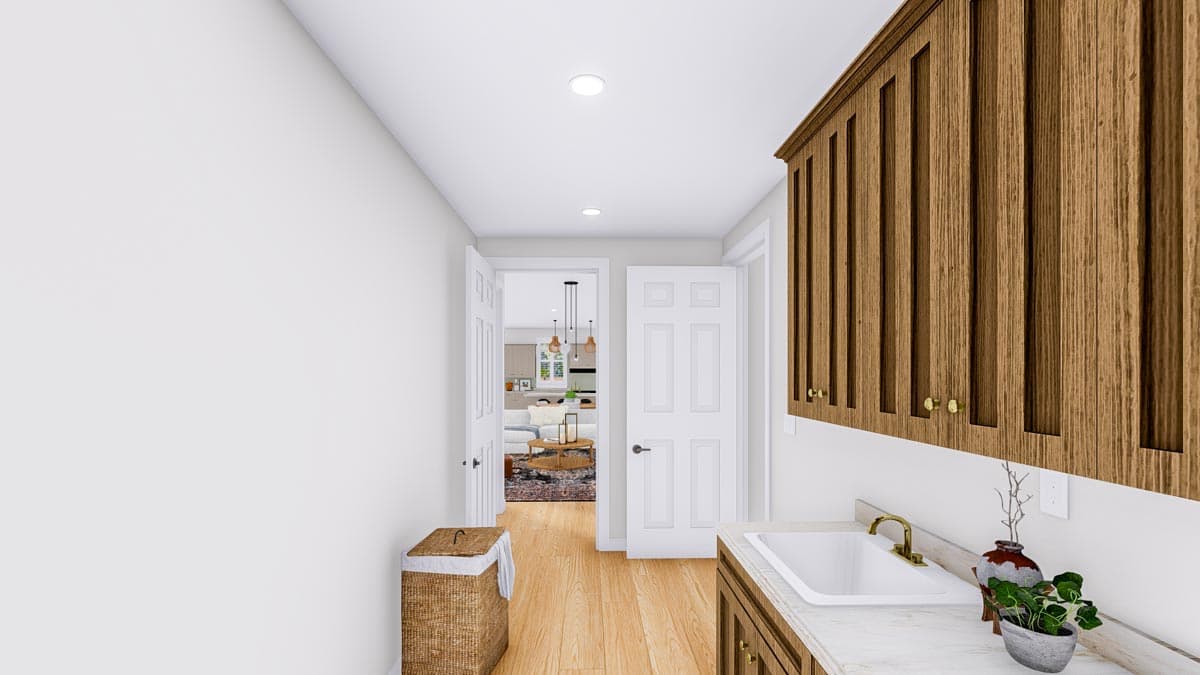

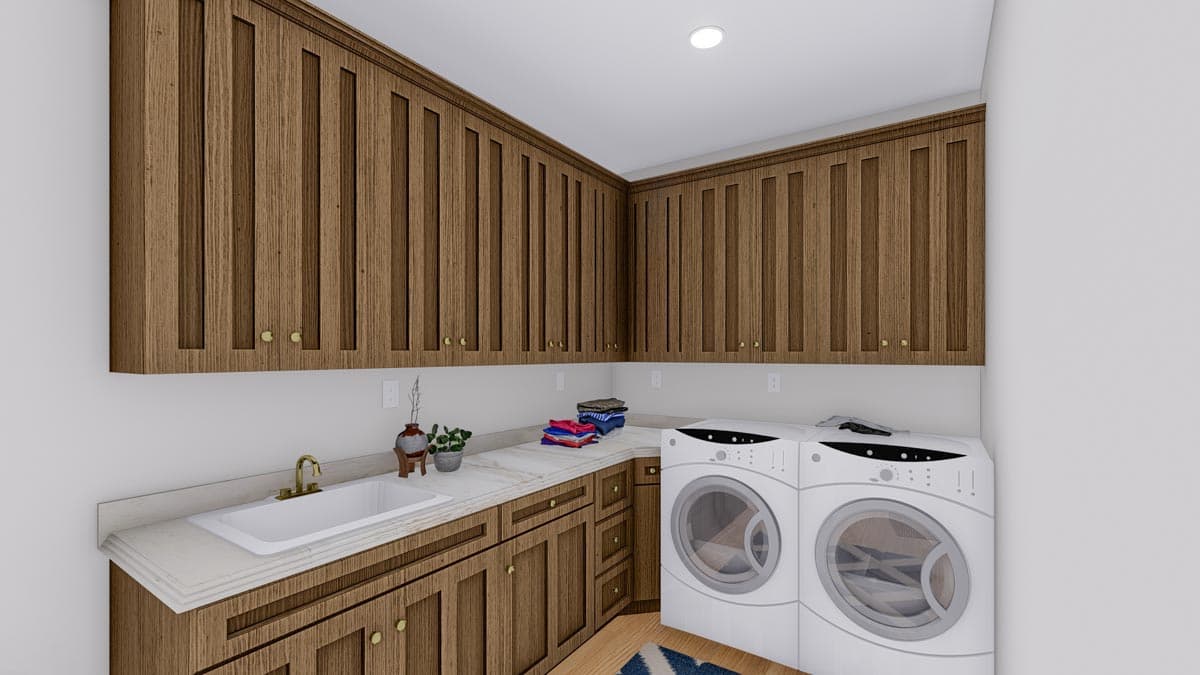

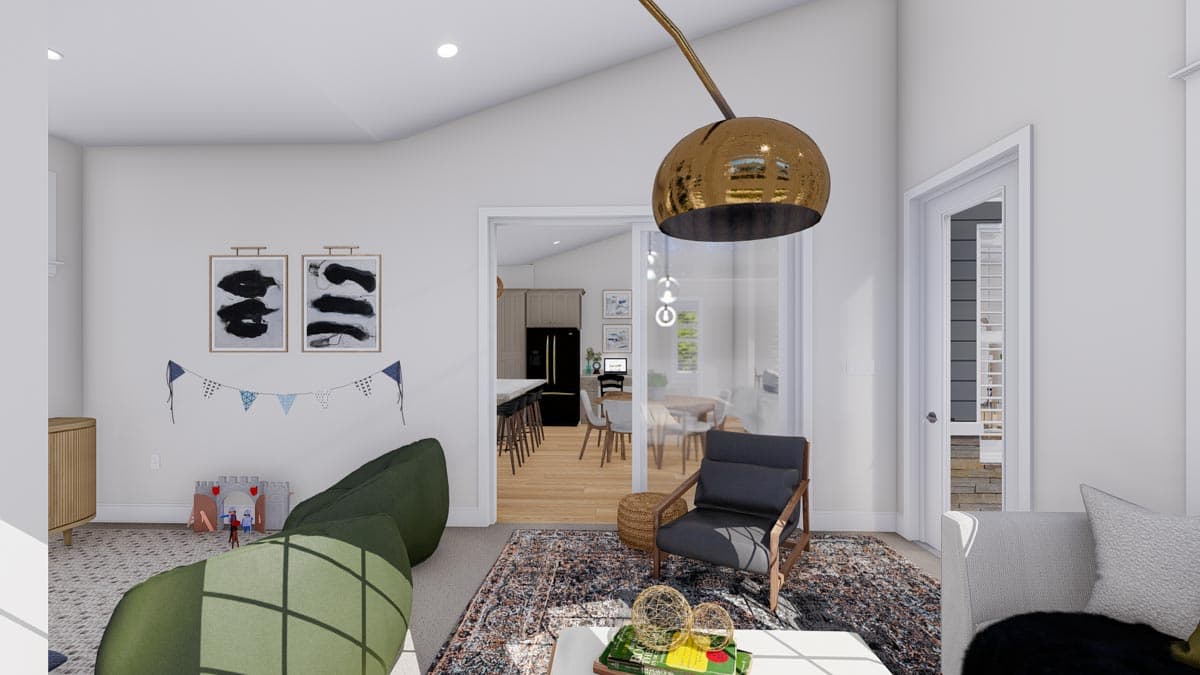

  • Downstairs, four bedrooms share two bathrooms and surround a generous family room. Plenty of storage space is provided throughout the home plan.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

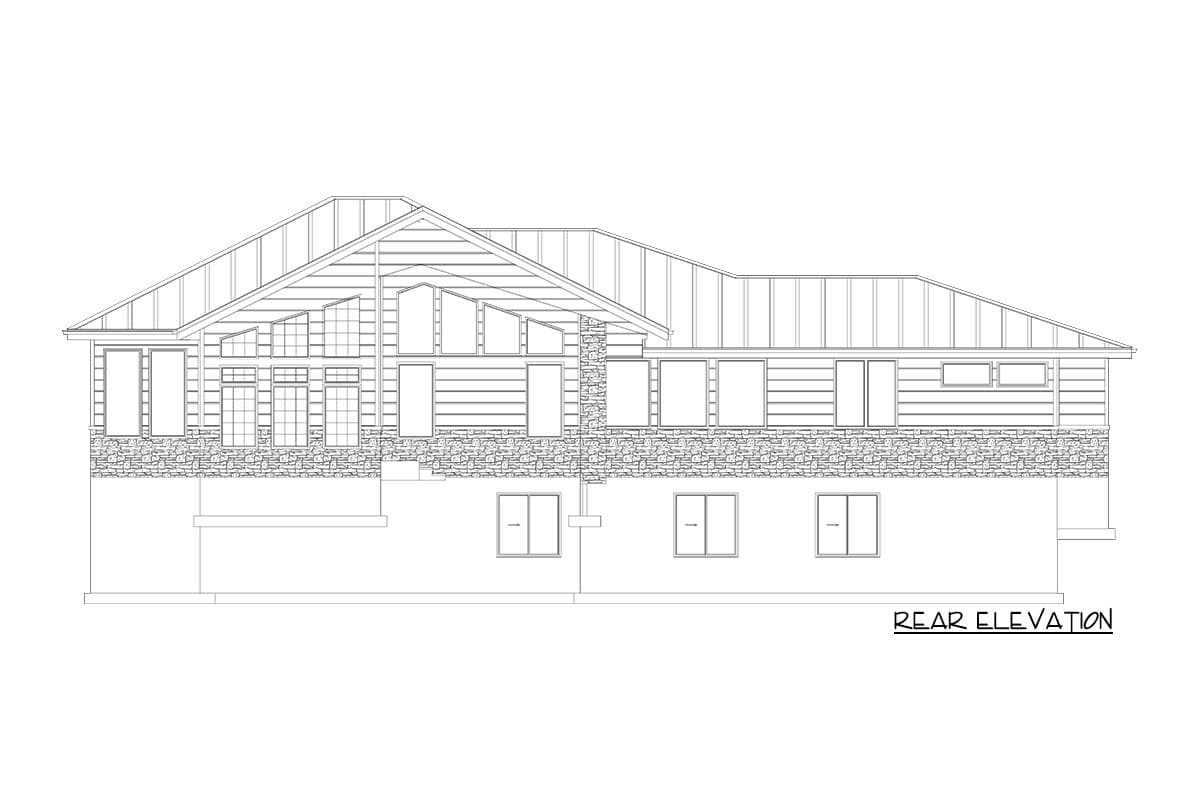

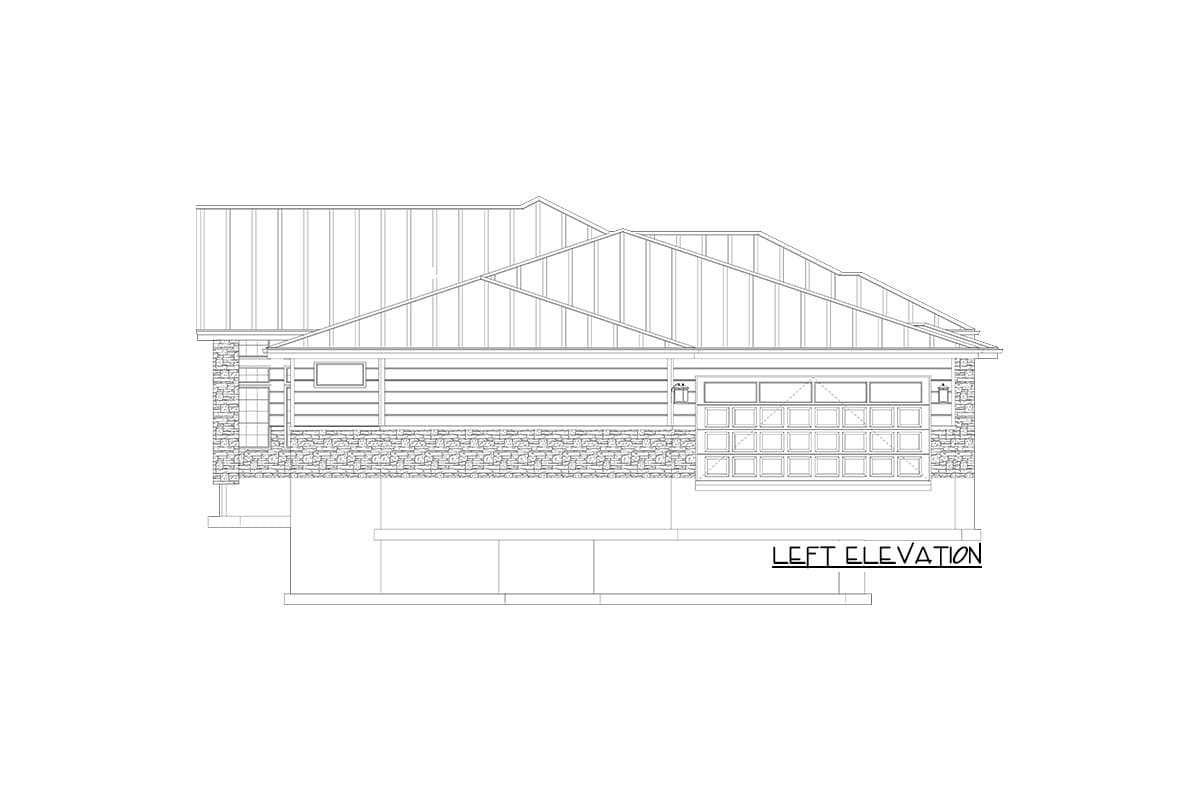

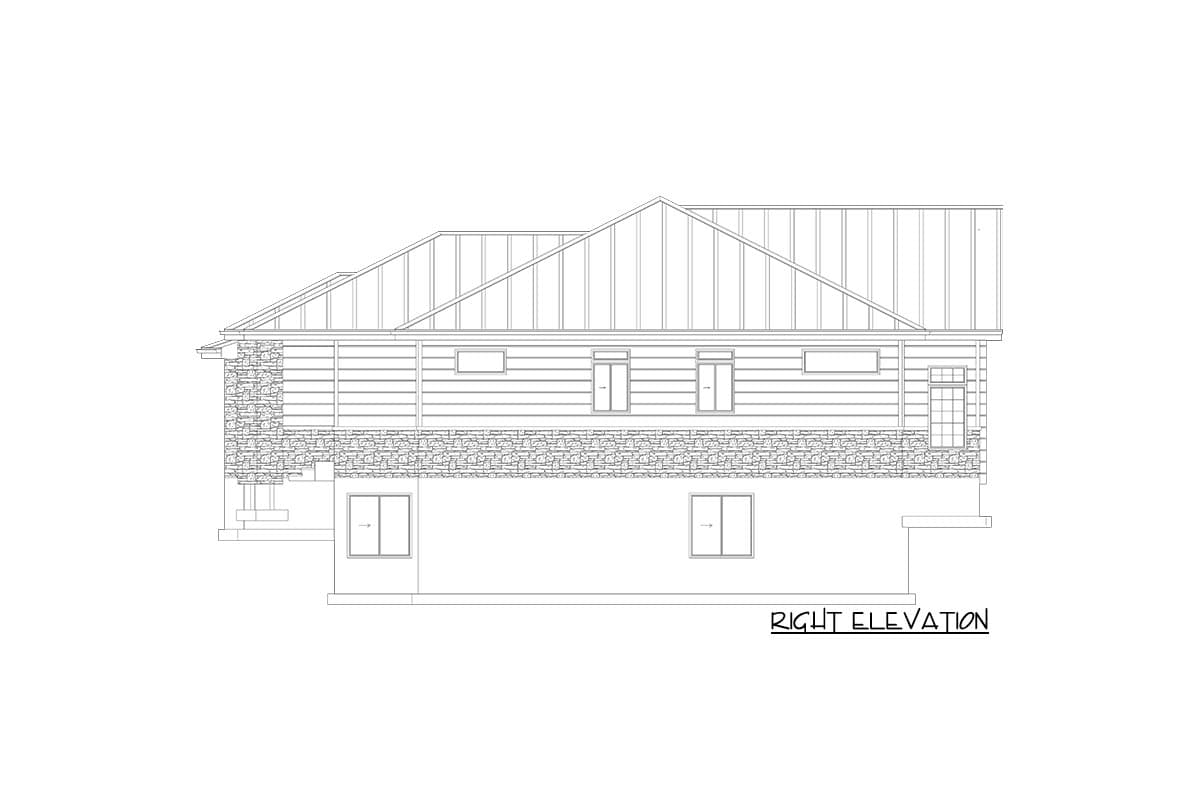

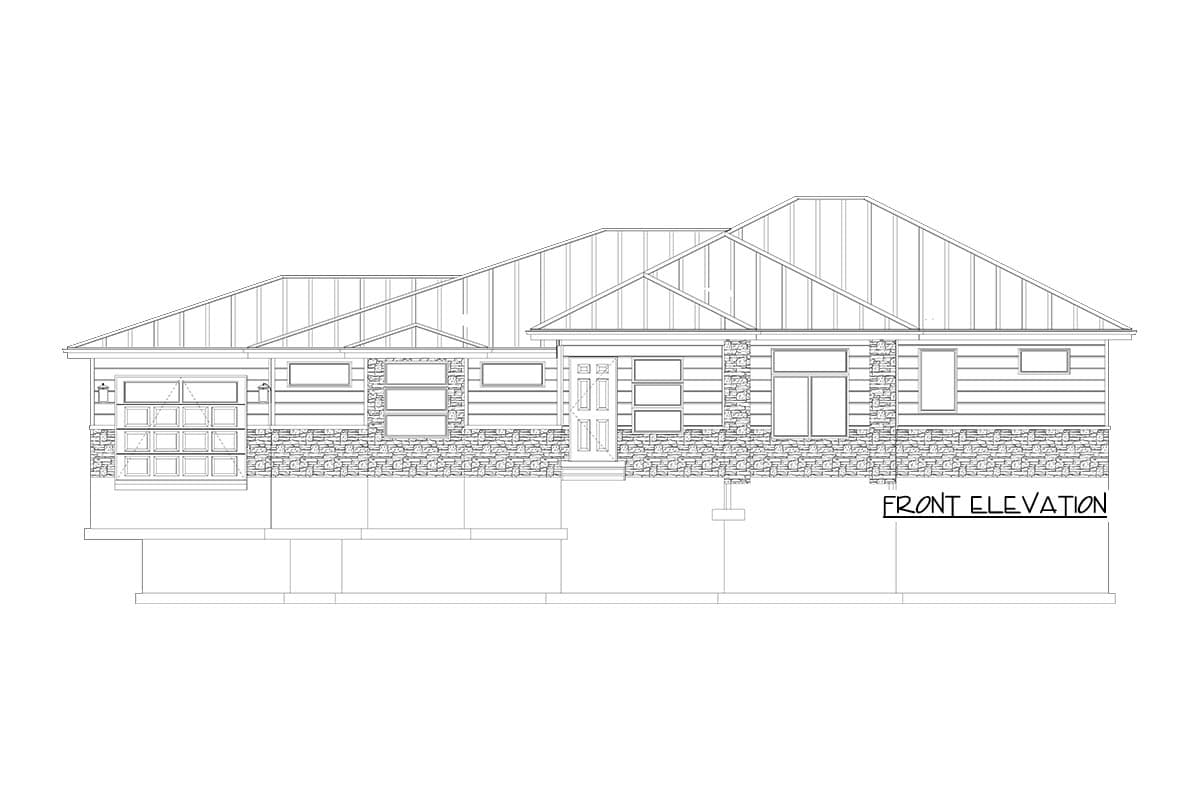

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

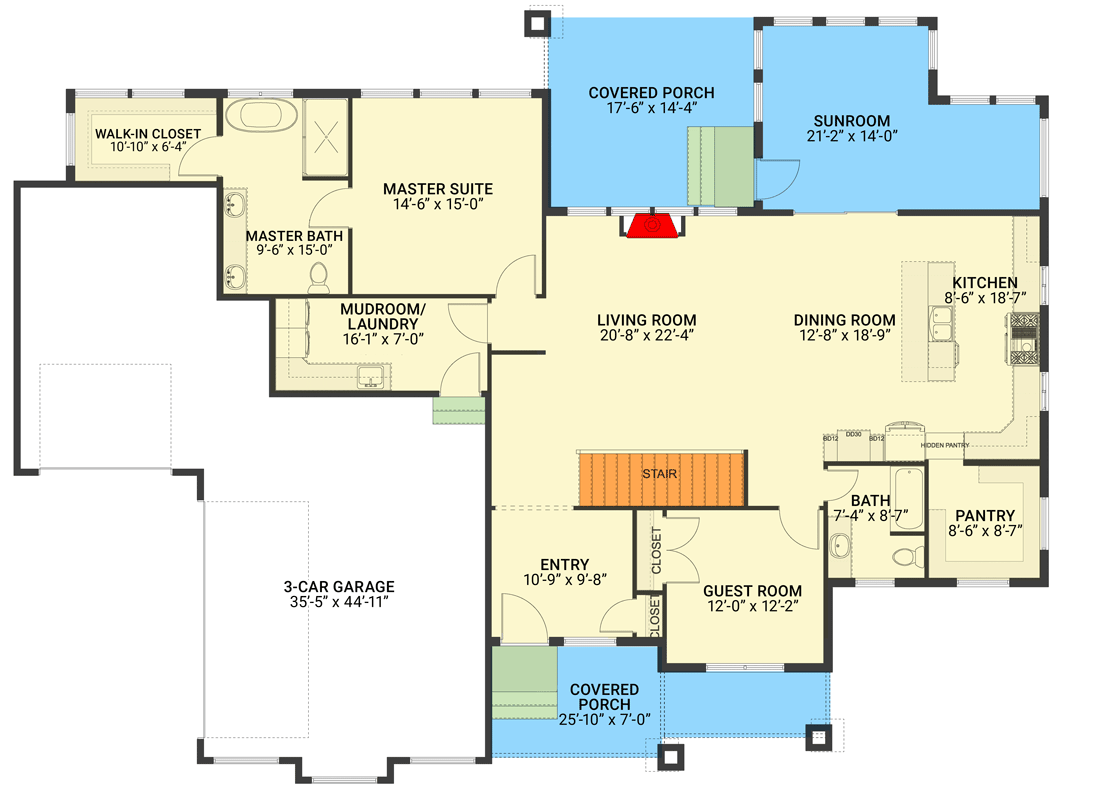

New American Ranch Plan with Optional Lower Level - 61276UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

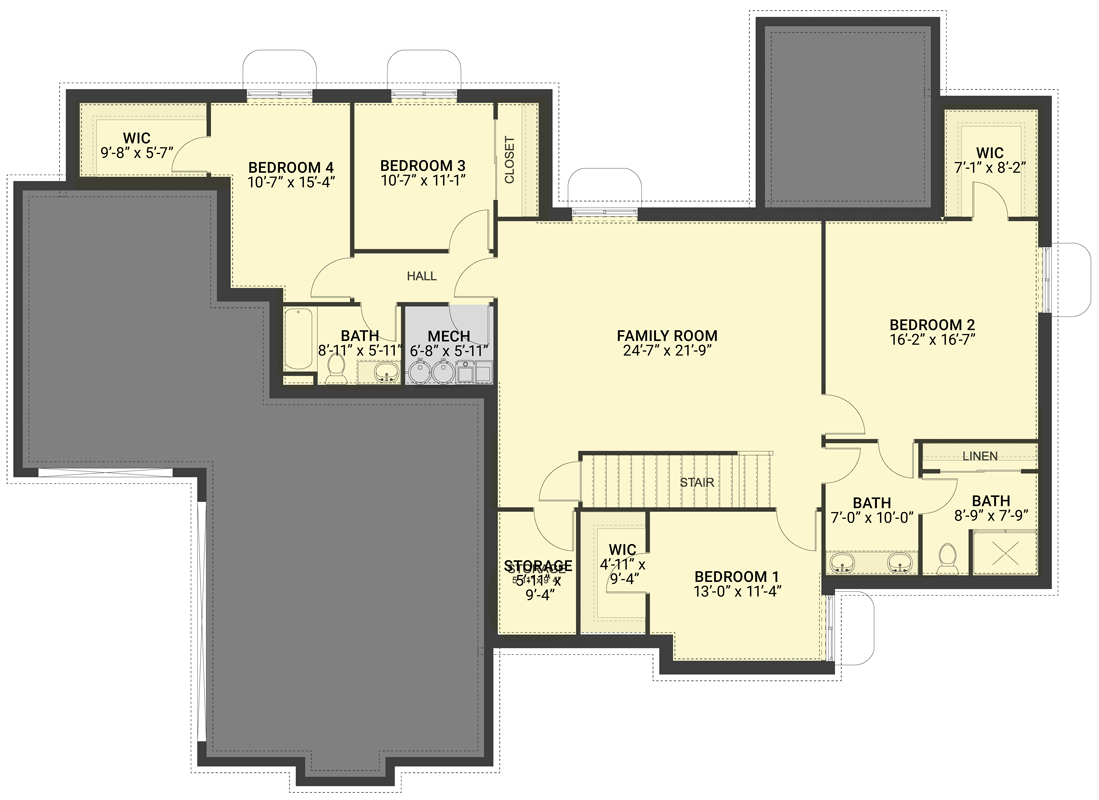

New American Ranch Plan with Optional Lower Level - 61276UT floor plan - Lower Level

Plan details

New American Ranch Plan with Optional Lower Level

  • 2,387

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $995
  • PDF - Unlimited Build $1,050
  • 5 Sets + PDF $1,250
  • CAD - Unlimited Build $1,850
  • View all purchase option online

About This Plan

  • A low-pitched metal roof tops this New American Ranch plan with stone accents adding to the curb appeal. This design is exclusive to Architectural Designs.
  • A large entryway welcomes you inside, which leads to an open-concept layout that combines the living, dining, and kitchen areas. Sliding doors connect the interior space with a 21'2" by 14' sun room.
  • The gourmet kitchen features a large range, island, and hidden pantry that maximizes storage space.
  • Retreat to the well-appointed master suite and discover a large ensuite and walk-in closet with natural light. A second bedroom on the main level is perfect for guests.
  • Downstairs, four bedrooms share two bathrooms and surround a generous family room. Plenty of storage space is provided throughout the home plan.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,387 sq. ft.
  • 1st Floor: 2,387 sq. ft.
  • Porch, Combined: 420 sq. ft.
  • Basement Unfinished: 2,269 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 8"
  • Depth: 58' 6"
  • Max ridge height: 21' 9"

Garage

  • Type: Attached
  • Area: 1000 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" First Floor 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
