Plan 737035LVL New American Ranch Plan with Upstairs Loft

New American Ranch Plan with Upstairs Loft

Plan 737035LVL

  • 2,652

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Board and batten siding draws your gaze up to the gabled roof of this New American Ranch home plan.
  • The combined great room, kitchen, and dining area creates a family-friendly environment and an ideal space to entertain.
  • The separated master suite gives this homeowner additional privacy, while a 5-fixture bath and walk-in closet provides plenty of space for two.
  • A home office near the foyer neighbors a secondary bedroom and full bath, while upstairs, a bonus loft - factored into the total living area - sits next to the third bedroom.
  • Related Plan: Get an alternate exterior with house plan 737036LVL.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections

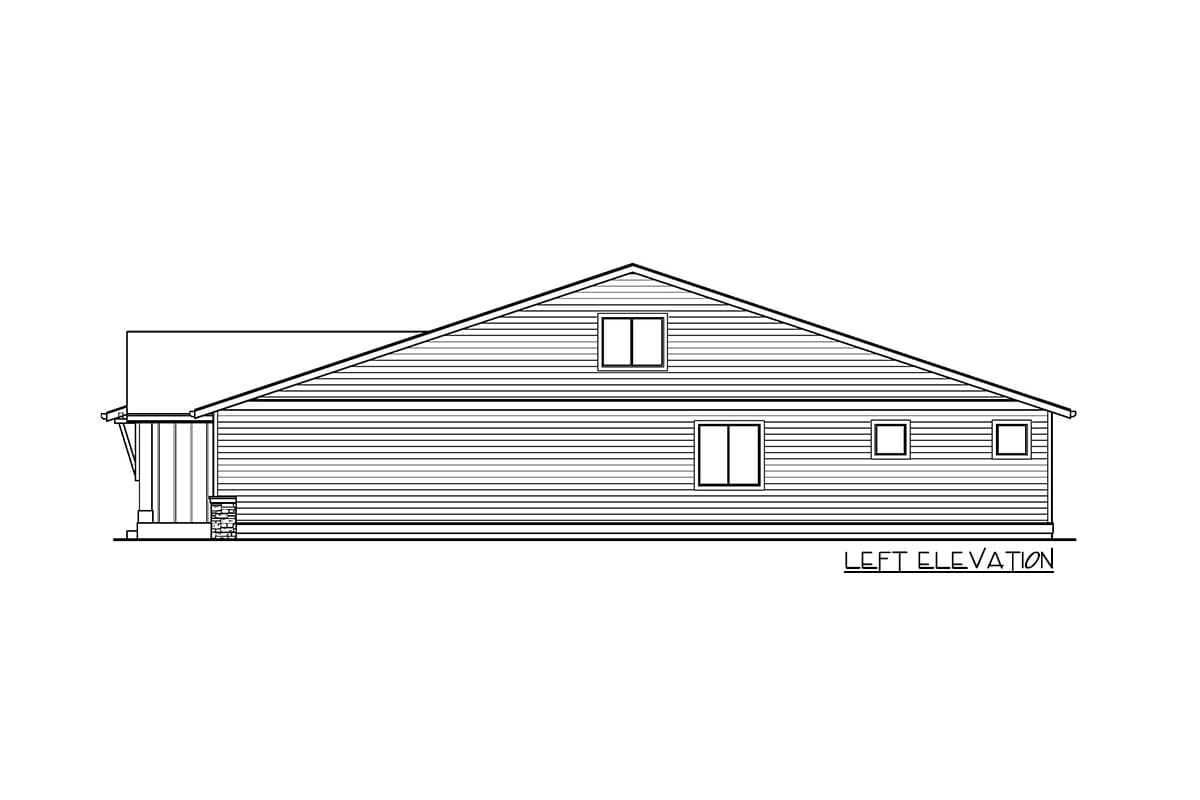

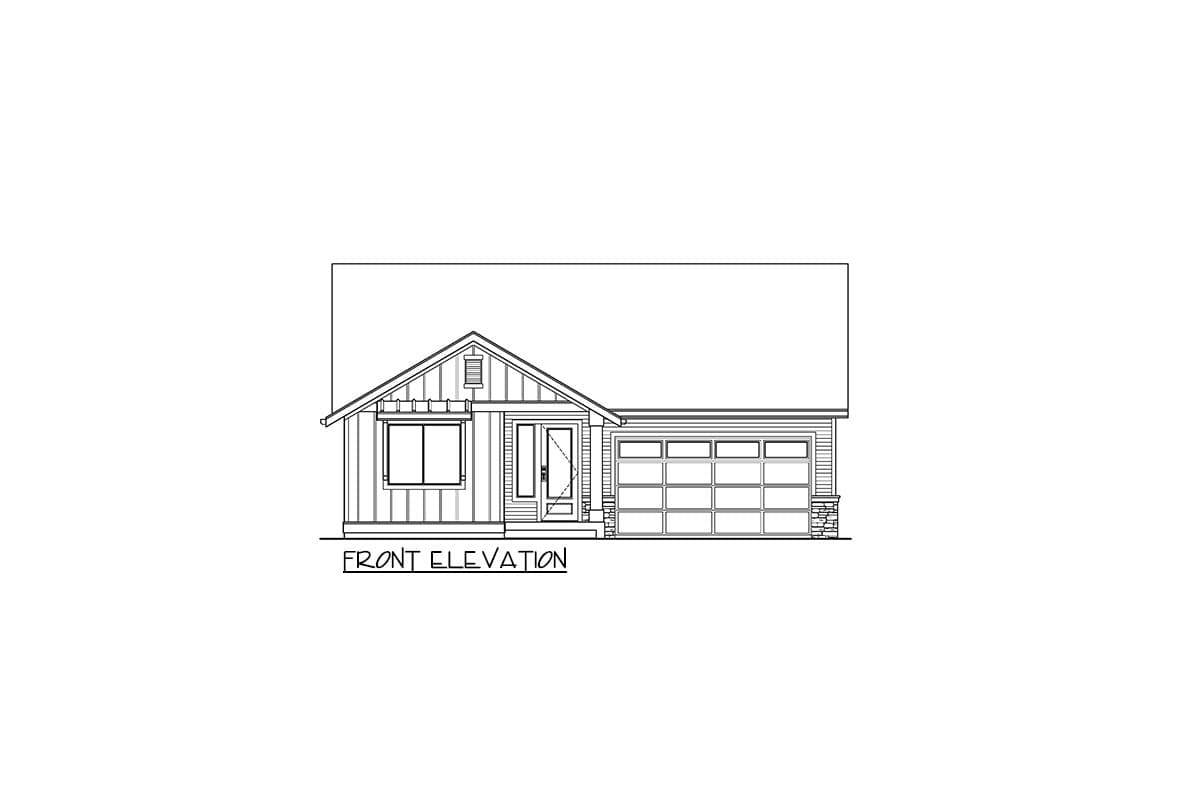

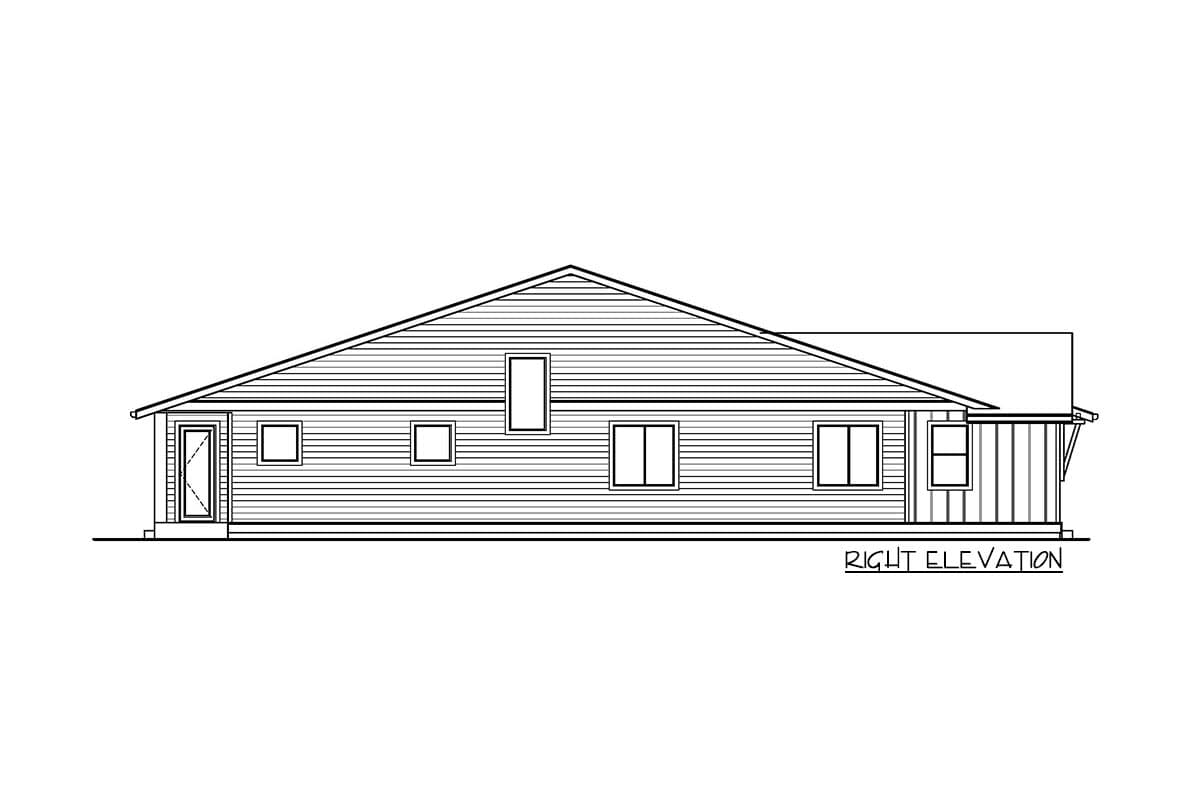

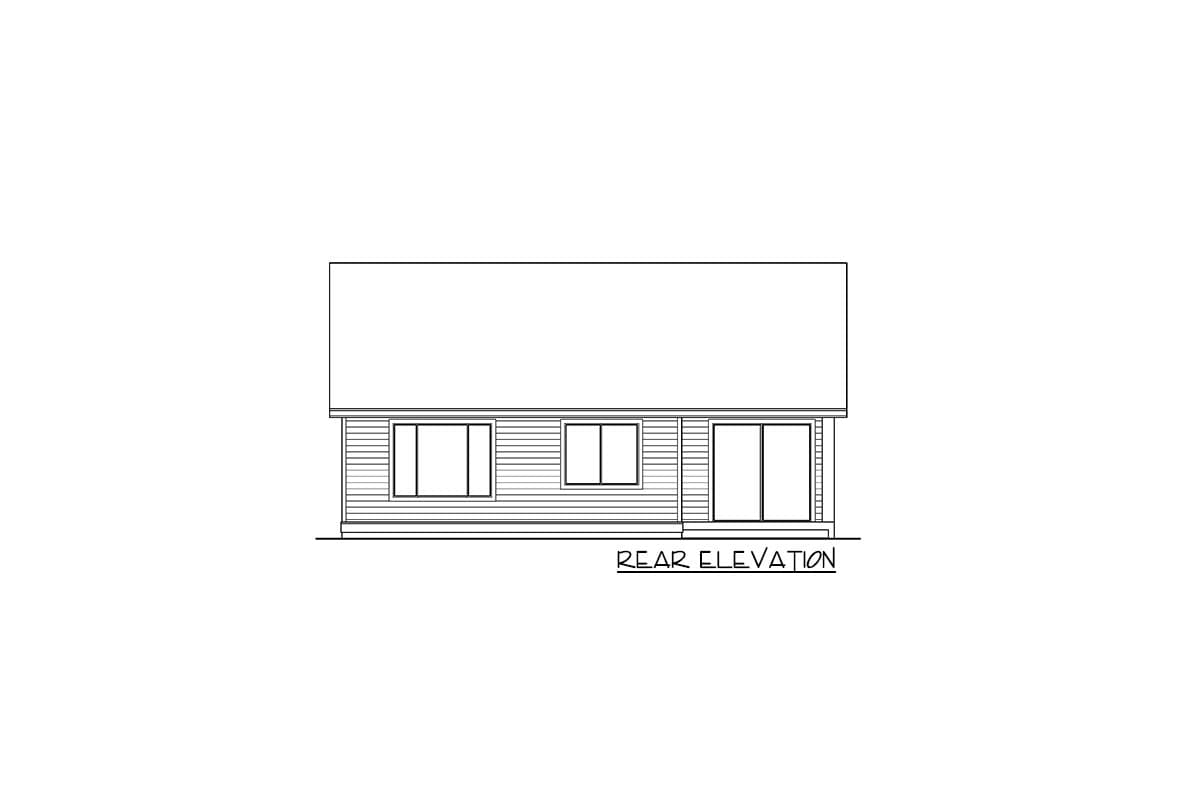

Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

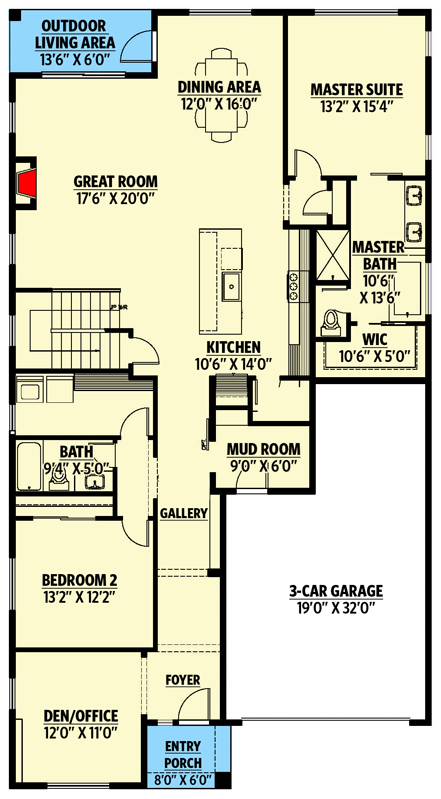

New American Ranch Plan with Upstairs Loft - 737035LVL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

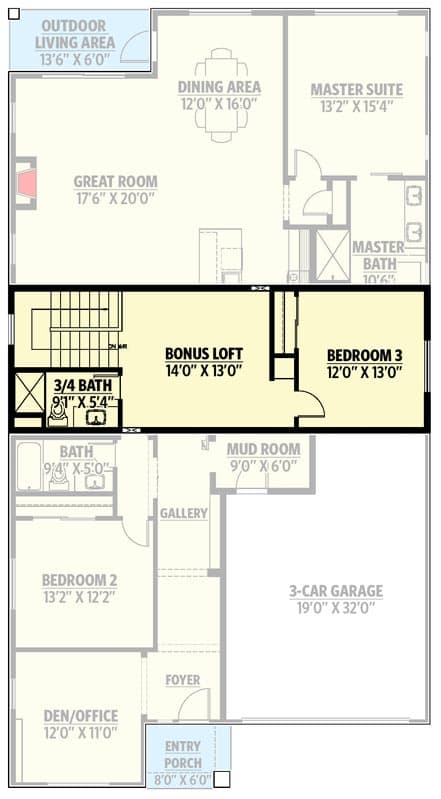

New American Ranch Plan with Upstairs Loft - 737035LVL floor plan - 2nd Floor

Plan details

New American Ranch Plan with Upstairs Loft

  • 2,652

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • CAD - Single-Build $2,200
  • View all purchase option online

About This Plan

  • Board and batten siding draws your gaze up to the gabled roof of this New American Ranch home plan.
  • The combined great room, kitchen, and dining area creates a family-friendly environment and an ideal space to entertain.
  • The separated master suite gives this homeowner additional privacy, while a 5-fixture bath and walk-in closet provides plenty of space for two.
  • A home office near the foyer neighbors a secondary bedroom and full bath, while upstairs, a bonus loft - factored into the total living area - sits next to the third bedroom.
  • Related Plan: Get an alternate exterior with house plan 737036LVL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,652 sq. ft.
  • 1st Floor: 2,174 sq. ft.
  • 2nd Floor: 478 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 84' 0"
  • Max ridge height: 22' 4"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
