Plan 61422UT
New American Ranch Plan with Vaulted Owner's Suite
Heated S.F.
2,564
Beds
3
Baths
2.5
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • With over 2,500 square feet of living space, this New American Ranch plan gives you 3 bedrooms, 2.5 baths, and an open living space crowned by a vaulted ceiling.
  • The island kitchen includes an eating bar and the adjacent 4'11" by 9'11" pantry maximizes storage space.
  • A sizable mud / laundry room with a powder bath greets you upon entering from the double garage.
  • The separated owner's suite considers your privacy and boasts a vaulted ceiling, wet room in the ensuite. and walk-in closet.
  • Two bedrooms share a Jack-and-Jill bathroom, and a home office near the entry is perfect for the work-at-home resident.
  • The garage has an 18' by 8' overhead door.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

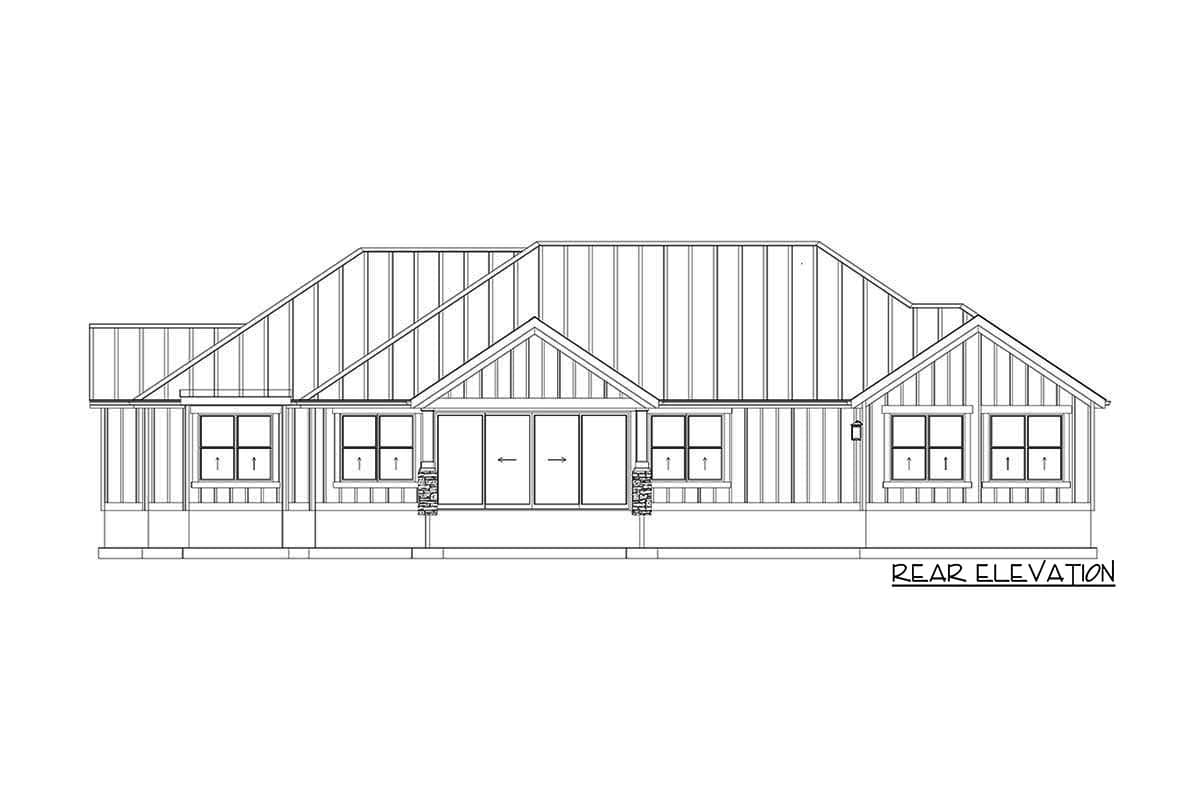

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Ranch Plan with Vaulted Owner's Suite

  • 2,564

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

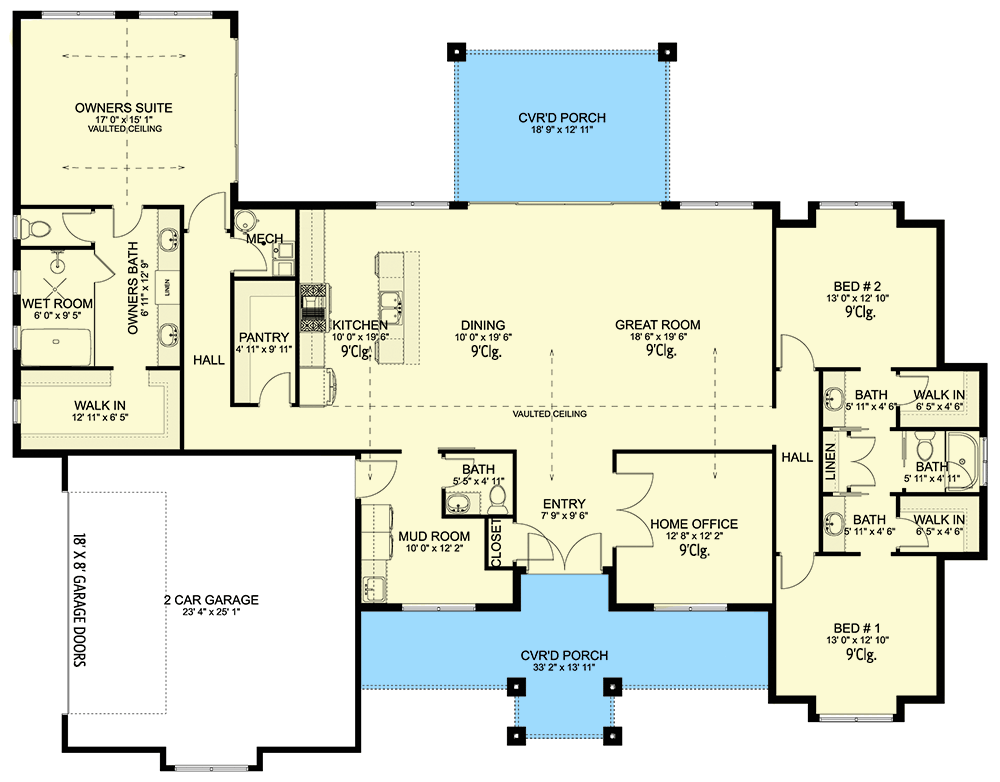

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,564 sq. ft.
  • 1st Floor: 2,564 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 61' 6"
  • Max ridge height: 21' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab, Walkout, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
