Plan 61289UT
New American RV Garage Apartment with Upstairs Deck
Heated S.F.
1,218
Beds
1
Baths
2
Stories
2
Cars
3
Flyer
What's Included
Plan Details

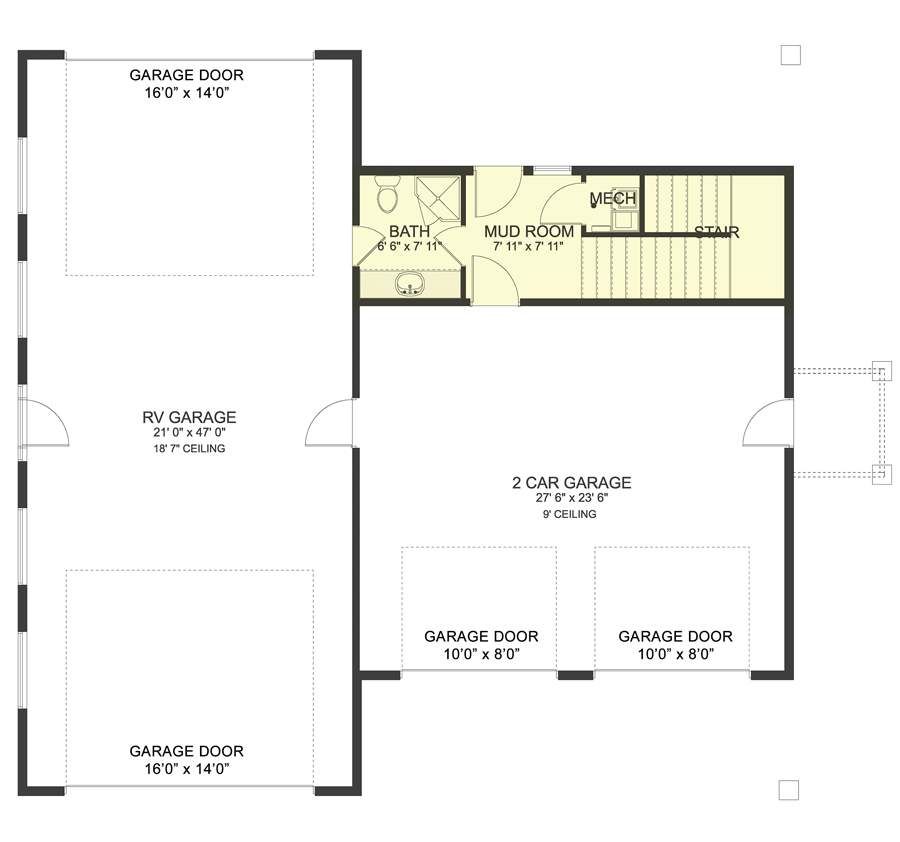

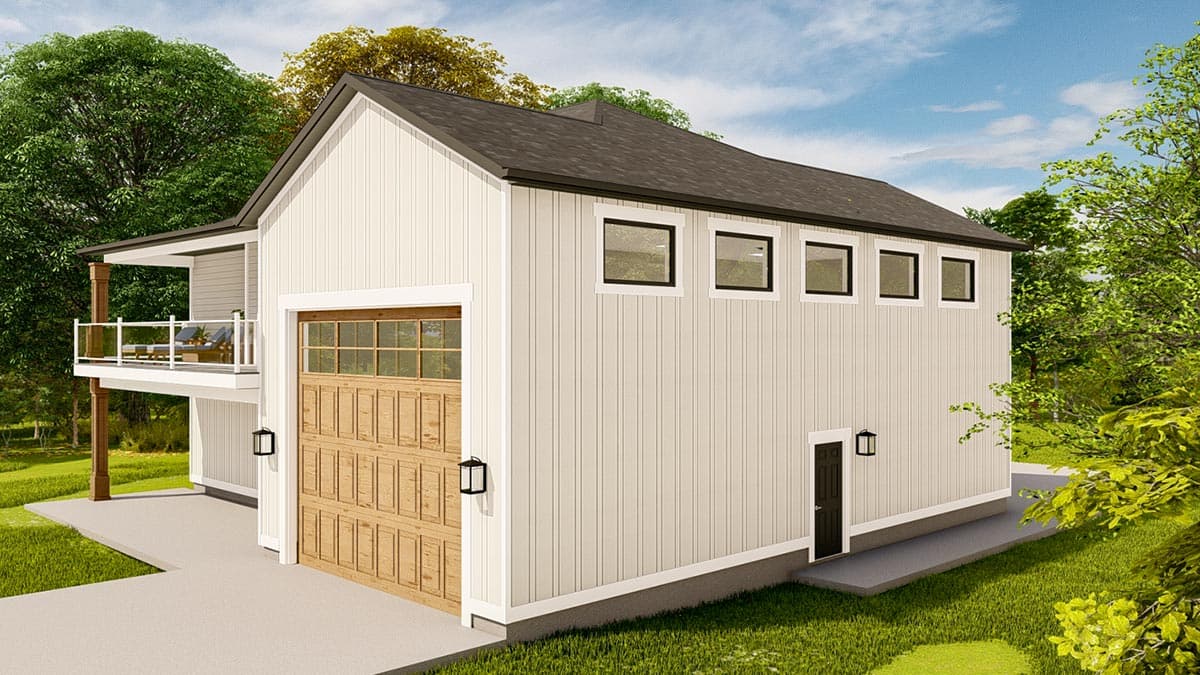

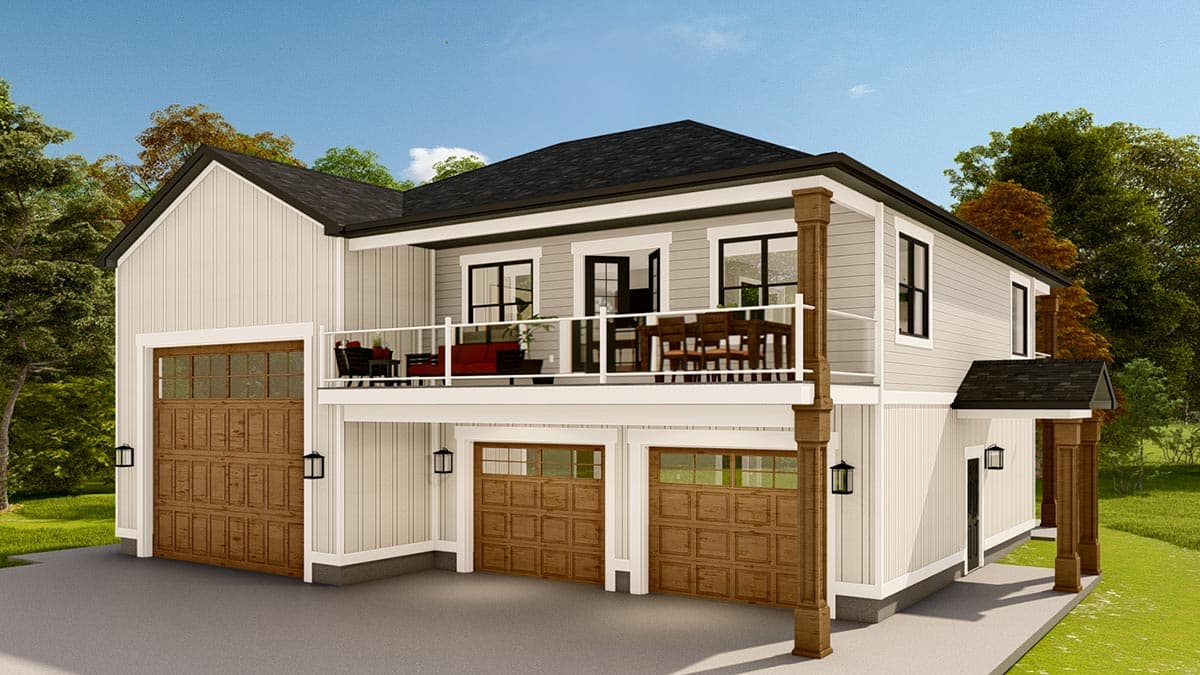

  • Board and batten siding adorn the exterior of this RV garage apartment giving it a New American vibe. Not only does this give you drive-through parking through 16' by 14' garage doors for your RV but it also gives you parking for two vehicles as well behind matching 10' by 8' garage doors.

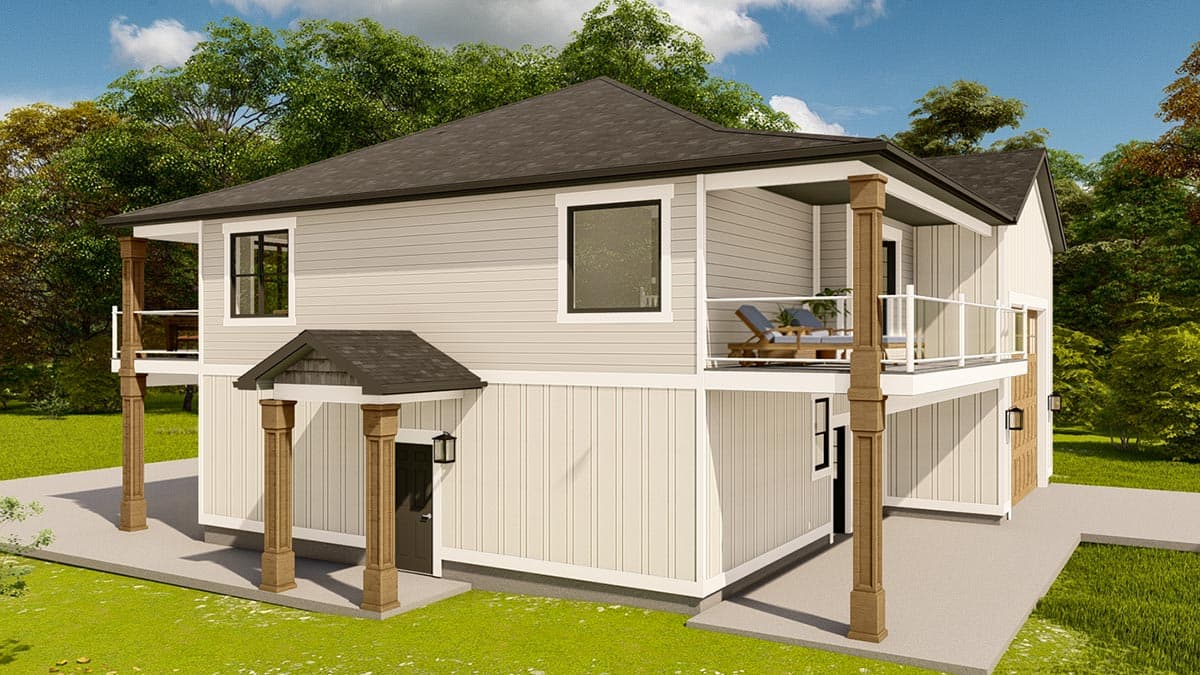

  • Person doors on each side - the one on the right is covered - and the back give you multiple ways inside that don't involve driving.

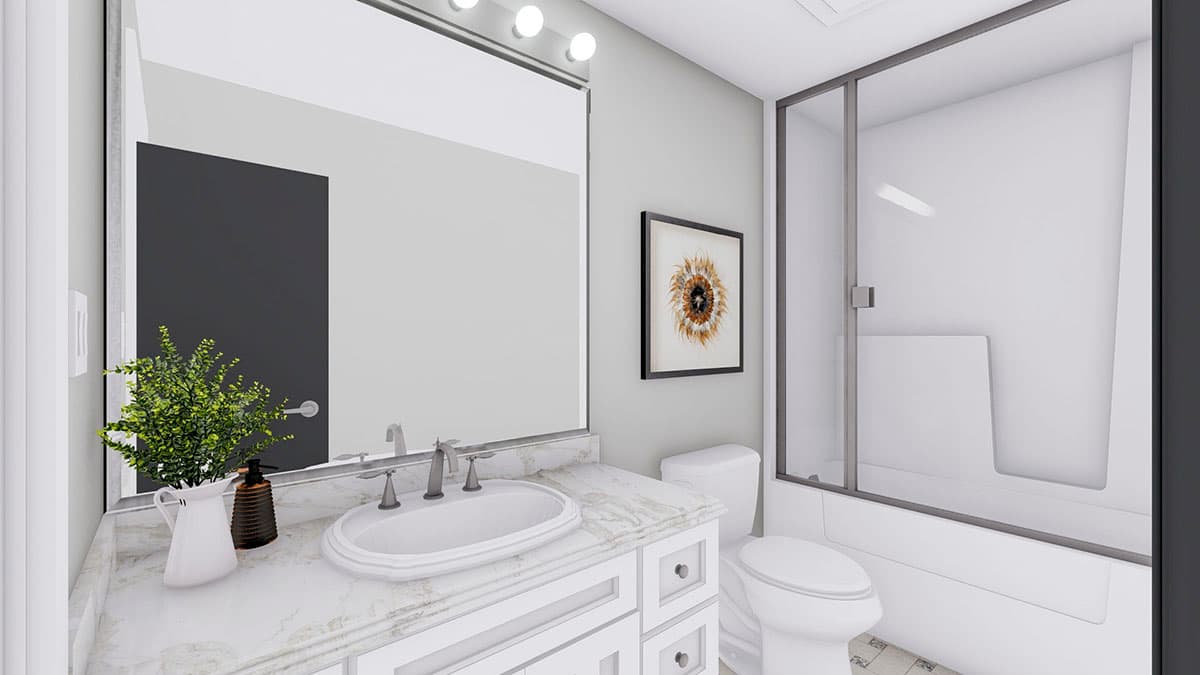

  • Flanking the mud room, you'll find a bath with shower and a mechanical closet. Stairs run along the back and take you to the apartment.

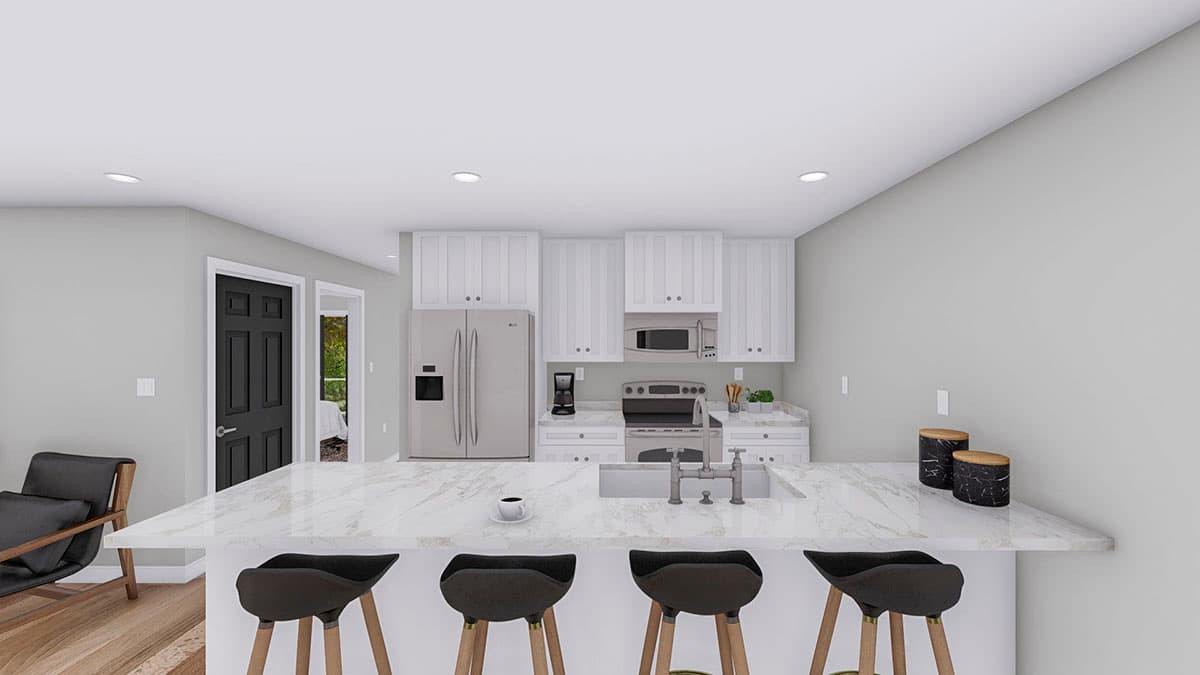

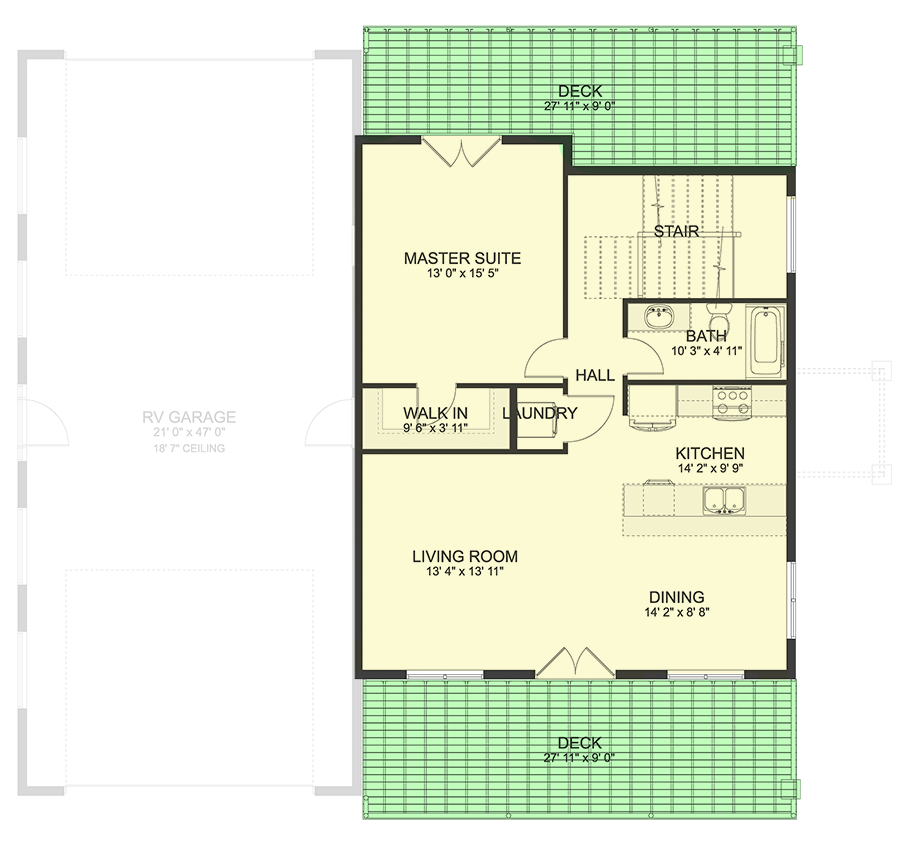

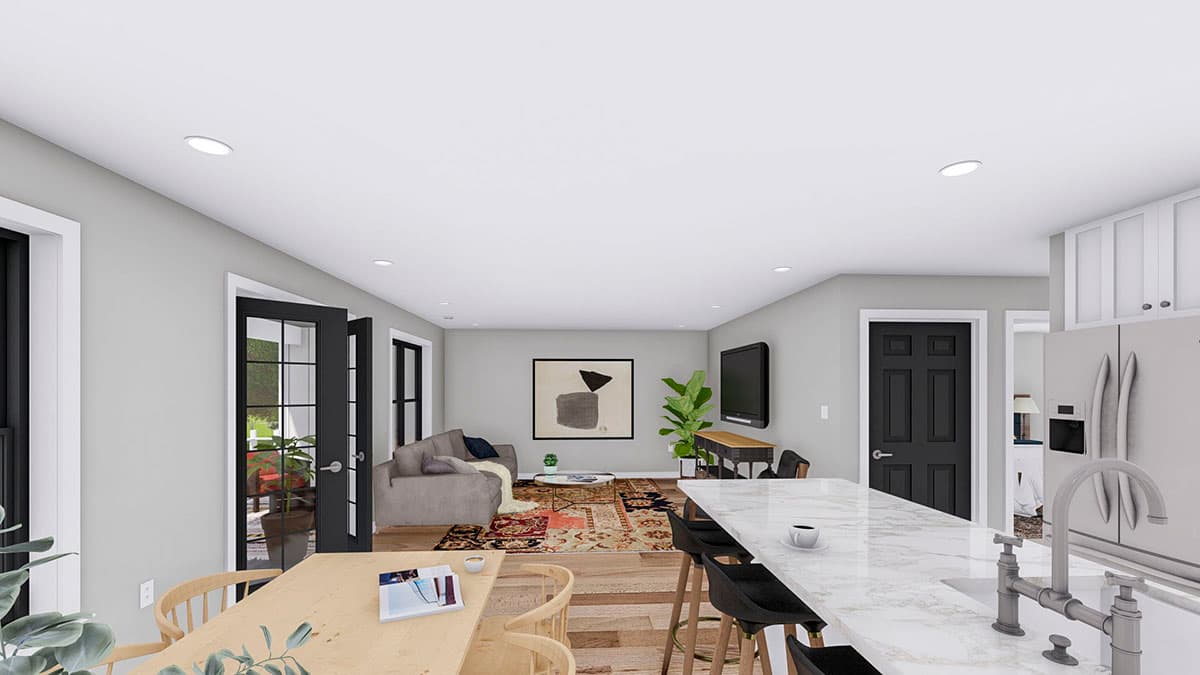

  • The front of the apartment is open from wall to wall and gives you a living room, kitchen and dining area with views to the front and access to a 9'-deep deck through a pair of french doors.
  • In back, the bedroom has access to its own 9'-deep deck as well.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

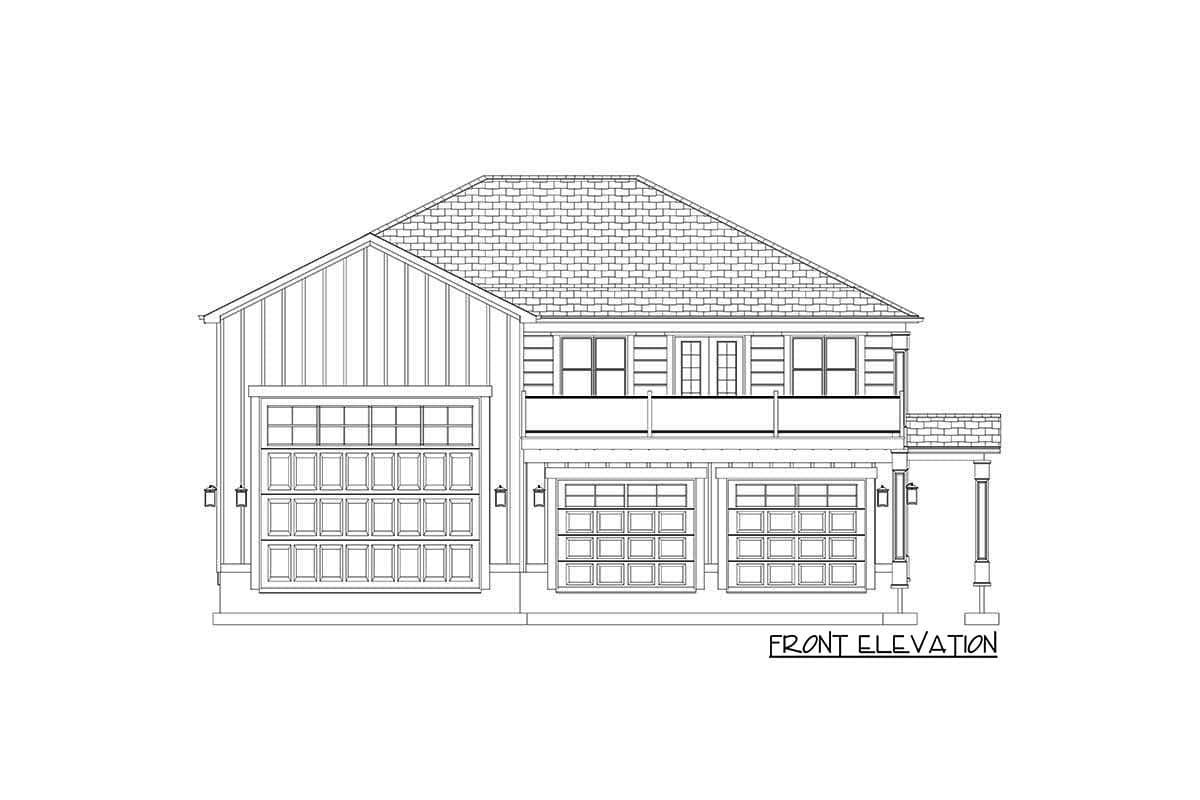

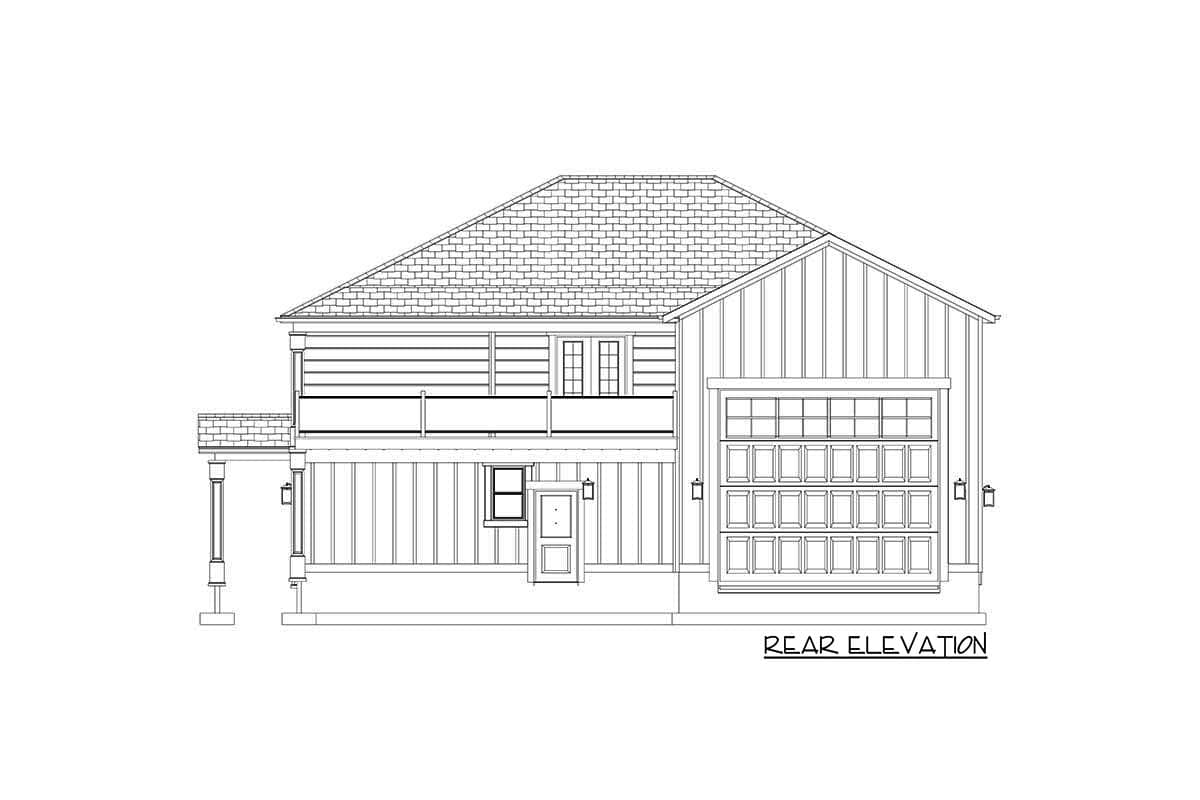

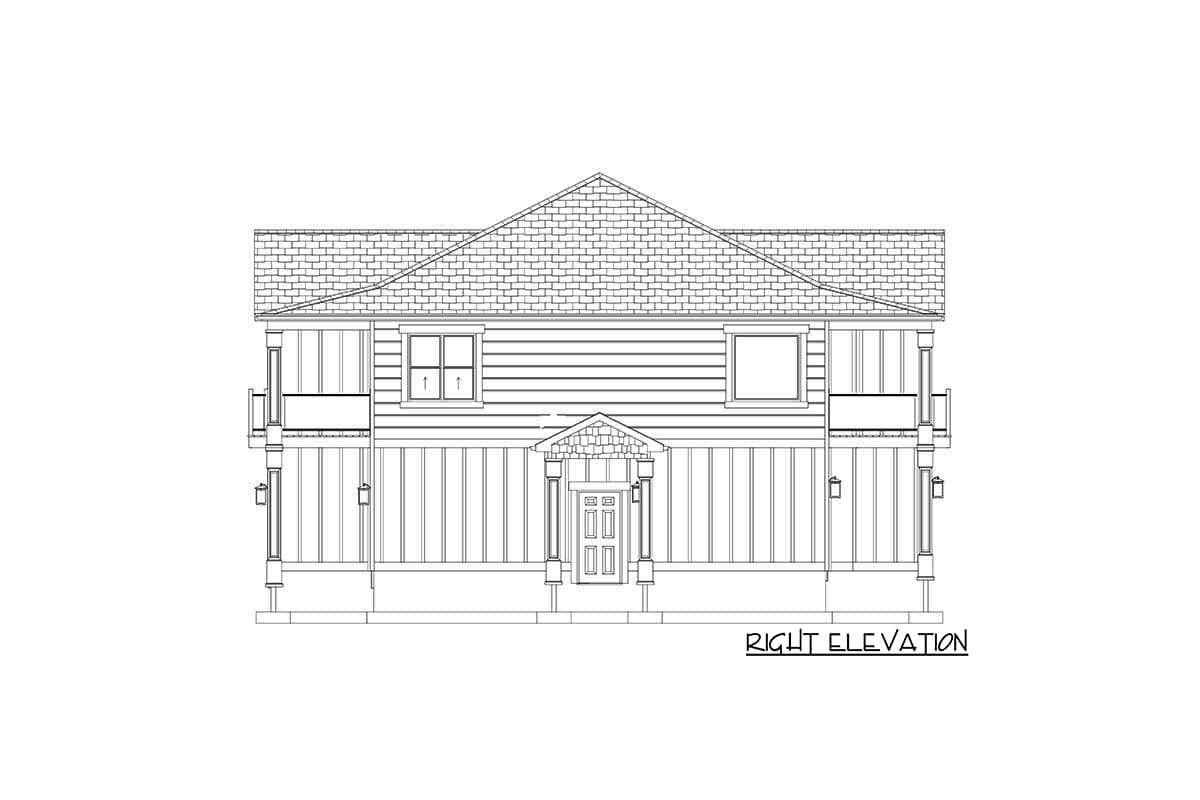

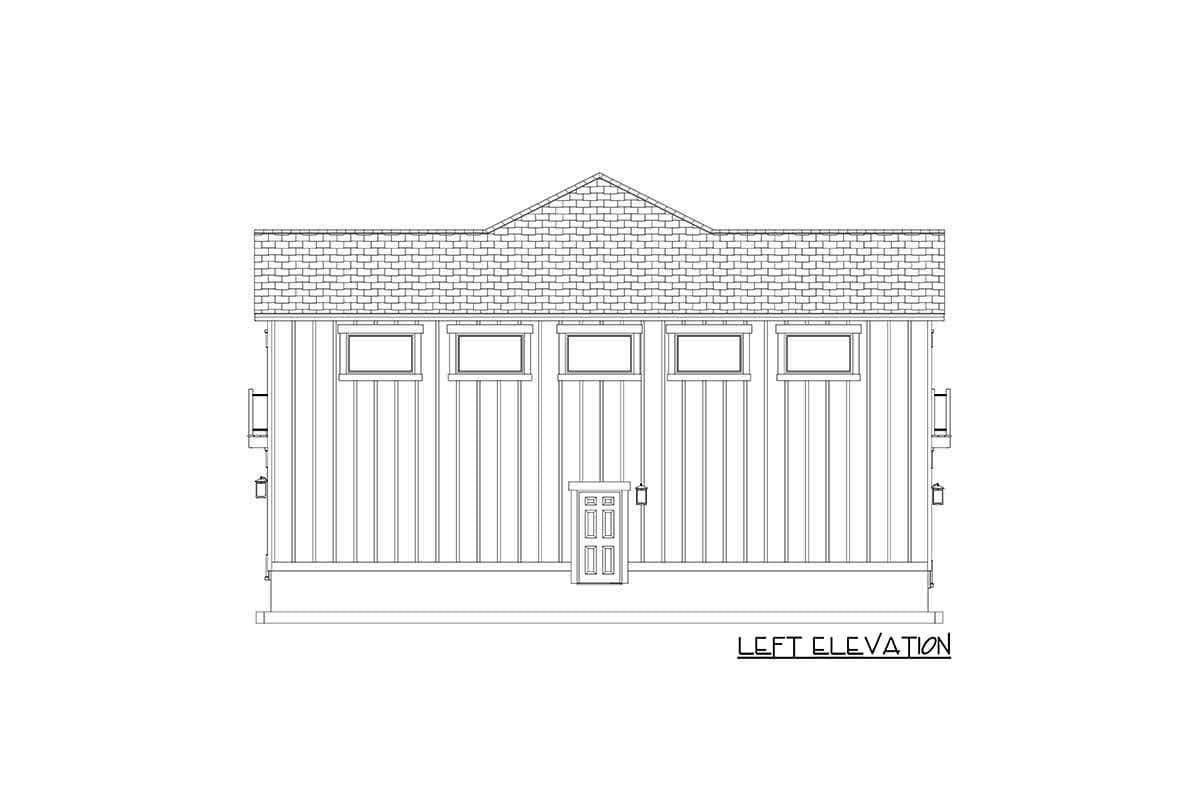

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American RV Garage Apartment with Upstairs Deck

  • 1,218

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,218 sq. ft.
  • 1st Floor: 251 sq. ft.
  • 2nd Floor: 967 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 1"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Garage

  • Type: RV Garage, Detached
  • Area: 1729 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" RV Garage 18' 7"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American RV Garage Apartment with Upstairs Deck

  • 1,218

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

New American RV Garage Apartment with Upstairs Deck

  • 1,218

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,218 sq. ft.
  • 1st Floor: 251 sq. ft.
  • 2nd Floor: 967 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 48' 0"
  • Max ridge height: 29' 1"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Garage

  • Type: RV Garage, Detached
  • Area: 1729 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" RV Garage 18' 7"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
