New American Single-Story Home Plan with Access to Laundry Room from Primary Closet
Heated S.F.
3,145
Beds
4
Baths
4.5
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • This New American single-story home plan presents immense curb appeal with a side-entry garage and metal roof accents.
  • Double doors welcome you inside to find a barrel-roof ceiling above the foyer. French doors to the right offer privacy to a home office or flex room.
  • The family room and eat-in kitchen boast between 12 to 13 foot vaulted ceilings, while the double-island and expansive pantry create an innovative space for your culinary creations.
  • The rear wall is lined with windows and an accordion-style door, drawing you outdoors onto the covered porch.
  • The decadent primary suite is located off the kitchen and is appointed with a 5-fixture bathroom, and pass-thru closet that connects to the laundry room. Easy access to the mudroom / garage makes last minute wardrobe changes a breeze.
What's Included
  • Foundation plan

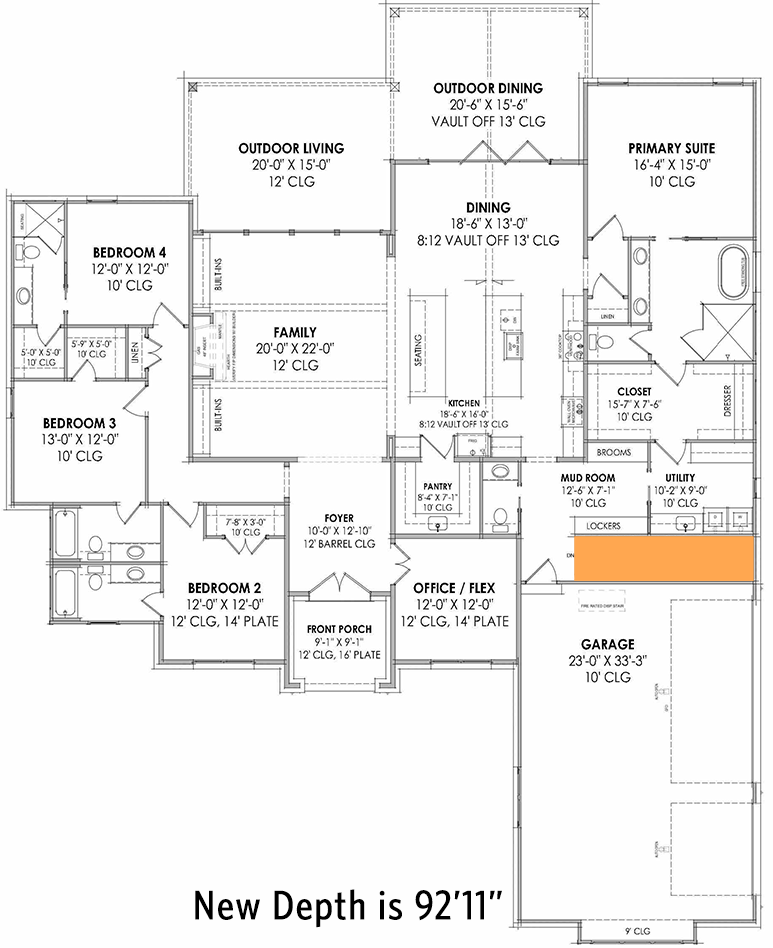

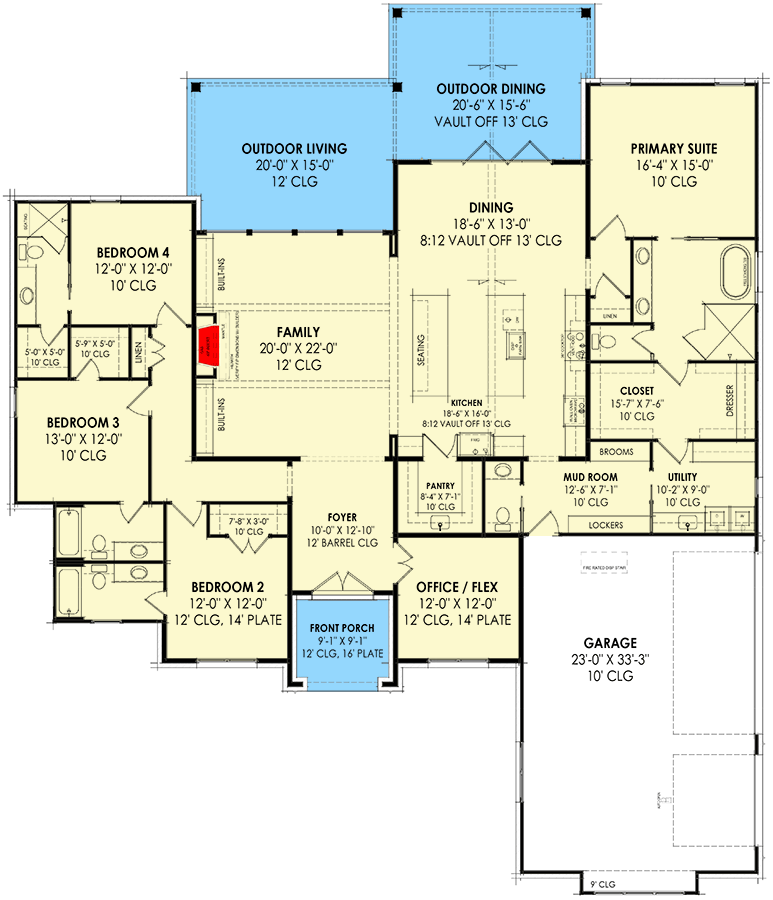

  • Detailed floorplans
  • Roof plan

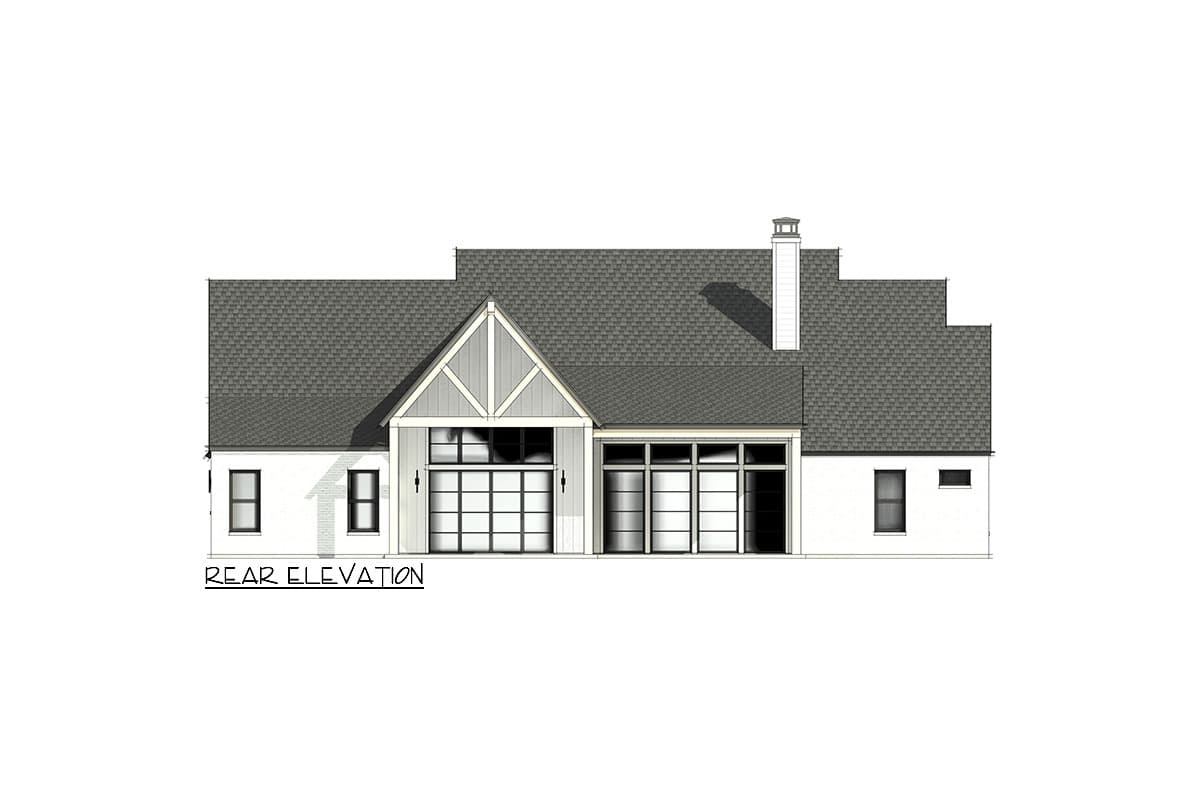

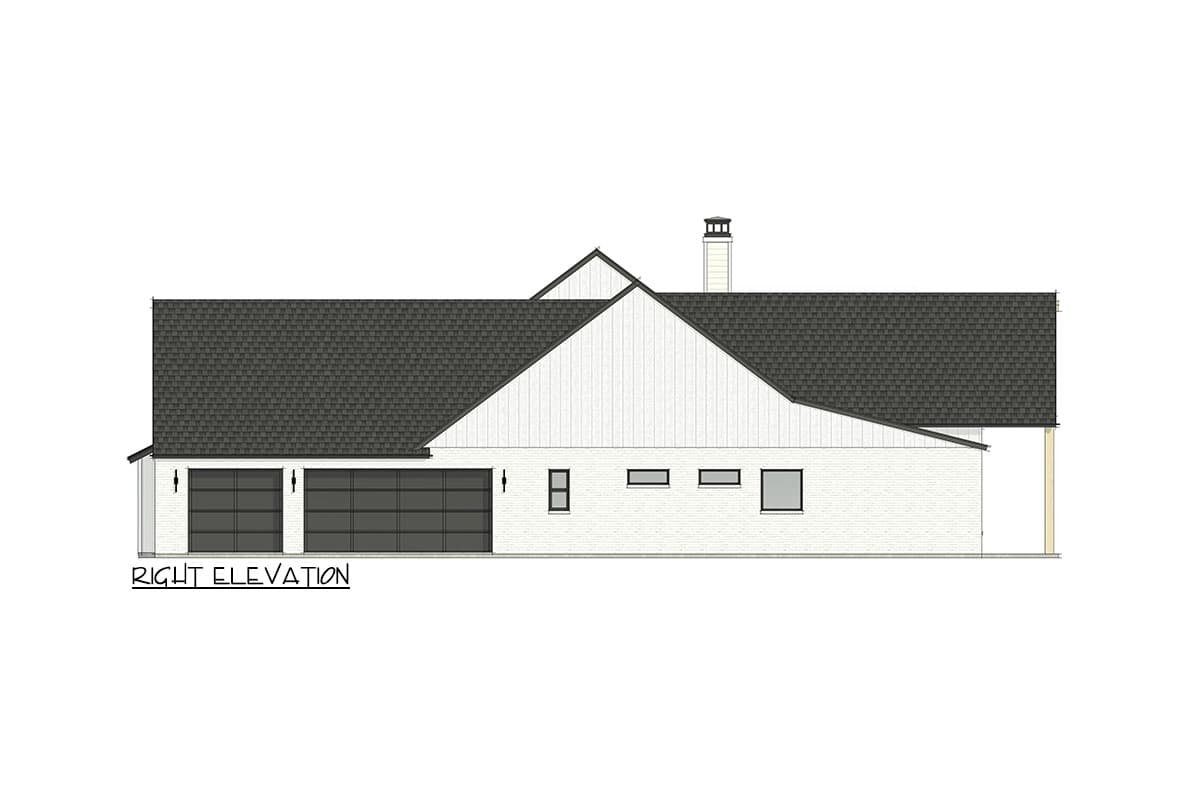

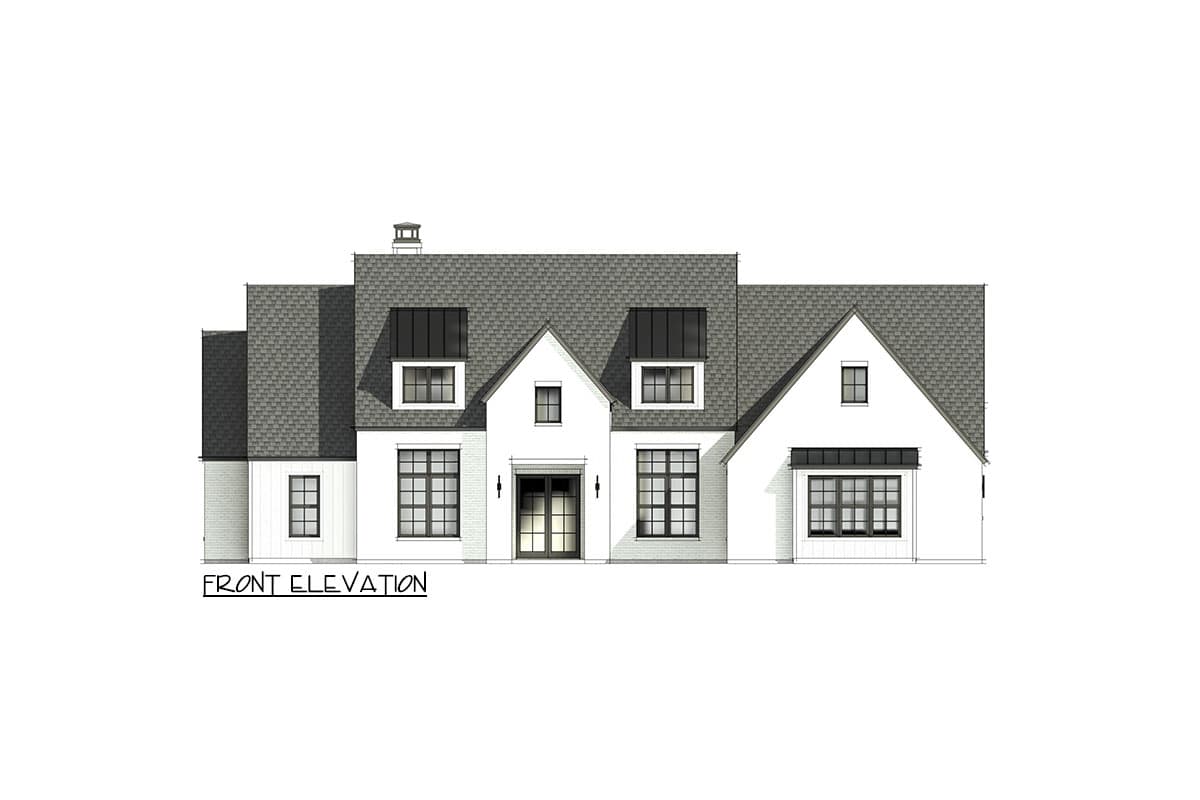

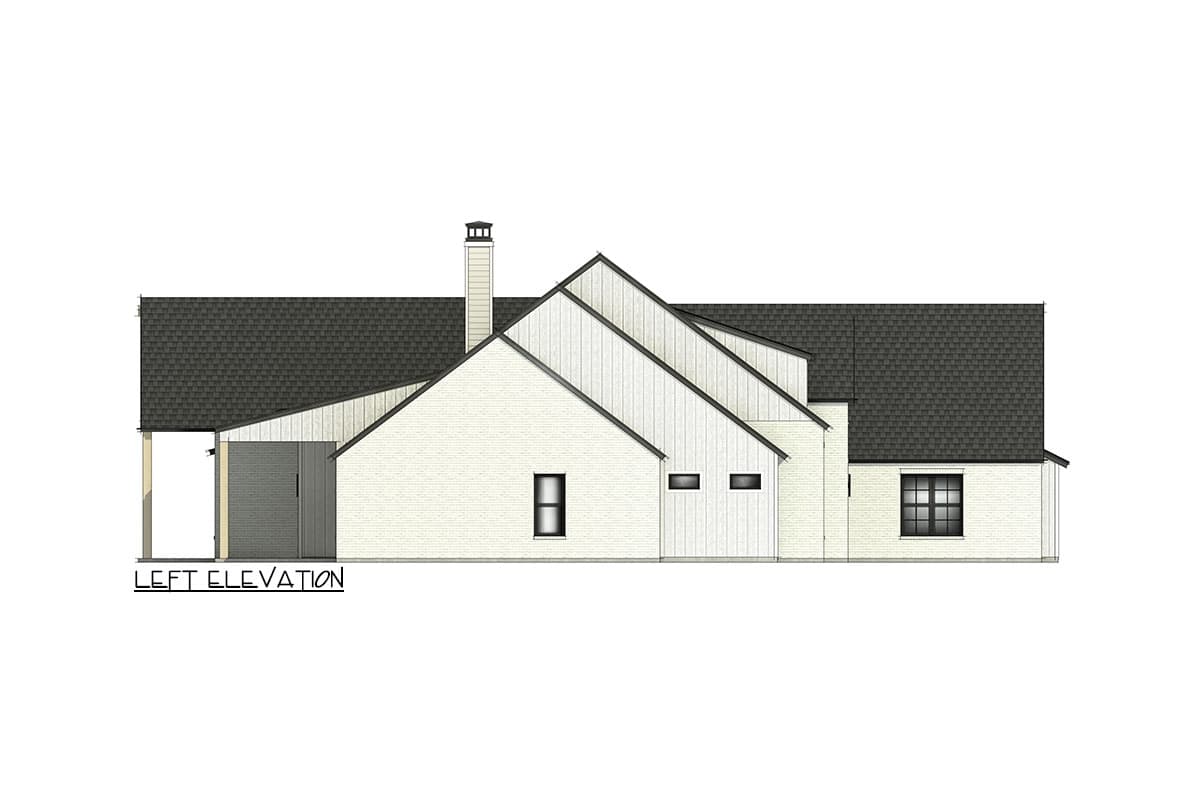

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
