New American Storage Shed

Plan 22600DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • Clapboard styling and a sanding seam metal roof over the entry give this storage shed New American appeal.
  • An oversized door on the side gives you access for lawn equipment, motorcycles and other larger gear.
  • Inside, the ceiling is 8'2".

Each plan includes the following:

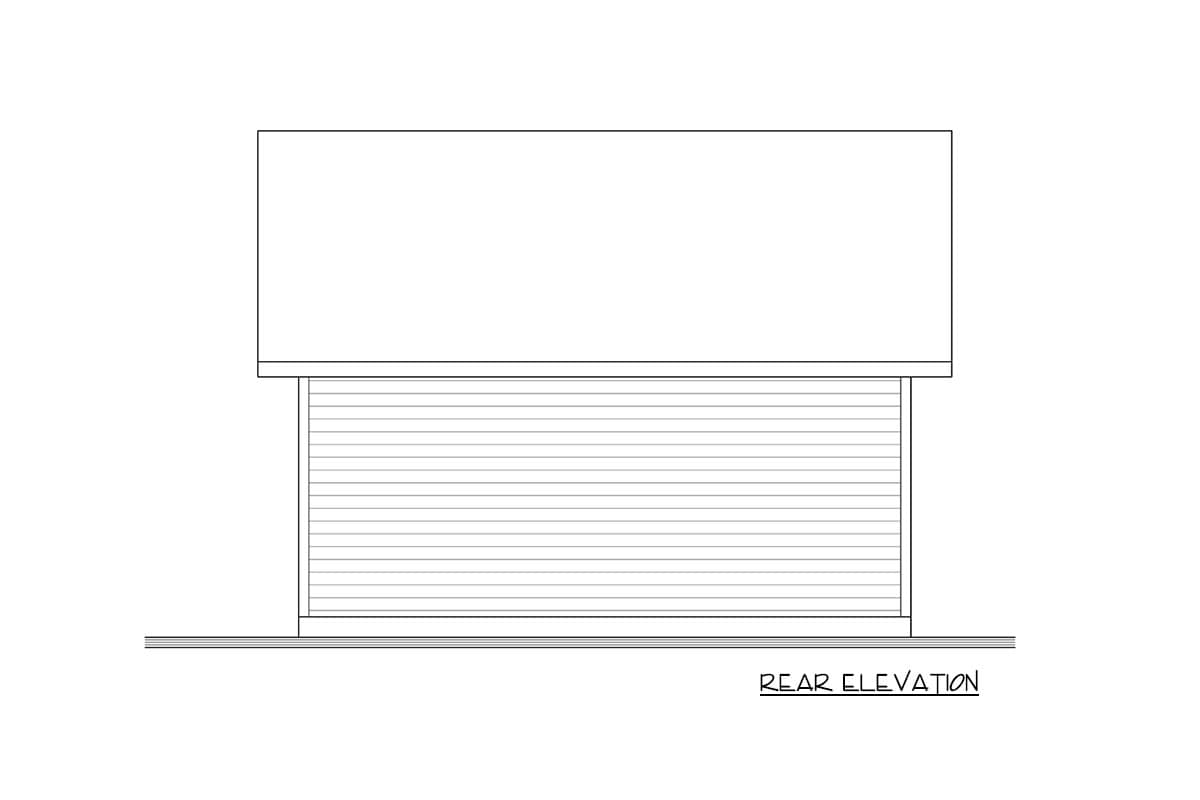

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

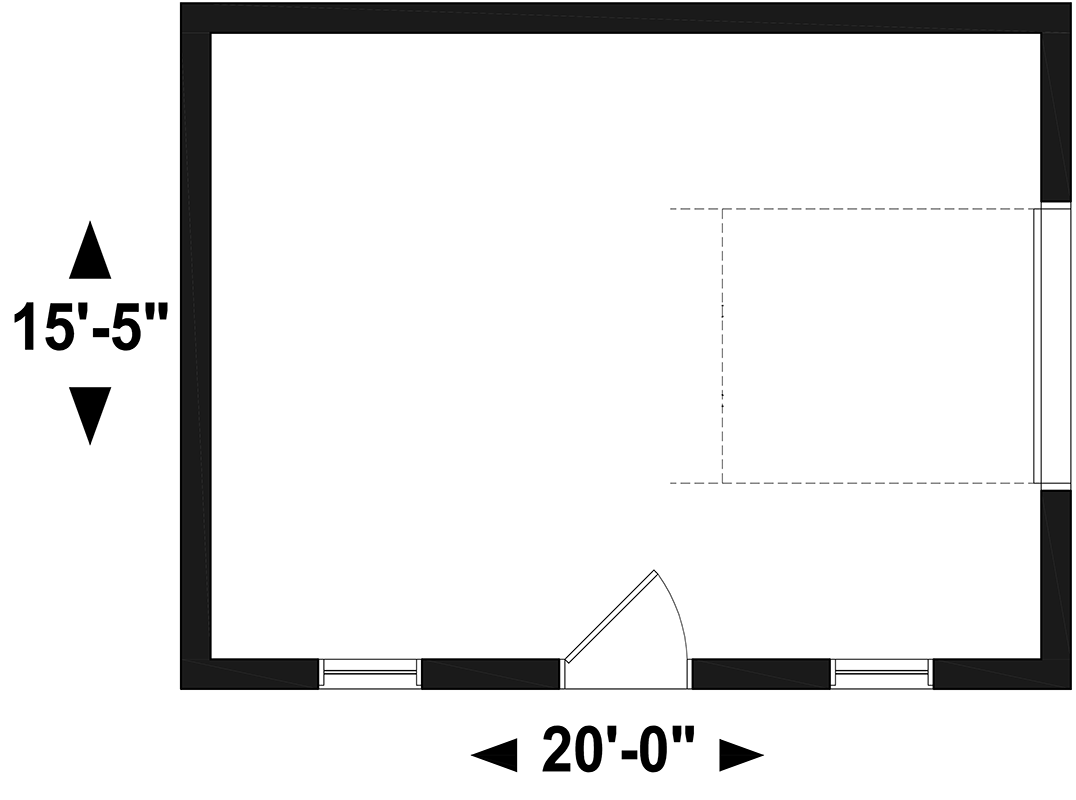

New American Storage Shed - 22600DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 309 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 15' 5"
  • Max ridge height: 15' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 2"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

New American Storage Shed

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $280
  • CAD + PDF - Single-Build $625
  • View all purchase option online

About This Plan

  • Clapboard styling and a sanding seam metal roof over the entry give this storage shed New American appeal.
  • An oversized door on the side gives you access for lawn equipment, motorcycles and other larger gear.
  • Inside, the ceiling is 8'2".
