Plan 290131IY

Northwest Craftsman with Optional Lower Level

Heated S.F.
1,706
Beds
3 - 5
Baths
2 - 3
Stories
1
Cars
3

Floor Plan

Plan 290131IY

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 290131IY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

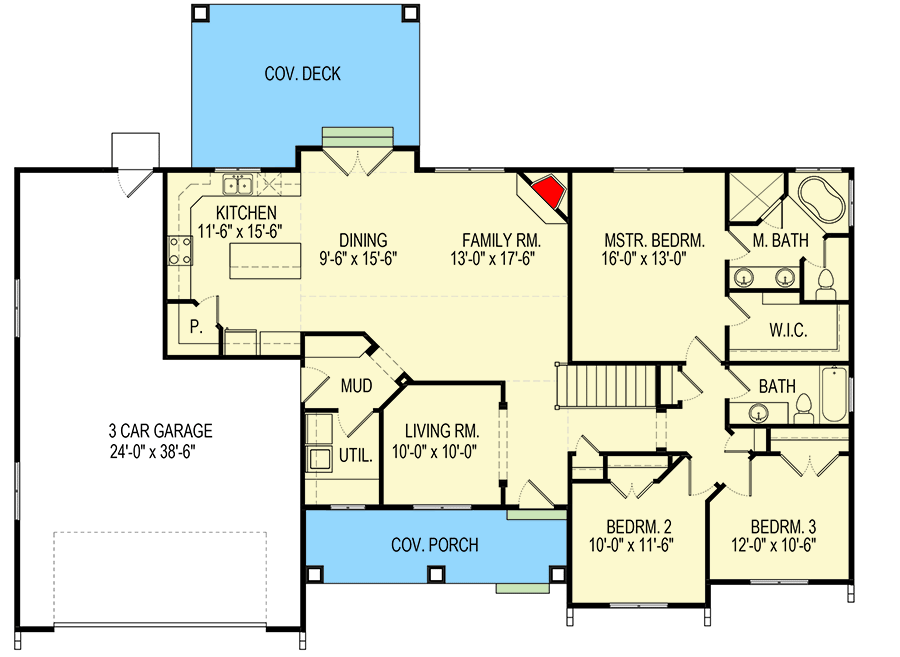

Plan 290131IY: Northwest Craftsman with Optional Lower Level - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Optional Lower Level

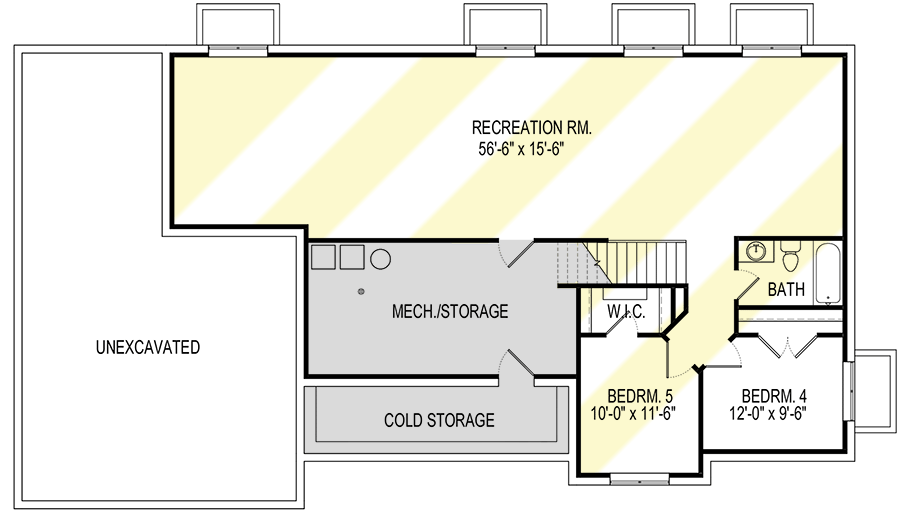

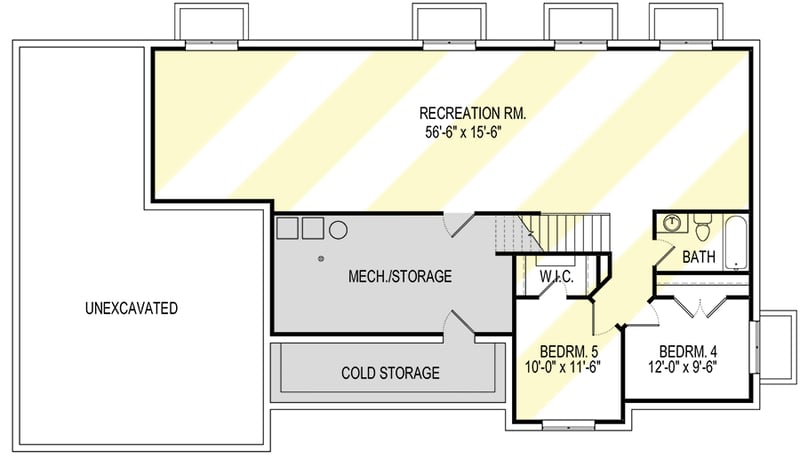

Plan 290131IY: Northwest Craftsman with Optional Lower Level - Floor Plan - Optional Lower Level - Craftsman, Northwest, Ranch

Plan Details

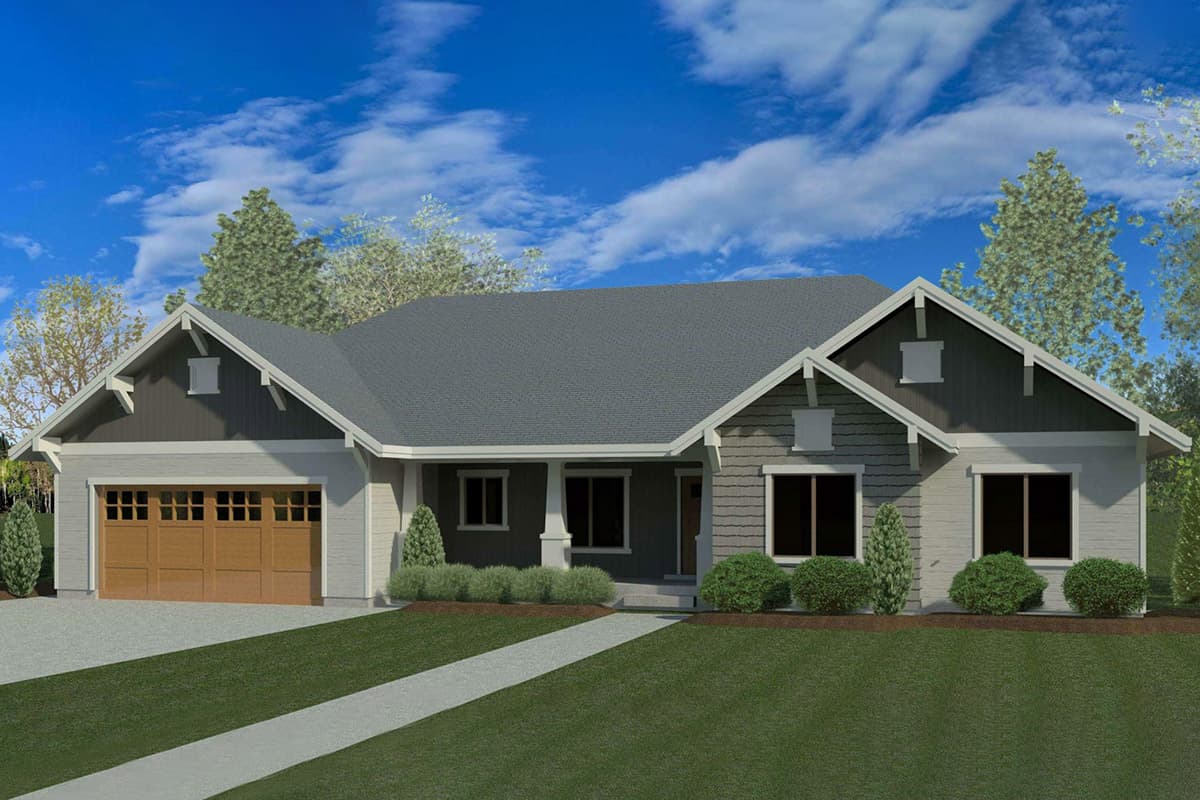

  • Three tapered columns help to support the front porch on this Northwest Craftsman home plan, covered in a variety of siding materials.
  • Inside, a formal living room is located to the left of the foyer, and an open floor plan is revealed a few steps further. Enjoy the warmth of the corner fireplace throughout the family room, dining area, and kitchen.
  • The right side of the home consists of three bedrooms, with the largest reserved for the homeowner.
  • The 3-car garage opens into a mudroom with a laundry room next door.
  • Finish the lower level in order to gain a recreation room, two bedrooms, and a full bath; totaling 1,309 square feet of living space.

What's Included

  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,706 sq. ft.

1st Floor

1,706 sq. ft.

Optional Lower Level

1,309 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

39' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

761 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,706 sq. ft.

1st Floor

1,706 sq. ft.

Optional Lower Level

1,309 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

39' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

761 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom
