Northwest Home with Open Layout

Plan 81618AB

  • 3,208

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Stone and shakes enhance the curb appeal of this attractive Northwest home plan.
  • Inside, an open floor plan takes advantage of the views from each room.
  • Walls of windows in the rear bring in light and allow views of your backyard to take center stage.
  • The master bedroom enjoys a first floor location and has its own sitting area and ensuite bathroom.
  • On the upper level, an open rail in the bonus room area lets you view the dining room below.
  • Bookshelves line the library and a gas fireplace is shared by both rooms on this level.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

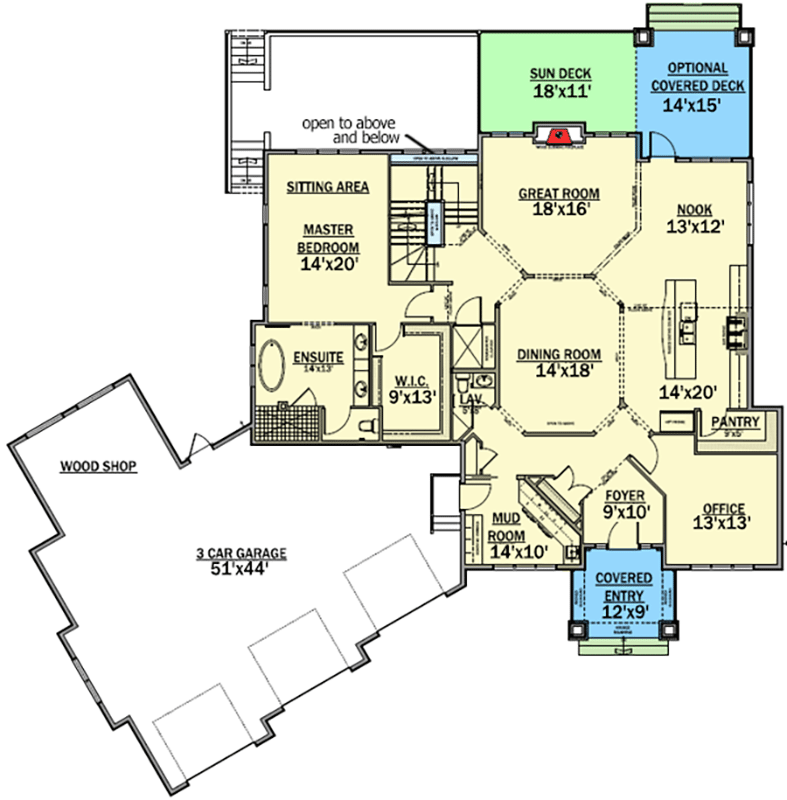

Northwest Home with Open Layout - 81618AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

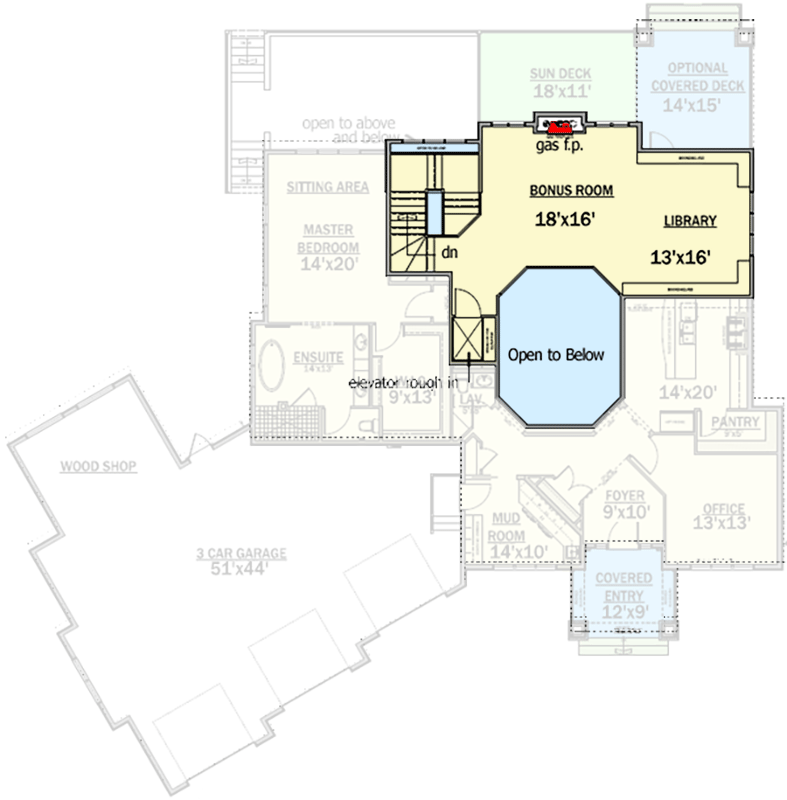

Northwest Home with Open Layout - 81618AB floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Northwest Home with Open Layout - 81618AB floor plan - Optional Lower Level

Northwest Home with Open Layout

  • 3,208

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,208 sq. ft.
  • 1st Floor: 2,550 sq. ft.
  • 2nd Floor: 658 sq. ft.

Dimensions

  • Width: 91' 0"
  • Depth: 93' 0"
  • Max ridge height: 30' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1558 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
