Plan 31506GF
Northwest House Plan for Narrow Lot
Heated S.F.
1,828
Beds
2-3
Baths
2.5 - 3.5
Stories
2
What's Included
Plan Details
  • The front porch of this Northwest house plan is made for sitting and relaxing outdoors.
  • Decorative wood trim boosts the curb appeal.
  • Inside, you get a big foyer with a coat closet and half bath nearby.
  • A large room off to the right can be used as a formal dining room or as a living room.
  • The kitchen has a half wall that lets you see into the breakfast nook and family room.
  • Sliding glass doors lead to a rear wood deck where you can grill or just sit and enjoy the fresh air.
  • All three bedrooms are upstairs where the master suite gets a walk-in closet and private bathroom.
  • The roof has a 8:12 pitch.
Unit Unit 2
1,540 Sq. Ft.
Unit Unit 1
1,540 Sq. Ft.
What's Included
  • Cover Sheet: Shows typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest House Plan for Narrow Lot

  • 1,828

    Heated s.f.

  • 2-3

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

Floor Plan

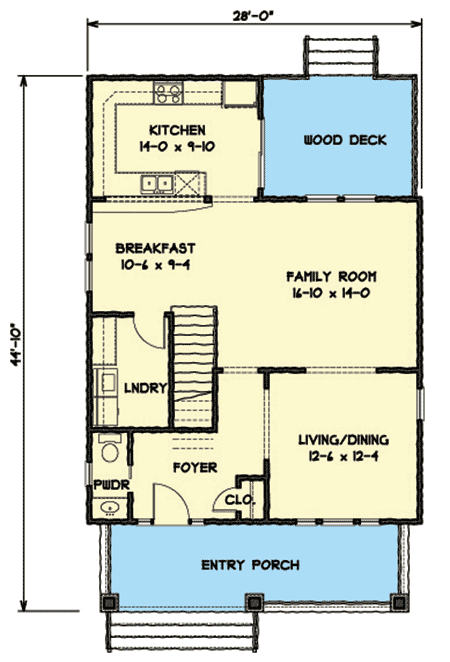

  • Main Level

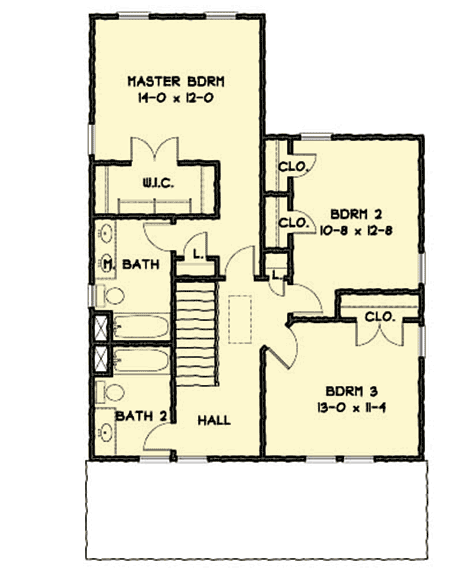

  • 2nd Floor
