Northwest House Plan with Garage Apartment

Plan 67729MG

  • 3,666

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This unusual Northwest house plan comes with a home theater, exercise room and a full two bedroom in-law suite over the three car garage.
  • Use the garage apartment for rental income or as an in-law suite.
  • A 10' wide entry foyer heightens the view of the great room that sweeps around to the kitchen and dining area.
  • There's an abundance of outdoor space too from the uncovered patio to the wrap-around covered patio.
  • The master suite is the only bedroom on this level and it's a beauty with its double tray ceiling and sliders to the patio.
  • Watch movies from home in the home theater room or work out in the dedicated exercise area by the side of the garage.
  • On the second floor, there's only one bedroom plus a spacious den with outdoor deck.

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

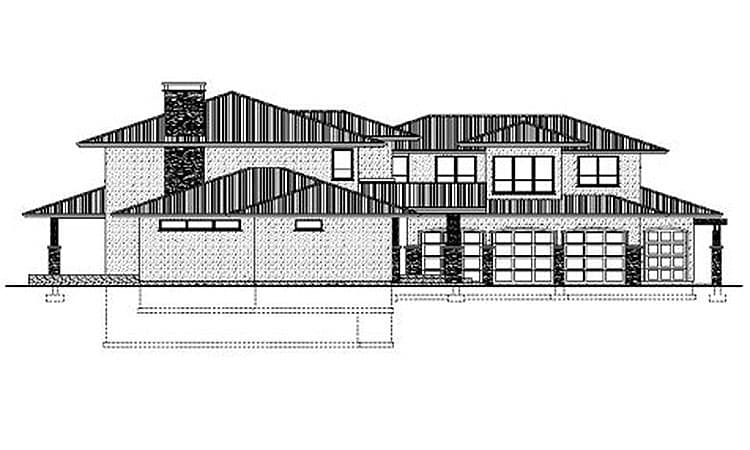

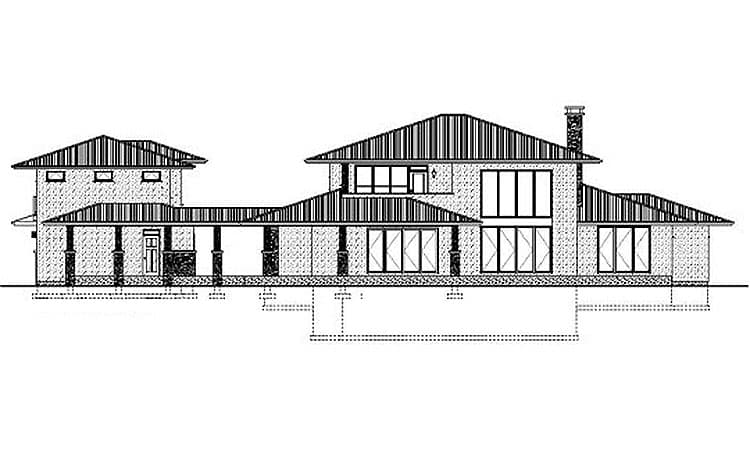

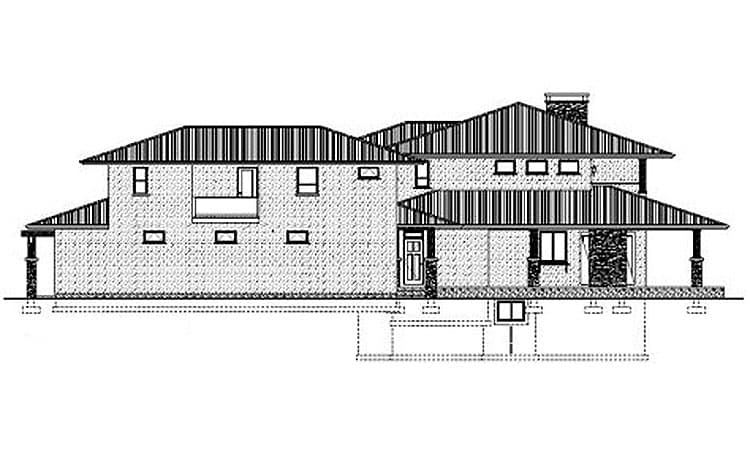

  • 4 elevations
  • Cross section
  • Wall details, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

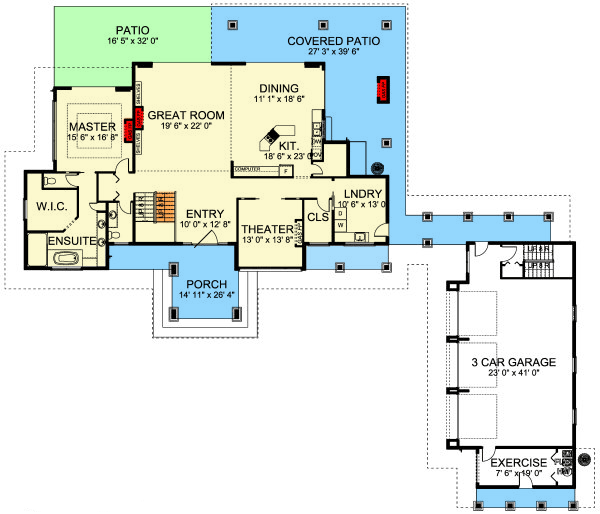

Northwest House Plan with Garage Apartment - 67729MG floor plan - Main Level

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

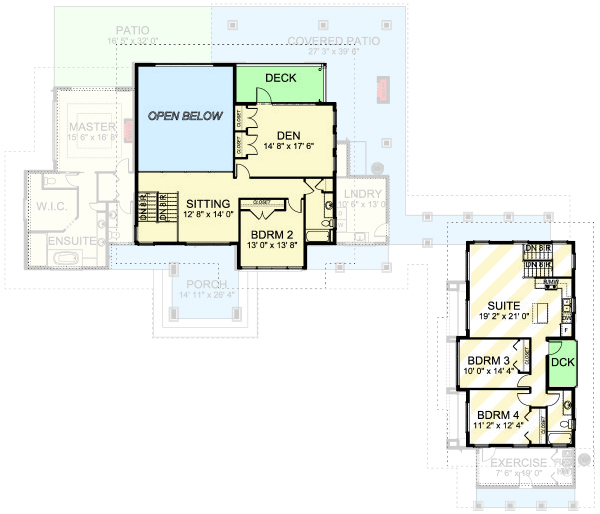

Northwest House Plan with Garage Apartment - 67729MG floor plan - Second Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

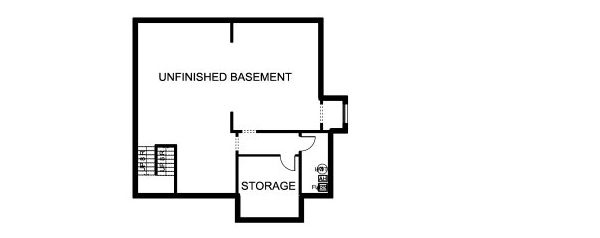

Northwest House Plan with Garage Apartment - 67729MG floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,666 sq. ft.
  • 1st Floor: 2,698 sq. ft.
  • 2nd Floor: 968 sq. ft.
  • Bonus: 892 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 112' 0"
  • Depth: 102' 0"
  • Max ridge height: 28' 8"

Garage

  • Type: Attached, Detached
  • Area: 943 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Second Story
Master Bedroom Tray

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Northwest House Plan with Garage Apartment

  • 3,666

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Second Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,666 sq. ft.
  • 1st Floor: 2,698 sq. ft.
  • 2nd Floor: 968 sq. ft.

Dimensions

  • Width: 112' 0"
  • Depth: 102' 0"
  • Max ridge height: 28' 8"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached, Detached
  • Area: 943 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
