Plan 35535GH

Northwest House Plan with In-Law Apartment

4,459 5 3.5 2 4
Pageloader

Northwest House Plan with In-Law Apartment

Plan 35535GH

  • 4,459

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This unique Northwest house plan comes with an attached in-law apartment that is spacious and comfortable.
  • It even has its own two car garage and workshop area.
  • In the main house, you can reach the in-laws through a door in the den so you don't have to go outside.
  • The whole family will enjoy the huge recreation room that has two wet bars and lost of storage closets.
  • Up on the second floor, all four bedrooms have easy access to the washer/dryer closet.
  • Bedroom 4 has a private bathroom and the other two family bedrooms share a connected bathroom with two sinks.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

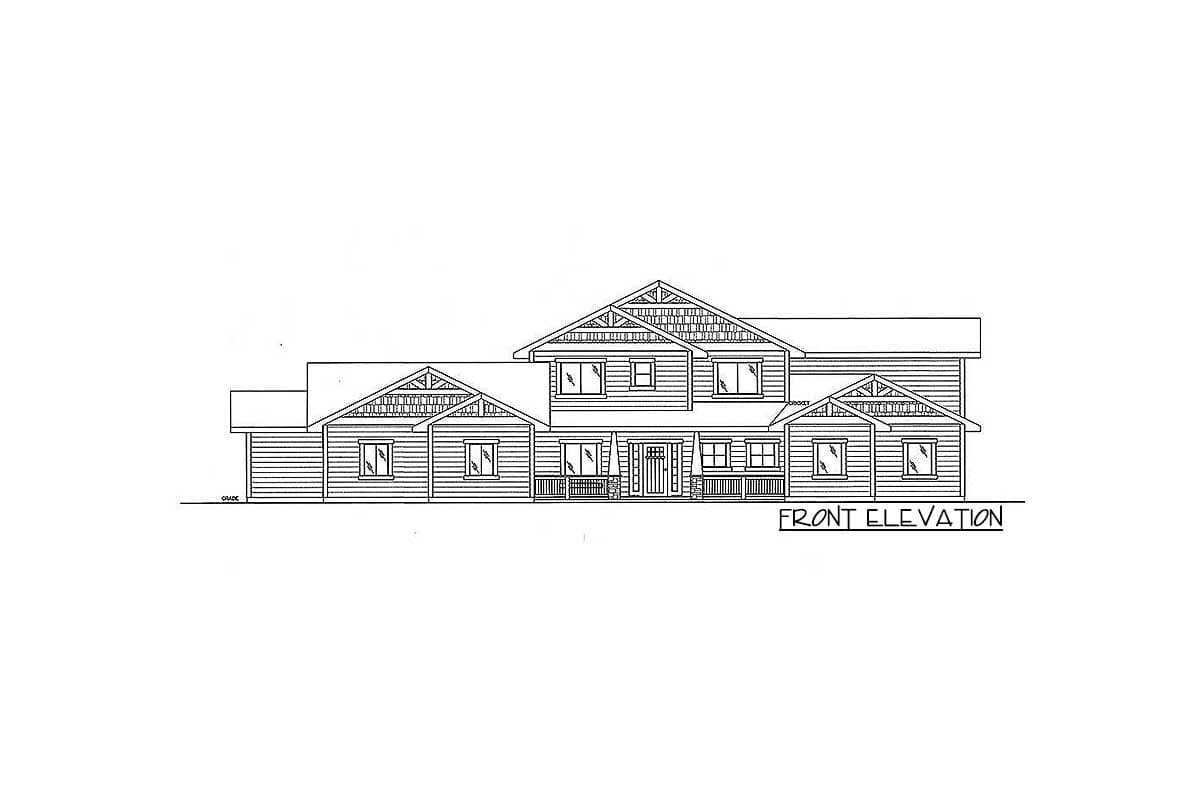

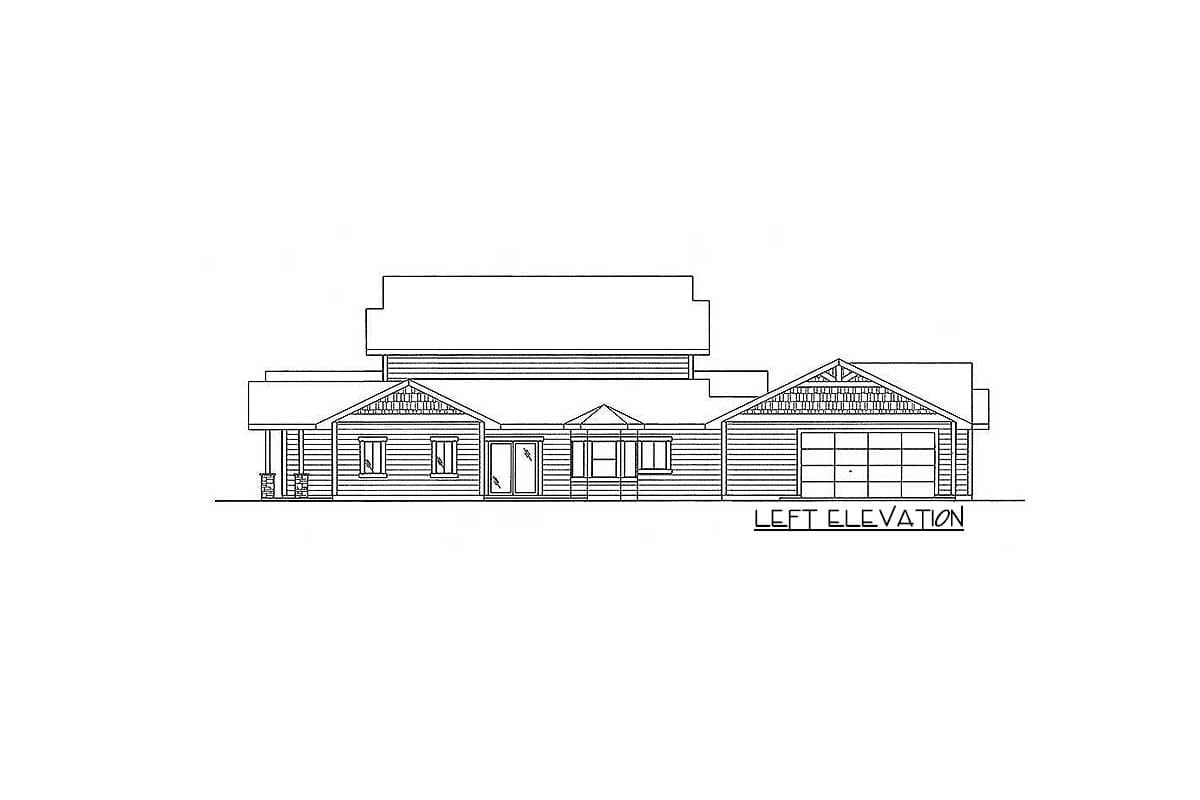

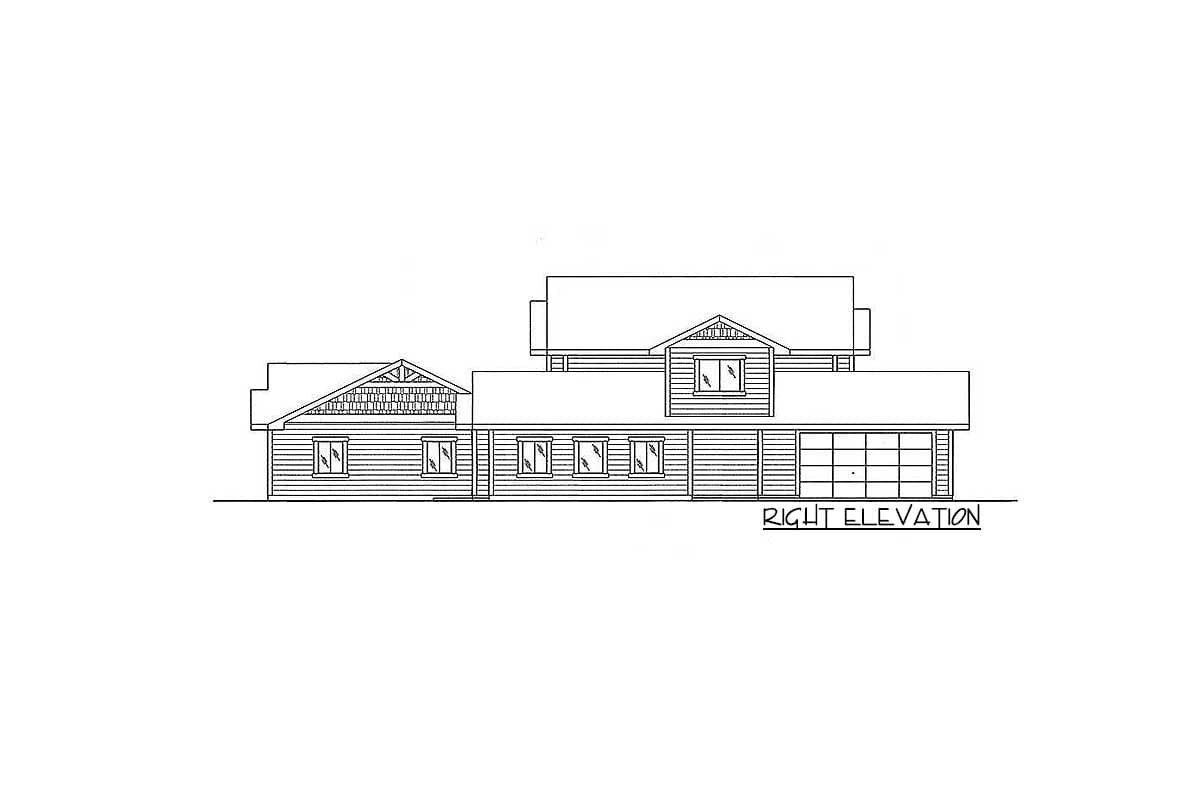

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

Floor Plan

Plan details



Northwest House Plan with In-Law Apartment

  • 4,459

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Reproducible Set $1,300
  • PDF - single-use $1,500
  • CAD $1,500
  • 8 Sets $1,550
  • CAD - multi-use $2,300
  • View all purchase option online

About This Plan

  • This unique Northwest house plan comes with an attached in-law apartment that is spacious and comfortable.
  • It even has its own two car garage and workshop area.
  • In the main house, you can reach the in-laws through a door in the den so you don't have to go outside.
  • The whole family will enjoy the huge recreation room that has two wet bars and lost of storage closets.
  • Up on the second floor, all four bedrooms have easy access to the washer/dryer closet.
  • Bedroom 4 has a private bathroom and the other two family bedrooms share a connected bathroom with two sinks.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,459 sq. ft.
  • 1st Floor: 3,120 sq. ft.
  • 2nd Floor: 1,339 sq. ft.
  • Workshop: 600 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 6"
  • Depth: 82' 6"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 998 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: N on N
  • Framing Type: Stick And Truss
