Plan 92064VS
Northwest House Plan with Special Master Ceiling
Heated S.F.
2,600
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

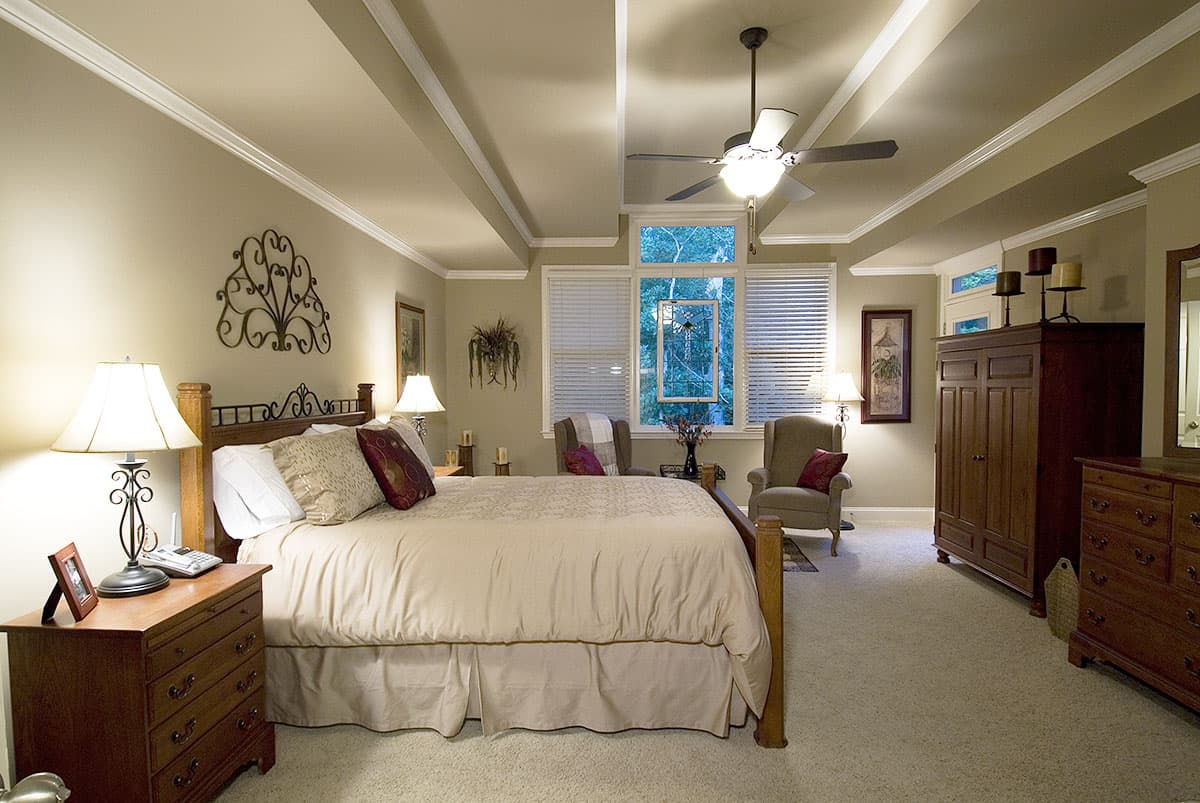

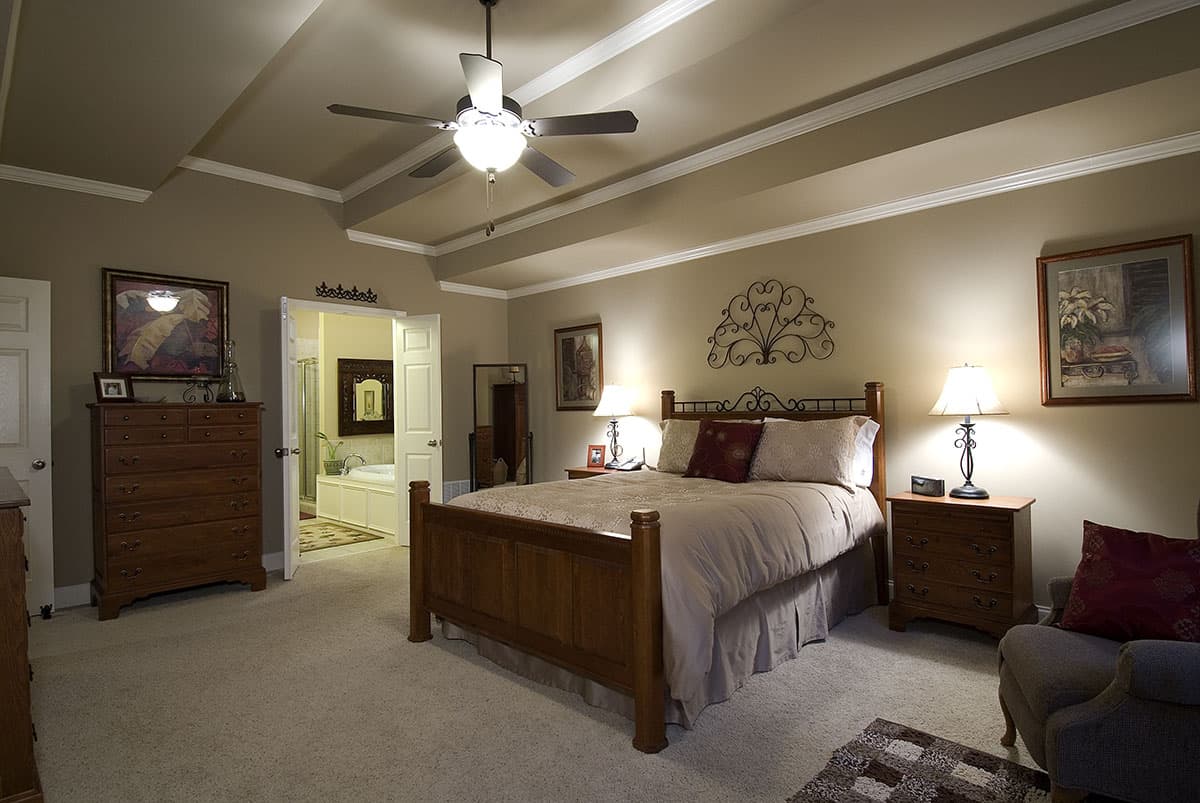

  • The unique staggered ceiling of the master suite in this exciting Northwest house plan is not something you see every day.

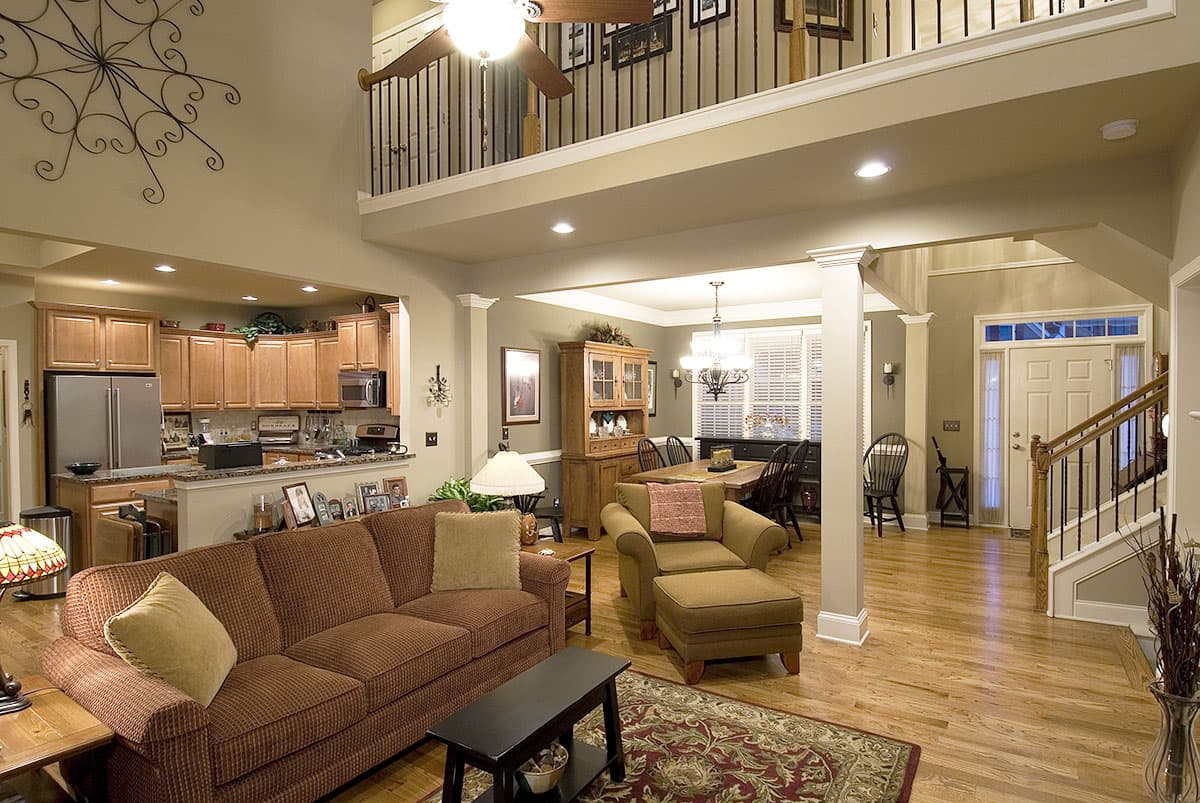

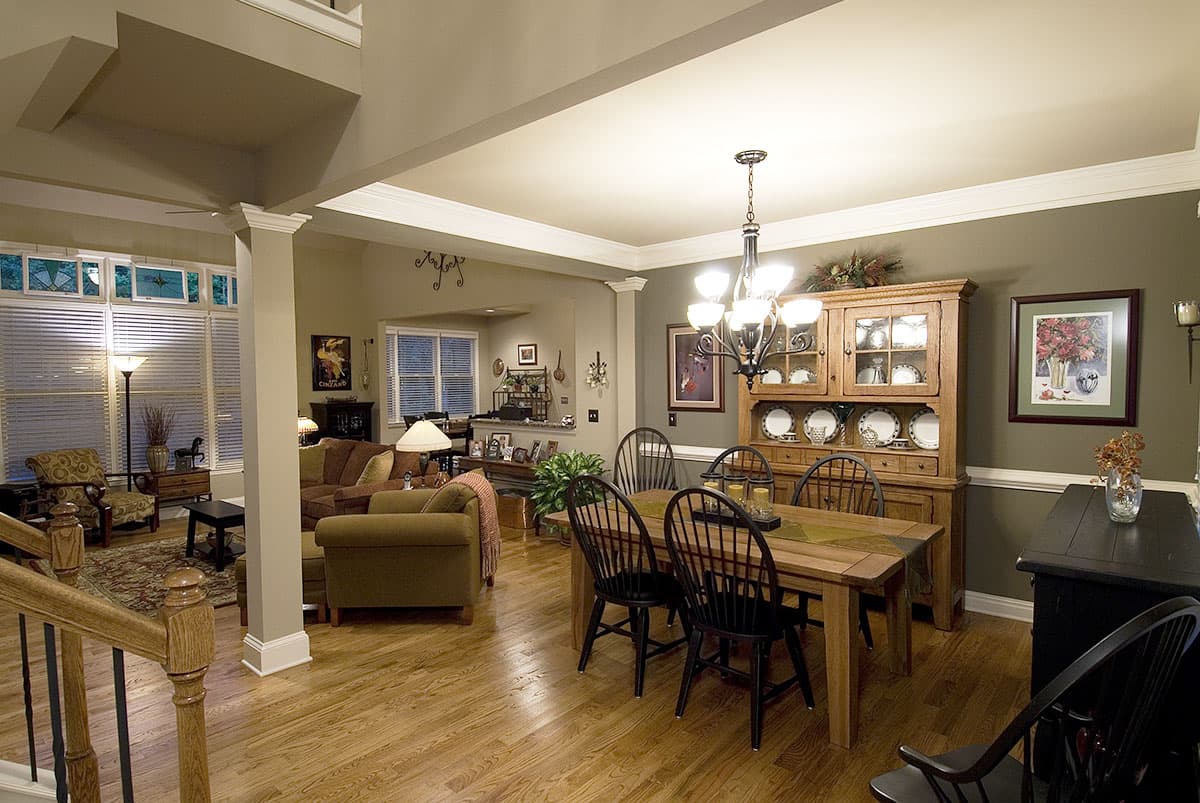

  • The floor plan of this home is kept open to give you sweeping views from room to room.

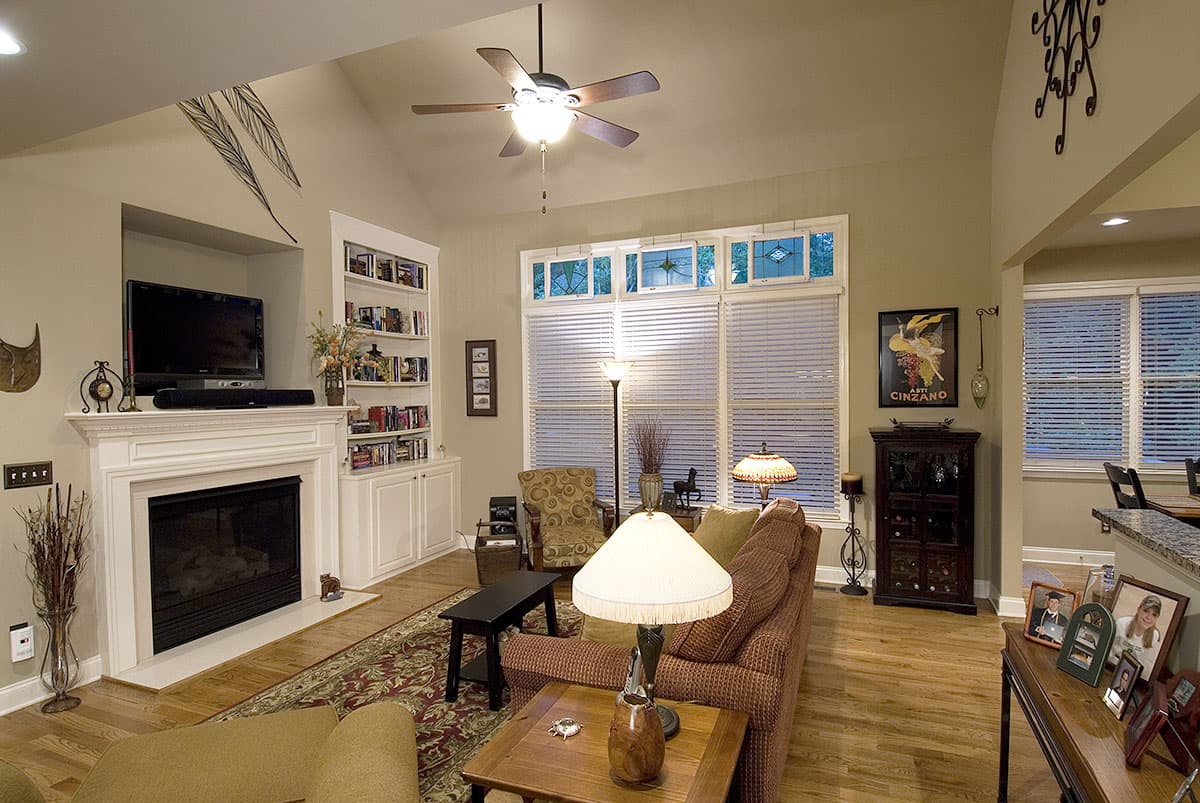

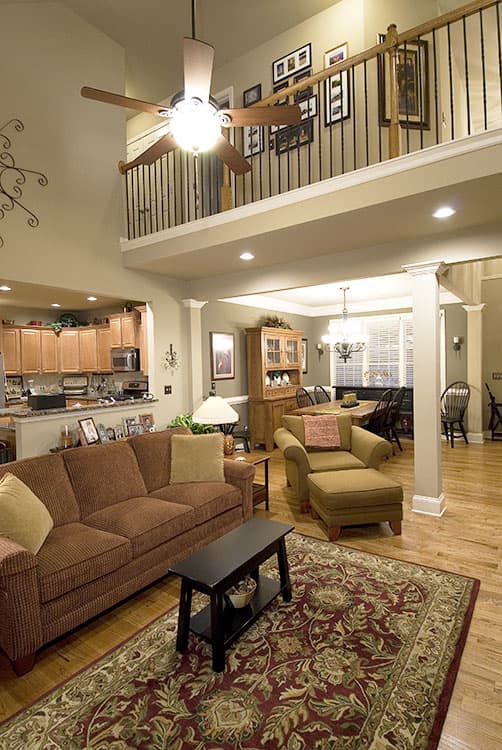

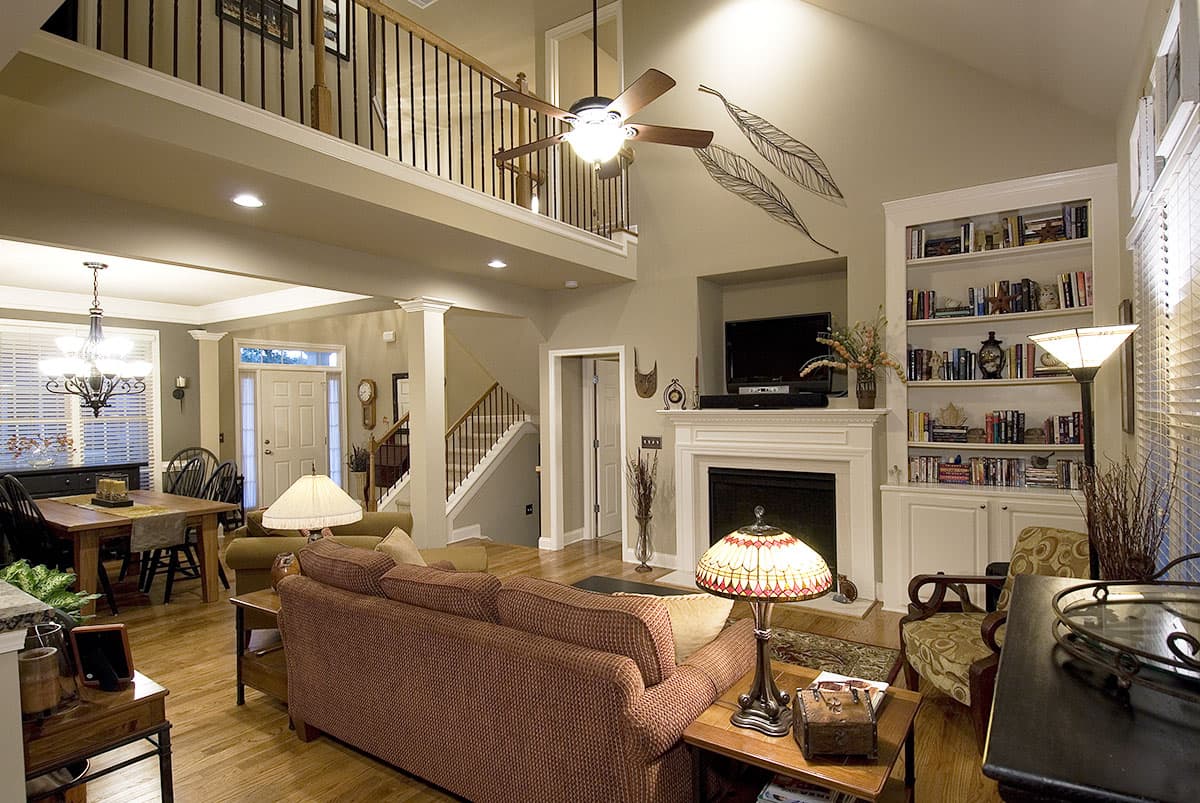

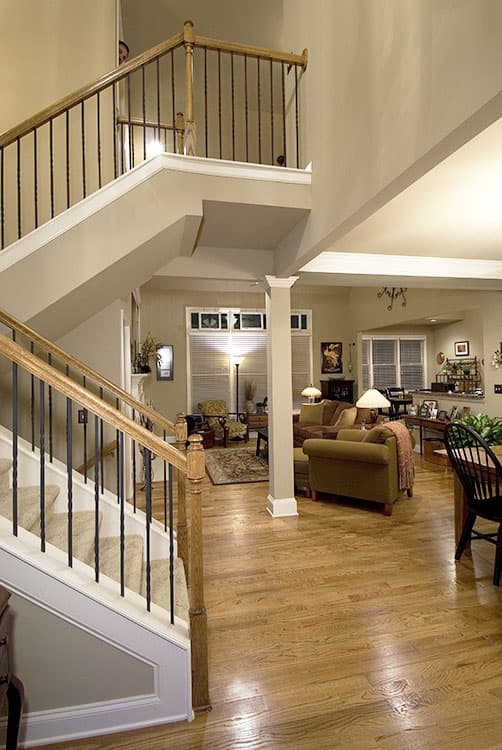

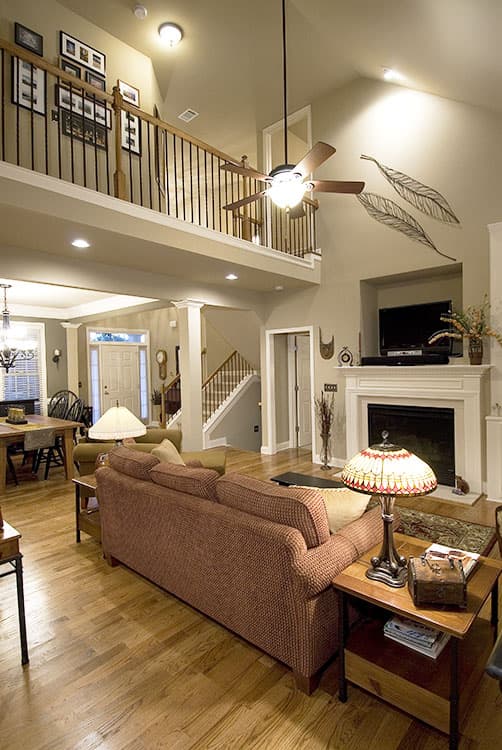

  • Ceilings in the foyer and living room rise up for a dramatic effect.

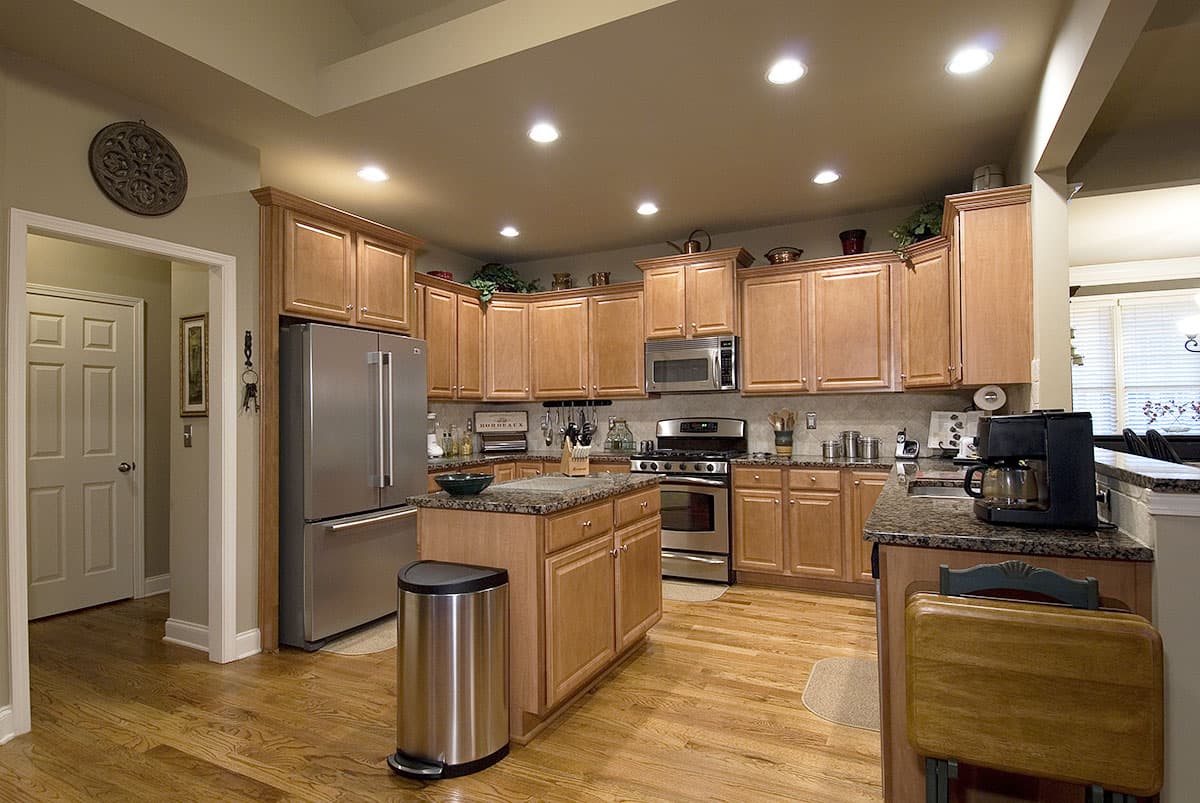

  • The U-shaped kitchen with a center island keeps everything close at hand with room for more than one family cook.

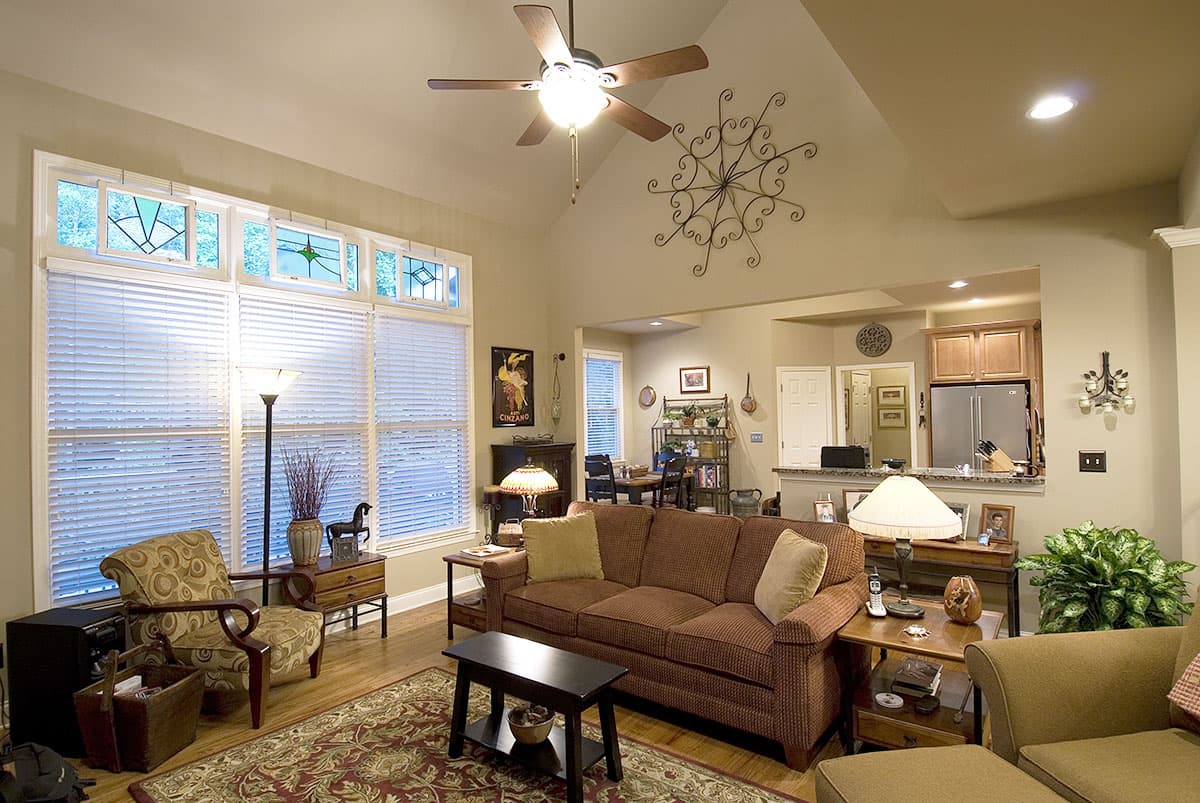

  • A triple window in the living room looks out onto the open deck.

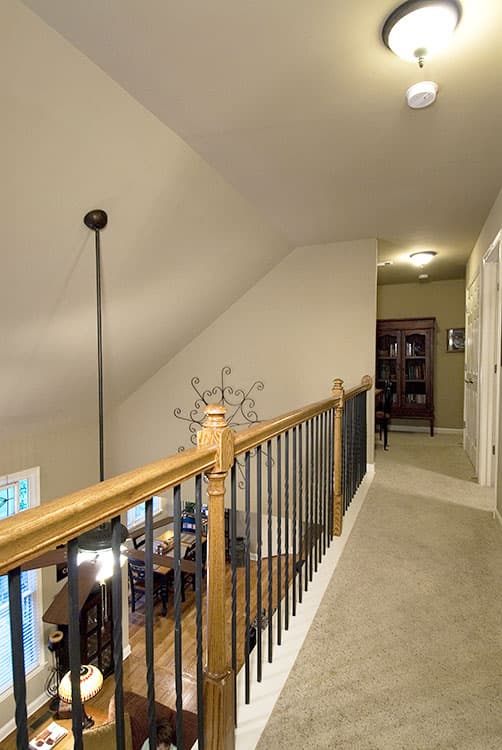

  • Three bedrooms on the upper level share a hall bathroom and a raised loft.
What's Included
  • Foundation plan
  • Floor plans with electrical layouts

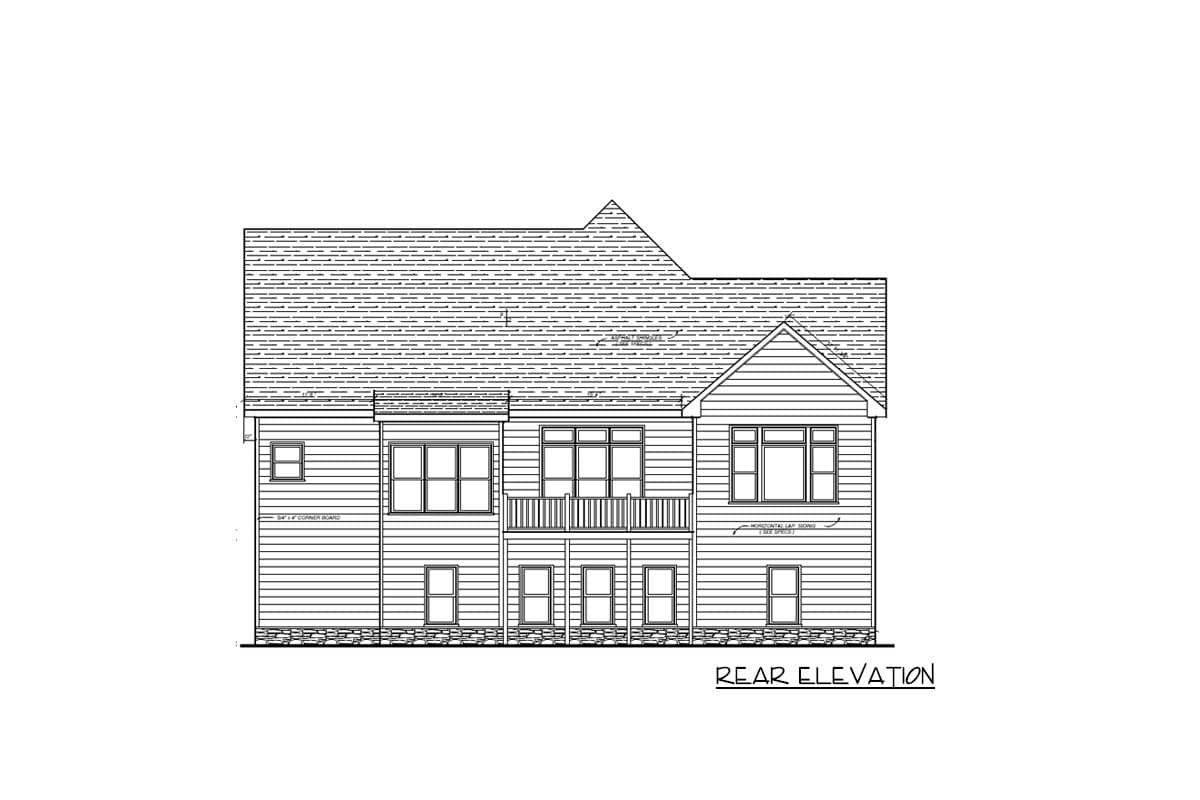

  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest House Plan with Special Master Ceiling

  • 2,600

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,600 sq. ft.
  • 1st Floor: 1,510 sq. ft.
  • 2nd Floor: 1,090 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 52' 0"
  • Max ridge height: 29' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Northwest House Plan with Special Master Ceiling

  • 2,600

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Northwest House Plan with Special Master Ceiling

  • 2,600

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,600 sq. ft.
  • 1st Floor: 1,510 sq. ft.
  • 2nd Floor: 1,090 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 52' 0"
  • Max ridge height: 29' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

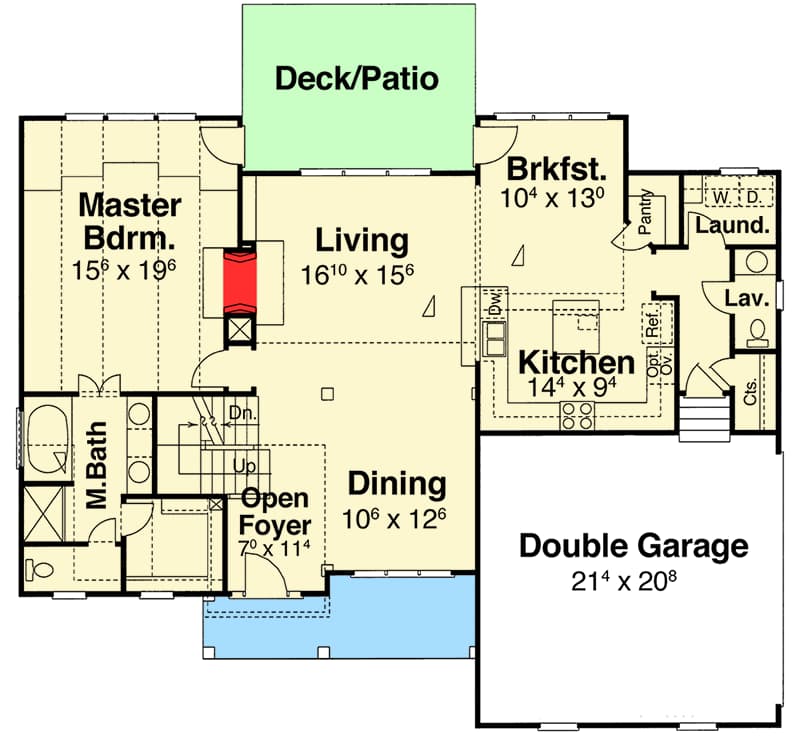

    Main Level

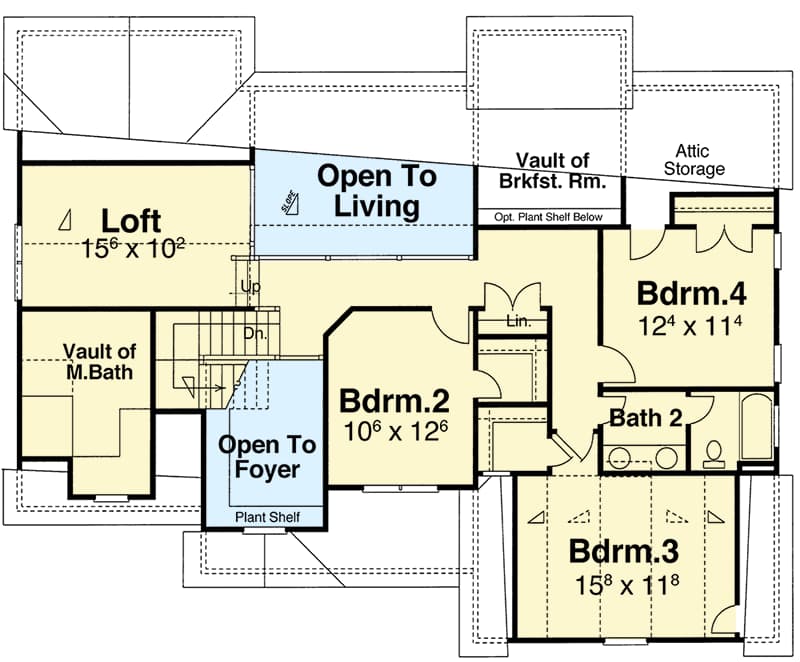

    2nd Floor

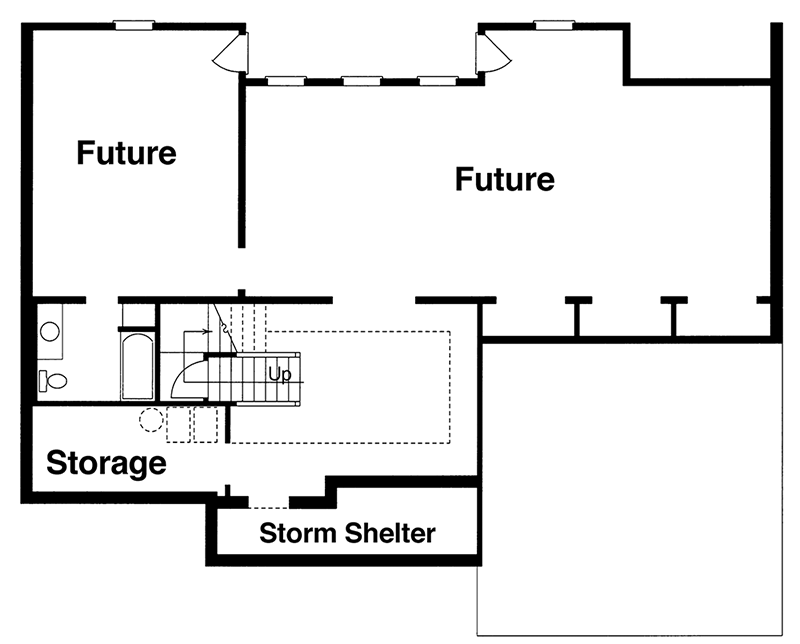

    Basement
