Plan 89805AH

Northwest Ranch Home

2,346 3 3 1 3
Pageloader

Northwest Ranch Home

Plan 89805AH

  • 2,346

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Craftsman and traditional details blend together on the exterior of this ranch design to give it a unique curb appeal that all its own.
  • Twelve-foot ceilings and a direct view out the back of the home through the great room ahead draw you into the home.
  • The main living area lies to the back of the home where the kitchen features an island that overlooks the dining room with tray ceiling.
  • The great room continues from the dining area and will amaze you with its cathedral ceilings, large windows and fireplace with built-ins.
  • All bedrooms lie to the right of the home where the master suite includes a tray ceiling and spacious walk-in closet.
  • Two additional bedrooms are found to the front of the home off the entry with direct access to a full bath.
  • A three-stall garage with extra storage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



Northwest Ranch Home

  • 2,346

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $995
  • 8 Sets $1,040
  • Reproducible Set $1,250
  • PDF - single-use $1,250
  • CAD $1,980
  • View all purchase option online

About This Plan

  • Craftsman and traditional details blend together on the exterior of this ranch design to give it a unique curb appeal that all its own.
  • Twelve-foot ceilings and a direct view out the back of the home through the great room ahead draw you into the home.
  • The main living area lies to the back of the home where the kitchen features an island that overlooks the dining room with tray ceiling.
  • The great room continues from the dining area and will amaze you with its cathedral ceilings, large windows and fireplace with built-ins.
  • All bedrooms lie to the right of the home where the master suite includes a tray ceiling and spacious walk-in closet.
  • Two additional bedrooms are found to the front of the home off the entry with direct access to a full bath.
  • A three-stall garage with extra storage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Floor Plans

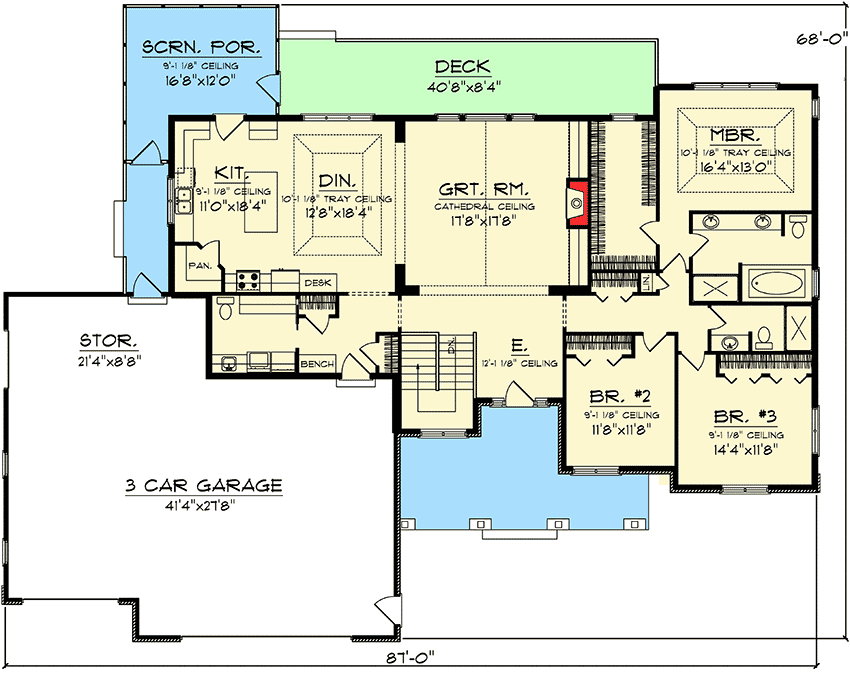

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,346 sq. ft.
  • 1st Floor: 2,346 sq. ft.
  • Deck: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 68' 0"
  • Max ridge height: 21' 7"

Garage

  • Type: Attached
  • Area: 1311 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Northwest
  • Ranch

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
