Plan 72692DA

Northwest Ranch Home Plan

2,066 3 2 1 2
Pageloader

Northwest Ranch Home Plan

Plan 72692DA

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Craftsman-style windows, lap siding, and stone veneer wainscoting add to the visual appeal of this updated 3 bedroom ranch-style home plan.
  • Natural light washes into the foyer through sidelights and slender panes of glass near the top of the door. A hallway into the bedroom wing leads off to the right, shortly before the foyer feeds into the great room.
  • Wide windows fill most of the great room's rear wall, next to a direct vent corner gas fireplace. To the left, the room is entirely open to the kitchen, which is open to the dining room around the corner giving you partial space separation coupled with ease of access.
  • Standing at the kitchen sink, you face into the great room across a raised eating bar. The dining room and some of the patio are also within your line of sight. A door in the dining room opens onto a screenable covered patio; a door on the other side leads into a den. This room could be used as a home office, media room, exercise space, fourth bedroom, and/or guest room.
  • A roomy step-in pantry is only a few steps away from the kitchen, across from the interior garage access. Just past those doors is the utility room with cabinetry, a folding counter and a deep utility tub.
  • Amenities in the owners' suite include a large walk-in closet and a private bathroom with a double vanity. The toilet and shower can be closed off for privacy and steam containment.
  • The roof has a 6 on 12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

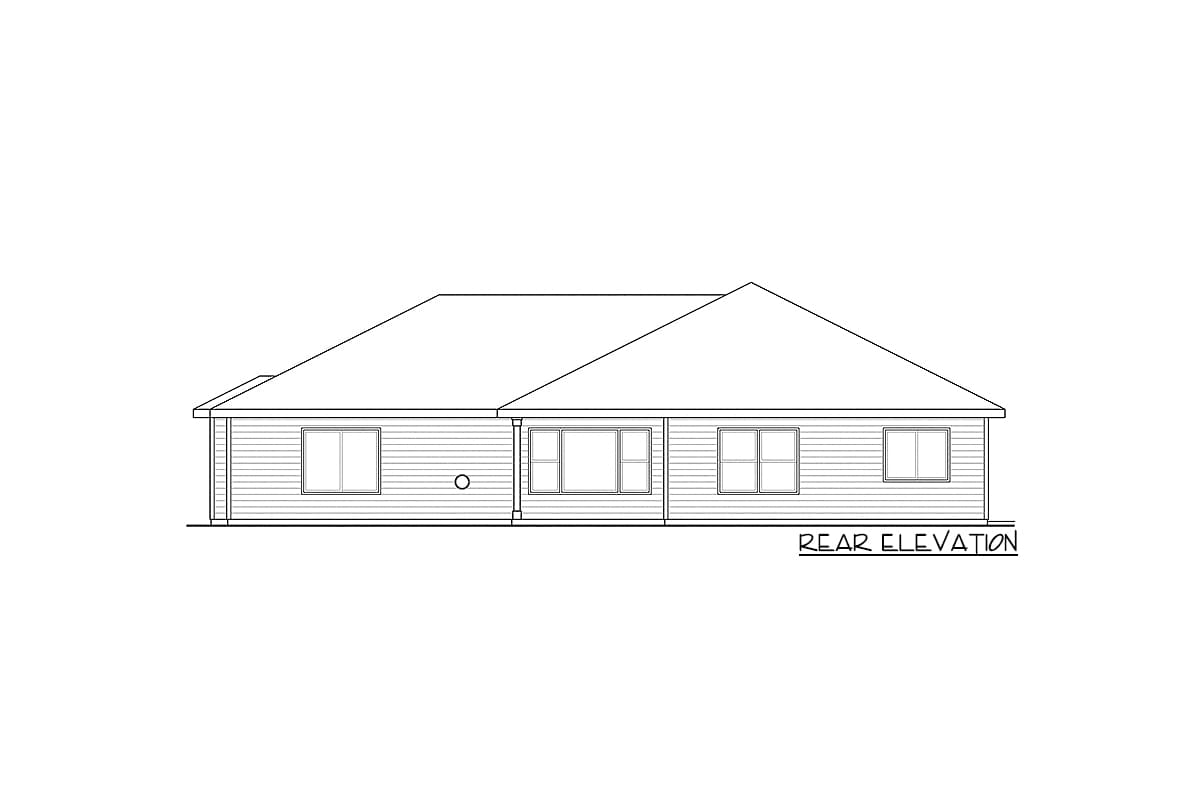

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Northwest Ranch Home Plan

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Craftsman-style windows, lap siding, and stone veneer wainscoting add to the visual appeal of this updated 3 bedroom ranch-style home plan.
  • Natural light washes into the foyer through sidelights and slender panes of glass near the top of the door. A hallway into the bedroom wing leads off to the right, shortly before the foyer feeds into the great room.
  • Wide windows fill most of the great room's rear wall, next to a direct vent corner gas fireplace. To the left, the room is entirely open to the kitchen, which is open to the dining room around the corner giving you partial space separation coupled with ease of access.
  • Standing at the kitchen sink, you face into the great room across a raised eating bar. The dining room and some of the patio are also within your line of sight. A door in the dining room opens onto a screenable covered patio; a door on the other side leads into a den. This room could be used as a home office, media room, exercise space, fourth bedroom, and/or guest room.
  • A roomy step-in pantry is only a few steps away from the kitchen, across from the interior garage access. Just past those doors is the utility room with cabinetry, a folding counter and a deep utility tub.
  • Amenities in the owners' suite include a large walk-in closet and a private bathroom with a double vanity. The toilet and shower can be closed off for privacy and steam containment.
  • The roof has a 6 on 12 pitch.

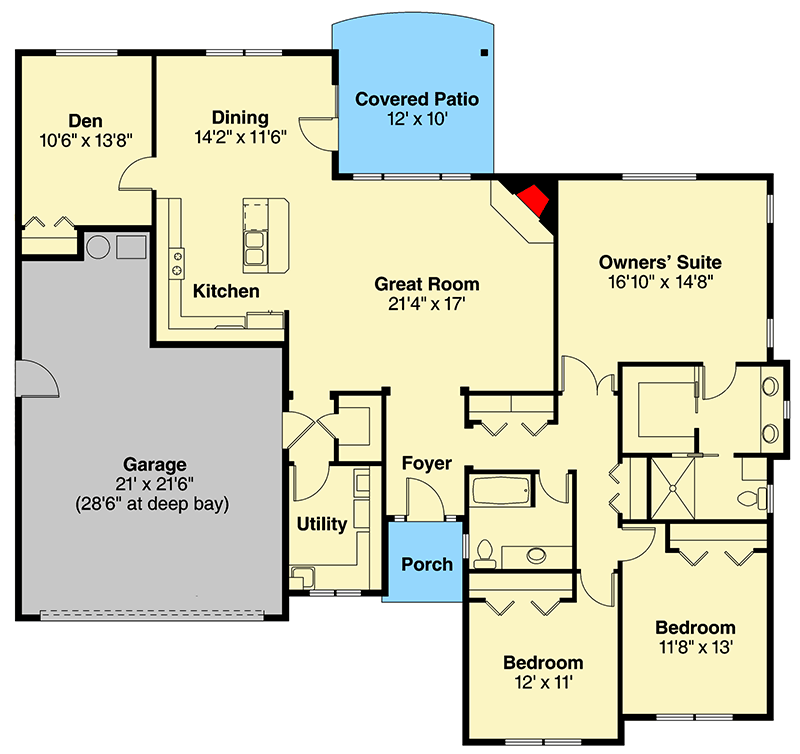

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 2,066 sq. ft.
  • Covered Patio: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 4"
  • Depth: 56' 0"
  • Max ridge height: 19' 6"

Garage

  • Type: Attached
  • Area: 563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12

Architectural Style

  • Craftsman
  • Northwest
  • Ranch

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
