Northwest Ranch Home Plan with Vaulted Great Room
Heated S.F.
1,707
Beds
2
Baths
2
Stories
1
Cars
3
What's Included
Plan Details
  • Board and batten siding pairs beautifully with the stone accents on the exterior of this Northwest Ranch home plan that gives you 1,707 square feet of living space.
  • The entryway leads you into a vaulted great room that seamlessly connects to the island kitchen and dining area.
  • An expansive 13'-deep deck is accessible from the dining area and master bedroom, ideal for BBQs, dining, and lounging outdoors.
  • The master bedroom boasts two closets and a 5-fixture bathroom. Across the hall, utilize the second bedroom as a den if preferred.
  • Enter from the double garage to find a mudroom with built-in cubbies, and the option to finish the basement gives you an additional 1,707 square feet of living space.
What's Included
  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
What's Not Included
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest Ranch Home Plan with Vaulted Great Room

  • 1,707

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

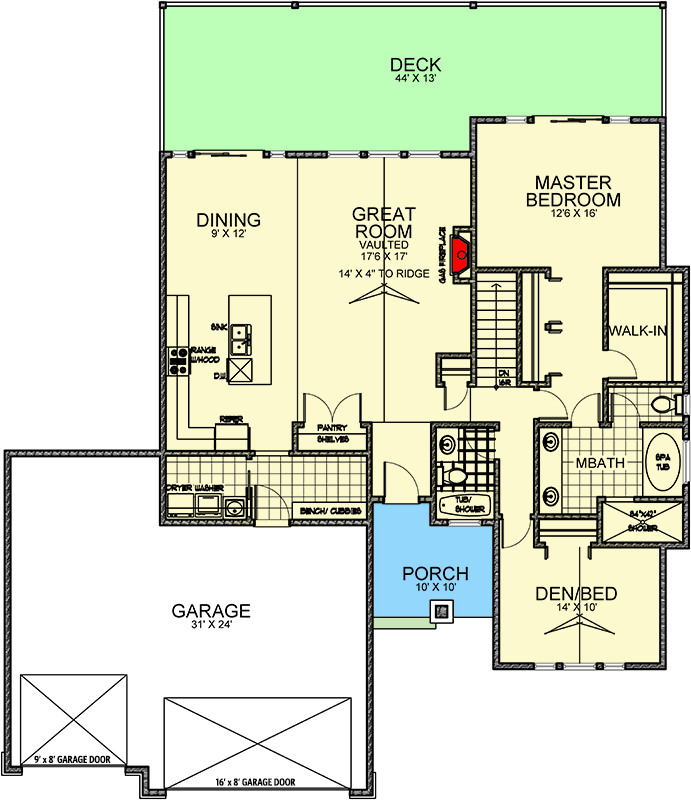

Floor Plan
