Plan 61378UT

Exclusive

Northwest Ranch with 5 Bedrooms and a Formal Living Room

Heated S.F.
3,073
Beds
5
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 61378UT

Main Level
Main Level
Lower Level
Lower Level

Plan 61378UT

M-F 9am-5pm EST |

1-203-761-8500

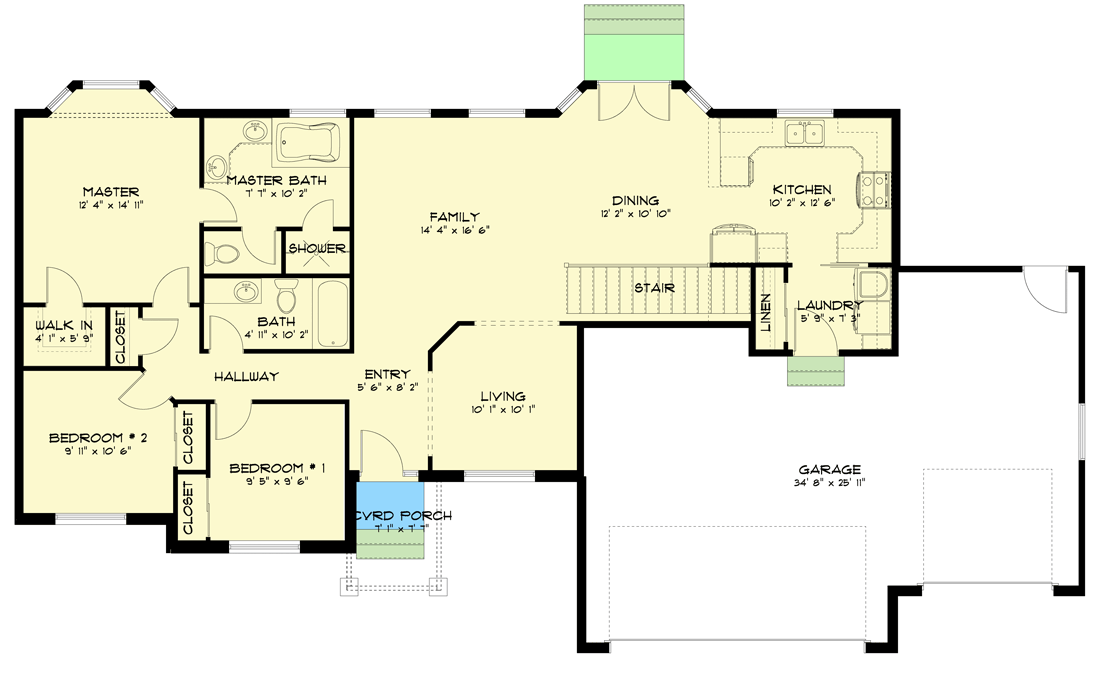

Main Level

Plan 61378UT: Northwest Ranch with 5 Bedrooms and a Formal Living Room - Floor Plan - Main Level - Craftsman, Northwest, Ranch

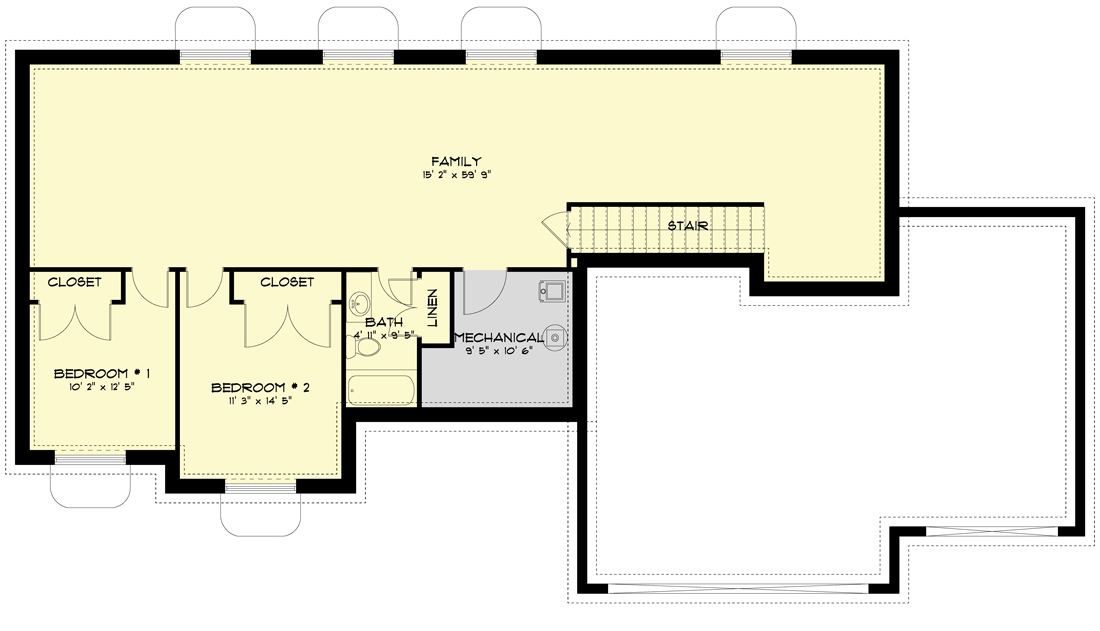

Lower Level

Plan 61378UT: Northwest Ranch with 5 Bedrooms and a Formal Living Room - Floor Plan - Lower Level - Craftsman, Northwest, Ranch

Plan Details

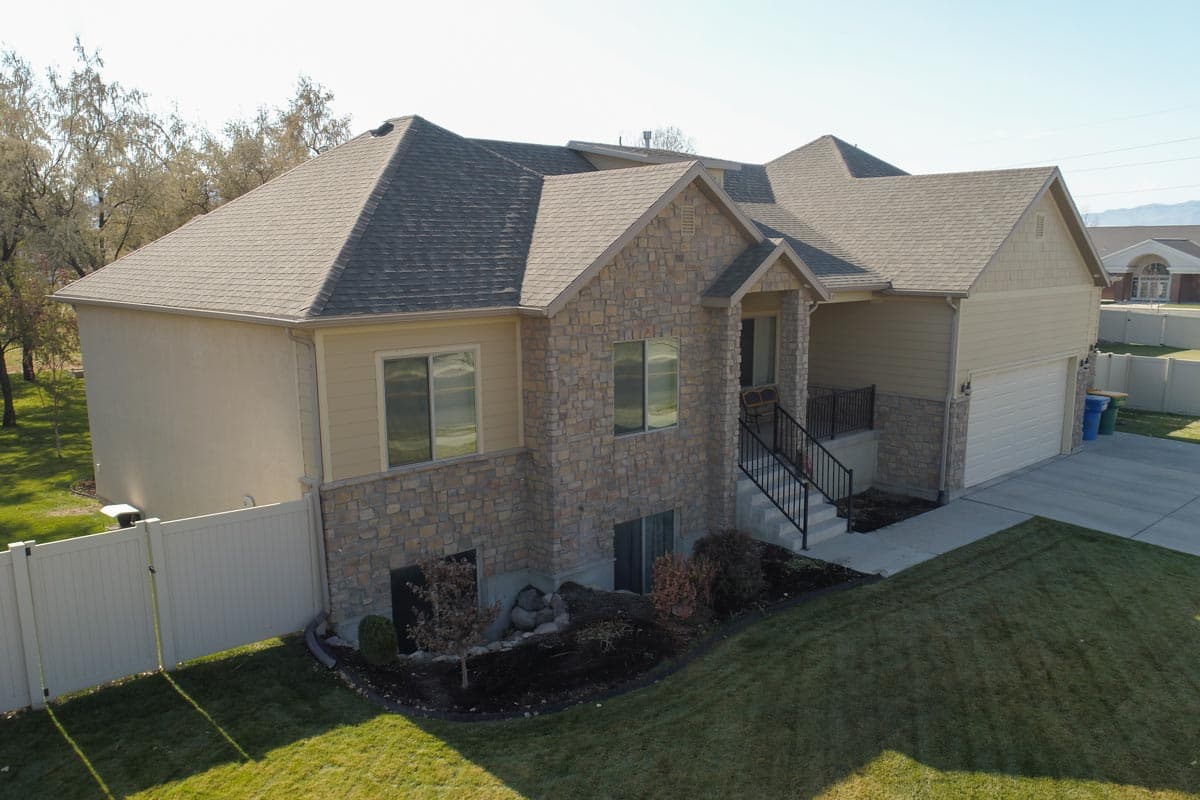

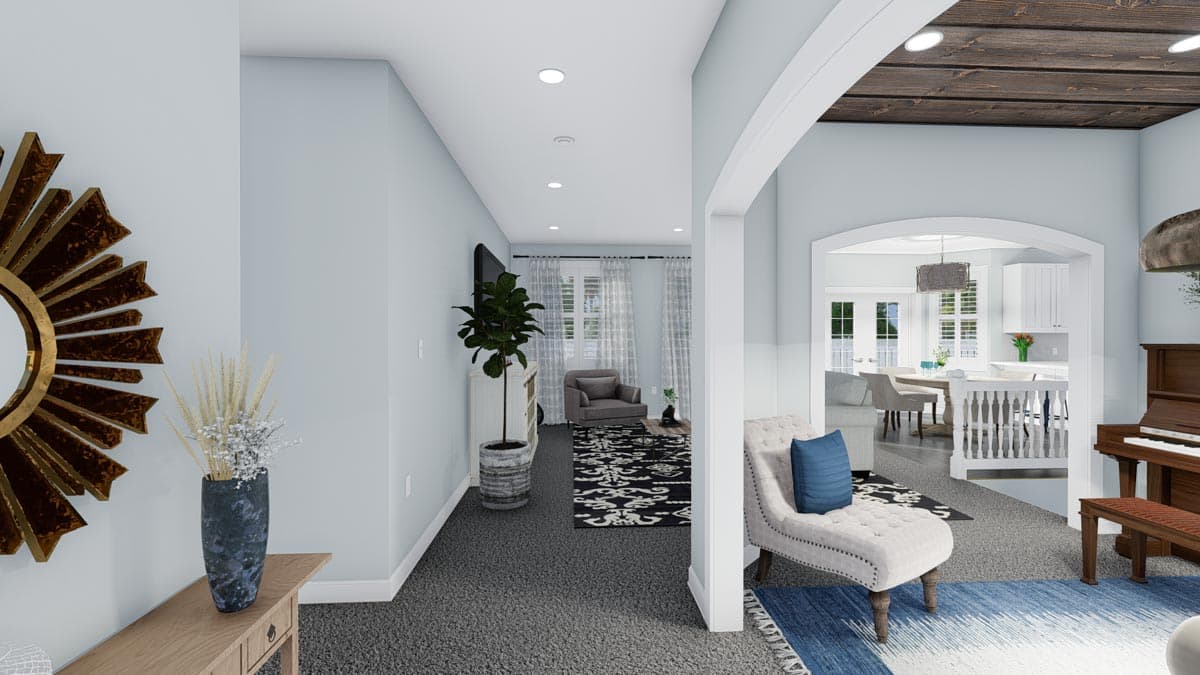

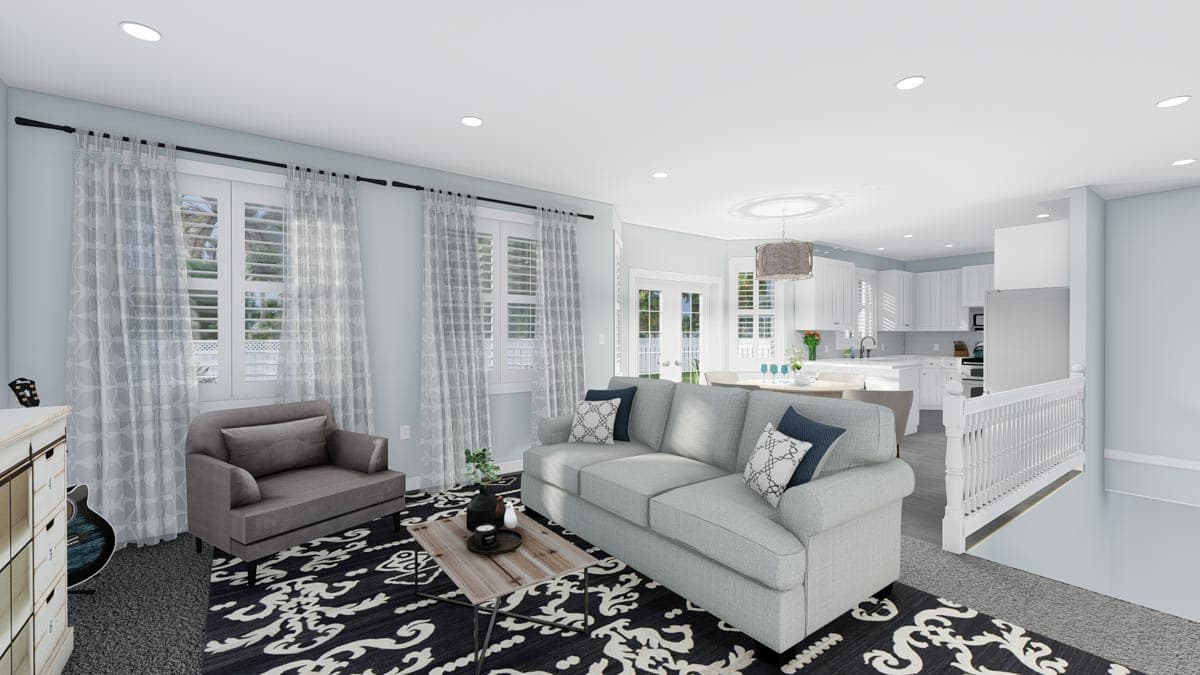

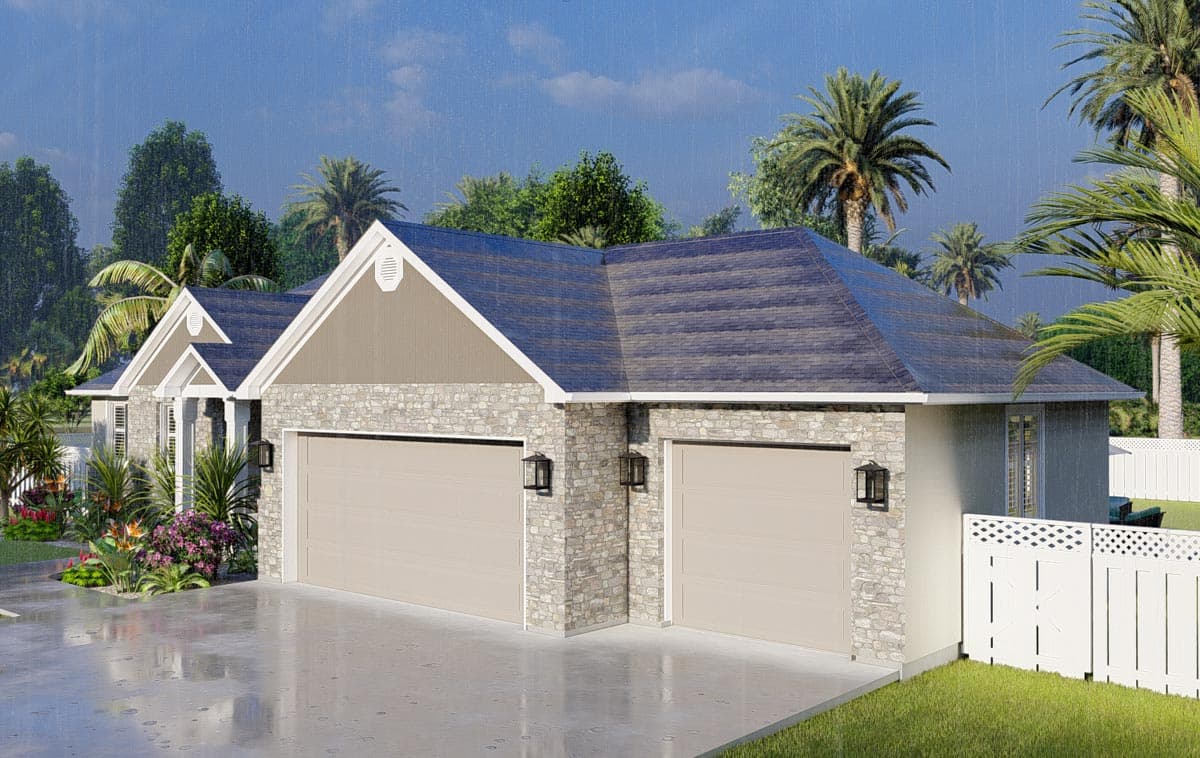

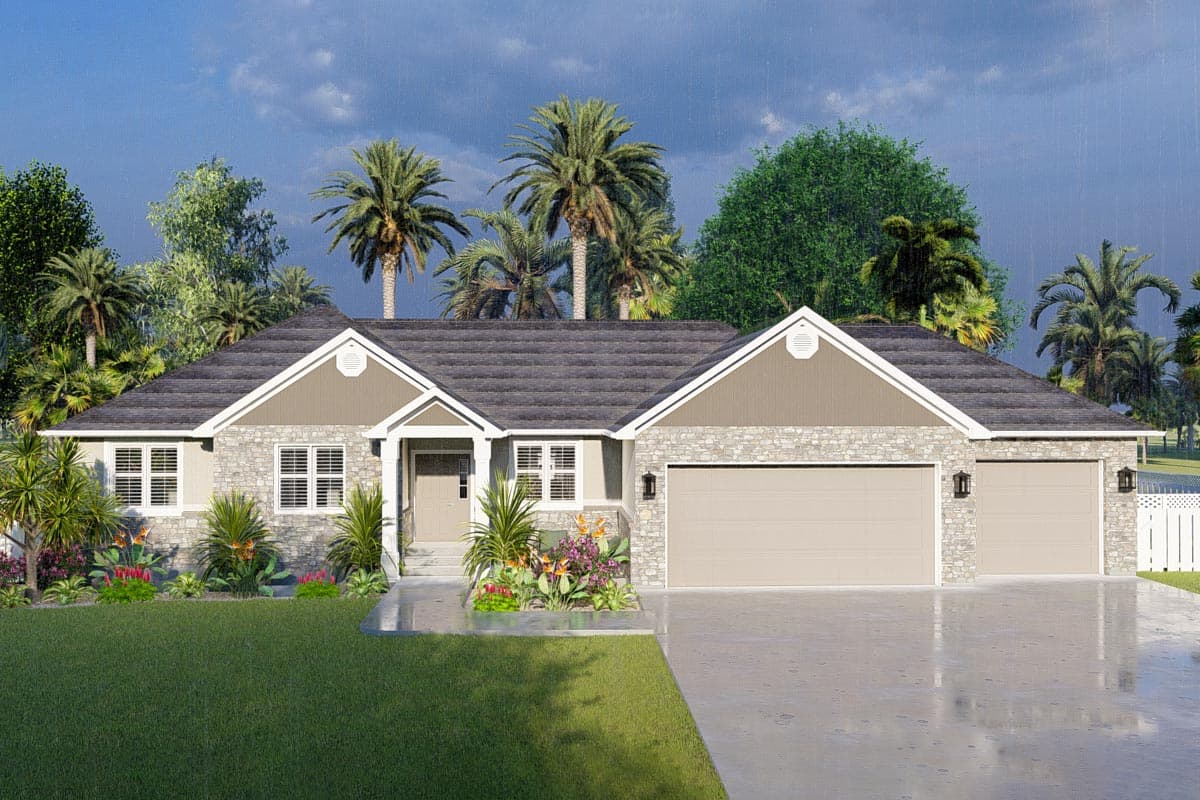

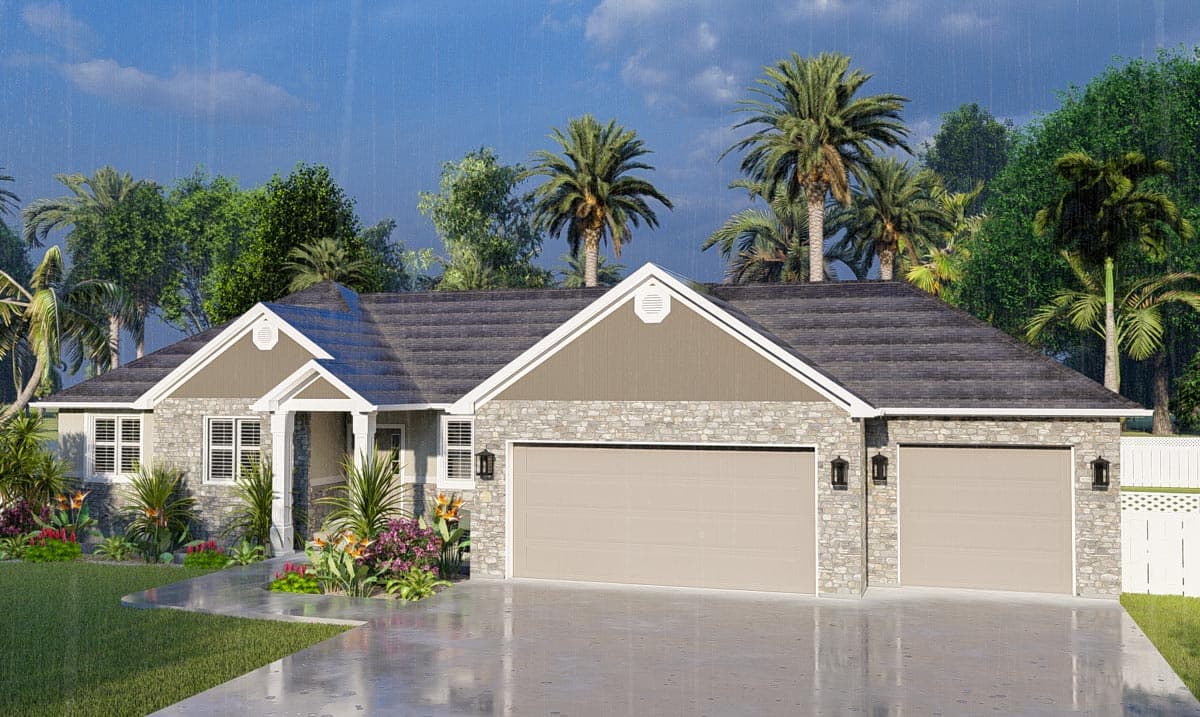

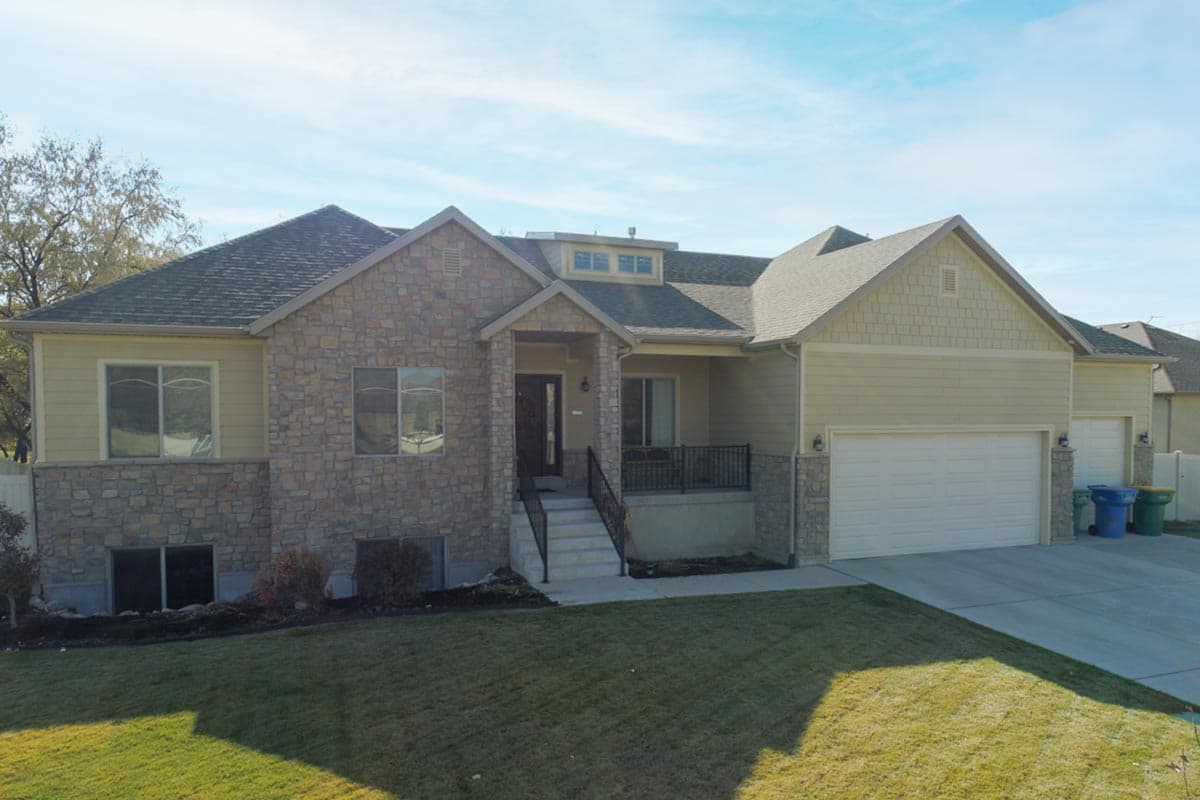

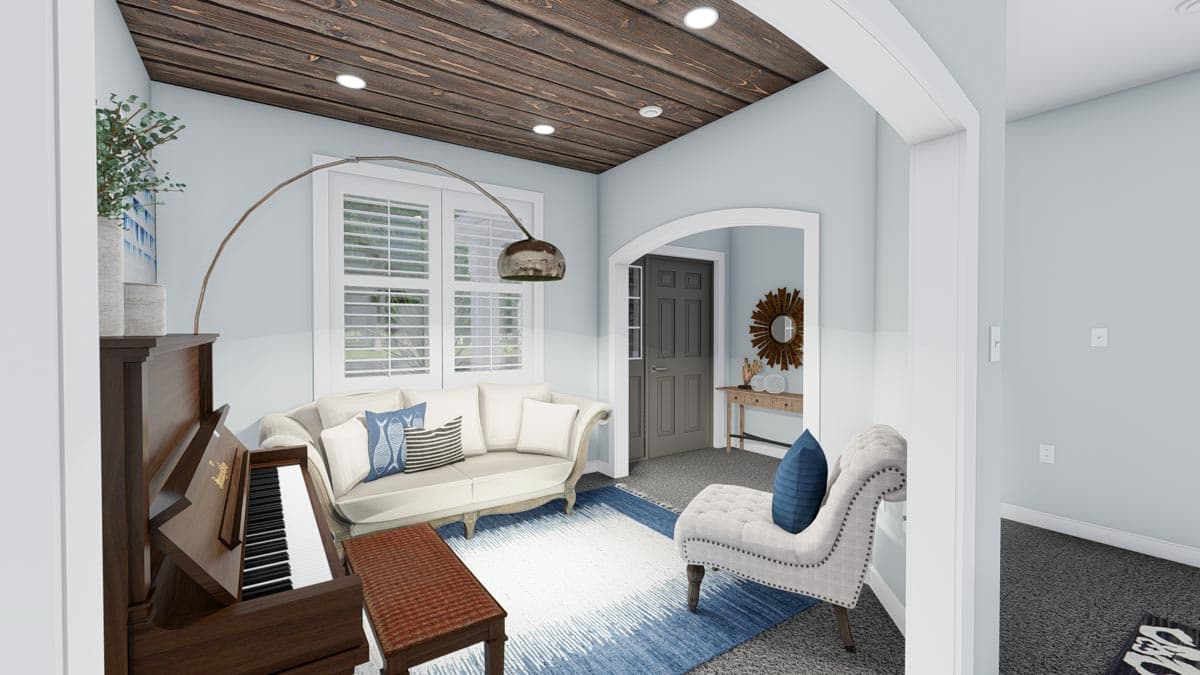

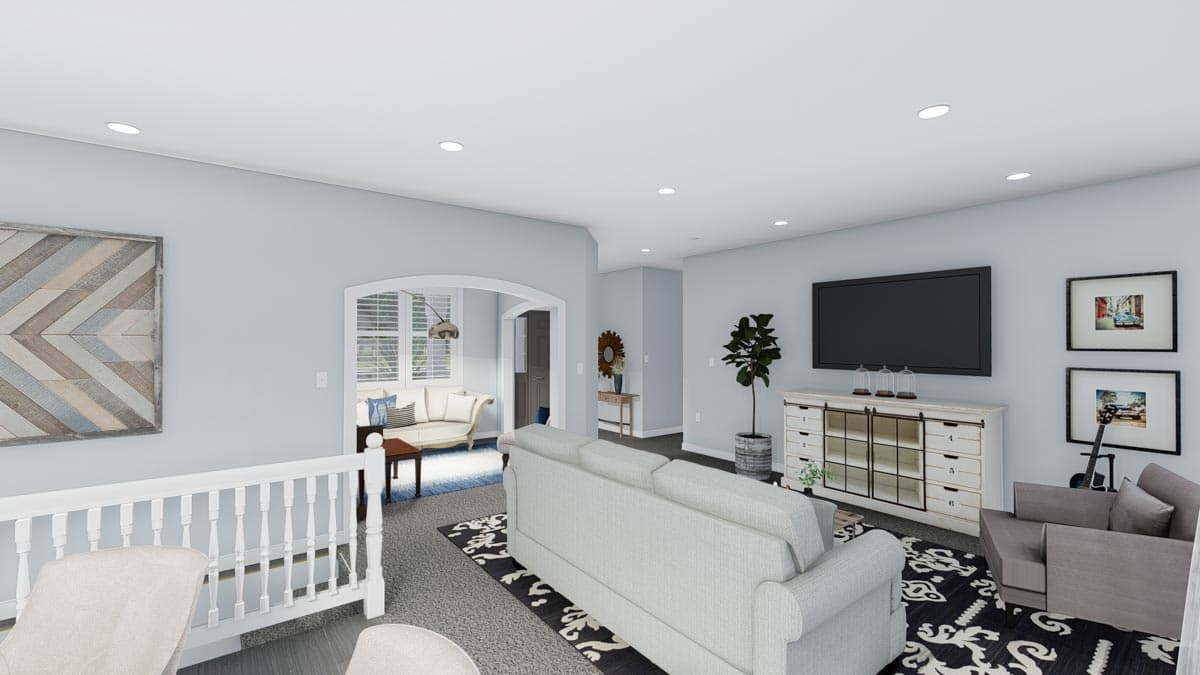

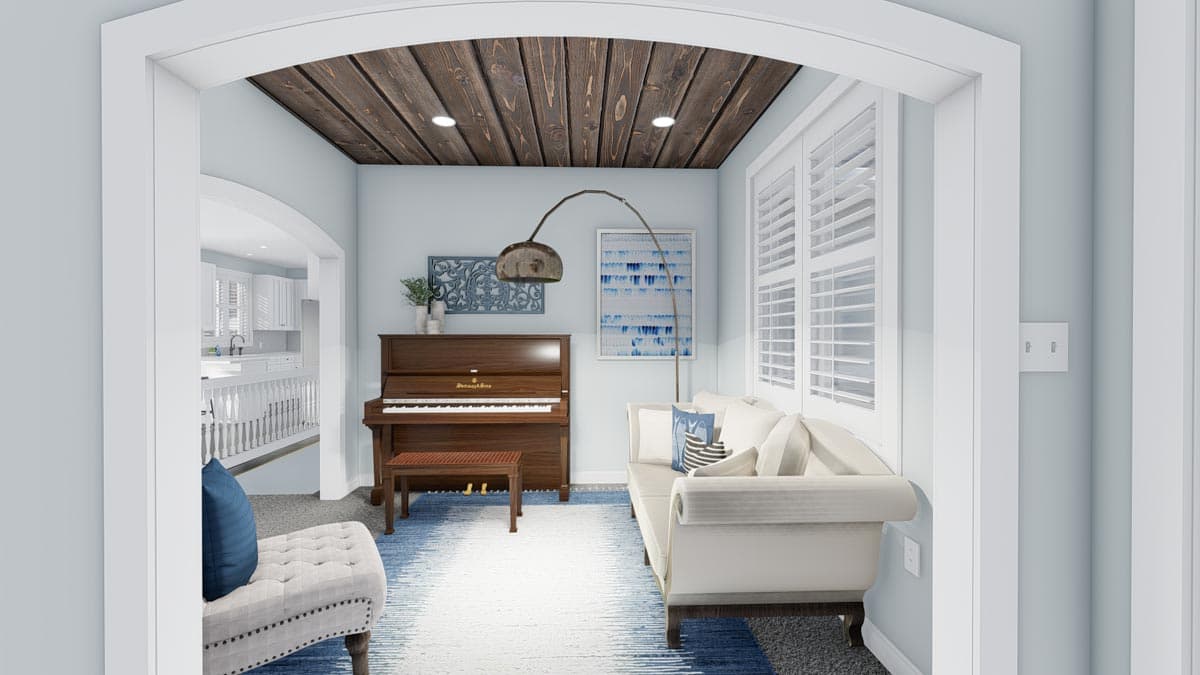

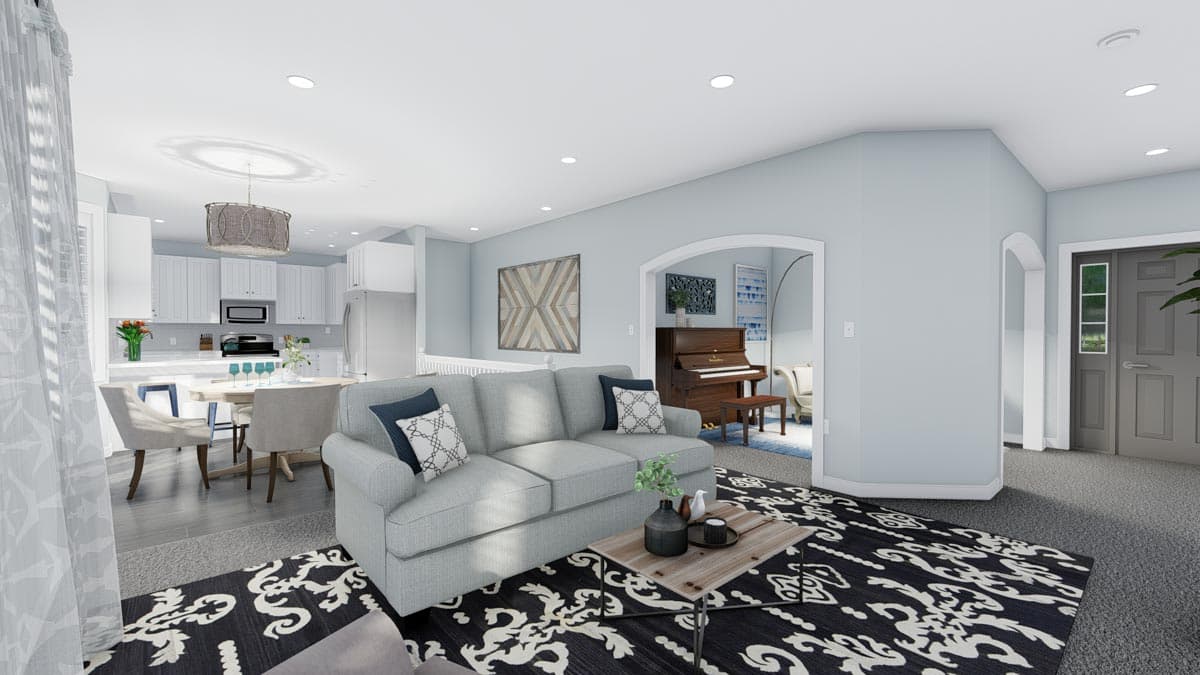

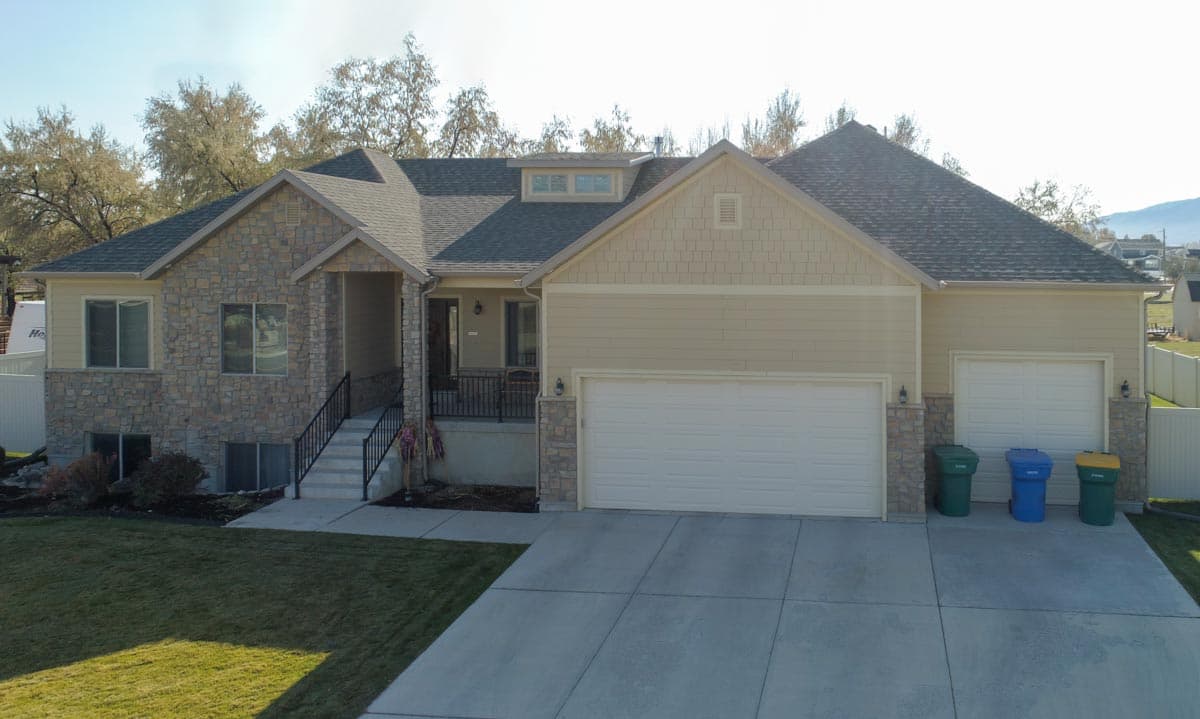

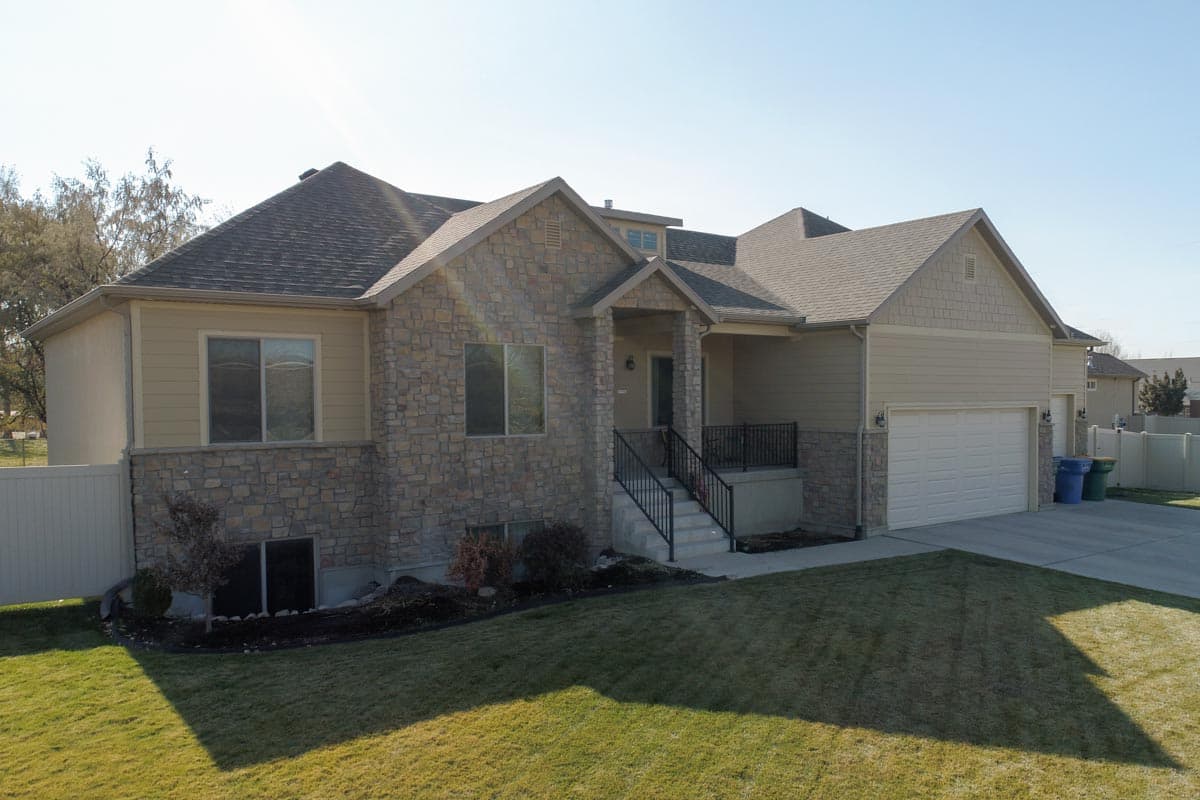

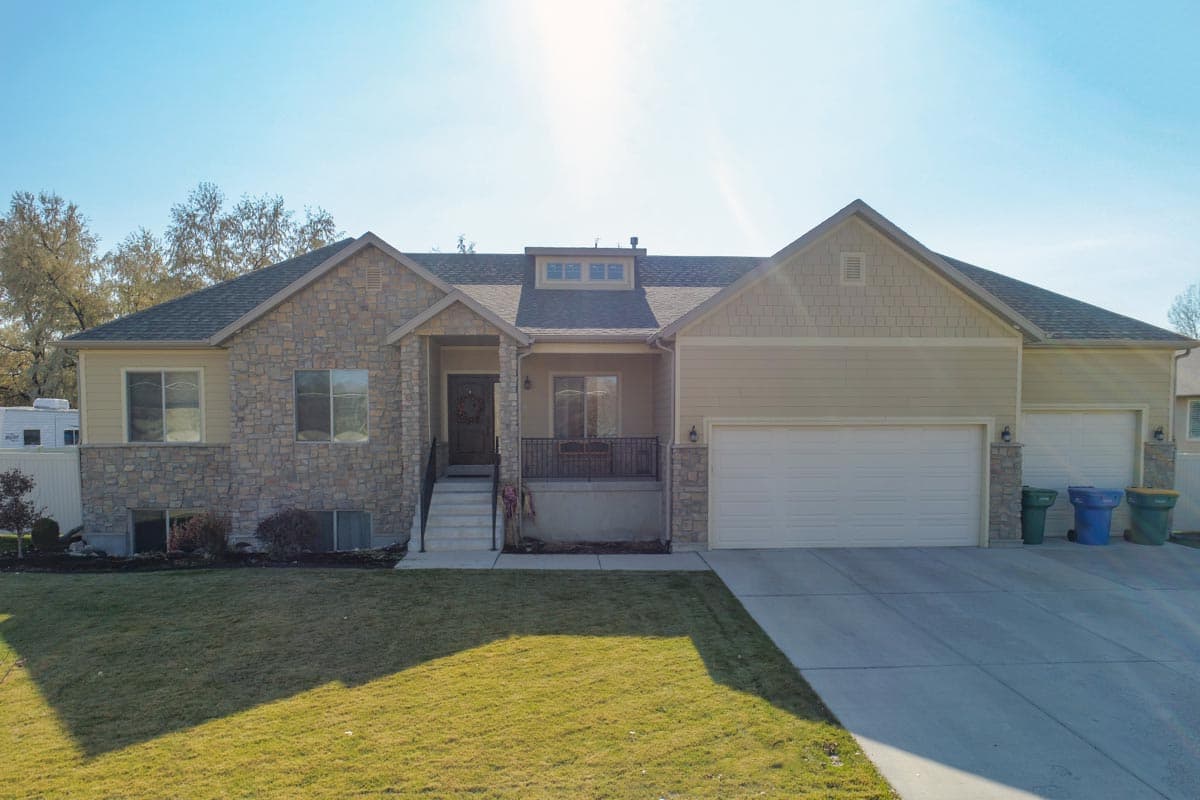

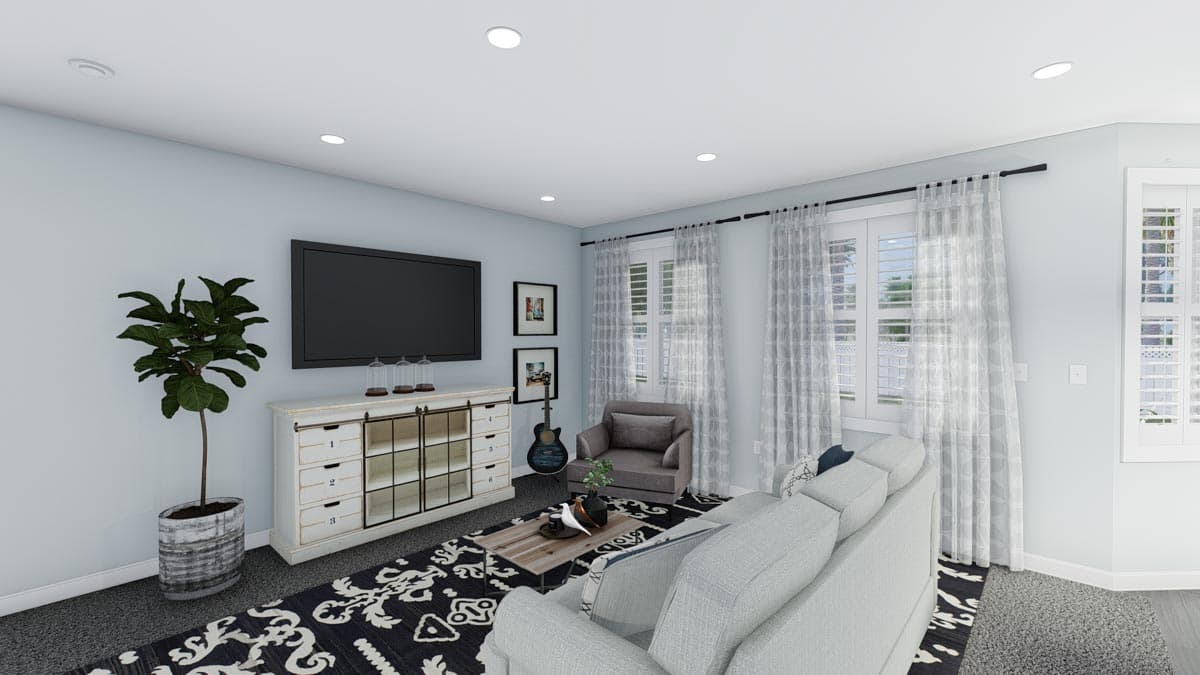

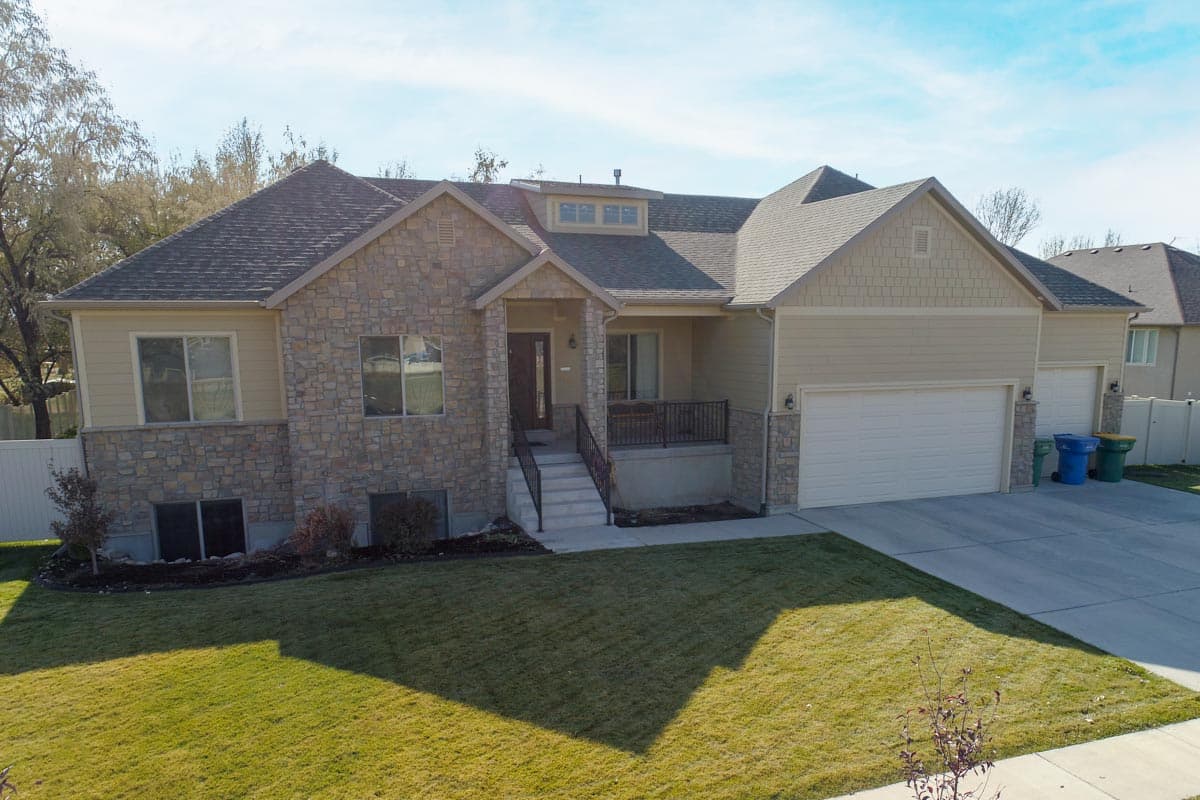

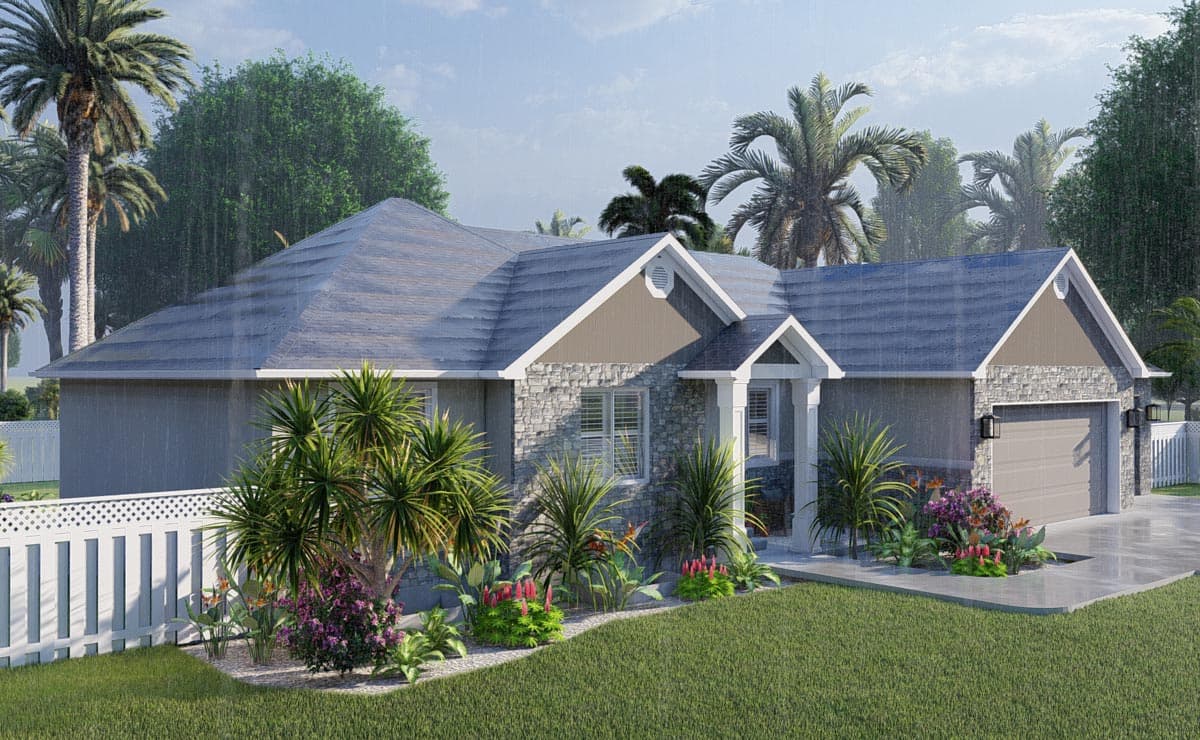

  • The stone-clad exterior adds texture to this Northwest Ranch house plan, while inside, a formal living room and family room provide multiple areas to gather with friends and family.

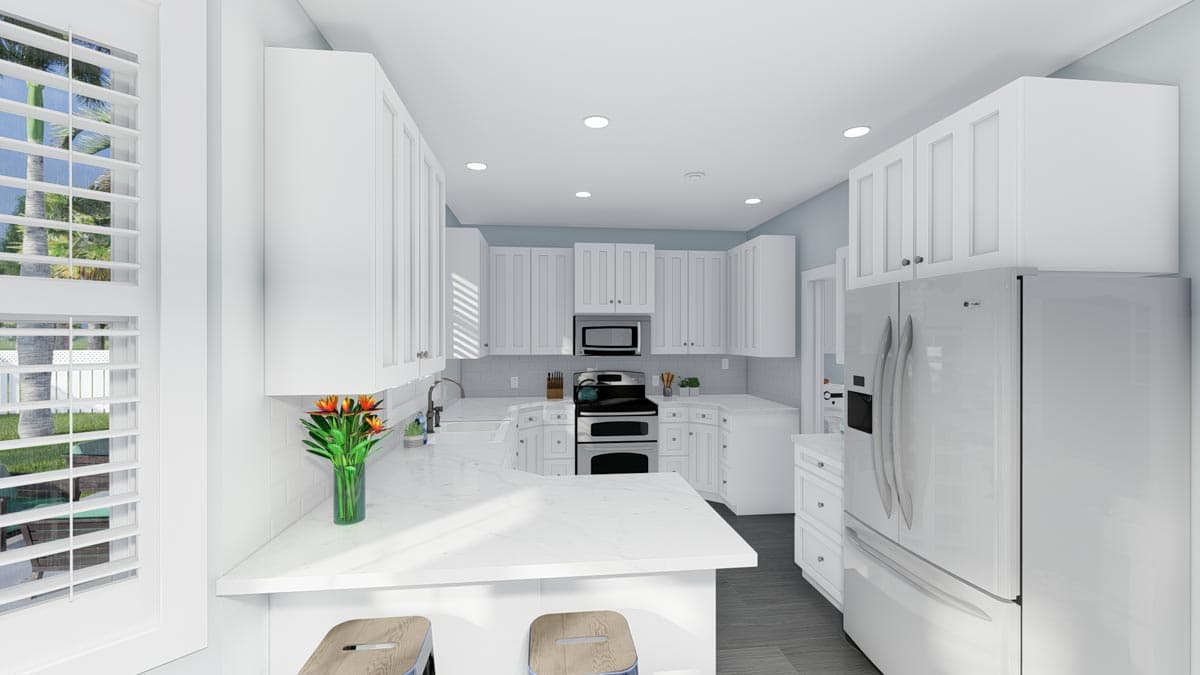

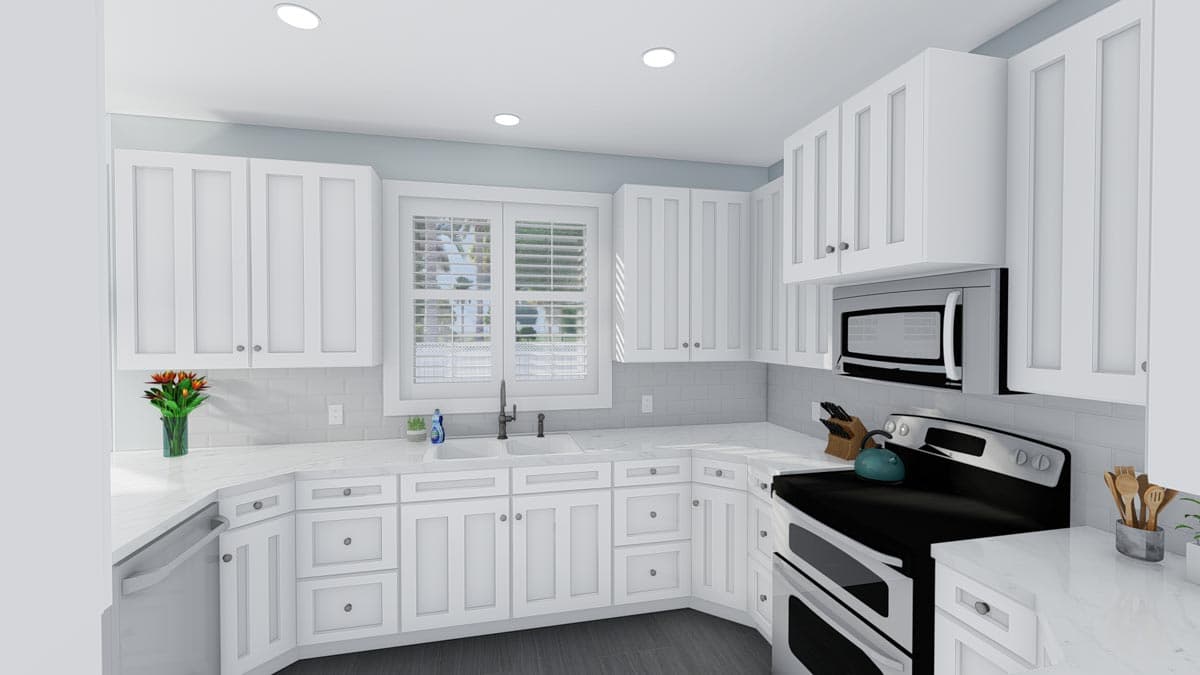

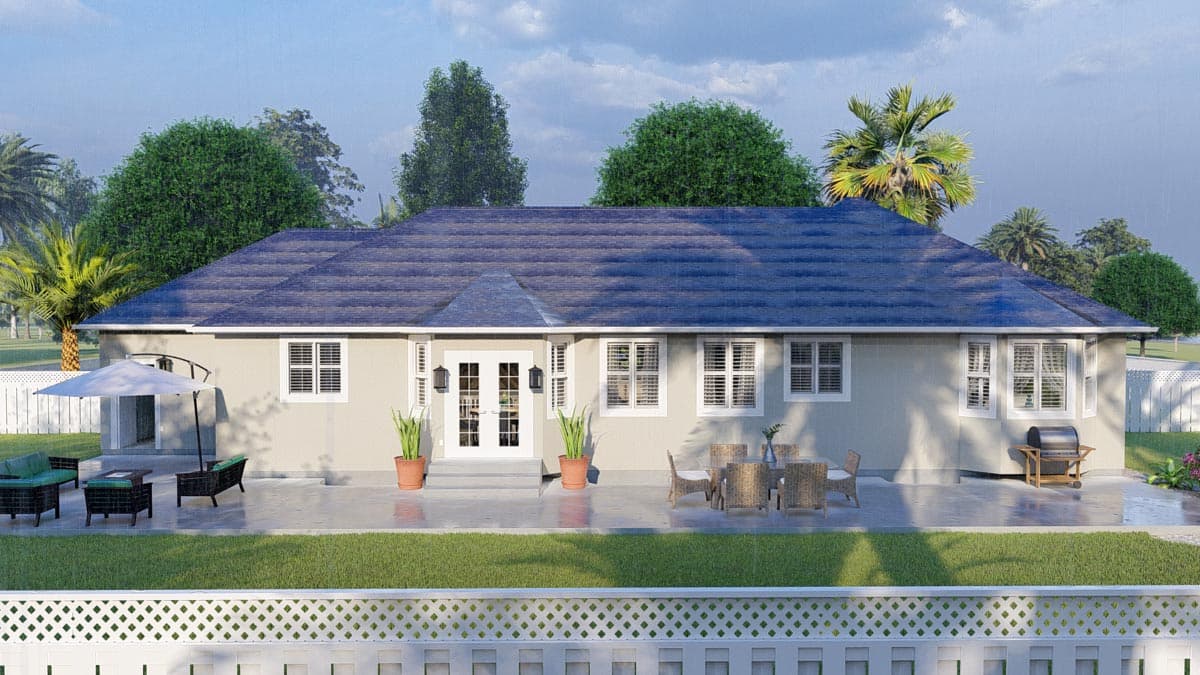

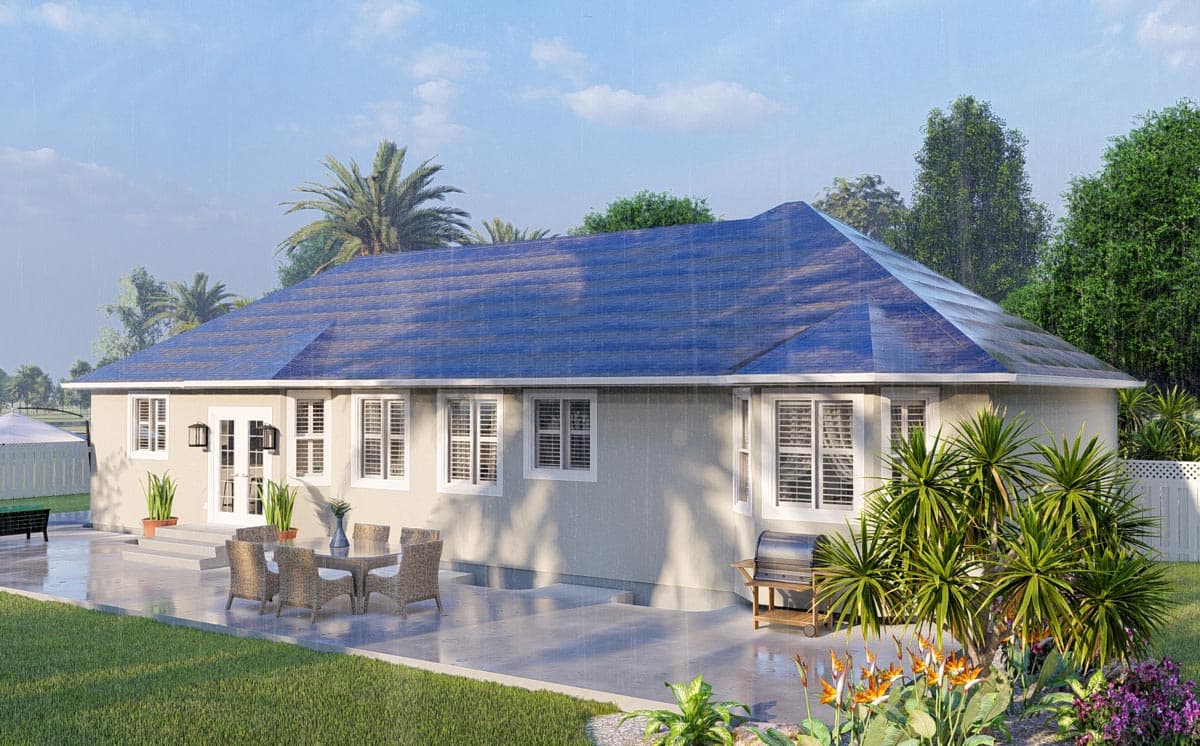

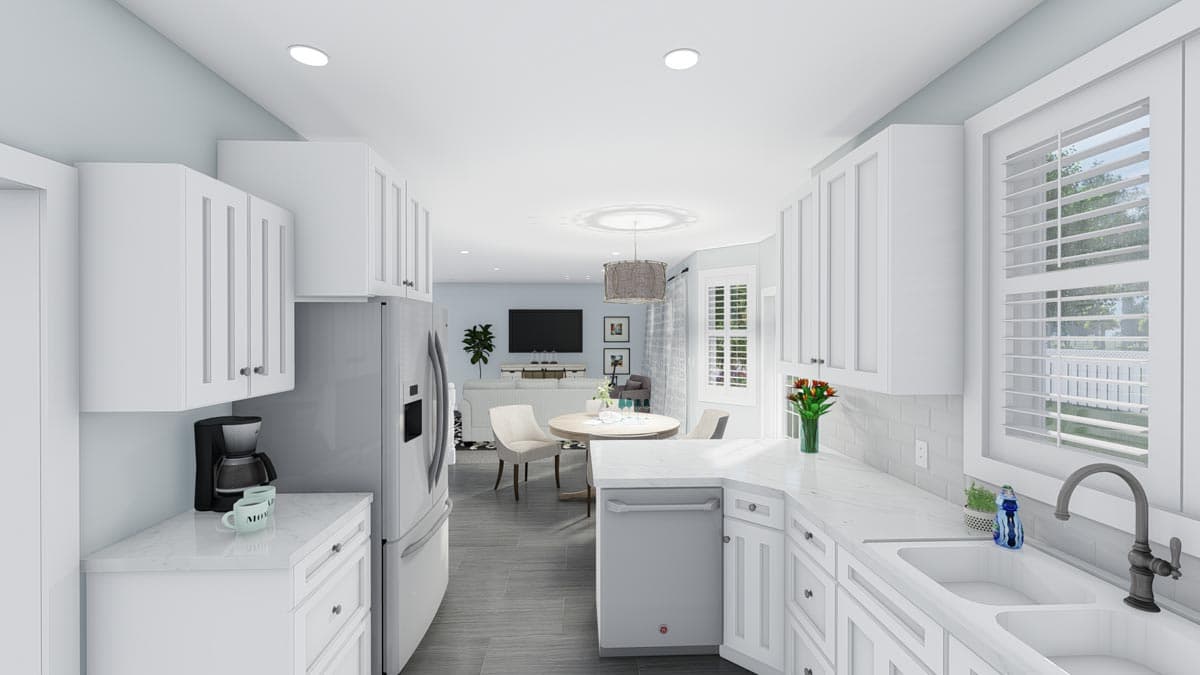

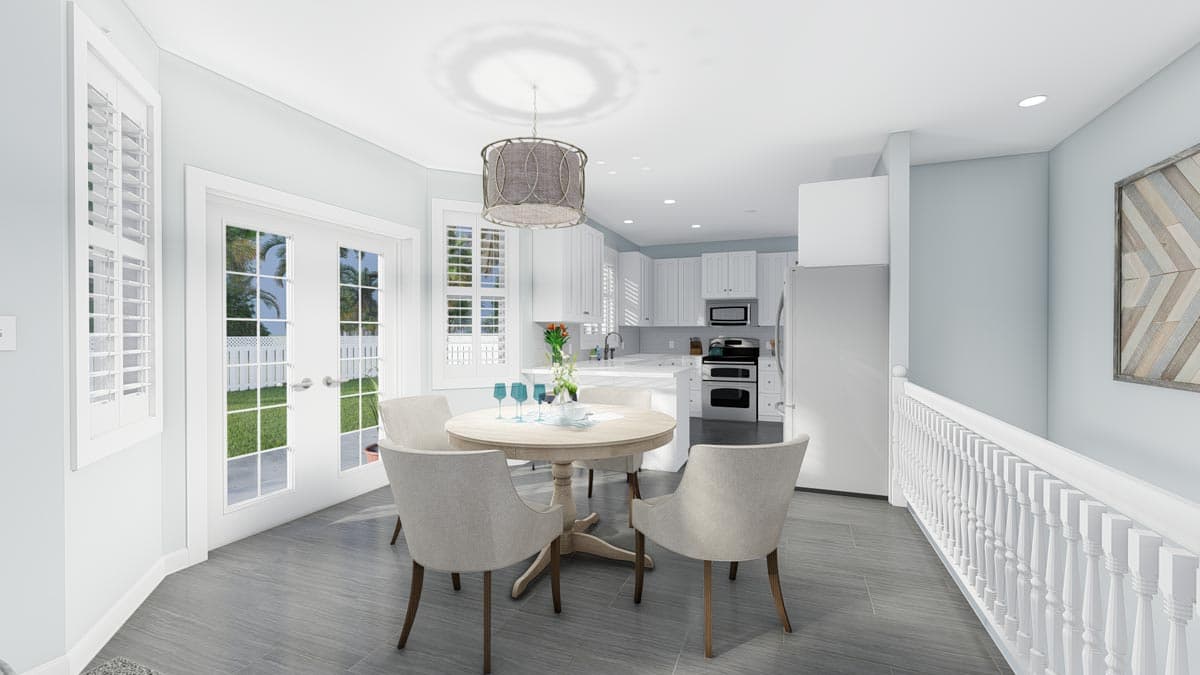

  • The kitchen cabinets create a square design and includes counter-height seating next to the dining area, and french doors permit access to the backyard.

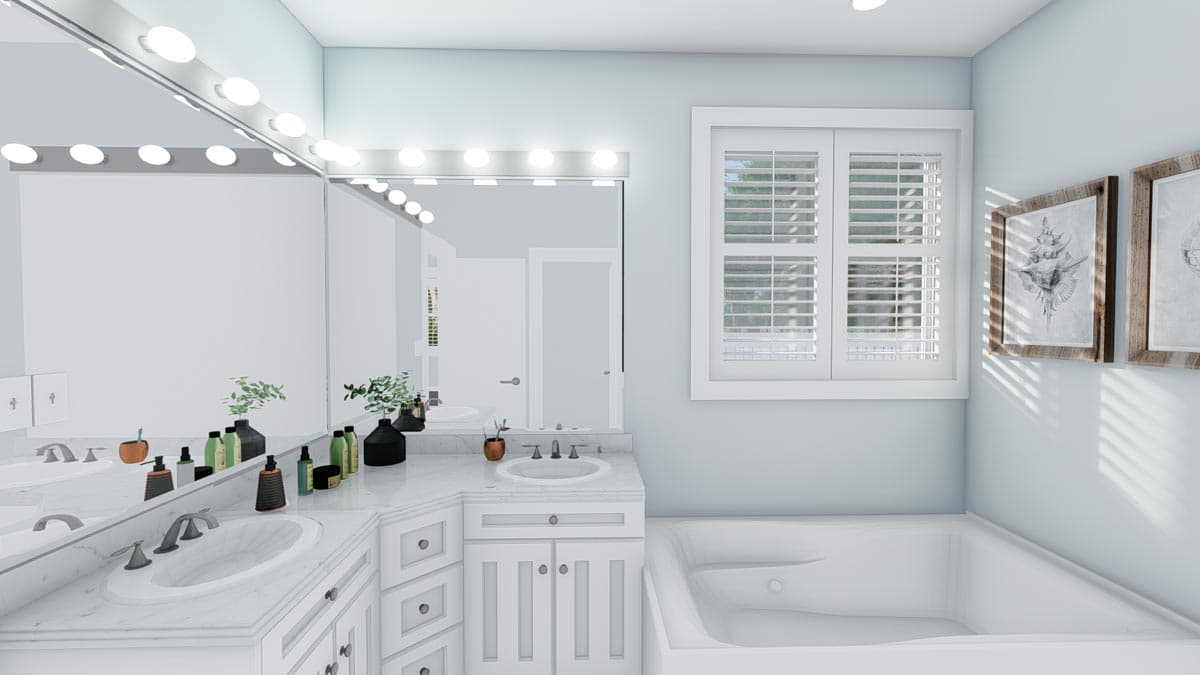

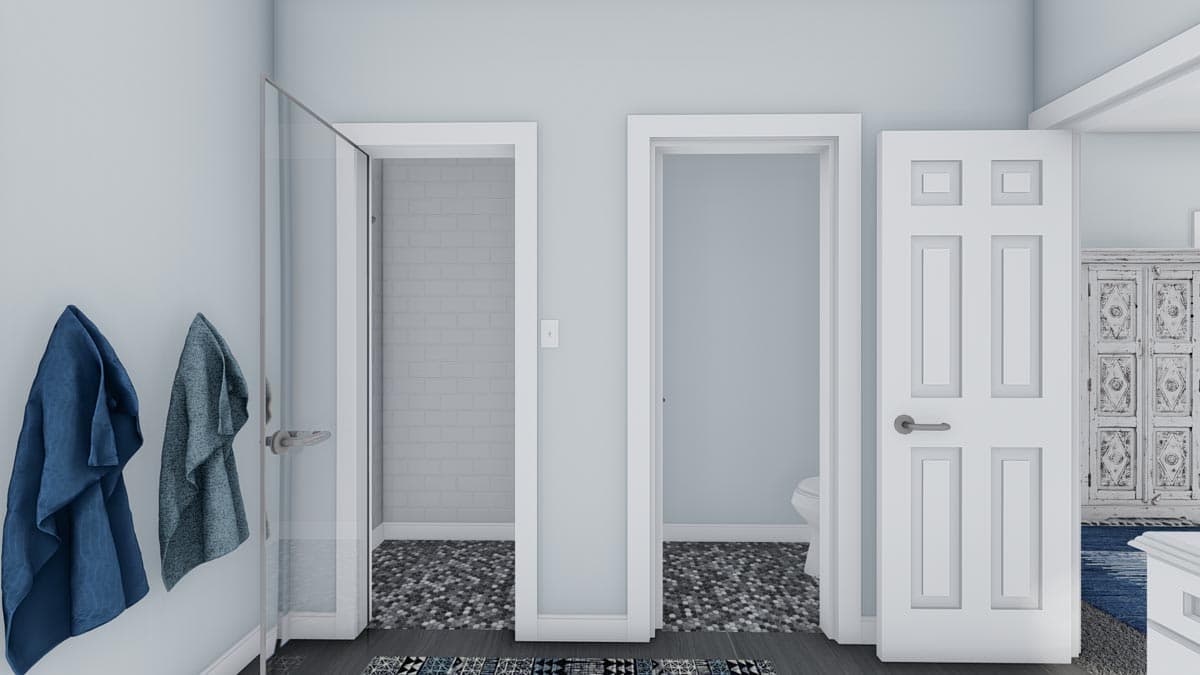

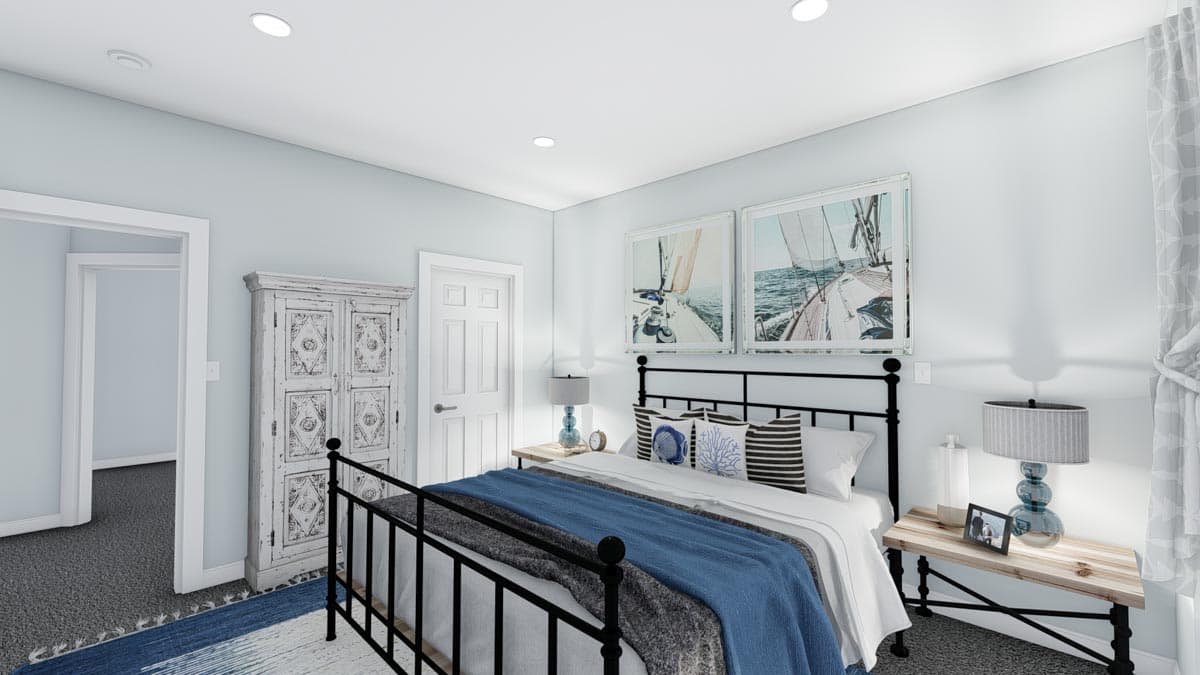

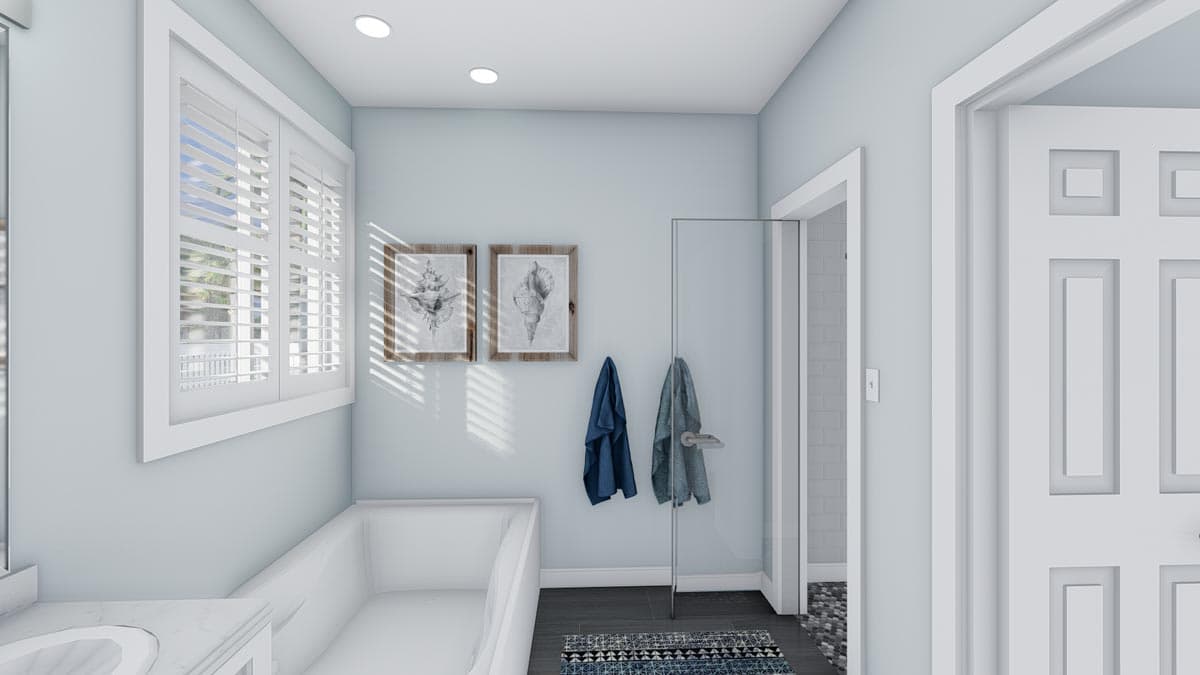

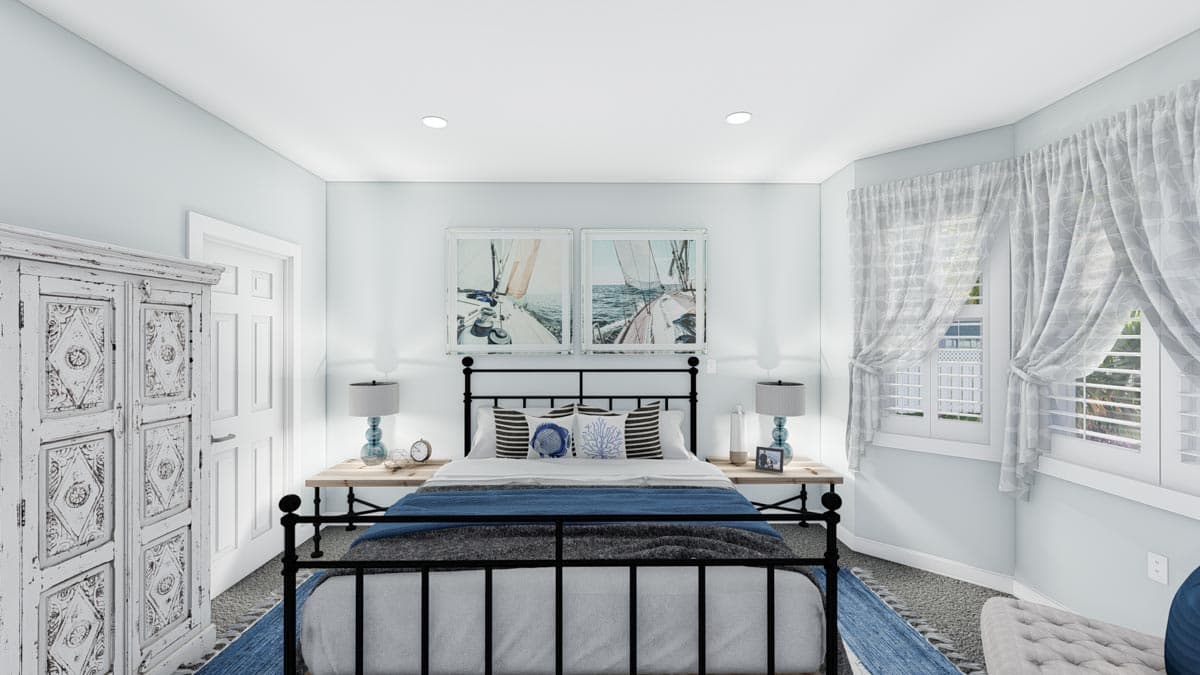

  • Take the hallway to find the rear-facing master bedroom, complete with a bay window, 5-fixture bath, and walk-in closet. Across the hall, two bedrooms share a full bath.

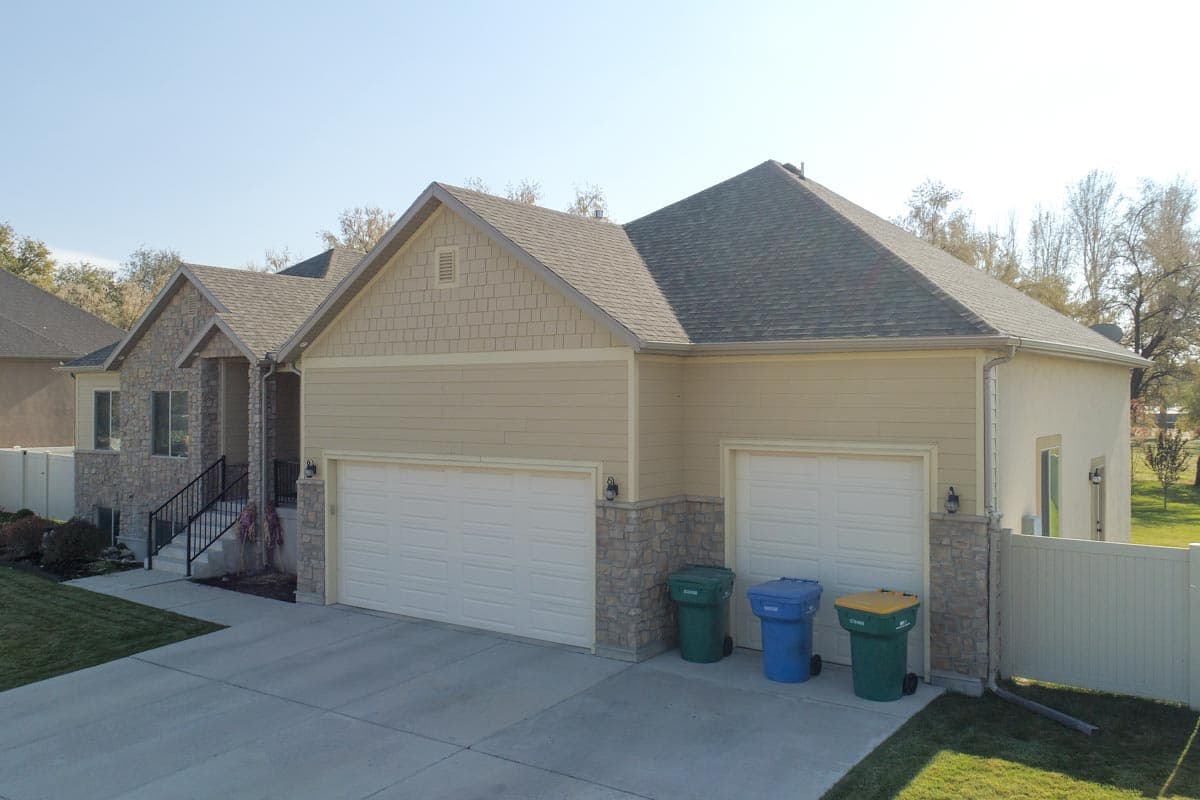

  • The 3-car garage leads to a laundry room with a coat closet, which can be hidden from the kitchen by a pocket door.
  • Downstairs, an elongated family room leads to bedrooms four and five, which share a full bath with a linen closet.

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

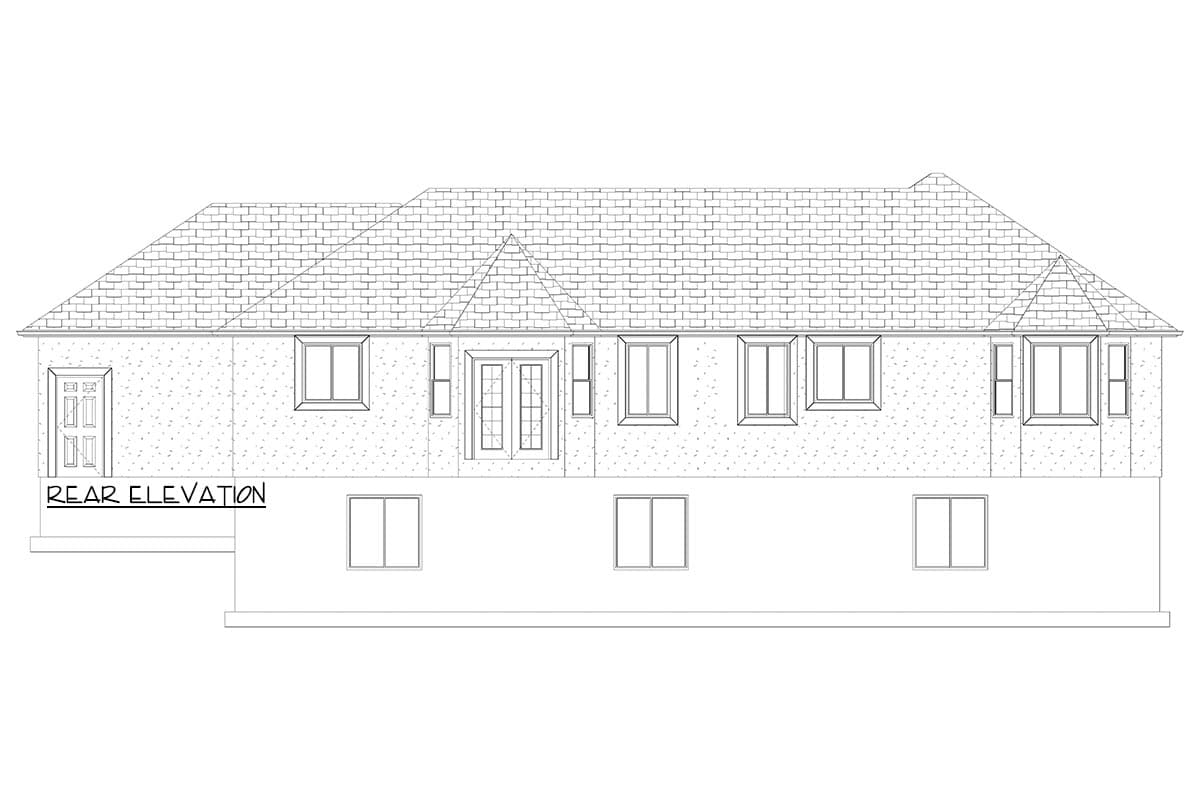

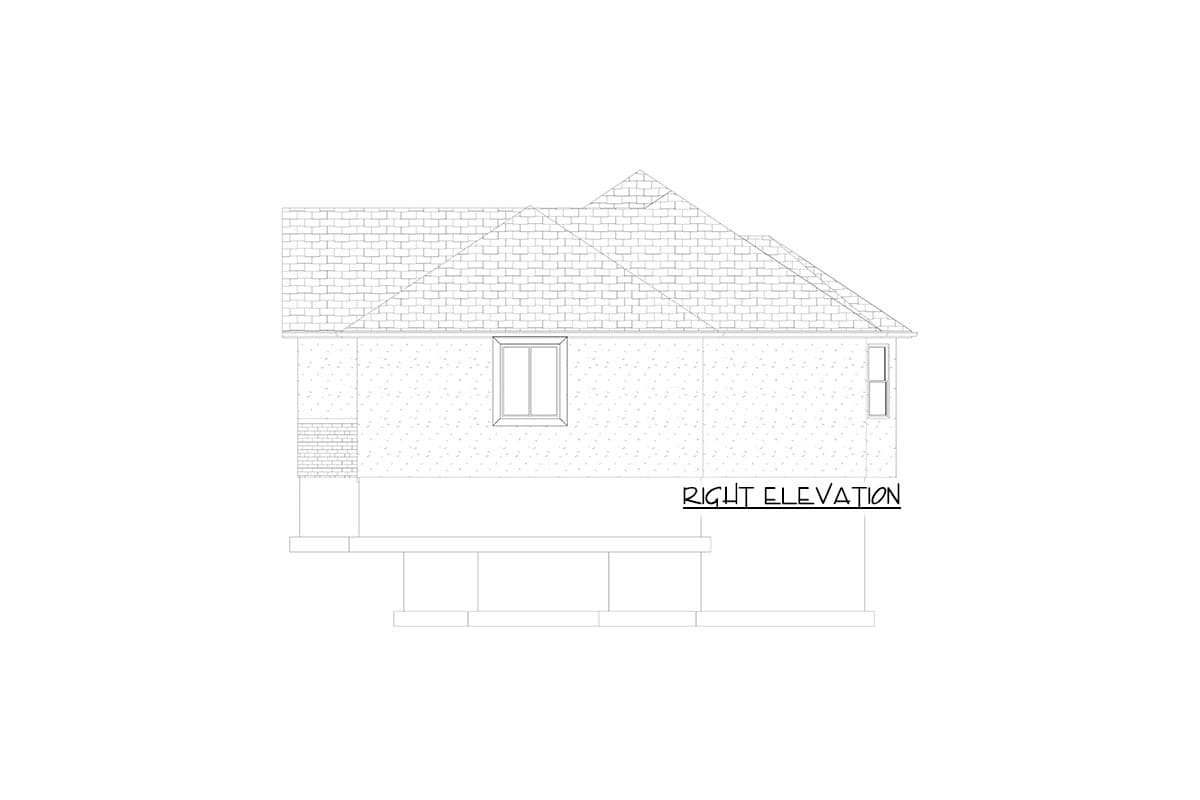

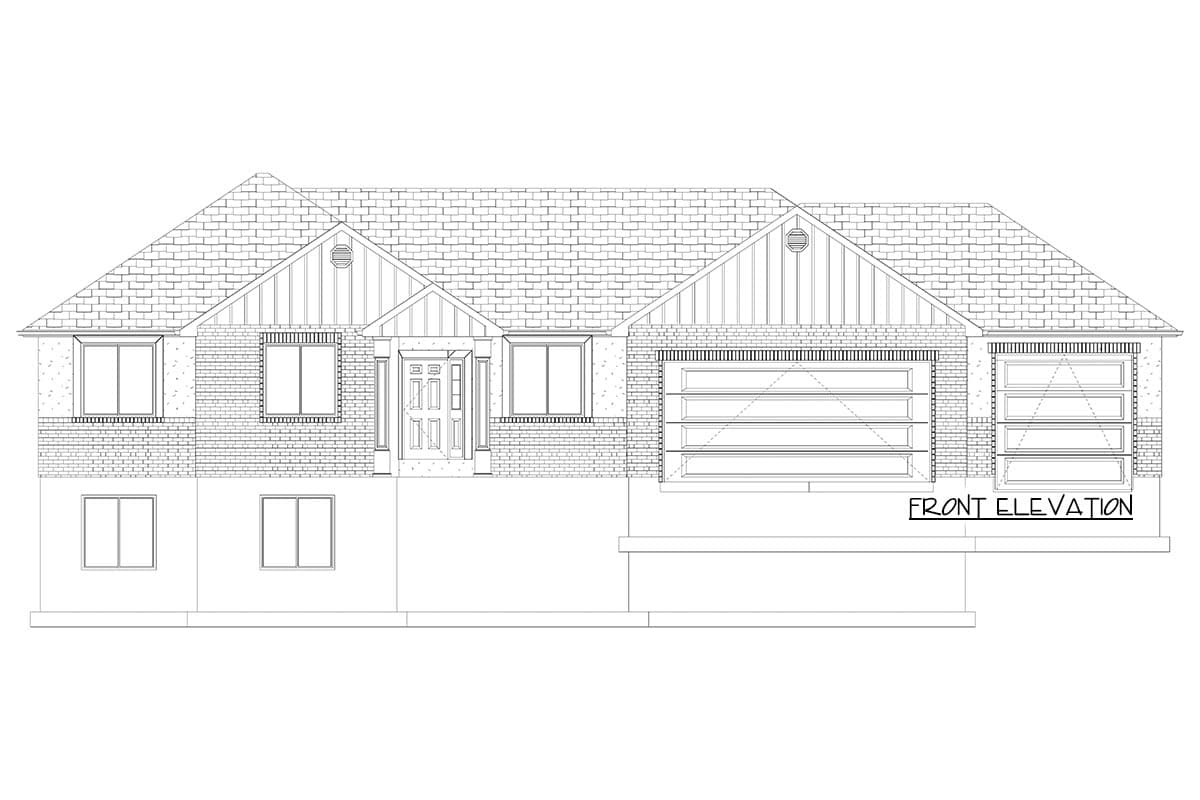

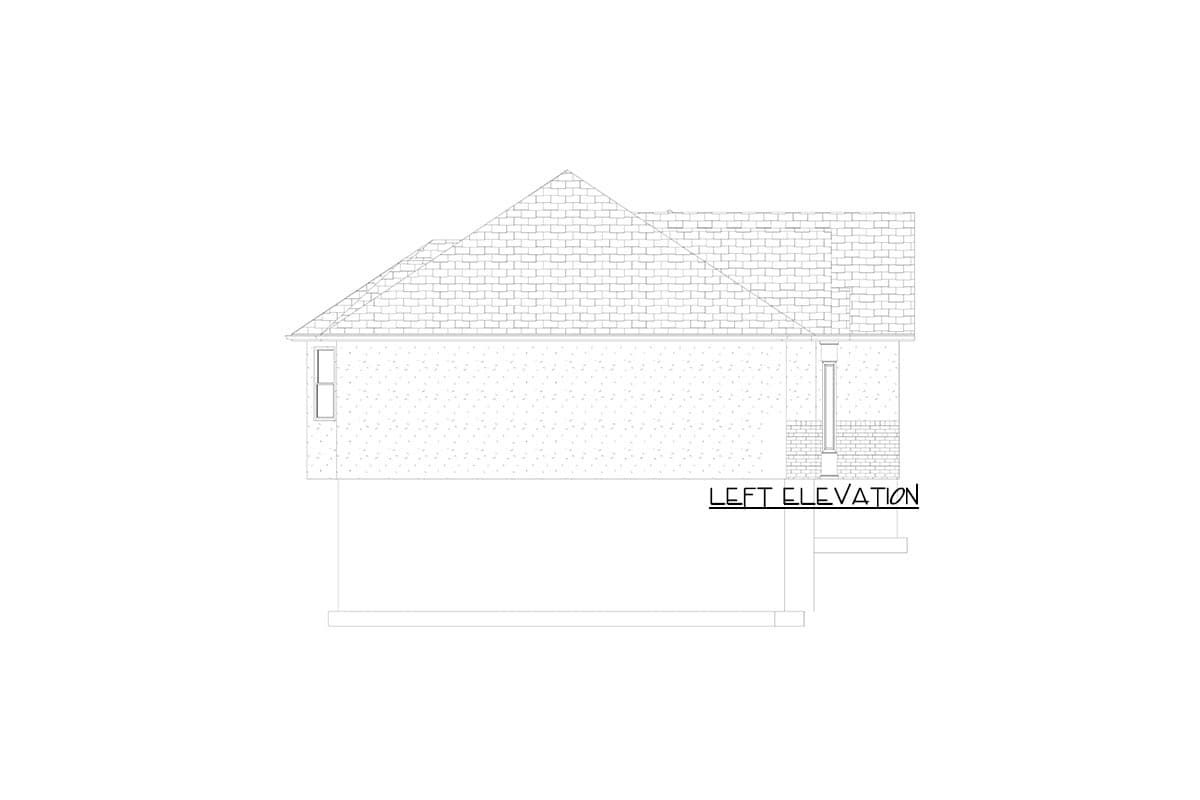

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,073 sq. ft.

Lower Level

1,518 sq. ft.

1st Floor

1,555 sq. ft.

Porch, Front

58 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 1"

Depth

42' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

805 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Den

Game/Rec Room

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery
