Northwest Traditional Duplex House Plan with Three Bedrooms

Heated S.F.
3,124
Units
2
Width
Depth

Floor Plan

Plan 42771DB

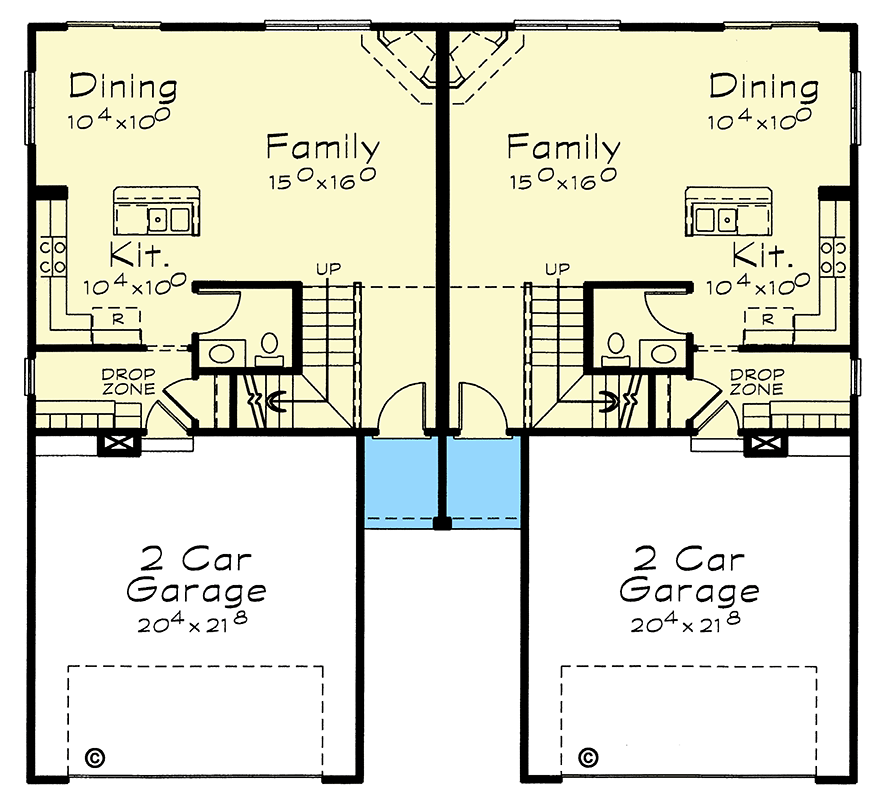

Floor Plan 1

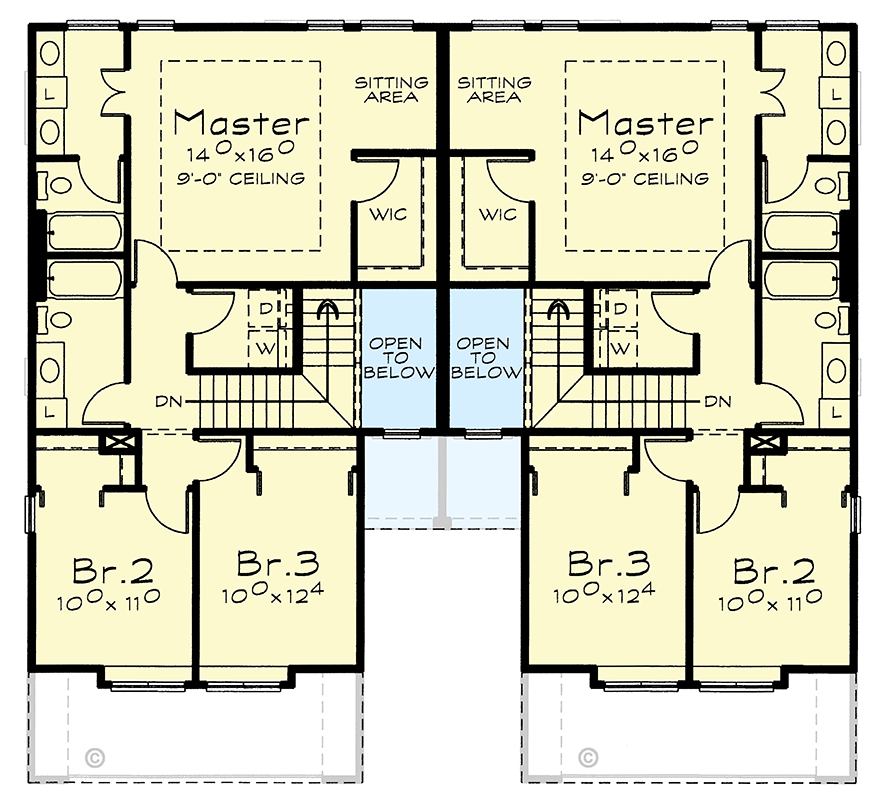

Floor Plan 2
Basement Stairs Location
Basement Stairs Location
Optional Second Level Layout
Optional Second Level Layout

Plan 42771DB

M-F 9am-5pm EST |

1-203-761-8500

Plan 42771DB: Northwest Traditional Duplex House Plan with Three Bedrooms - Floor Plan - - Northwest, Traditional

Plan 42771DB: Northwest Traditional Duplex House Plan with Three Bedrooms - Floor Plan - - Northwest, Traditional

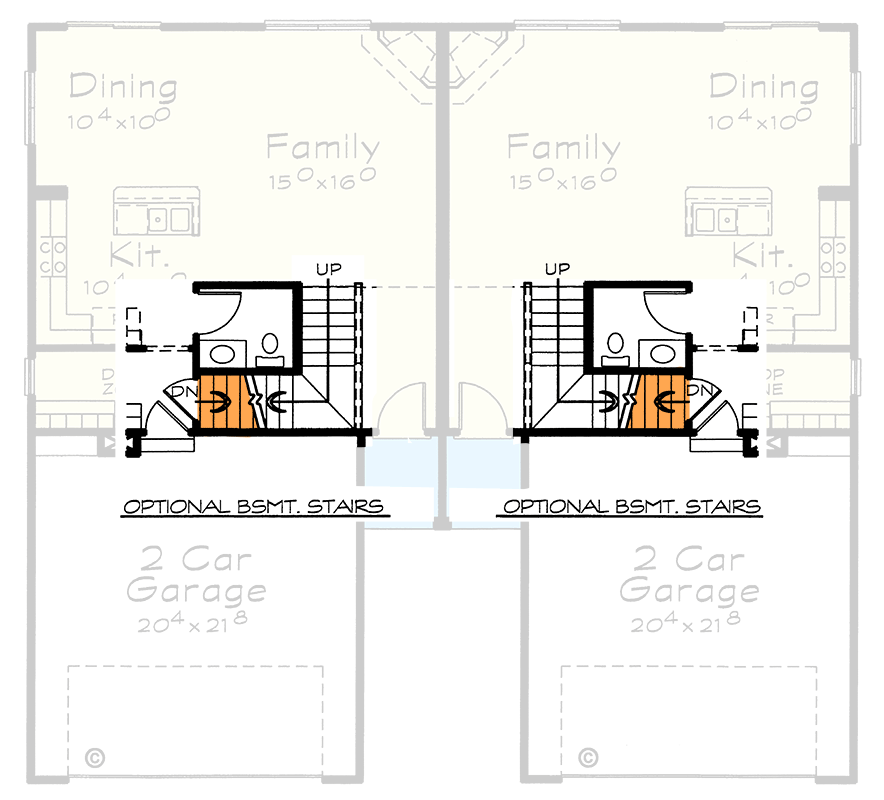

Basement Stairs Location

Plan 42771DB: Northwest Traditional Duplex House Plan with Three Bedrooms - Floor Plan - Basement Stairs Location - Northwest, Traditional

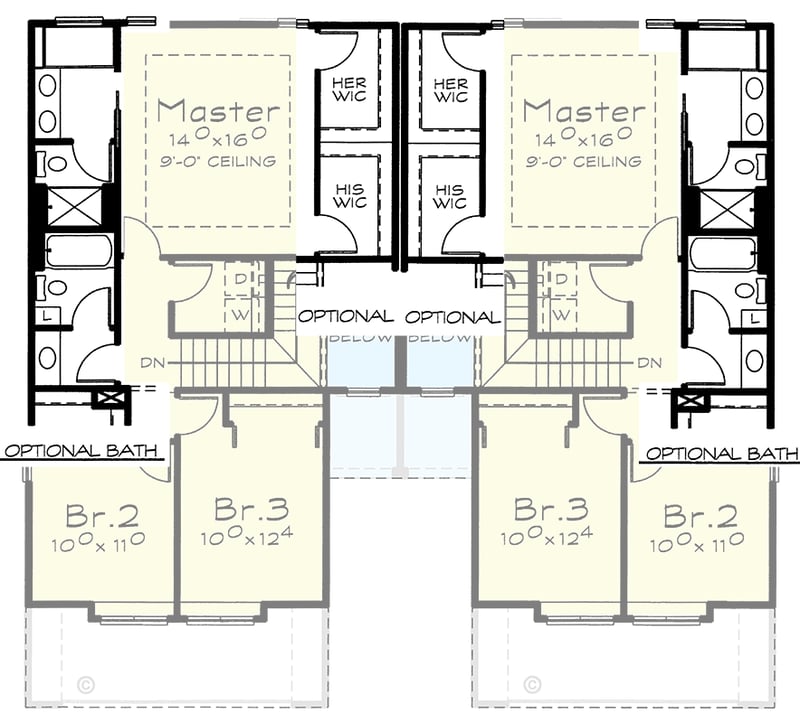

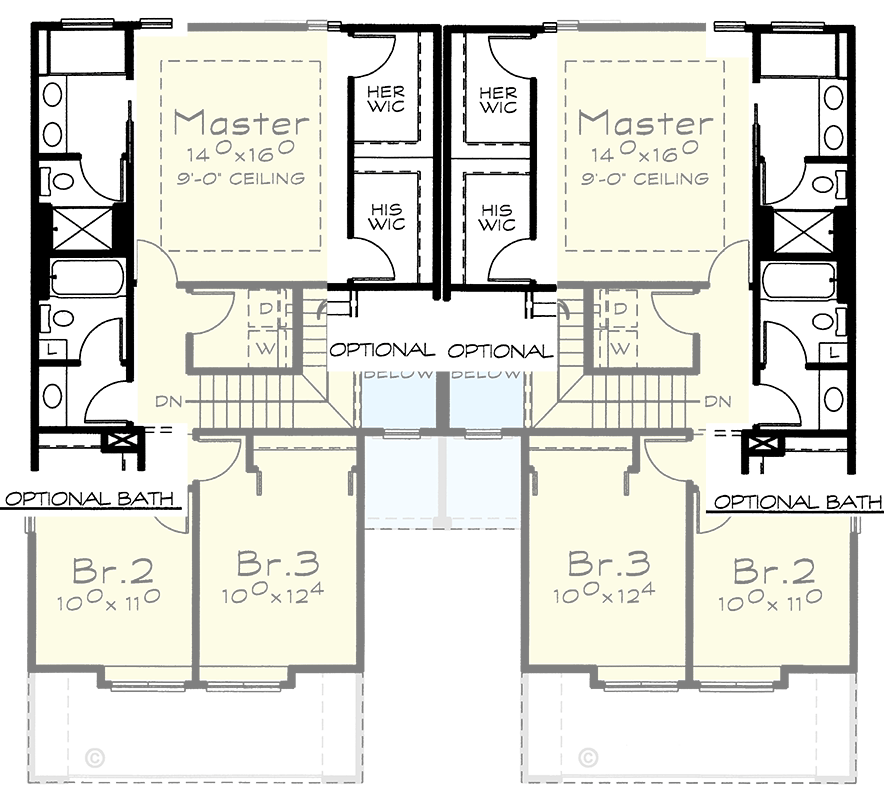

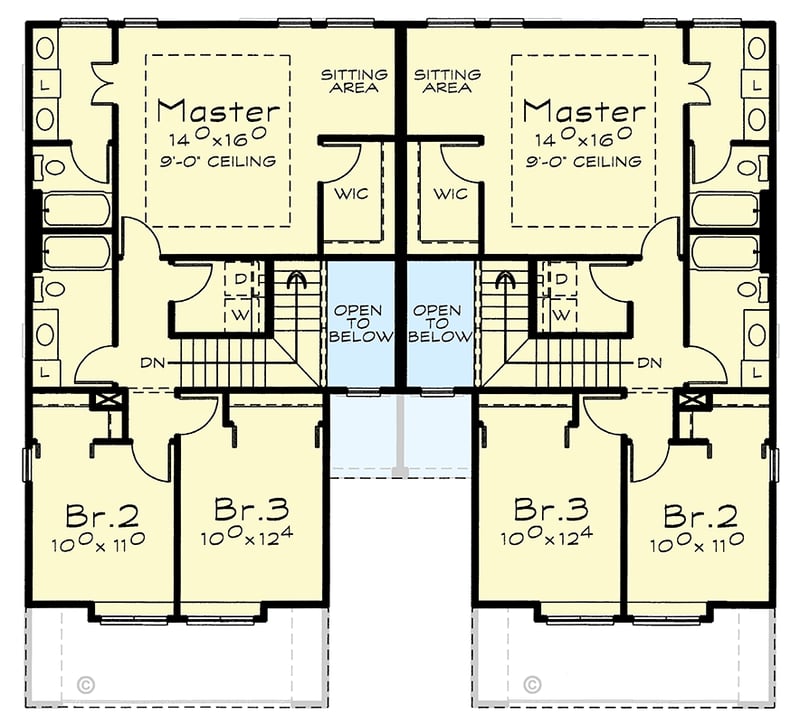

Optional Second Level Layout

Plan 42771DB: Northwest Traditional Duplex House Plan with Three Bedrooms - Floor Plan - Optional Second Level Layout - Northwest, Traditional

Plan Details

  • This Northwest Traditional duplex house plan offers 1,562 finished square feet across two floors, featuring 3 bedrooms, 2.5 baths, and a 462 square foot garage.
  • The home welcomes residents through a charming front porch into a functional layout that balances daily utility with comfortable living space.
  • The main floor is designed for seamless movement, featuring a dedicated mudroom that keeps the home organized and clutter-free.
  • Upstairs, the primary bedroom suite serves as a private retreat, complete with a cozy sitting area for relaxation.
  • Two additional bedrooms are thoughtfully positioned to provide privacy, while the convenient upstairs laundry room streamlines household chores.
  • The exterior showcases classic gabled rooflines and warm siding tones, offering a timeless curb appeal that fits beautifully in any neighborhood.
Unit A & B
Heated Area
1,562Sq. Ft.
676 Sq. Ft. 1st
886 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Standard
462 Sq. Ft.
Dimensions
26'width
48'depth
Unfinished Areas
462 Sq. Ft. Garage
30 Sq. Ft. Porch, Front

What's Included

  • General Notes

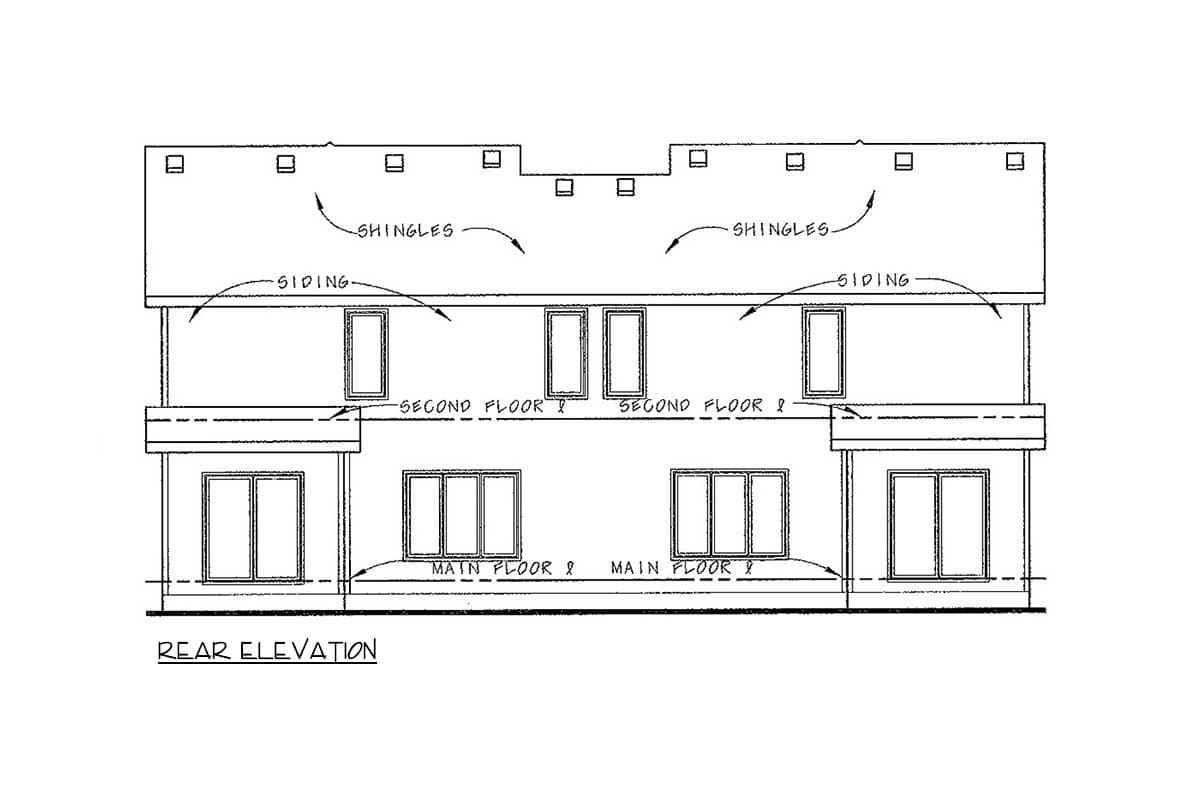

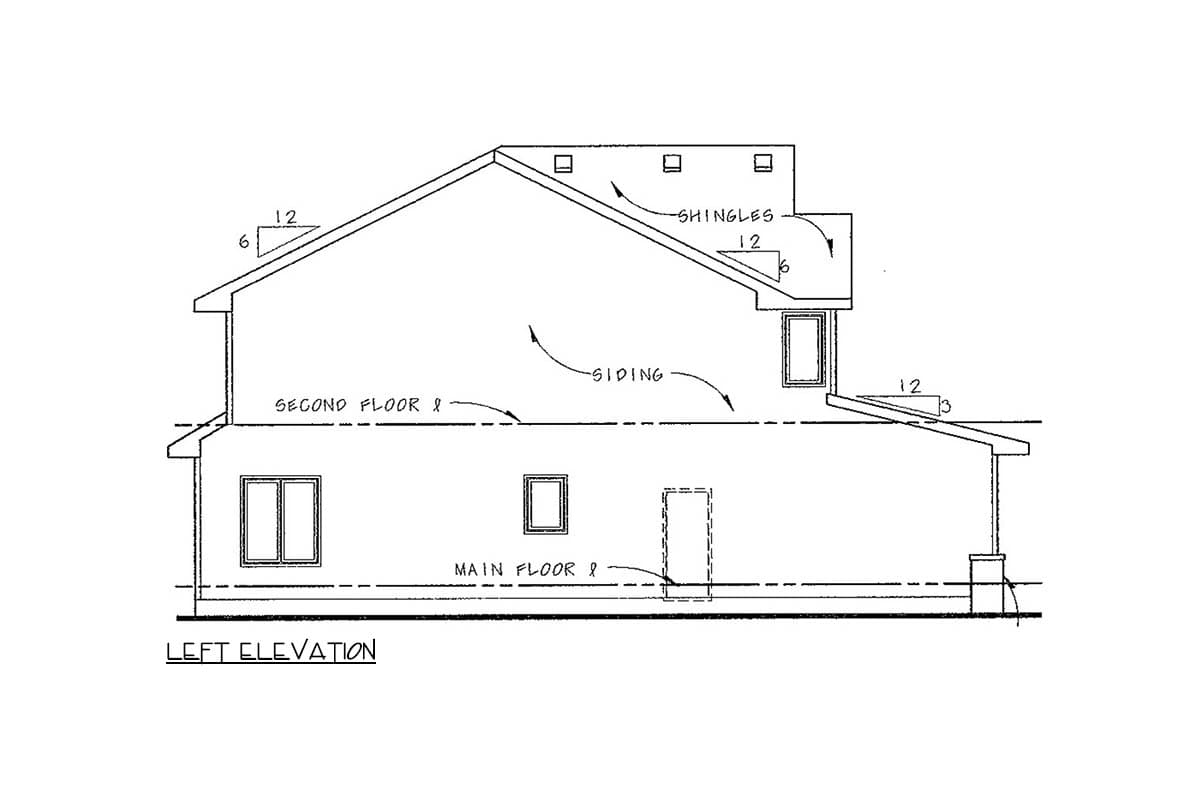

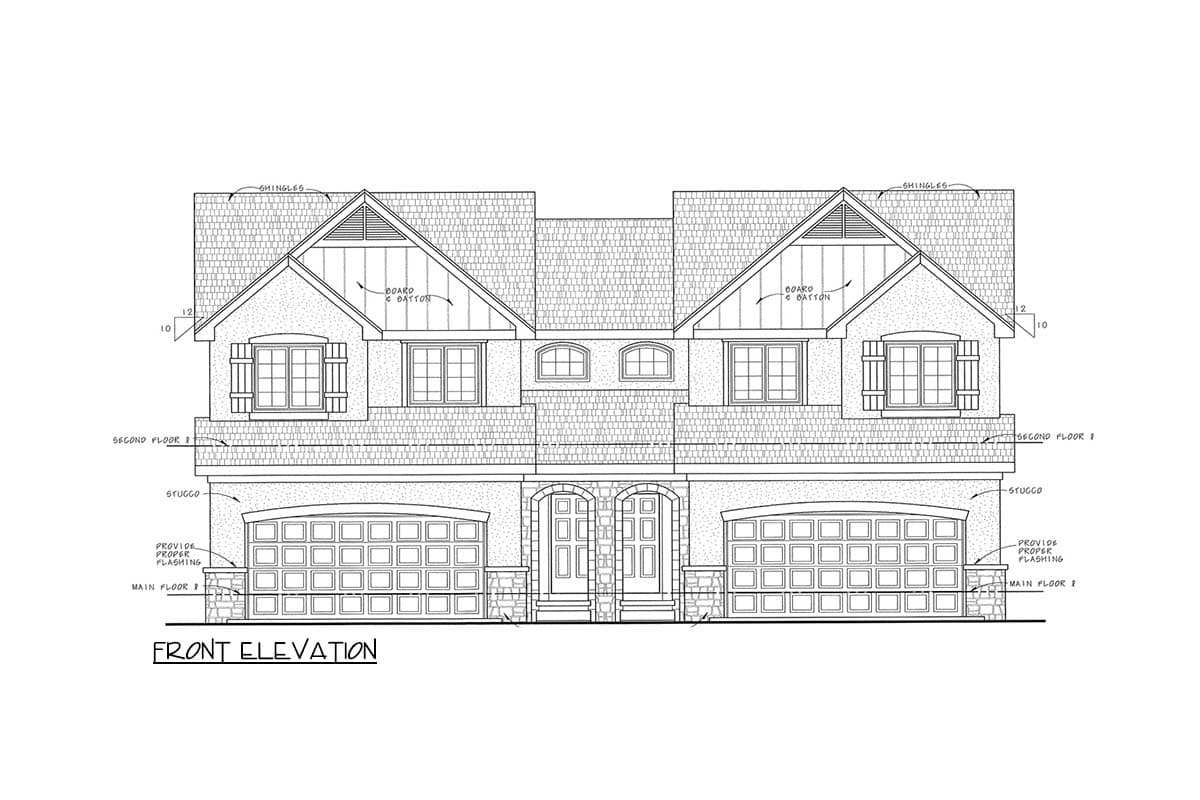

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown
