Plan 22409DR Northwestern Style Duplex

3,400 2 50' 0" 36' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Northwestern Style Duplex

Plan 22409DR

  • 3,400

    Heated s.f.

  • 2

    Units

  • 50' 0"

    Width

  • 36' 0"

    Depth

  • Each duplex has three bedrooms on two levels with a handsome Northwest exterior to commend the home.
  • The foyer for each unit has two sets of stairs, one to the upper main floor where the L-shaped living area is all open concept.
  • The master suite is on this floor along with a big walk-in coat closet.
  • The second set of stairs take you down to the finished lower level where you get a family room and two more bedrooms that share a hall bathroom.
  • Related Plan: Get an alternate version with duplex house plan 21906DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

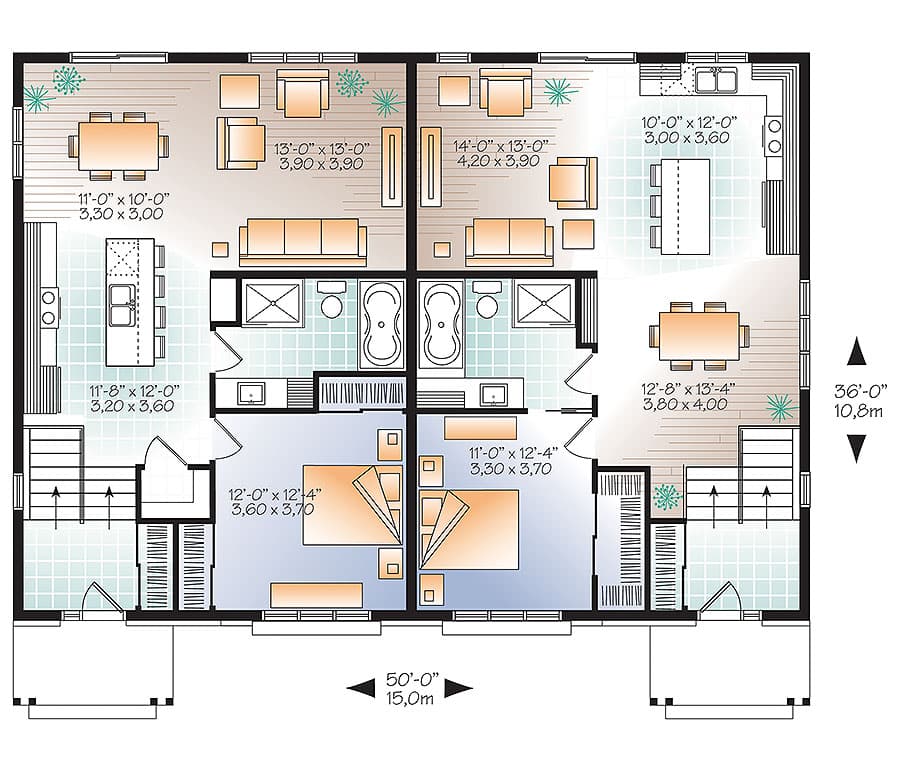

Northwestern Style Duplex - 22409DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

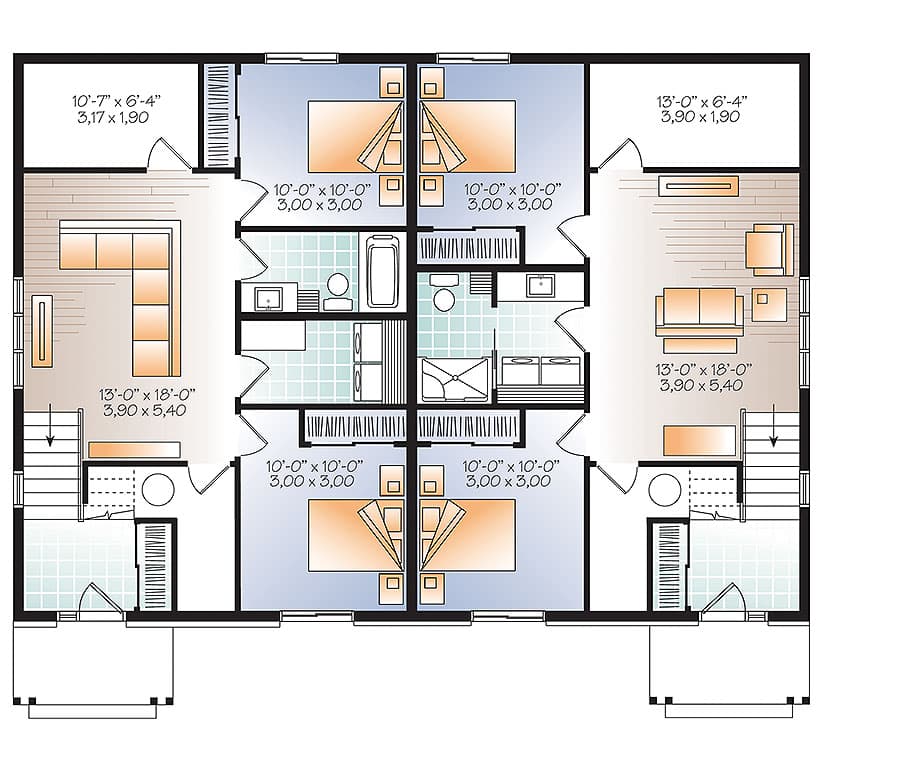

Northwestern Style Duplex - 22409DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,400 sq. ft.
  • Lower Level: 1,600 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 4"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Northwestern Style Duplex

  • 3,400

    Heated s.f.

  • 2

    Units

  • 50' 0"

    Width

  • 36' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $2,085
  • 3 Sets + PDF $2,210
  • CAD + PDF - Single-Build $2,685
  • View all purchase option online

About This Plan

  • Each duplex has three bedrooms on two levels with a handsome Northwest exterior to commend the home.
  • The foyer for each unit has two sets of stairs, one to the upper main floor where the L-shaped living area is all open concept.
  • The master suite is on this floor along with a big walk-in coat closet.
  • The second set of stairs take you down to the finished lower level where you get a family room and two more bedrooms that share a hall bathroom.
  • Related Plan: Get an alternate version with duplex house plan 21906DR.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,400 sq. ft.
  • Lower Level: 1,600 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 23' 4"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 22409DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22409DR
|
Need Help? 800-854-7852
|
Plan 22409DR
