Old World Exterior

Plan 15807GE

  • 4,375

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • With its old world exterior, this luxury home plan creates magnificent curb appeal.
  • An oversized kitchen is at the center of this home and opens to a keeping room crafted with a fireplace.
  • A distinctive coffered ceiling adorns the generous grand room and has french doors leading to the back patio.
  • For those summer cookouts, a deck to the rear of this home is accessed from the keeping room.
  • A home study and bedroom are tucked away to the left of the main floor.
  • A beautiful second floor master suite features a luxurious bath, oversized walk in closet, vaulted sitting area and an optional office or exercise room complete with its own stair.
  • A media or playroom and three additional bedrooms round out this exquisite house plan.
  • The main roof pitch is 9 on 12 and the secondary pitch is 14 on 12.
  • Related Plan: Get an alternate version with house plan 15743GE (3,330 sq. ft.).

The plan set includes the following:

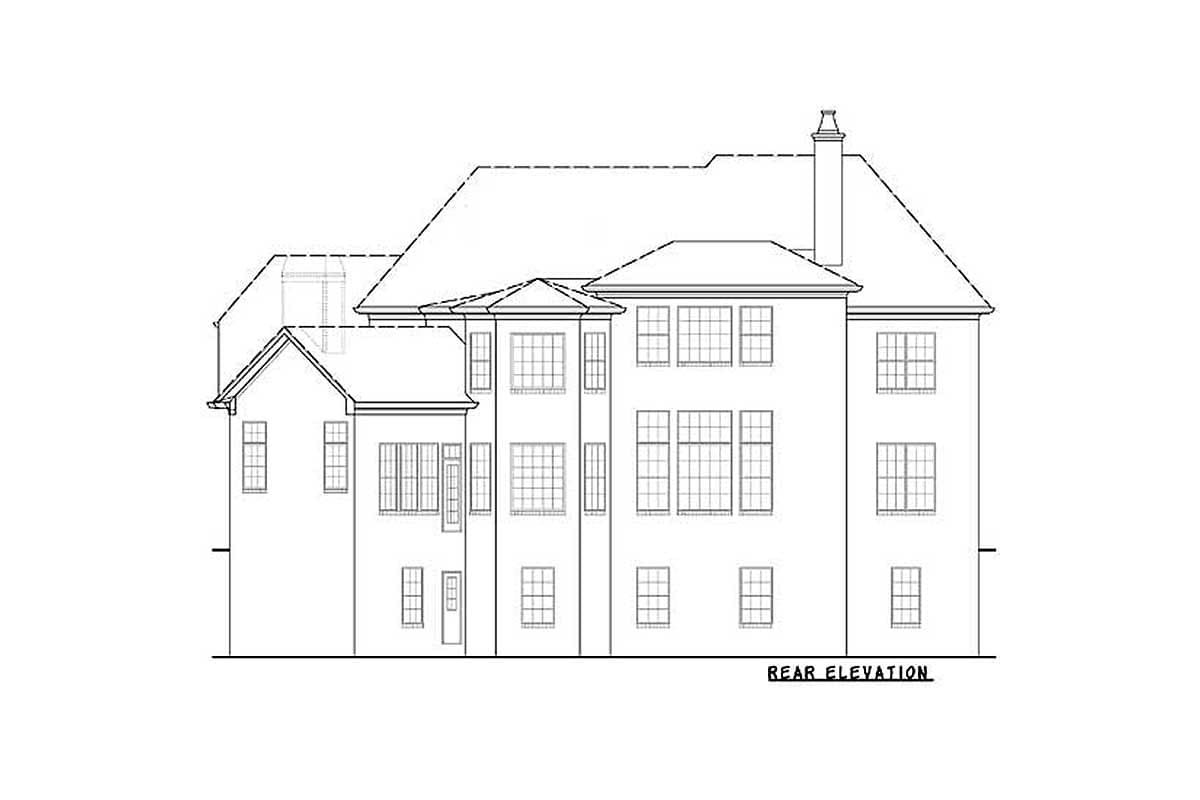

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

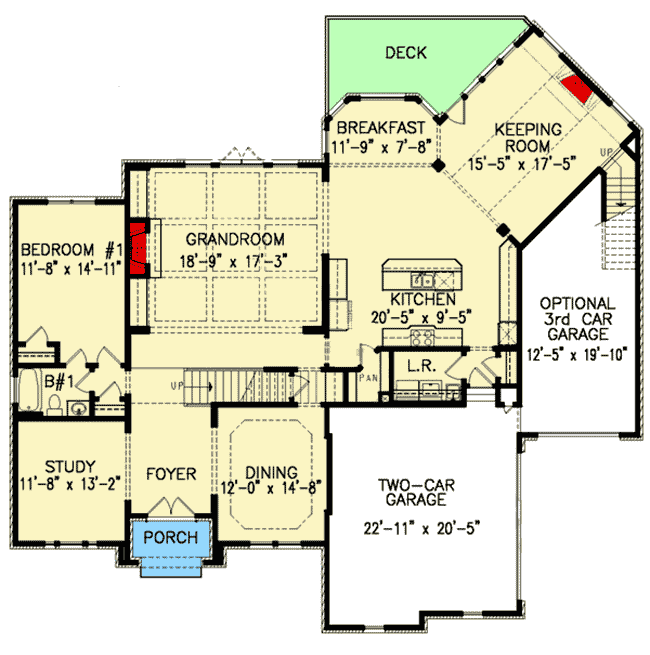

Old World Exterior - 15807GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

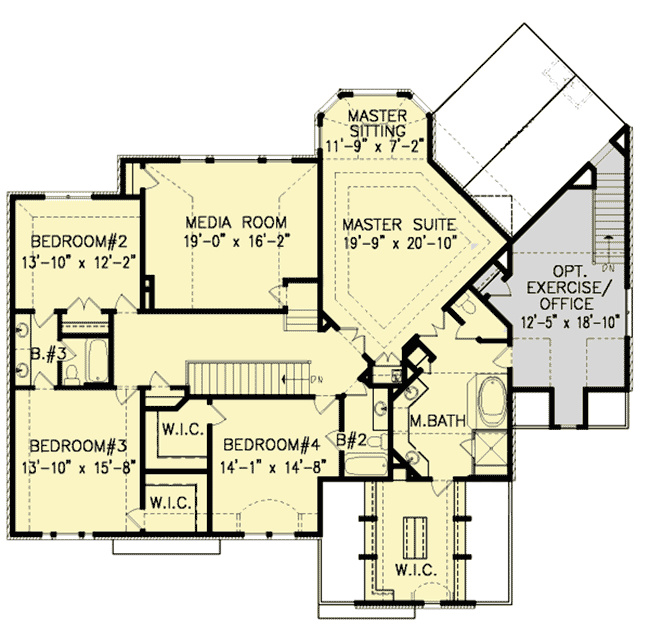

Old World Exterior - 15807GE floor plan - 2nd Floor

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

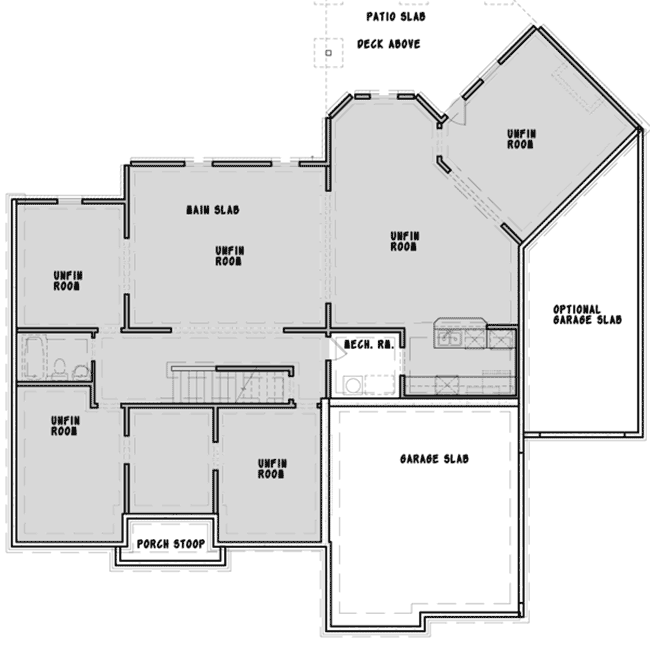

Old World Exterior - 15807GE floor plan - Unfinished Basement
