Plan 72517DA

On The Beach

Heated S.F.
1,406
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 72517DA

Main Level
Main Level

Plan 72517DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

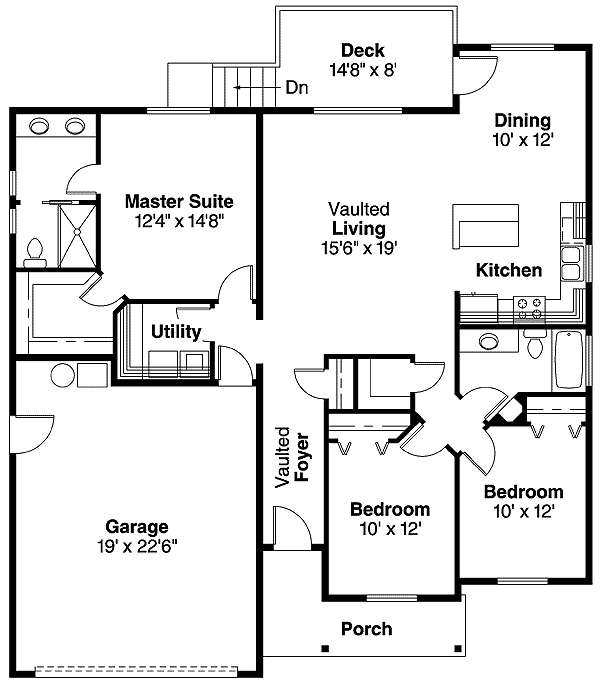

Plan 72517DA: On The Beach - Floor Plan - Main Level - Country, Ranch

Plan Details

  • Beach-style with covered entry porch and vaulted foyer and deck in rear.
  • Kitchen with work island open to living and dining rooms.
  • Isolated master suite features walk-in closet, dual sinks, and enclosed toilet & shower.
  • The main ceiling height in this house is 9’ with the vault in the foyer/living room reaching 13’-8” high at the center of the house.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

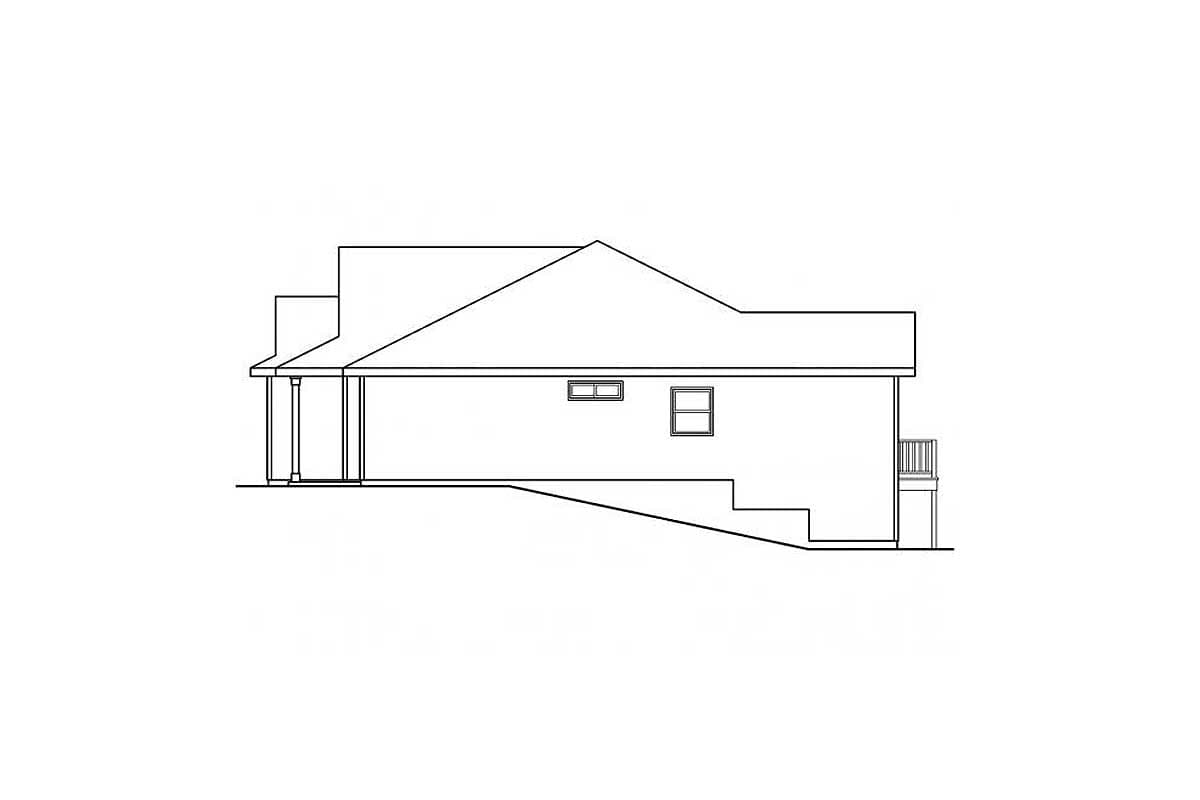

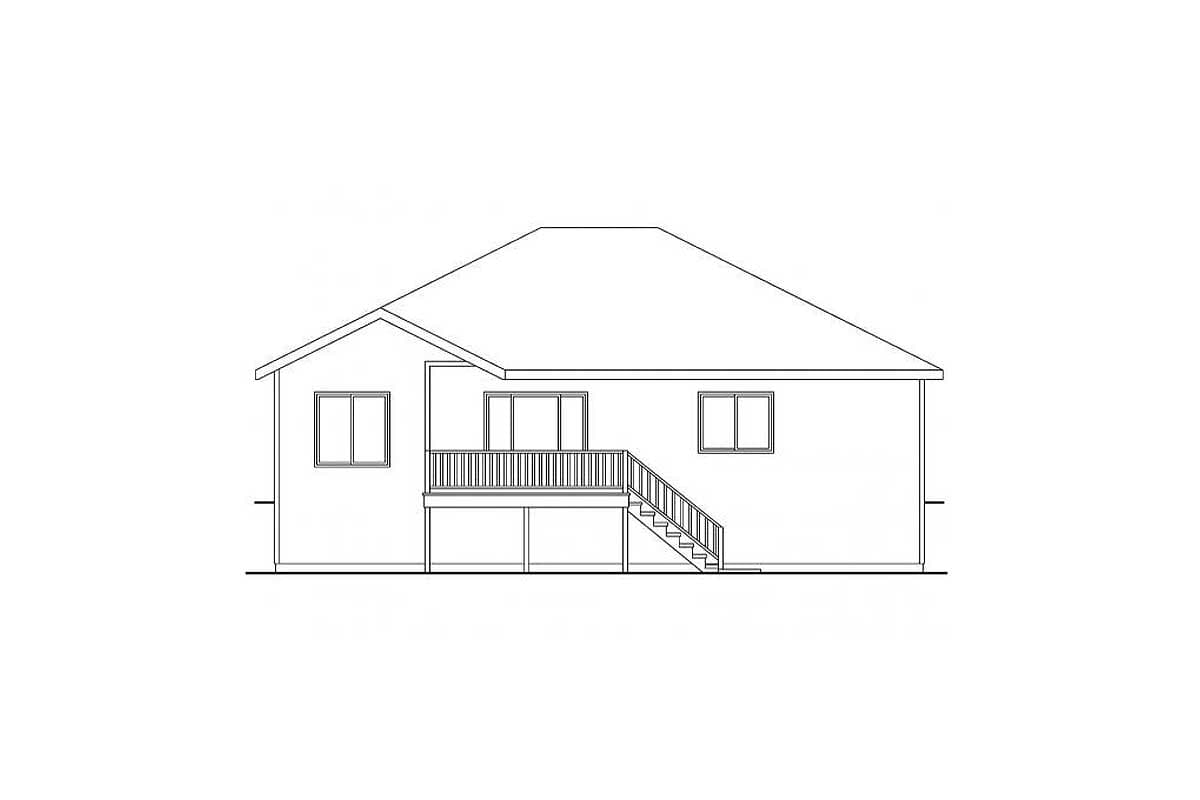

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,406 sq. ft.

1st Floor

1,406 sq. ft.

Porch, Front

83 sq. ft.

Deck

118 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

50' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,406 sq. ft.

1st Floor

1,406 sq. ft.

Porch, Front

83 sq. ft.

Deck

118 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

50' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry
