Plan 51866HZ

One Bed and Bath Farmhouse-style Cabin - 732 Sq Ft

Heated S.F.
732
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 51866HZ

Main Level
Main Level
Main Floor - Basement Version
Main Floor - Basement Version

Plan 51866HZ

M-F 9am-5pm EST |

1-203-761-8500

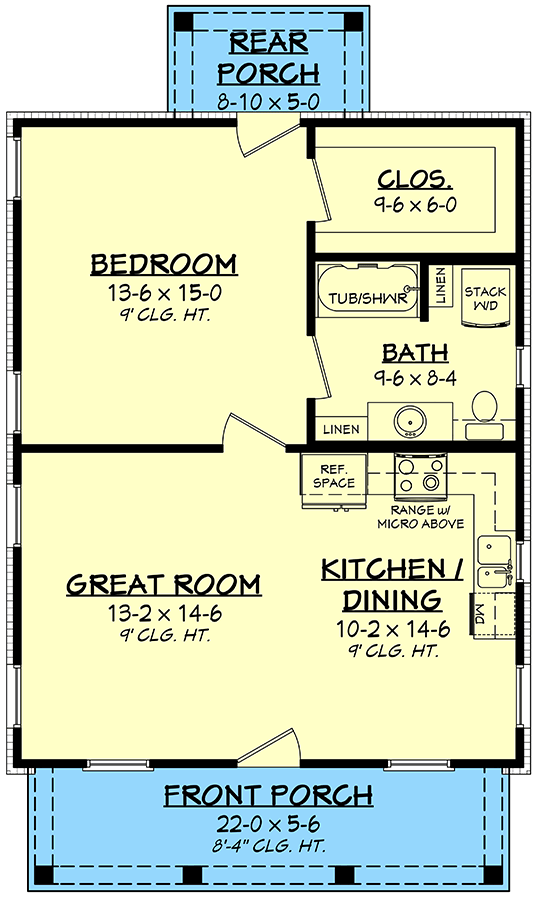

Main Level

Plan 51866HZ: One Bed and Bath Farmhouse-style Cabin - 732 Sq Ft - Floor Plan - Main Level - Cottage, Country, Farmhouse, Vacation

Main Floor - Basement Version

Plan 51866HZ: One Bed and Bath Farmhouse-style Cabin - 732 Sq Ft - Floor Plan - Main Floor - Basement Version - Cottage, Country, Farmhouse, Vacation

Plan Details

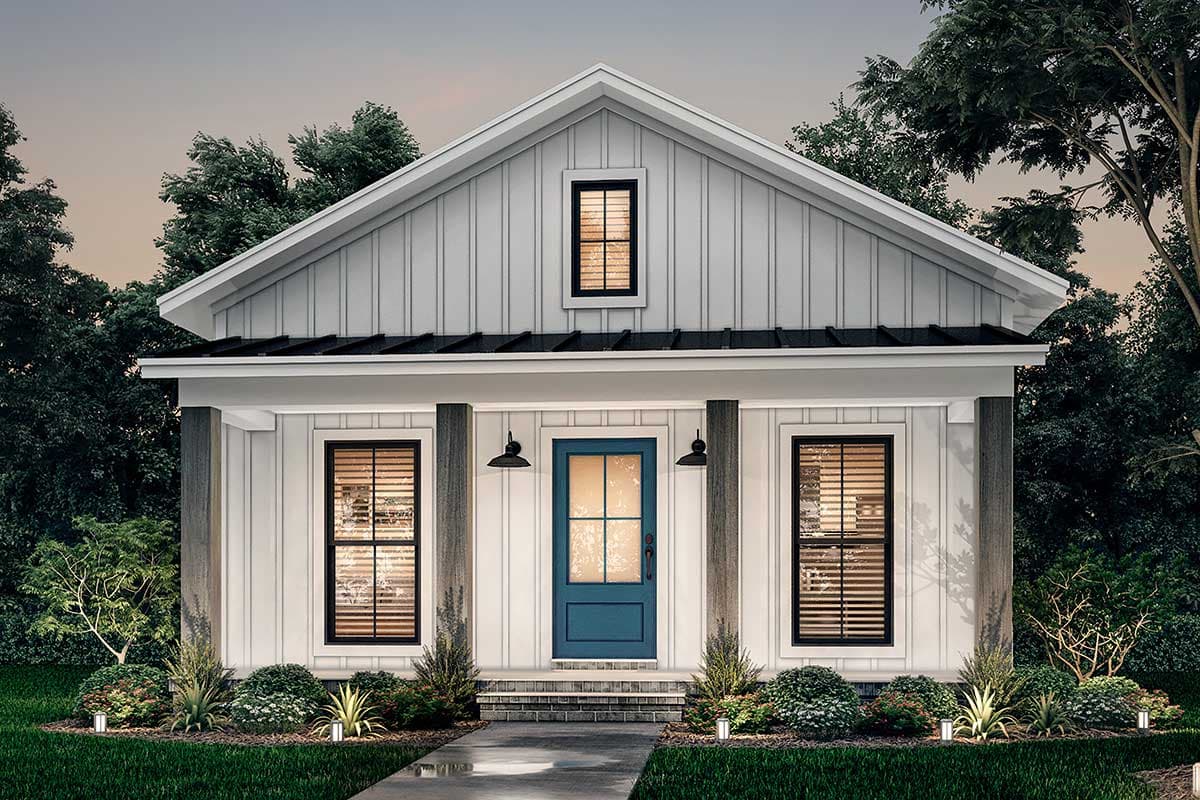

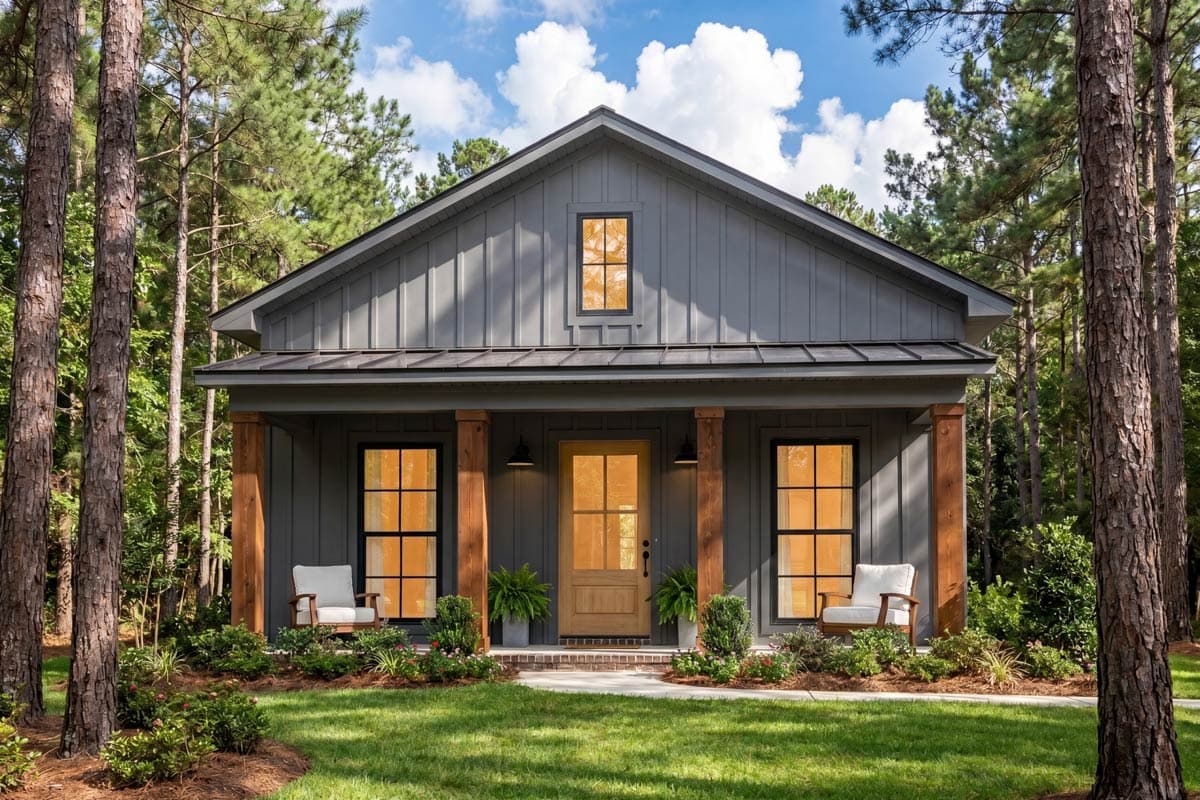

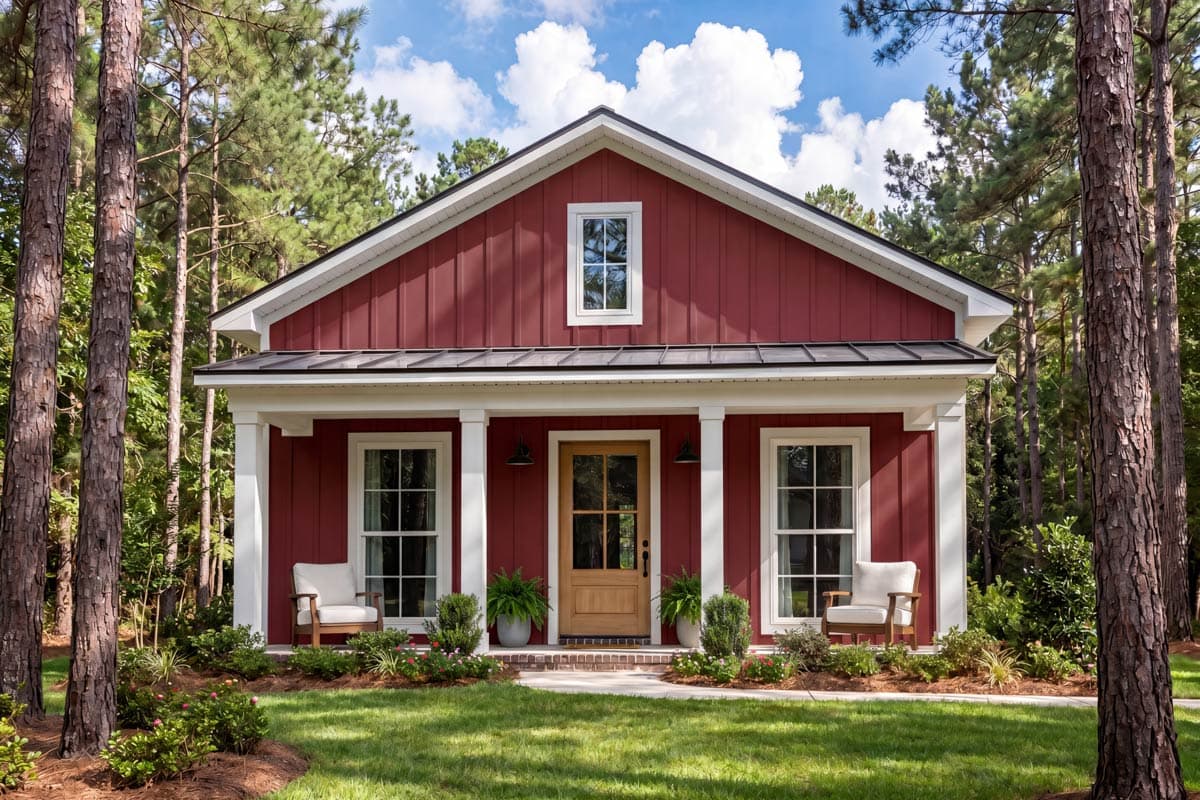

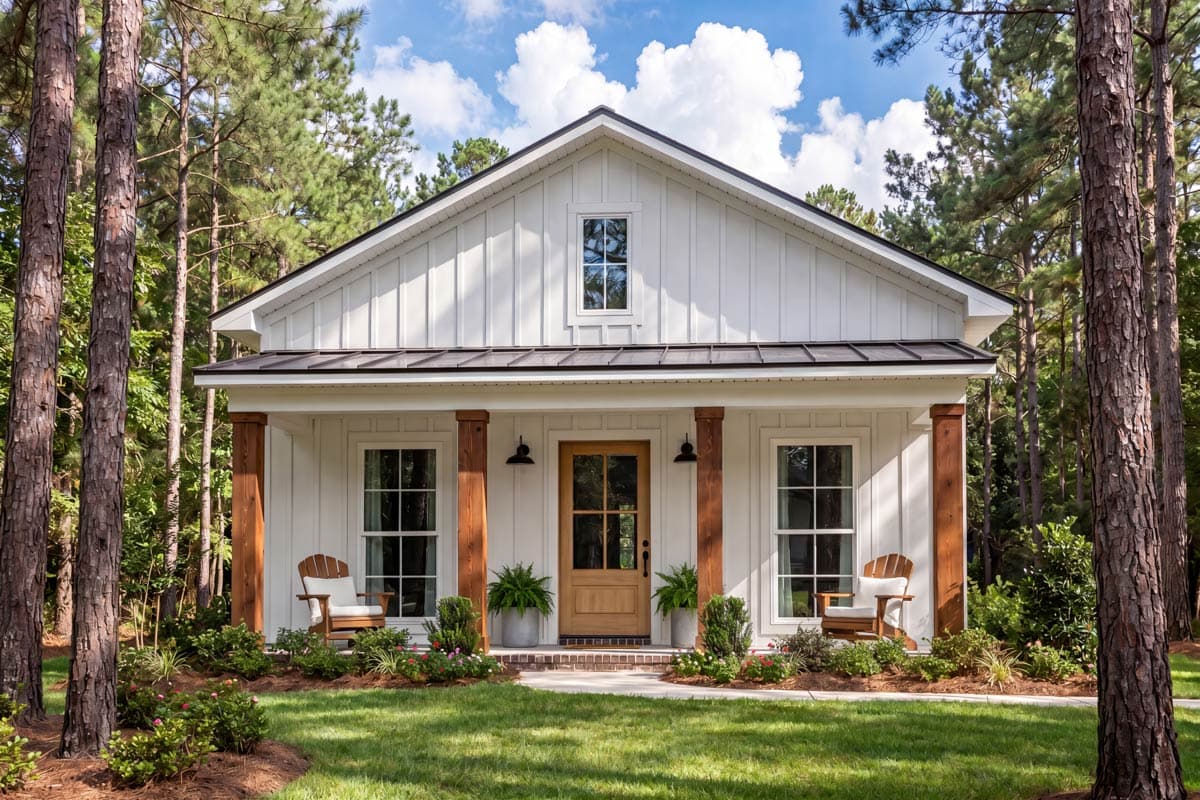

  • This one bed, one bath farmhouse-style cabin has great curb appeal. The exterior has board and batten siding and a front porch with four columns supporting a metal shed roof, above which there is a single decorative window. This home is a great use for a small space.
  • Inside, the kitchen is open to the dining room and the great room with large windows.
  • The bedroom has a walk-in closet and enjoys access to the back porch.
  • Related Plans: Get a slightly larger 2 bedroom version with house plan 51886HZ (960 square feet) and get more room with house plans 51835HZ (1,257 square feet) and 51847HZ (1,070 square feet) or get a larger version with a garage with house plan 51798HZ (1,094 sq. ft.).

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan and details
  • Detailed floor and electrical plans (includes window sizes, ceiling joist directions, plumbing fixture locations, electrical fixture locations etc.)

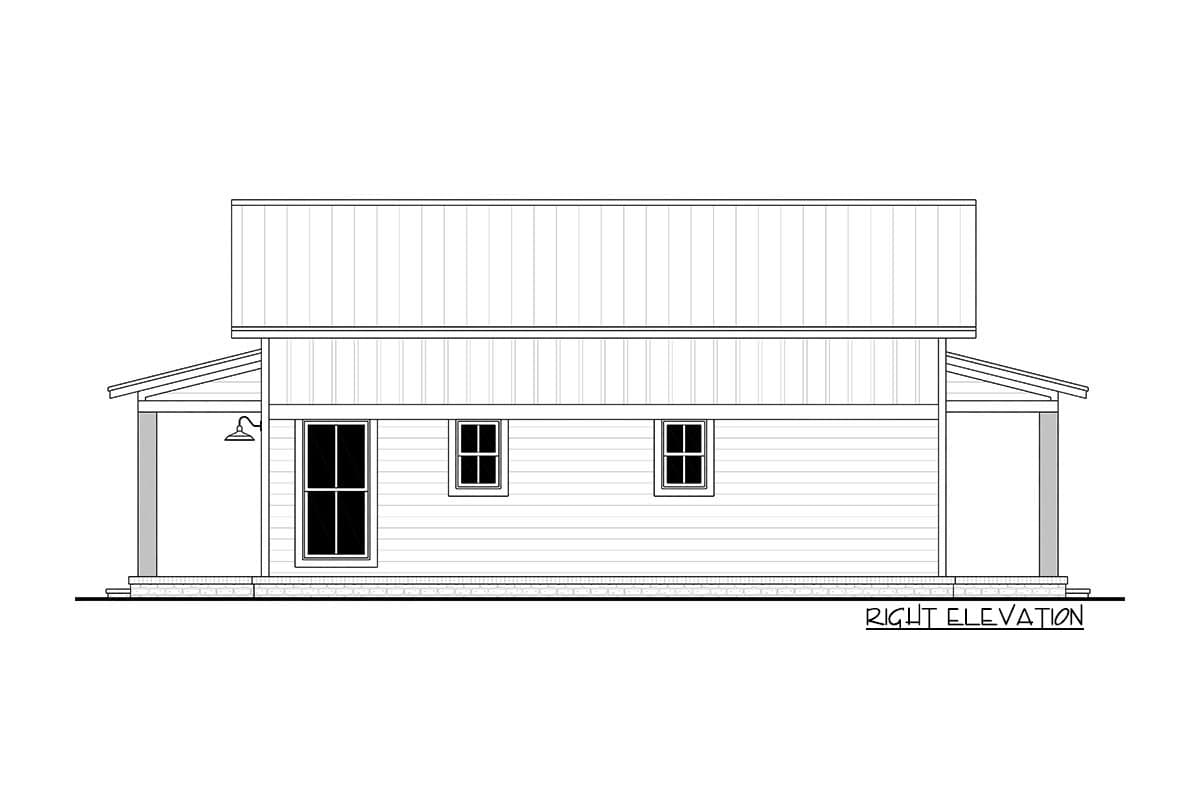

  • Exterior views with wall section and additional notes and details
  • Cross sections & kitchen cabinet views
  • Roof plan and span charts with additional notes
  • N1 Code Information
  • N2 Code Information
  • N3 Code Information
  • N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

732 sq. ft.

1st Floor

732 sq. ft.

Porch, Front

121 sq. ft.

Porch, Rear

44 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

41' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Vacation

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans
