One-Bed Country Cottage with Covered Front Porch - 525 Sq Ft
Heated S.F.
525
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This one-bed country cottage house plan gives you 525 square feet of heated living and makes a great second home, a rental property or an ADU.
  • A 6'6"-deep covered front porch welcomes you inside and gives you a place to enjoy outside.
  • The front of the home is an open vaulted space with a dining area, kitchen and living room.
  • In back, you'll find the bedroom, full bath and stacked washer/dryer.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

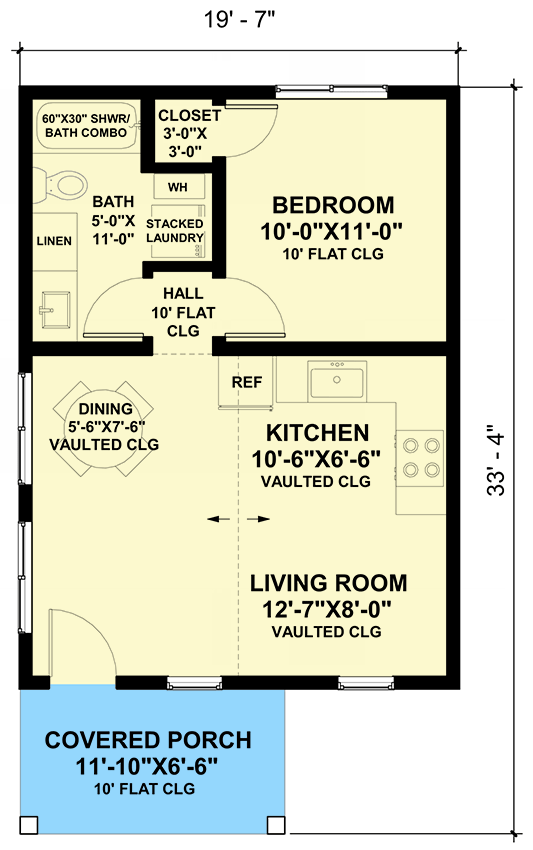

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Mechanicals Plan - Suggested HVAC equipment placement
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

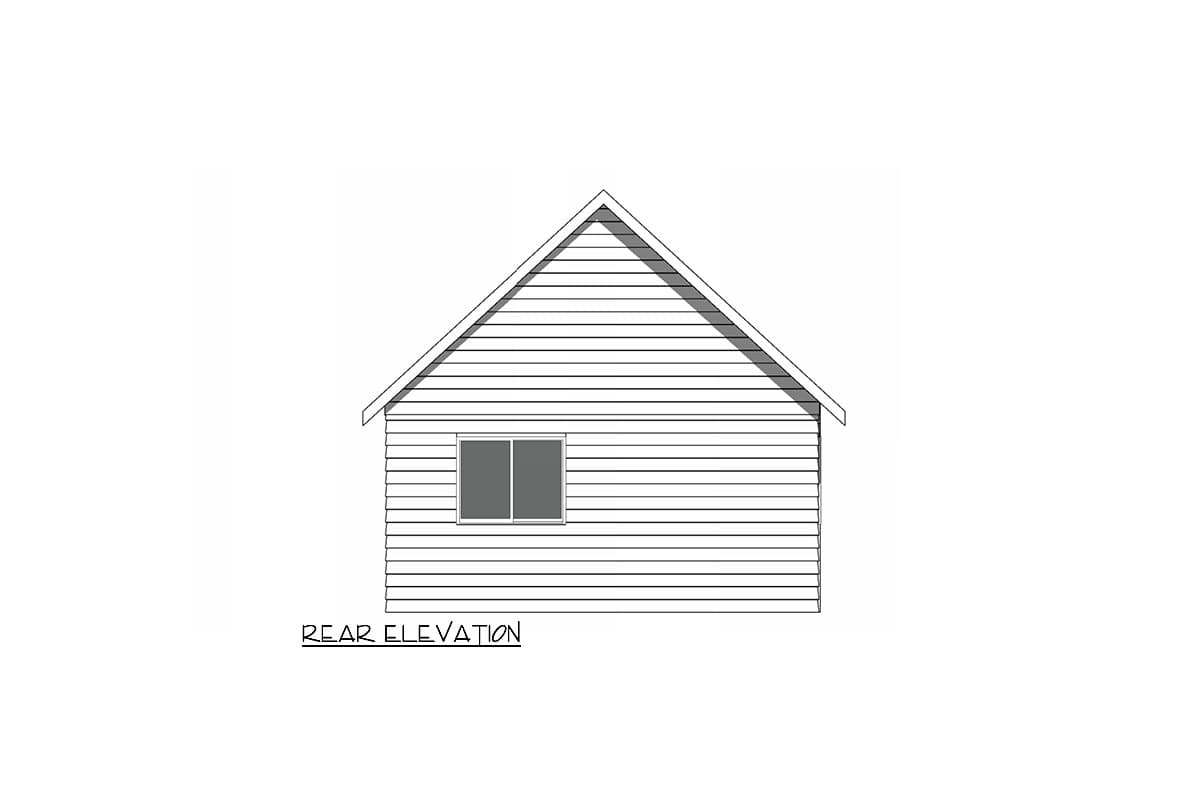

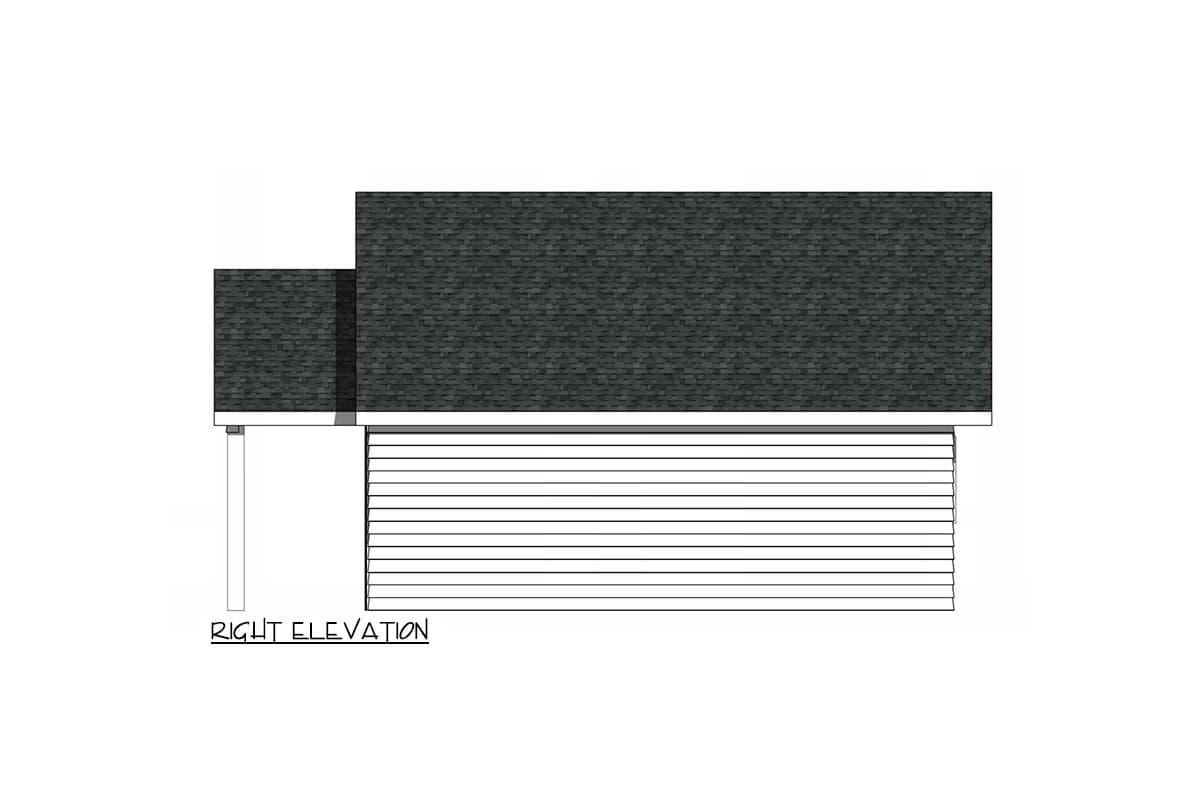

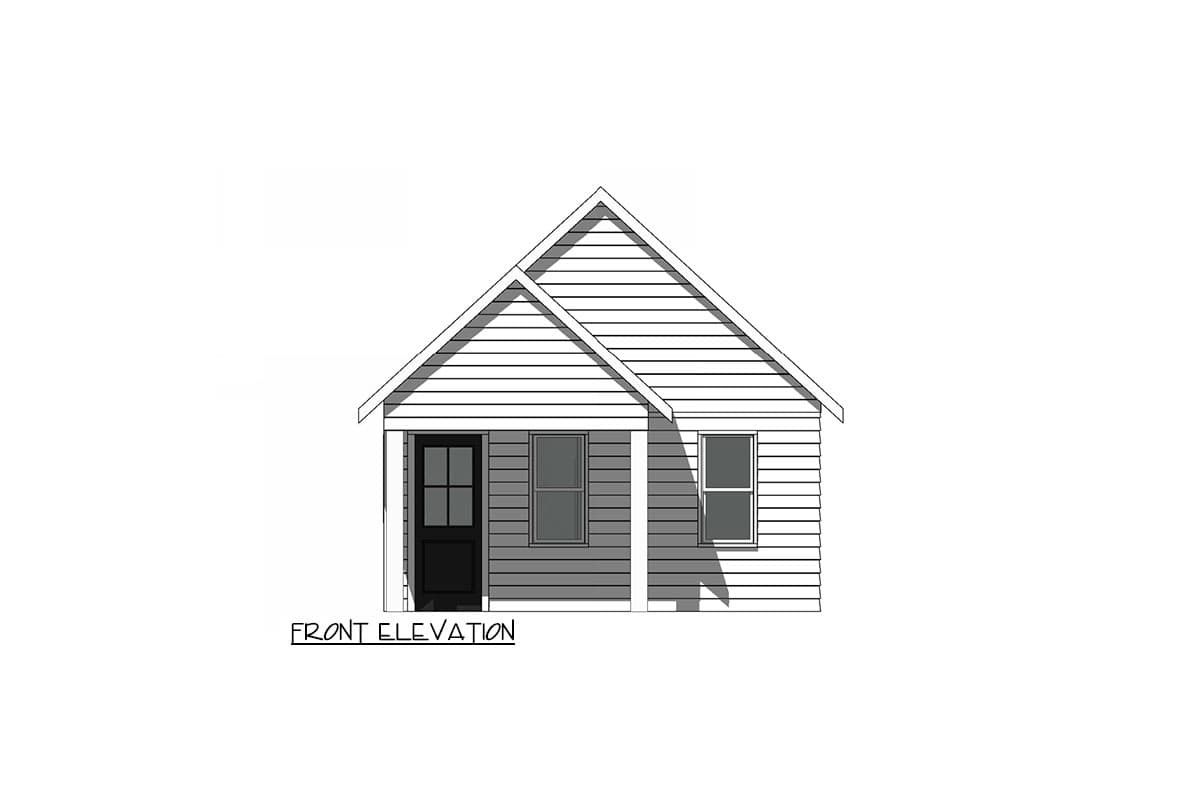

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
