One Bed Tiny House Plan

Plan 69590AM

  • 544

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • This one bedroom cottage house plan jumps on the tiny house plan bandwagon and delivers a delightful storybook-style abode with great curb appeal.
  • Stone and stucco make a lovely combination on the exterior of the home, reminiscent of a timeless European cottage. The welcoming porch leads into the vaulted living room, where a corner fireplace creates an even cozier atmosphere. A handy kitchenette features upper cabinets for ample storage. You could place a dining table by the side windows, allowing outdoor views during meals, or you could use that space for reading and be truly flexible! You'll appreciate the convenient storage pantry that cleverly co-exists with the coat closet.
  • The vaulted bedroom is a peaceful haven and has an oversized shower in the private bath. You may be surprised to find the stacked washer/dryer nicely located near a linen closet.
  • Additional sleeping space may be created by placing a fold-out sofa in the living room.
  • Related Plan: Get an even tinier house plan with 69531AM (300 sq. ft.).

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details

Architectural Style

Plan Collections



One Bed Tiny House Plan

  • 544

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • Digital Study Set $336
  • PDF - single-use $686
  • 5 Sets $836
  • 5 Sets PLUS $886
  • CAD - multi-use $1,372
  • View all purchase option online

About This Plan

  • This one bedroom cottage house plan jumps on the tiny house plan bandwagon and delivers a delightful storybook-style abode with great curb appeal.
  • Stone and stucco make a lovely combination on the exterior of the home, reminiscent of a timeless European cottage. The welcoming porch leads into the vaulted living room, where a corner fireplace creates an even cozier atmosphere. A handy kitchenette features upper cabinets for ample storage. You could place a dining table by the side windows, allowing outdoor views during meals, or you could use that space for reading and be truly flexible! You'll appreciate the convenient storage pantry that cleverly co-exists with the coat closet.
  • The vaulted bedroom is a peaceful haven and has an oversized shower in the private bath. You may be surprised to find the stacked washer/dryer nicely located near a linen closet.
  • Additional sleeping space may be created by placing a fold-out sofa in the living room.
  • Related Plan: Get an even tinier house plan with 69531AM (300 sq. ft.).

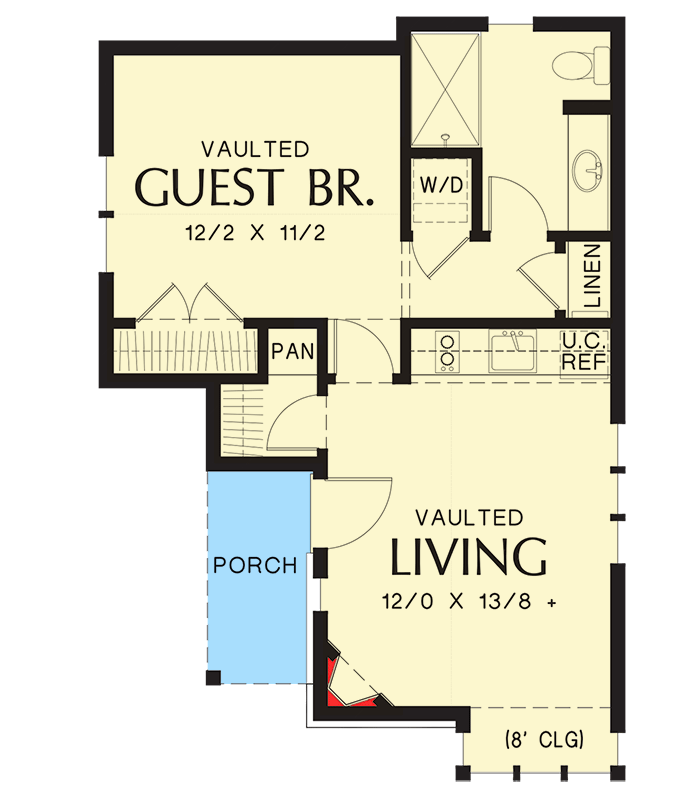

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 544 sq. ft.
  • 1st Floor: 544 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Post/Beam
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 32' 0"
  • Max ridge height: 19' 9"

Roof

  • Framing Type: Truss

Architectural Style

  • Cottage
  • European

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Tiny House
