Plan 22193SL

One-Bedroom Carriage House Plan with 2-Car Garage

Heated S.F.
511
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 22193SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22193SL

M-F 9am-5pm EST |

1-203-761-8500

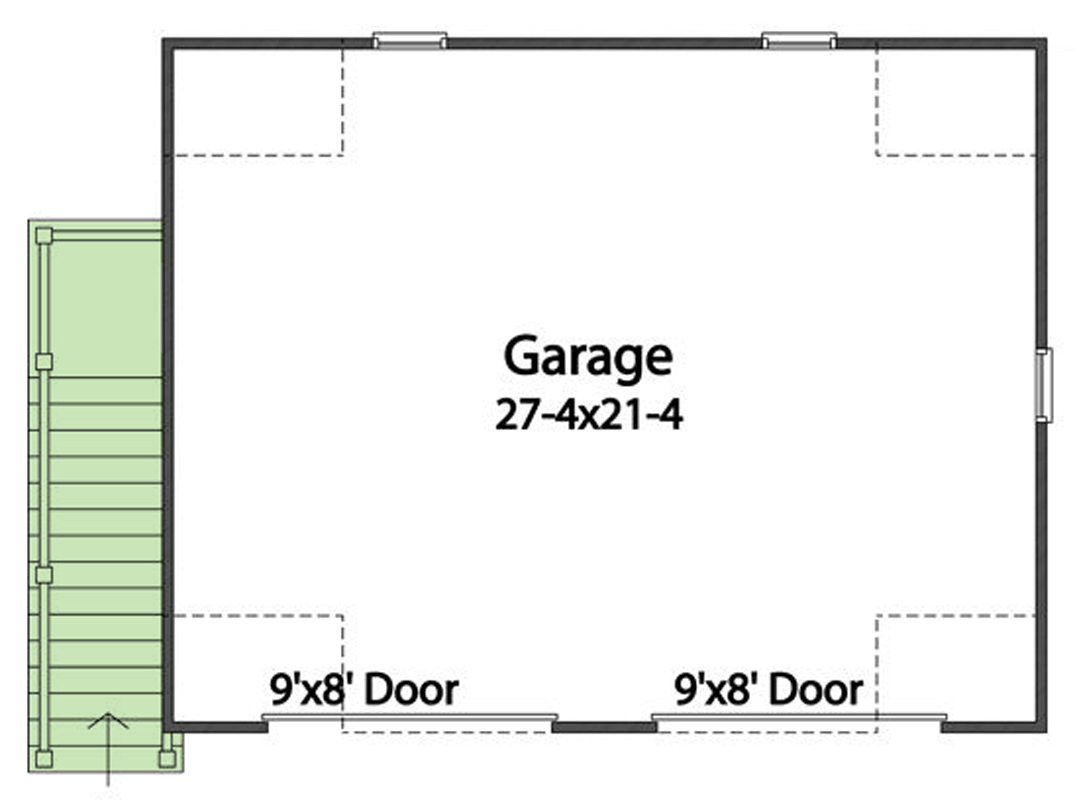

Main Level

Plan 22193SL: One-Bedroom Carriage House Plan with 2-Car Garage - Floor Plan - Main Level - Craftsman

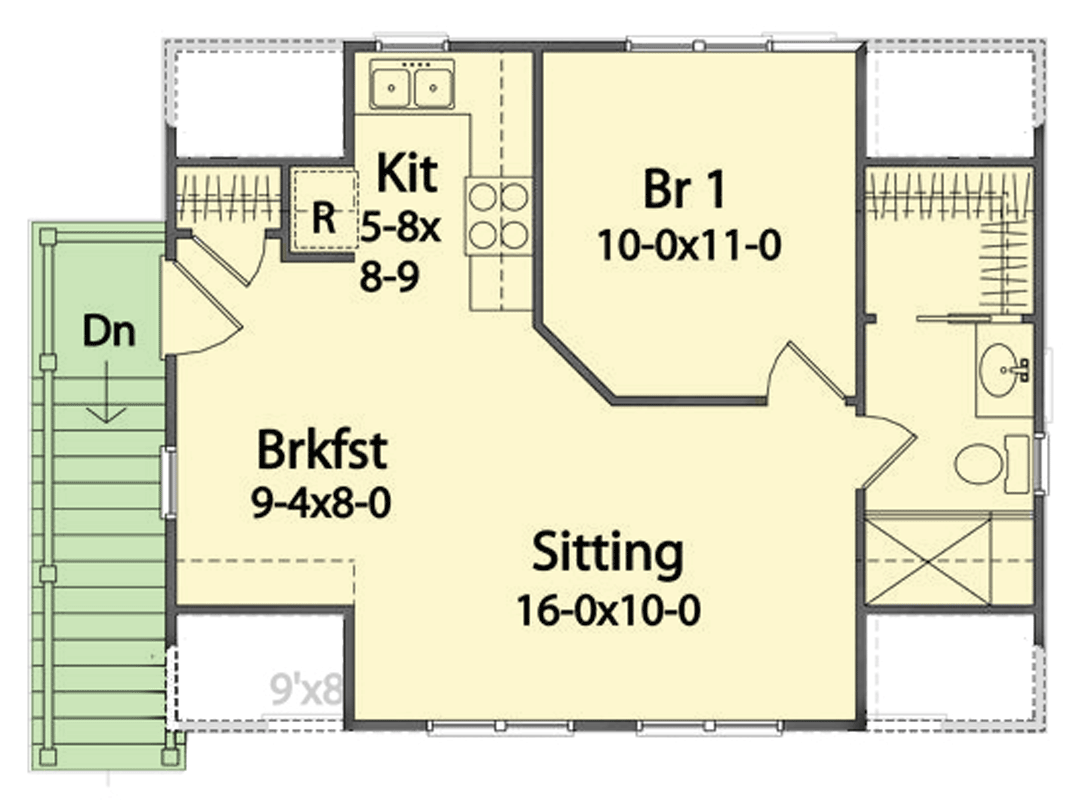

2nd Floor

Plan 22193SL: One-Bedroom Carriage House Plan with 2-Car Garage - Floor Plan - 2nd Floor - Craftsman

Plan Details

  • This charming carriage house plan offers 511 finished sq ft with 1 bedroom, 1 bath, and a convenient 2-car garage, featuring classic siding and a steep gable roof.
  • Access to the residential unit is provided by an exterior staircase, leading to a private entrance on the second floor directly above the garage.
  • The 511 sq ft second floor is dedicated to efficient living, encompassing the main residential spaces, ideal as a guest suite or compact private residence.
  • A single bedroom and full bathroom are thoughtfully arranged on the upper level, offering a private and self-contained living arrangement.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

511 sq. ft.

2nd Floor

511 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

22' 0"

Max Ridge Height

25' 6"

Garage

Type

Standard

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Breakfast Nook

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

511 sq. ft.

2nd Floor

511 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

22' 0"

Max Ridge Height

25' 6"

Garage

Type

Standard

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Breakfast Nook

Master Suite - Upstairs
