Plan 52530WM

One Bedroom Cottage House Plan with Efficient Single Level Layout

Heated S.F.
462
Beds
1
Baths
1
Stories
1
Tour

Floor Plan

Plan 52530WM

Main Level
Main Level

Plan 52530WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

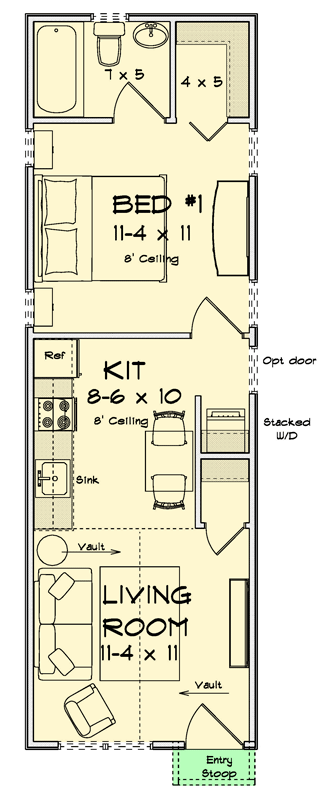

Plan 52530WM: One Bedroom Cottage House Plan with Efficient Single Level Layout - Floor Plan - Main Level - Cottage, Ranch

Plan Details

  • Offering 462 finished square feet, this 1-bedroom, 1-bath cottage house plan features a charming ranch-style exterior with shingle siding and a gabled entry.
  • A welcoming front stoop leads directly into an efficient open-concept layout designed for simplified living and maximum utility.
  • The heart of the home seamlessly blends the living and kitchen areas, utilizing large windows to create a bright and airy atmosphere within the compact footprint.
  • Tucked toward the rear for privacy, the primary bedroom suite provides a quiet retreat with easy access to the full bathroom and convenient main-level laundry.
  • A quaint covered entry porch adds curb appeal while providing a sheltered transition from the outdoors to the interior living space.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

462 sq. ft.

1st Floor

462 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

12' 0"

Depth

38' 6"

Max Ridge Height

12' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Ranch

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

462 sq. ft.

1st Floor

462 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

12' 0"

Depth

38' 6"

Max Ridge Height

12' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Ranch

Special Features

Laundry - Main Level

Master Suite - 1st Floor
