Plan 51846HZ
One Bedroom Guest House Plan with Dedicated Storage Bay
Heated S.F.
522
Beds
1
Baths
1
Stories
2
Cars
2-3
Flyer
What's Included
Plan Details
  • The versatile exterior of this one-bedroom guest house plan makes it the perfect addition to any home or lot.
  • A 2-car garage occupies the right side of the main level, next to a dedicated storage bay with a covered front porch.
  • The 1-bedroom apartment upstairs can serve a variety of purposes, including an in-law suite, income property, or a guest house.
  • The sizable living room offers rearward views, and the square kitchen includes L-shaped cabinets and counters. A stackable laundry unit sits behind French doors and is accessible from the kitchen.
What's Included
This house plan has 10 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation and roof plan

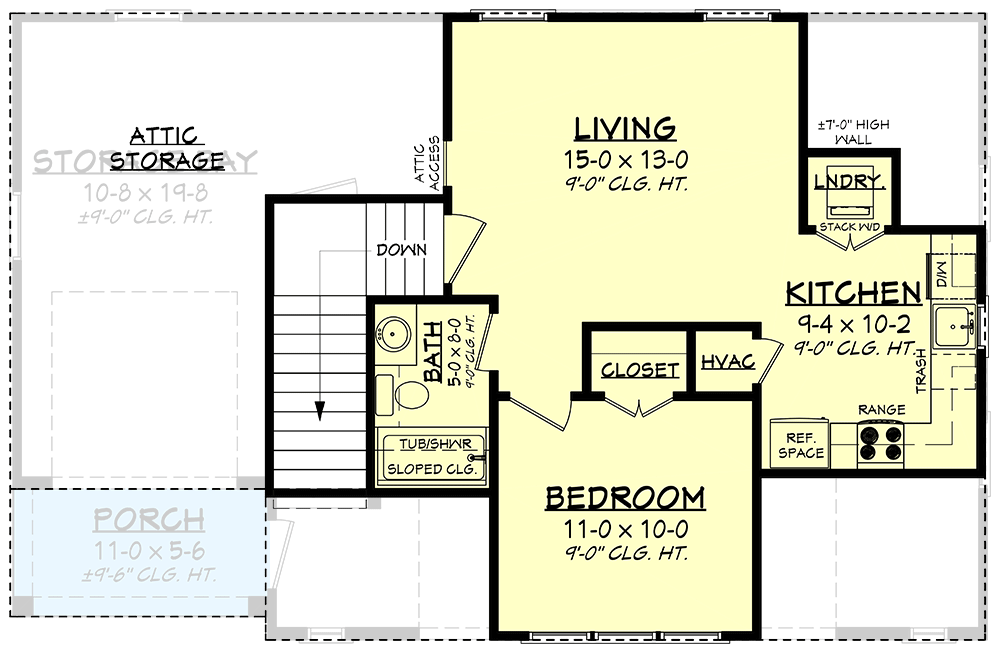

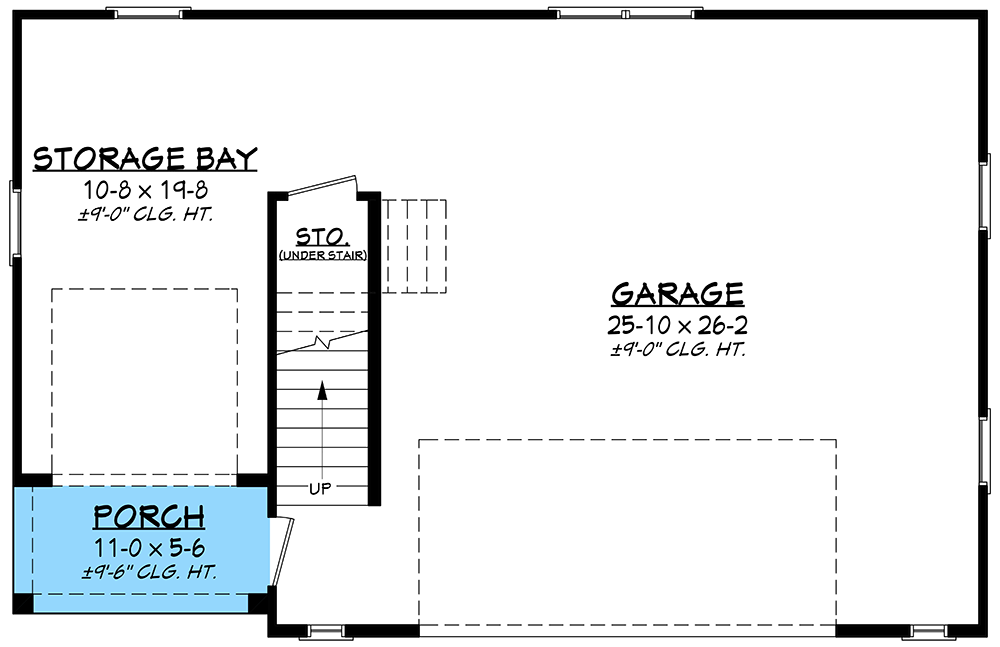

Page 3  Detailed first and second floor plans (includes window sizes, ceiling joist directions and plumbing fixture locations, etc.)

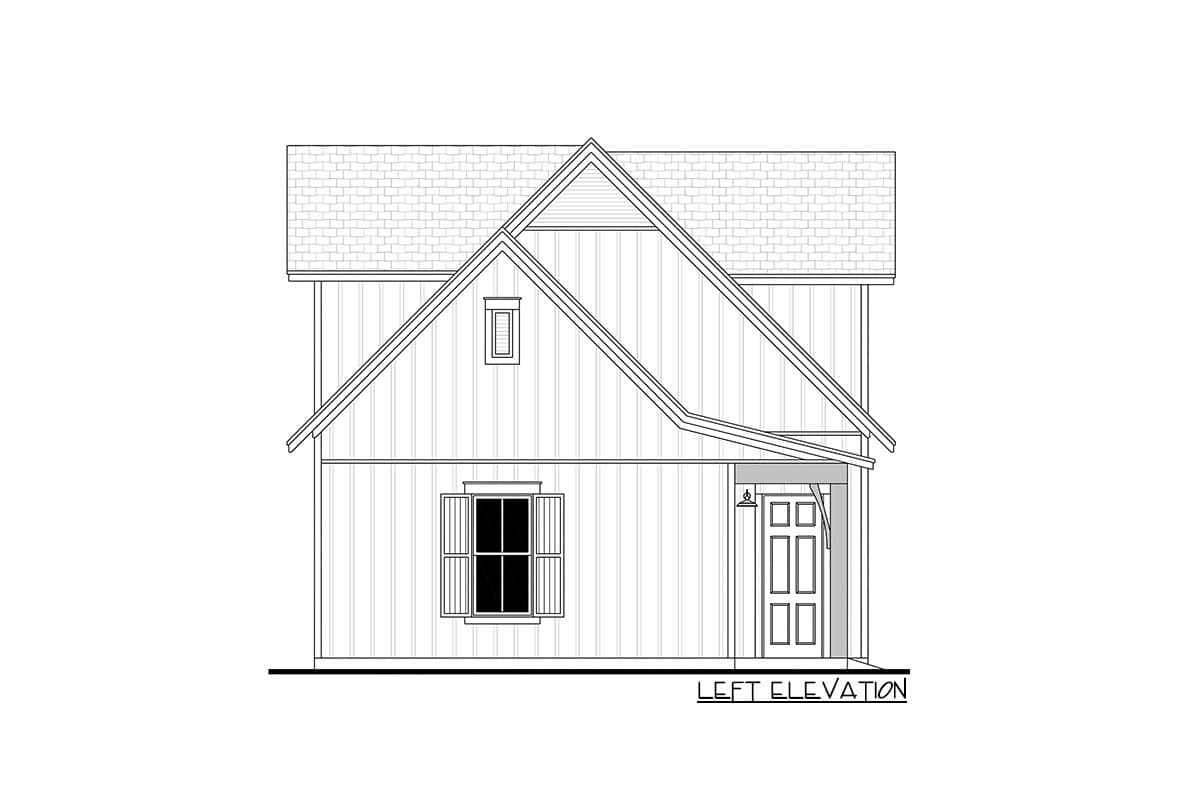

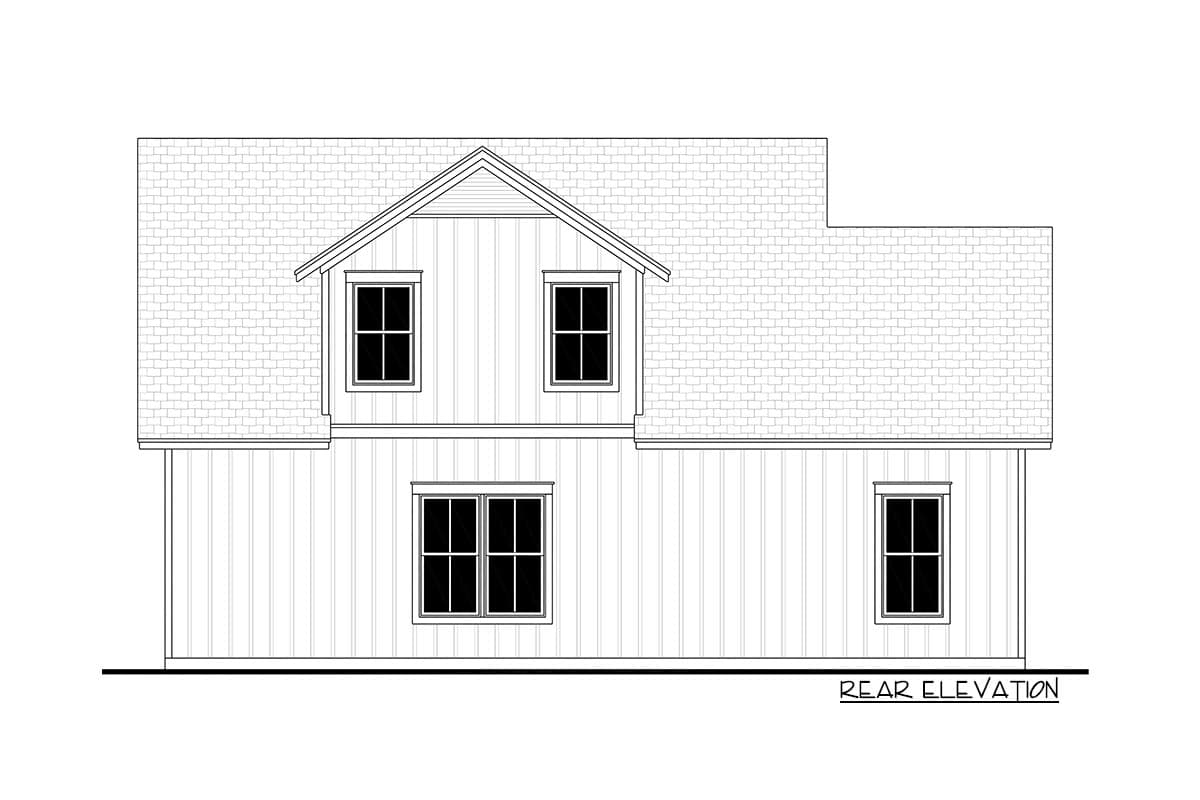

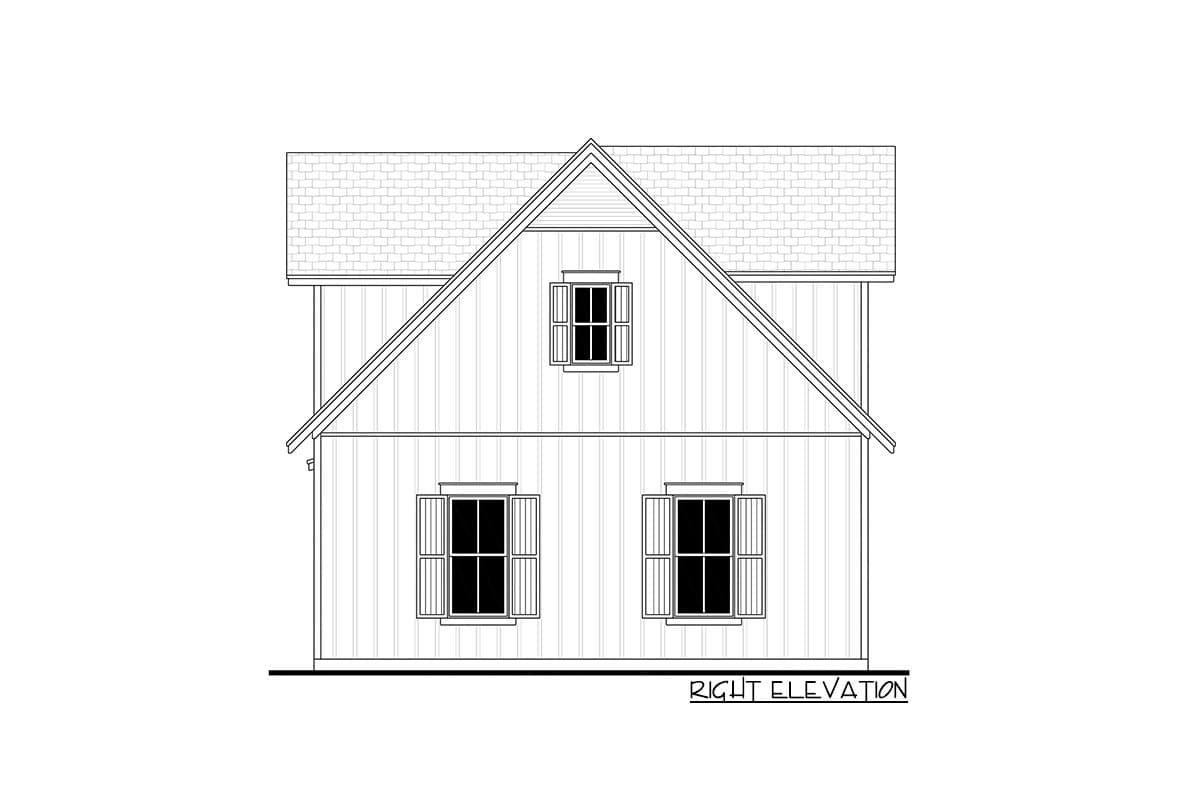

Page 4  Exterior views with additional details
Page 5  Cross sections with cabinet views
Page 6  Electrical plans
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
