Plan 777032MTL

One Bedroom Rustic Home Plan Under 900 Square Feet with 50'-Wide Front Porch

Heated S.F.
885
Beds
1
Baths
1
Stories
1
Cars
2

Floor Plan

Plan 777032MTL

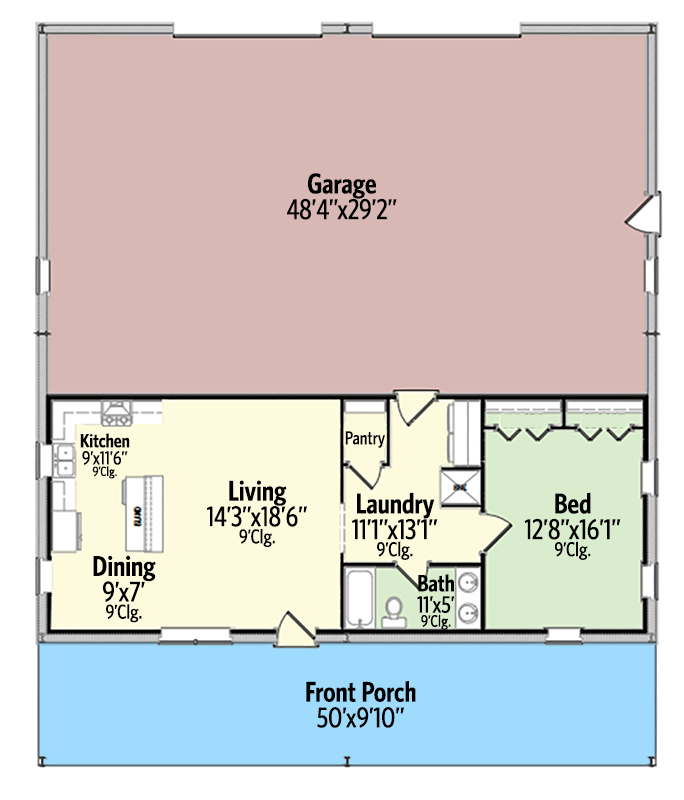

Main Level
Main Level
Metal Wall Framing Detail
Metal Wall Framing Detail

Plan 777032MTL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 777032MTL: One Bedroom Rustic Home Plan Under 900 Square Feet with 50'-Wide Front Porch - Floor Plan - Main Level - Barndominium, Country, Ranch, Rustic

Metal Wall Framing Detail

Plan 777032MTL: One Bedroom Rustic Home Plan Under 900 Square Feet with 50'-Wide Front Porch - Floor Plan - Metal Wall Framing Detail - Barndominium, Country, Ranch, Rustic

Plan Details

  • A shed roof extends over the 50'-wide front porch on this one-bedroom 885 square foot house plan. Two garage bays on back get you access to the 1,410 square foot garage.
  • Half of the floor plan is open concept with a corner kitchen, dining and living room. A double sink is centered over windows.
  • Laundry, bathroom and pantry provide separation between the open concept area and the bedroom.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

885 sq. ft.

1st Floor

885 sq. ft.

Porch, Front

500 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

60' 0"

Max Ridge Height

14' 0"

Garage

Type

Attached

Area

1410 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

2 on 12

Framing Type

Stick Or Truss

Architectural Style

Barndominium

Country

Ranch

Rustic

Special Features

Laundry - Main Level

Master Suite - 1st Floor
