Plan 777040MTL

One-Level 1600 Square Foot Barndominium with Drive-Through Garage

Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
1- 2

Floor Plan

Plan 777040MTL

Main Level
Main Level
Metal Wall Framing Detail
Metal Wall Framing Detail

Plan 777040MTL

M-F 9am-5pm EST |

1-203-761-8500

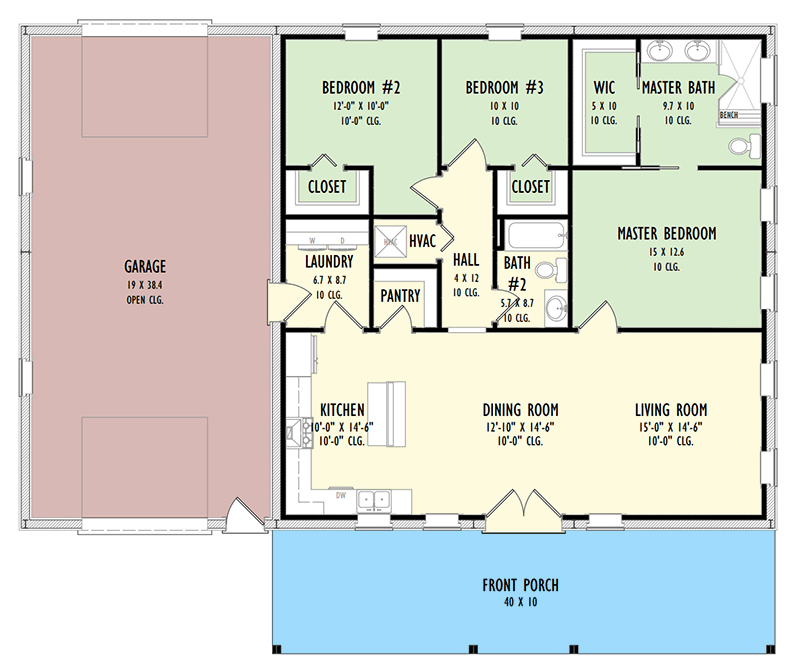

Main Level

Plan 777040MTL: One-Level 1600 Square Foot Barndominium with Drive-Through Garage - Floor Plan - Main Level - Barndominium, Cabin, Country, Ranch, Rustic

Metal Wall Framing Detail

Plan 777040MTL: One-Level 1600 Square Foot Barndominium with Drive-Through Garage - Floor Plan - Metal Wall Framing Detail - Barndominium, Cabin, Country, Ranch, Rustic

Plan Details

  • Vertical siding mimics the ribbed metal roof that caps this one-level Barndominium home plan.
  • A 40'-wide by 10'-deep porch extends from the front of the home to properly welcome guests and leads you into an open-concept living area that combines the kitchen, living, and dining rooms.
  • The drive-thru garage (19' by 38'4") provides loads of space for lawn supplies, a workshop, or storage.
  • The walk-in pantry and ample closet space helps with storage, while the laundry room doubles as a mud room with its location near the garage.
  • The bedrooms line the rear of the design with the largest room reserved for the homeowner and accompanied by a 4-fixture bathroom and walk-in closet.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

400 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

12' 0"

Garage

Type

Attached

Area

800 sq. ft.

Count

1 or 2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick Or Truss

Architectural Style

Barndominium

Cabin

Country

Ranch

Rustic

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

400 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

12' 0"

Garage

Type

Attached

Area

800 sq. ft.

Count

1 or 2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Stick Or Truss

Architectural Style

Barndominium

Cabin

Country

Ranch

Rustic

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Workshop
