Plan 510219WDY
One Level Acadian Home Plan with 4 or 5 Bedrooms - 3342 Sq Ft
Heated S.F.
3,342
Beds
4-5
Baths
4.5 - 5.5
Stories
1
Cars
3
Floor Plan

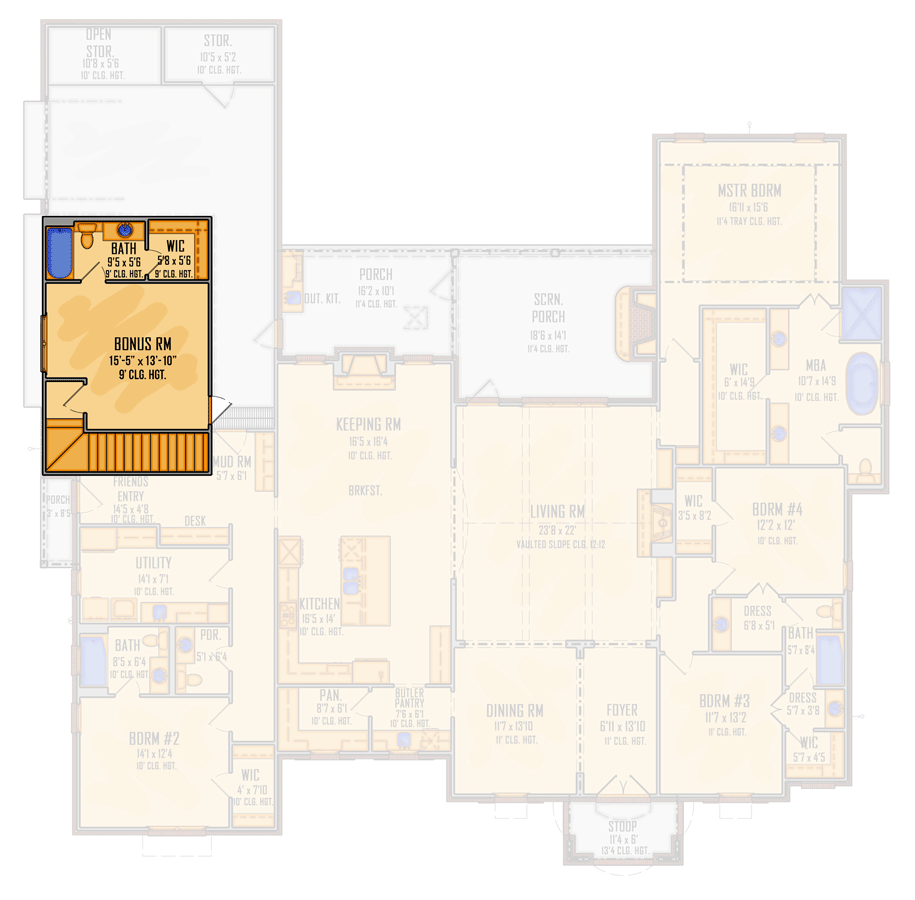

Optionally Finished Bonus Room
Reverse Floor Plan
One Level Acadian Home Plan with 4 or 5 Bedrooms - 3342 Sq Ft - 510219WDY floor plan - Optionally Finished Bonus Room
Plan Details
  • Steep pitches offer a dramatic roofline on the exterior of this one-level Acadian home plan, while flared eaves add a whimsical touch.
  • Step into the foyer to find a formal dining room to the left. The living room highlights a vaulted ceiling centered above a warm fireplace and provides views onto a screened porch.
  • The kitchen opens to a combined breakfast area and keeping room, and hosts an island and butler's pantry that leads to a second pantry.
  • The master bedroom extends from the rear of the home and features a tray ceiling, deluxe ensuite, and a walk-in closet. Three secondary bedrooms are sprinkled throughout the home; two share a Jack-and-Jill bath, and one includes a full bath.
  • Dedicated storage space helps declutter the 3-car garage and a mudroom just inside serves as a catchall for personal items. Utilize the secluded, 350 sq ft bonus room upstairs as a guest suite, home office, or play room.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One Level Acadian Home Plan with 4 or 5 Bedrooms - 3342 Sq Ft

  • 3,342

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

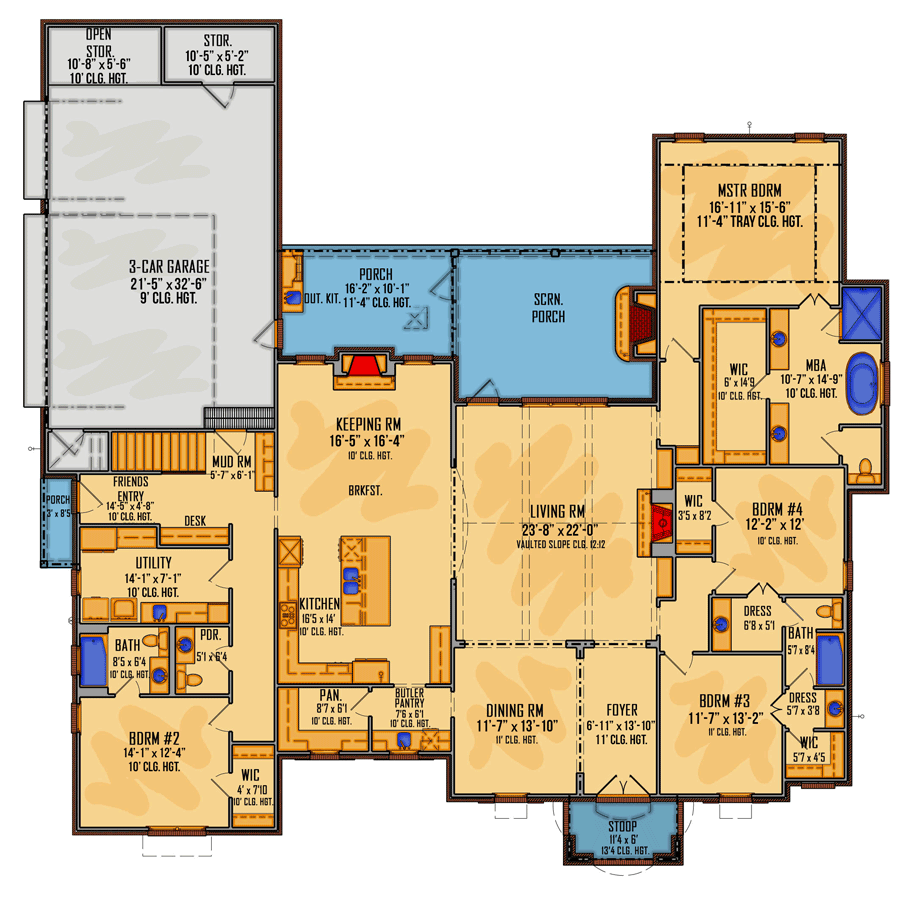

  • Main Level

  • Optionally Finished Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 3,342 sq. ft.
  • 1st Floor: 3,342 sq. ft.

Dimensions

  • Width: 83' 3"
  • Depth: 80' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 866 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
