Plan 135193GRA
One-Level Country Craftsman Home Plan with Split-Bed Layout
Heated S.F.
2,467
Beds
4-5
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

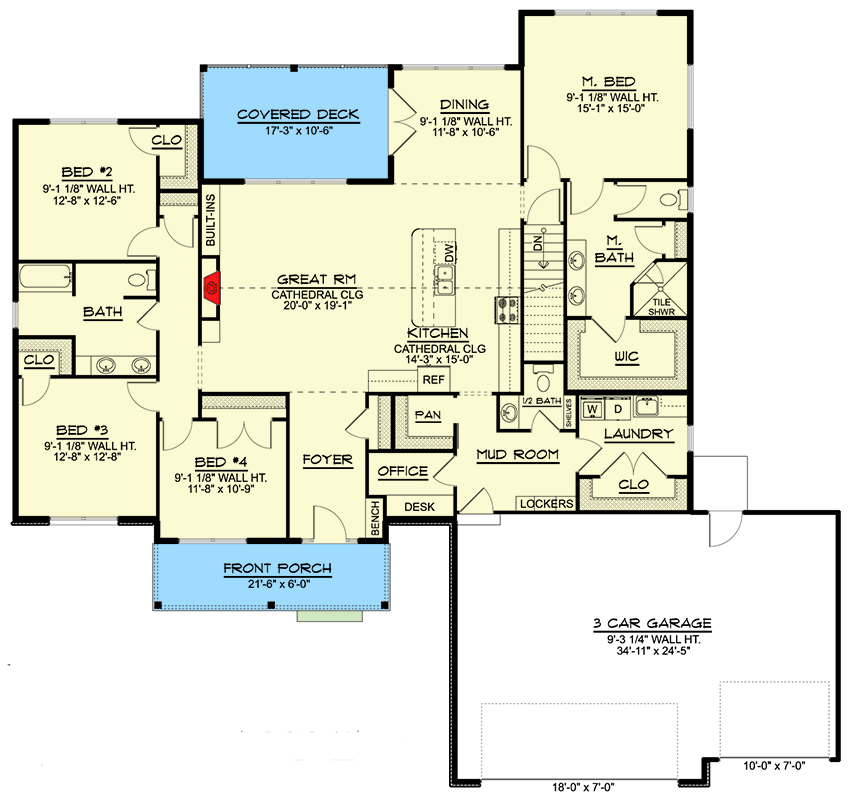

One-Level Country Craftsman Home Plan with Split-Bed Layout - 135193GRA floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

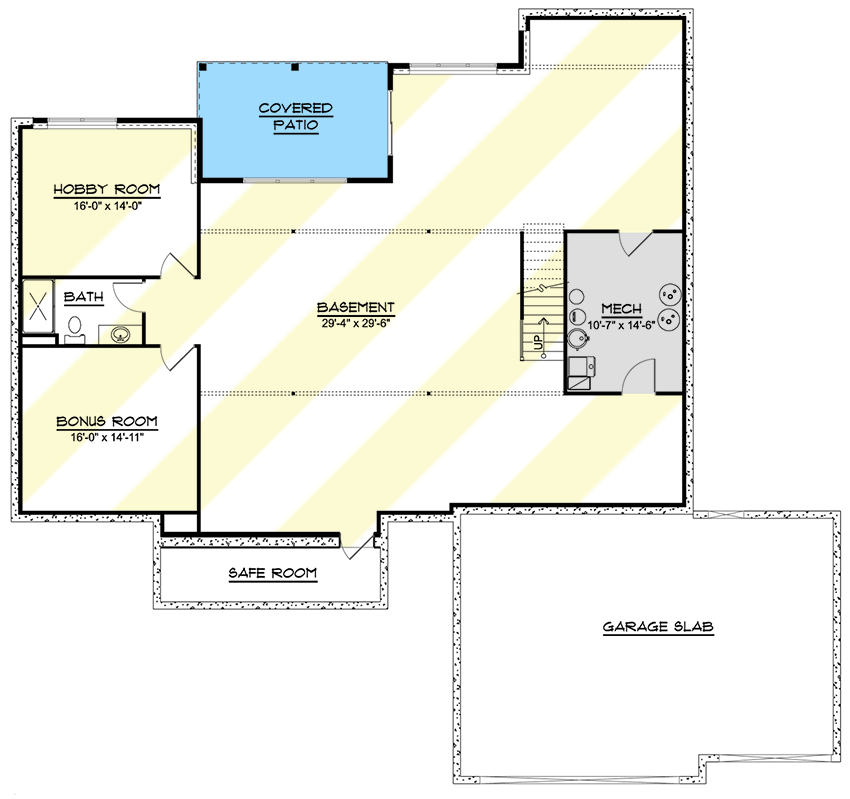

One-Level Country Craftsman Home Plan with Split-Bed Layout - 135193GRA floor plan - Optional Lower Level
Plan Details
  • Enjoy one-level living in this Country Craftsman home plan on a walkout basement, complete with a charming front porch and intuitive interior design.
  • A vaulted ceiling rises above the combined great room and kitchen, centered atop a warm fireplace and kitchen island. The adjoining dining room provides a pair of sliding doors that lead to the perfect grilling porch.
  • The master bedroom's location offers the homeowner privacy and includes a 4-fixture bathroom with a walk-in closet that doubles as a safe room.
  • Three bedrooms line the left side of the design, along with a compartmentalized hall bath.
  • Enter from the 3-car garage (18' by 7' and 10' by 7' overhead garage doors) to find a mudroom with built-in lockers and a powder bath. A home office and laundry room sit on either side of the garage entry.
  • The basement gives you over 2,400 square feet of expansion space including a potential fifth (and even a sixth) bedroom, room for mechanicals and access to the patio.
  • Related Plan: Eliminate the basement with house plan 135062GRA.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
