One-Level Country Home Plan with Vaulted Living Space
Heated S.F.
1,664
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • Centered between two gabled peaks sits an inviting front porch that welcomes you into this one-level Country home plan.

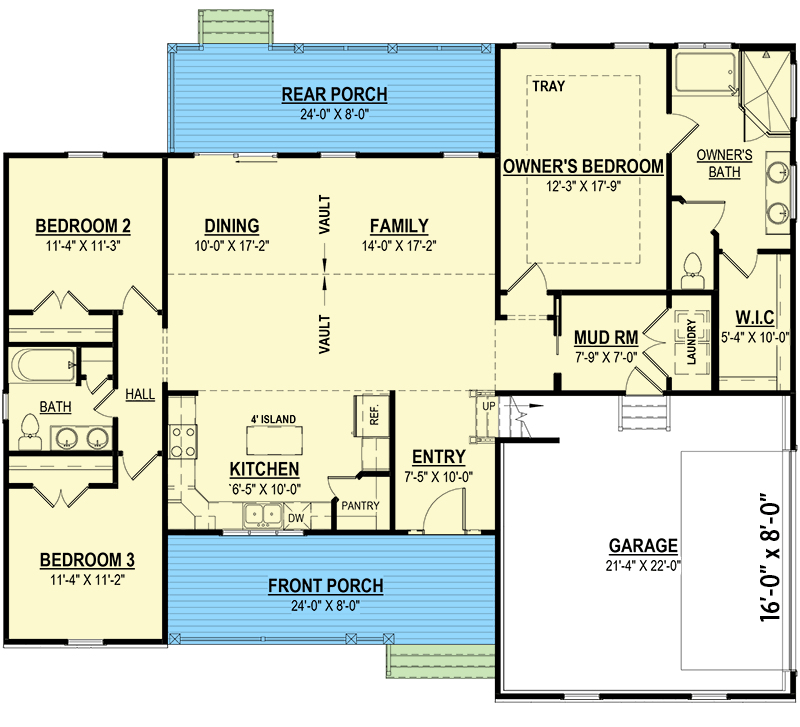

  • The rectangular kitchen overlooks the 8'-deep porch and presents a prep island and corner pantry, while the open design allows you to move easily into the vaulted dining / family room.
  • Tucked behind the double garage, you will find the owner's bedroom with its own foyer, tray ceiling, and 5-fixture bathroom with a toilet room and walk-in closet.
  • Bedrooms 2 and 3 consume the left side of the home and are separated by a 4-fixture bathroom with a linen closet.

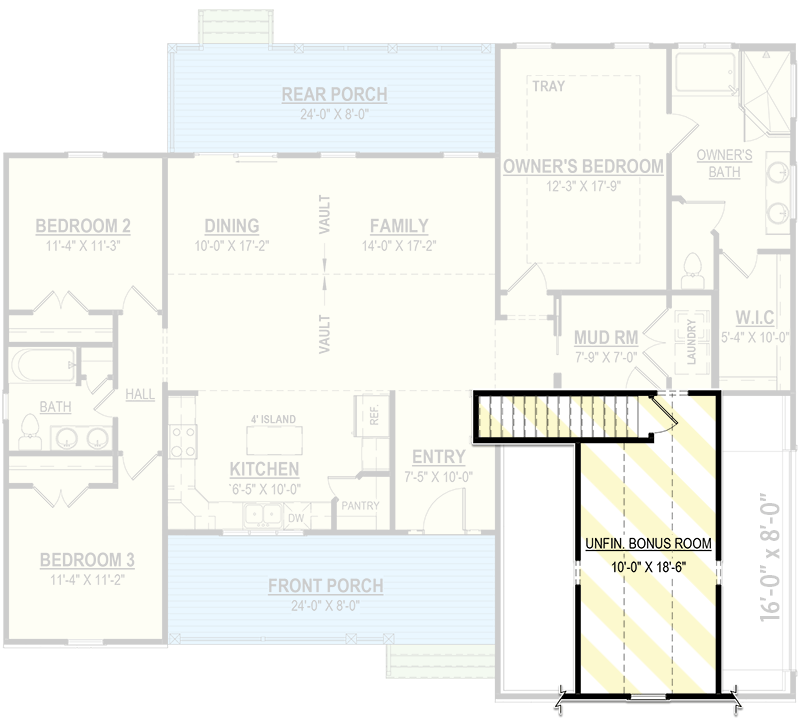

  • Step inside from the garage to find a mudroom with access to the laundry closet and a pocket-door leading to the heart of the home. A bonus room above the garage provides space for future expansion.
  • Related Plans: Get an alternate exterior with house plans 83655CRW, 83654CRW and 83651CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

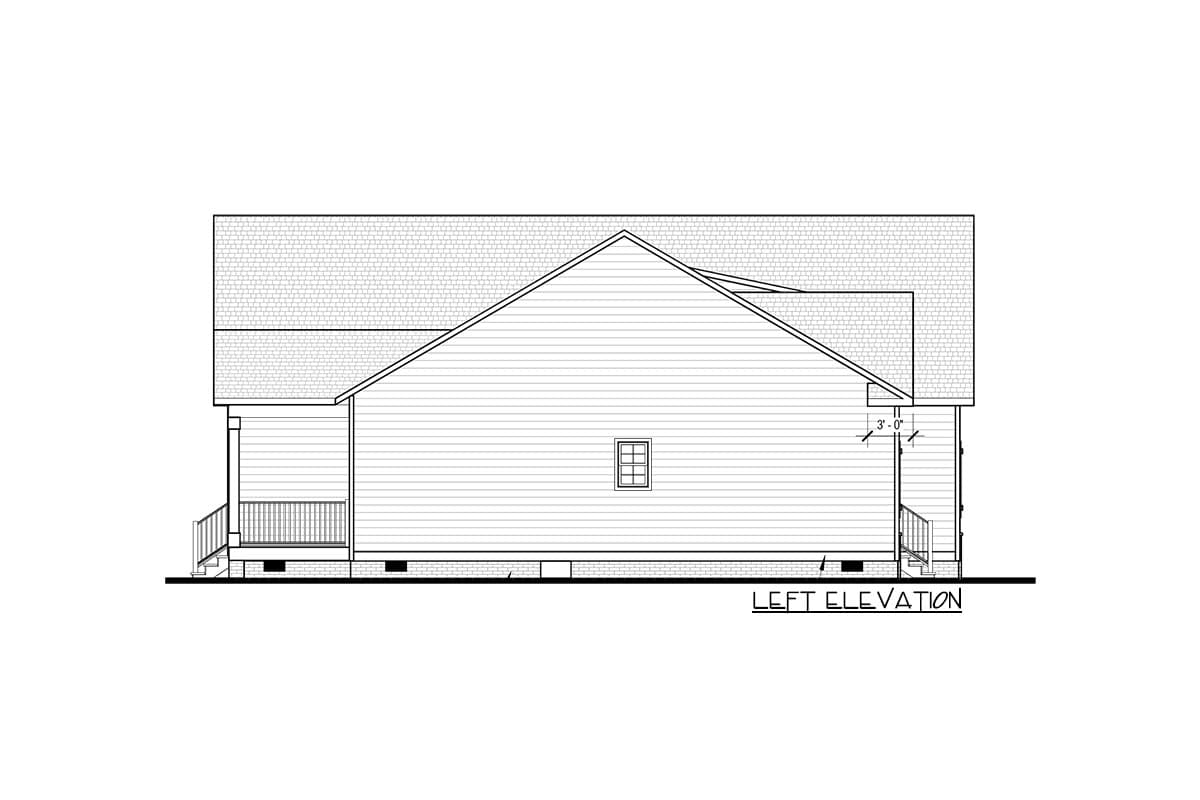

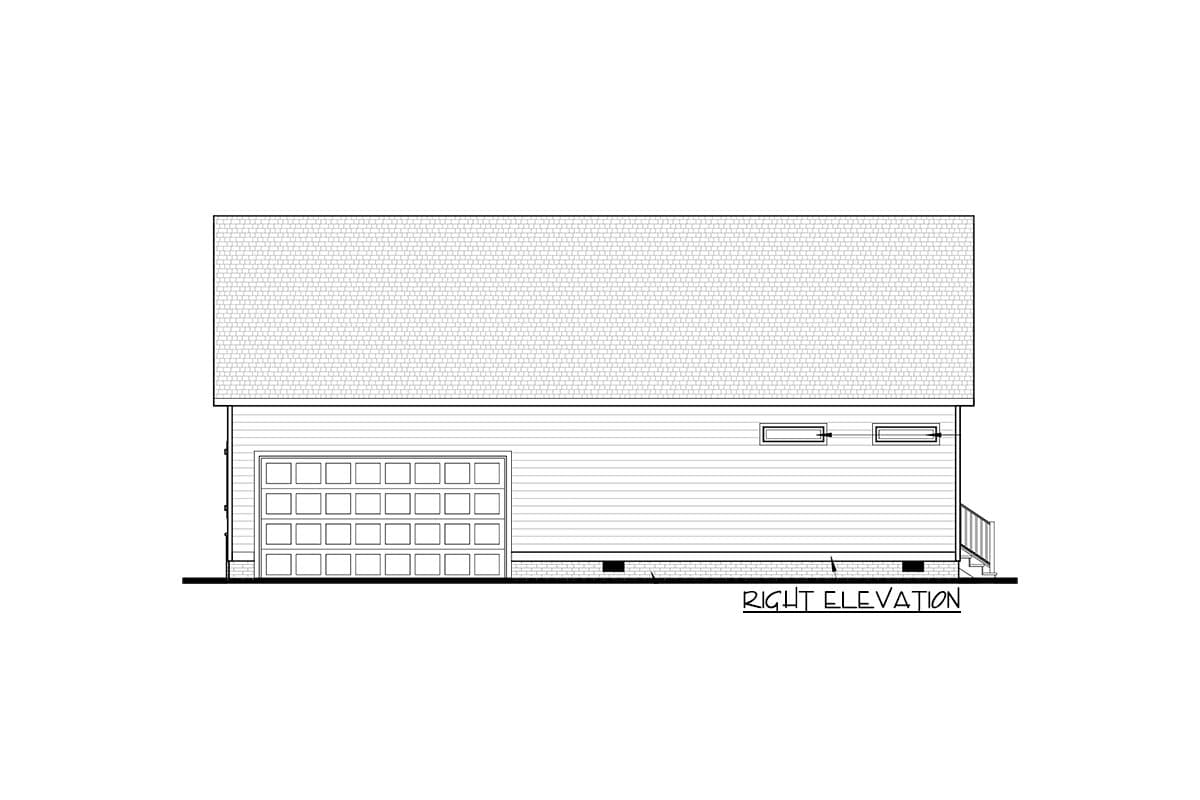

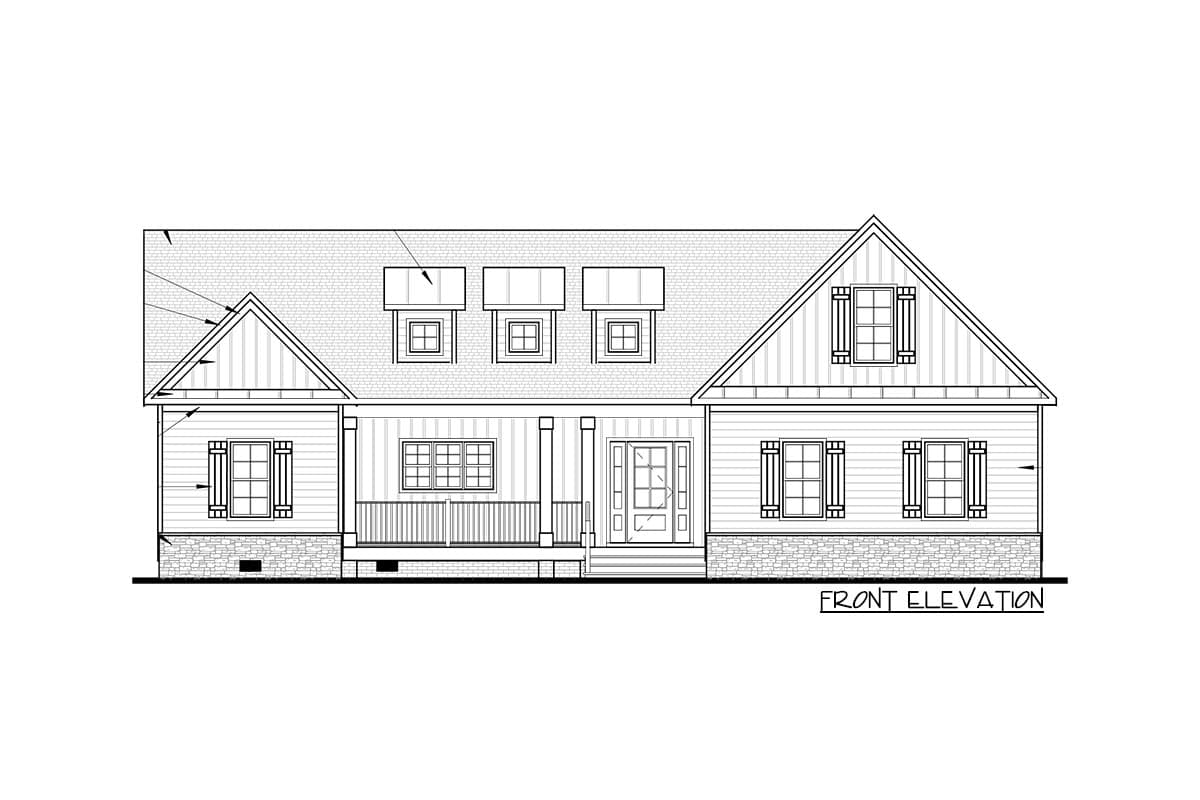

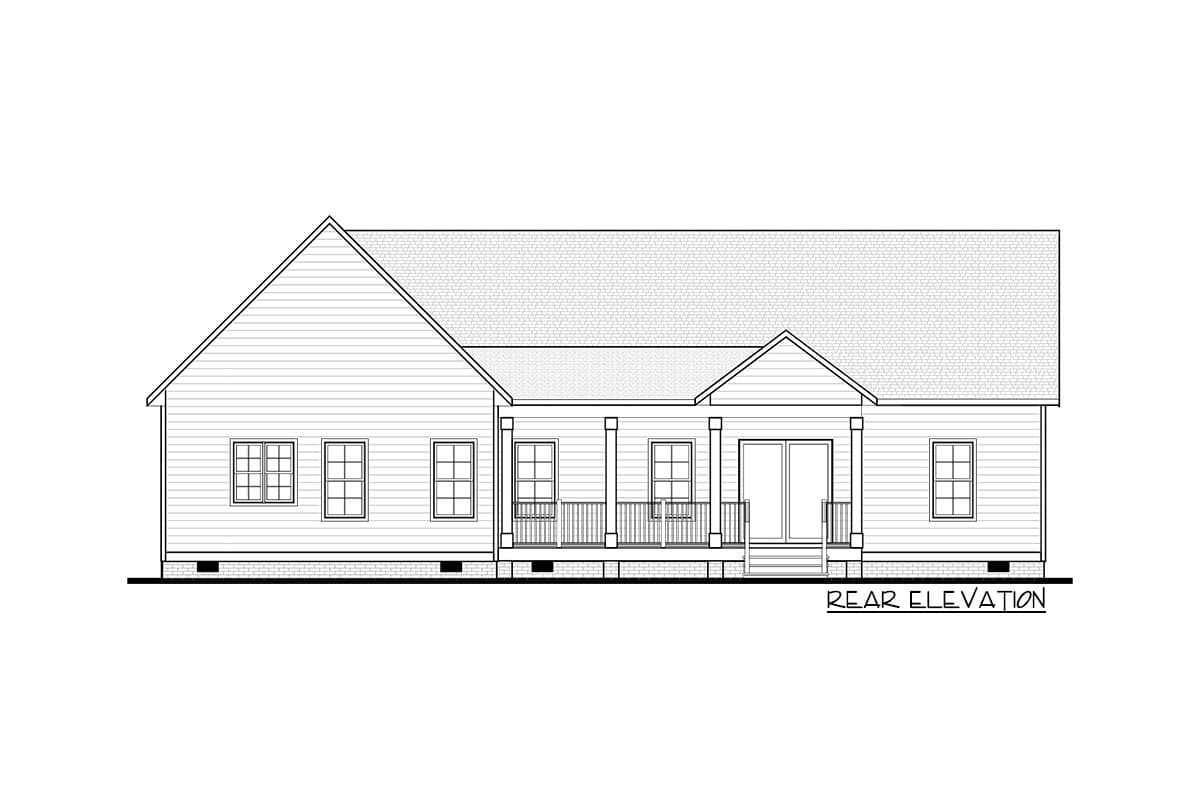

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level Country Home Plan with Vaulted Living Space

  • 1,664

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,664 sq. ft.
  • 1st Floor: 1,664 sq. ft.
  • Unfin. Bonus Rm.: 219 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 48' 0"
  • Max ridge height: 22' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
