Plan 67803MG
One-level Craftsman Home Plan with Split Bedrooms
Heated S.F.
1,244
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Shake siding and timber-framed gables decorate the exterior of this one-level, Craftsman home plan, while inside, you will find 3 bedrooms, an open layout, and a mudroom next to the double garage.
  • From the foyer, a shed dormer provides a vaulted ceiling overhead. To the left, a hallway leads to two family bedrooms separated by a shared bath.
  • The great room, dining area, and kitchen are open to one another, anchored by a multi-use island with a snack bar.
  • The master suite is set apart from the other bedrooms for added privacy, and is paired with a 4-fixture bathroom and walk-in closet.
  • The double garage offers access from the front of the home, and a convenient mudroom includes your washer, dryer, and utility sink.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Craftsman Home Plan with Split Bedrooms

  • 1,244

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

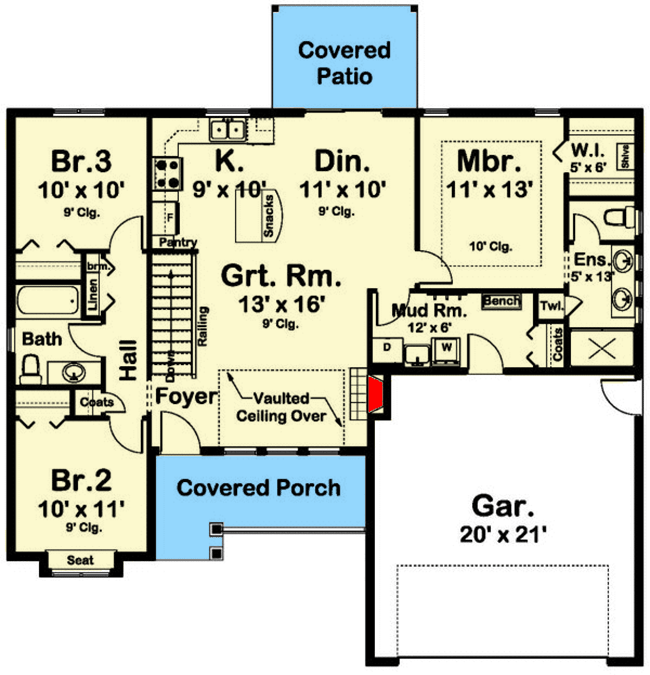

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,244 sq. ft.
  • 1st Floor: 1,244 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 50' 0"
  • Max ridge height: 19' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 454 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
